Description

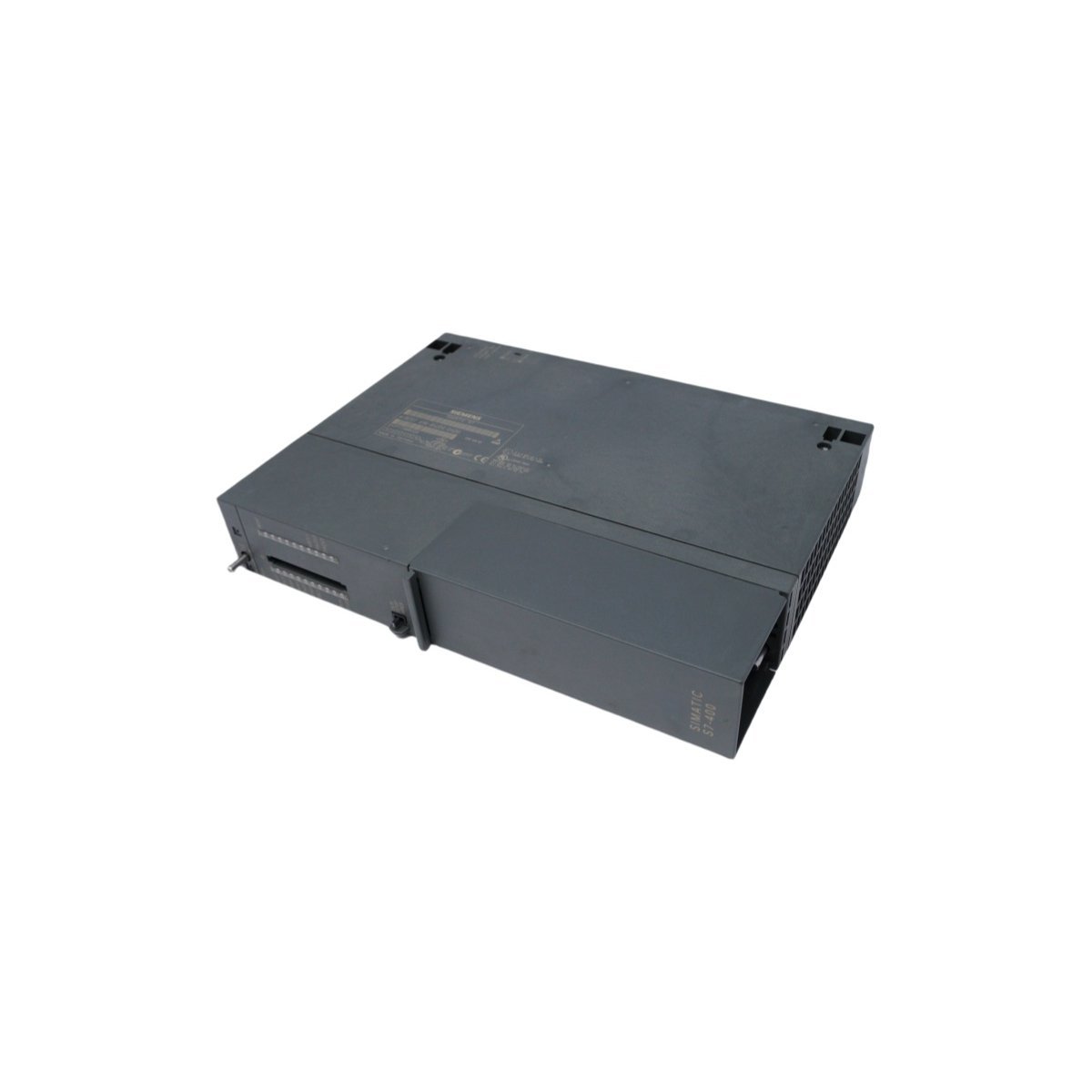

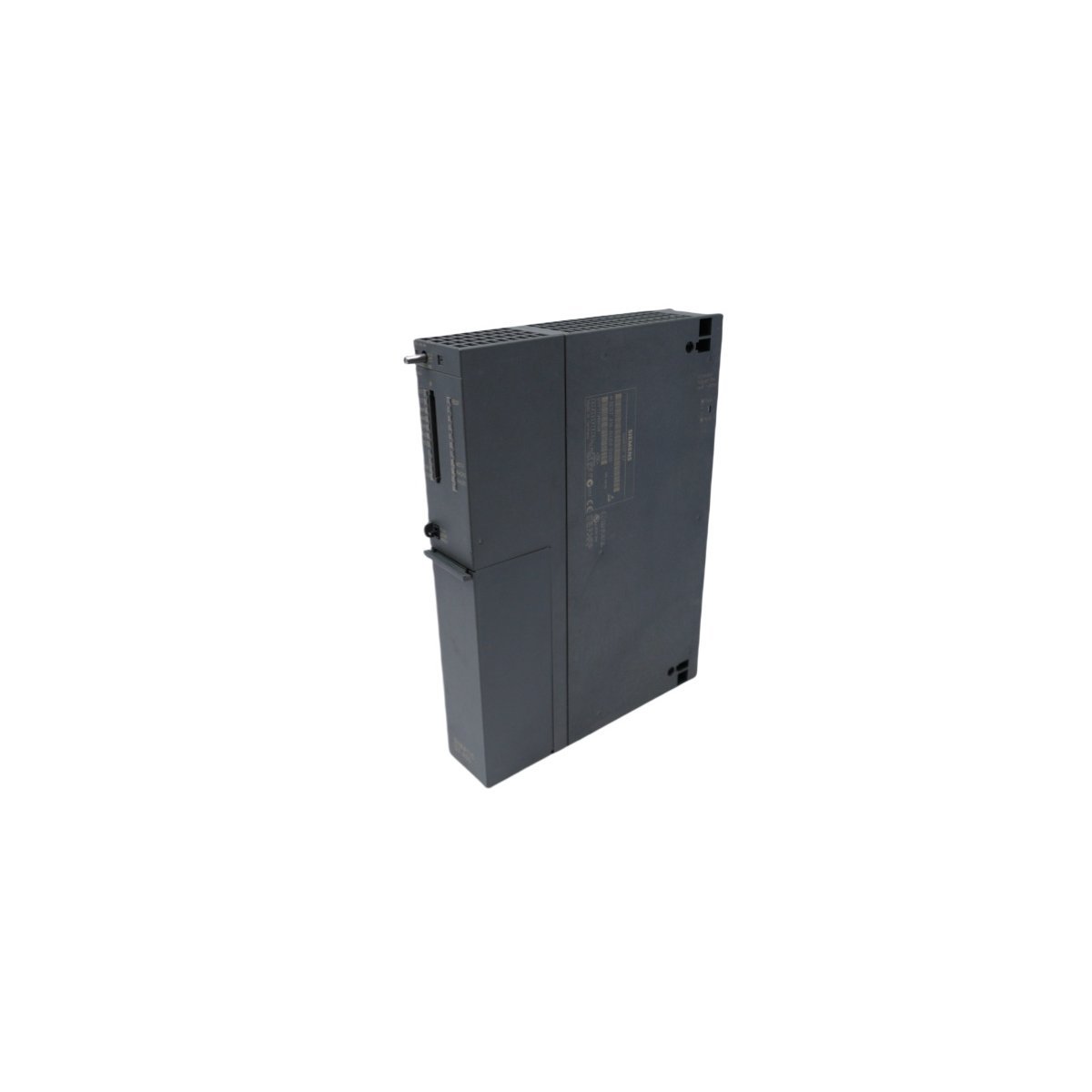

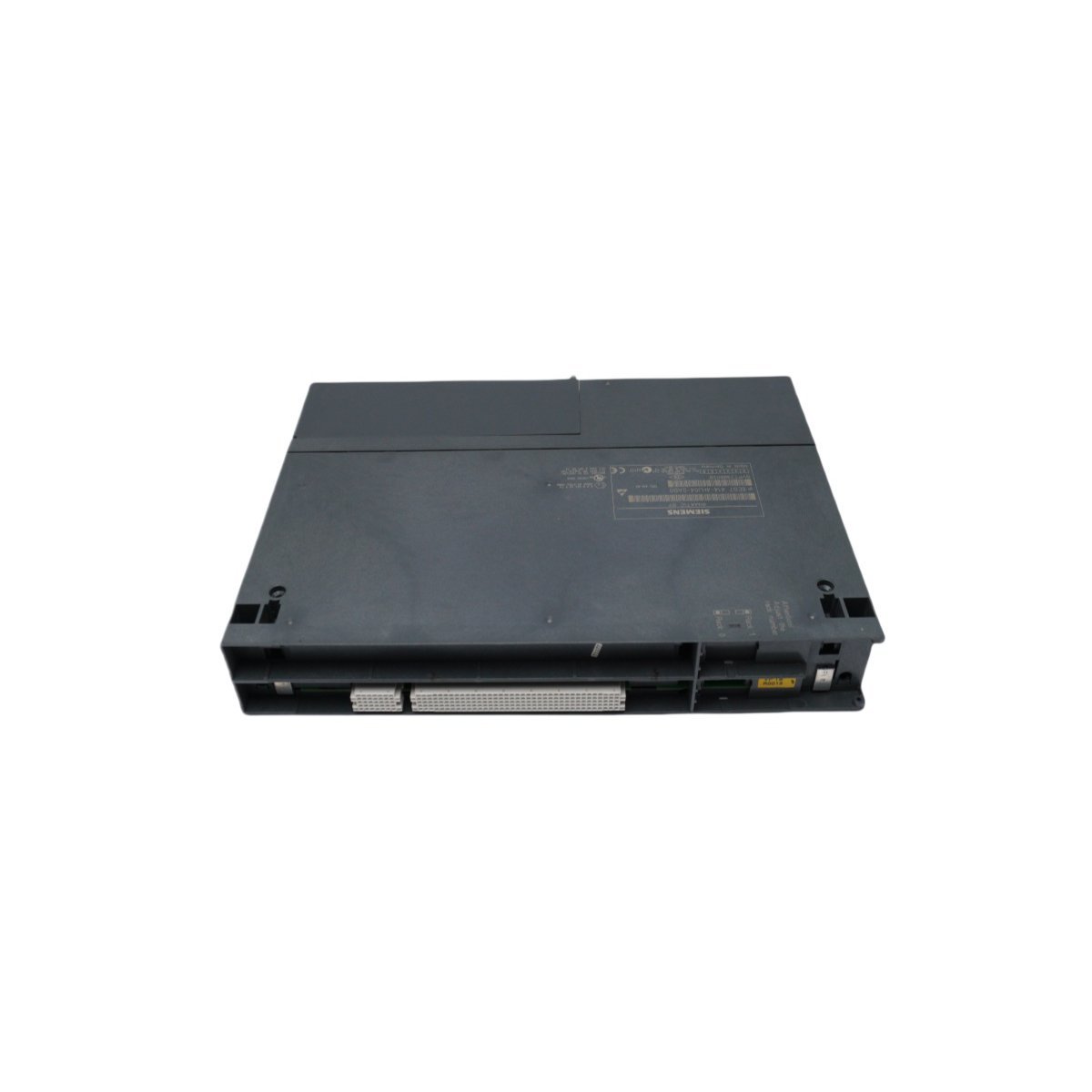

The Siemens 6ES7414-4HJ04-0AB0 is a high-performance central processing unit designed for the SIMATIC S7-400 automation platform. This module handles sophisticated control tasks in mid-to-high-end industrial environments. Because it belongs to the S7-400 family, it excels in process engineering and large-scale manufacturing applications. The processor ensures rapid data execution and seamless system coordination. Consequently, it provides a stable foundation for complex automation architectures requiring high availability.

Technical Specifications

Advanced Control and Multiprocessing Capabilities

This processor module supports advanced multiprocessing configurations within a single rack. Therefore, users can distribute heavy computational loads across multiple CPUs to increase overall throughput. The 1.4 MB integrated memory provides ample space for complex user programs and large data blocks. Furthermore, the unit features an integrated PROFIBUS DP interface for high-speed communication with field devices. It also supports various HMI and motion control integration options. These features allow for highly flexible and scalable industrial control strategies.

Reliability and Engineering Efficiency

Siemens designed the 6ES7414-4HJ04-0AB0 for continuous operation in demanding conditions. The fanless hardware design significantly reduces mechanical wear and long-term maintenance requirements. Additionally, the CPU integrates fully with SIMATIC engineering tools for streamlined project development. It supports multiple programming languages, including high-level graphical tools and instruction lists. This compatibility accelerates commissioning while ensuring code precision. The module also facilitates extensive diagnostic functions to minimize system downtime during faults.

Key Performance Benefits

• Executes bit-level logic operations at a rapid speed of 0.06 μs.
• Includes 1.4 MB of work memory divided between code and data segments.
• Features dual communication interfaces for MPI and PROFIBUS DP networking.
• Supports high-density I/O configurations with up to 128 modules per system.
• Provides a robust German-engineered hardware profile for industrial longevity.
• Enables efficient synchronization between HMI, SCADA, and distributed fieldbus systems.
