Description

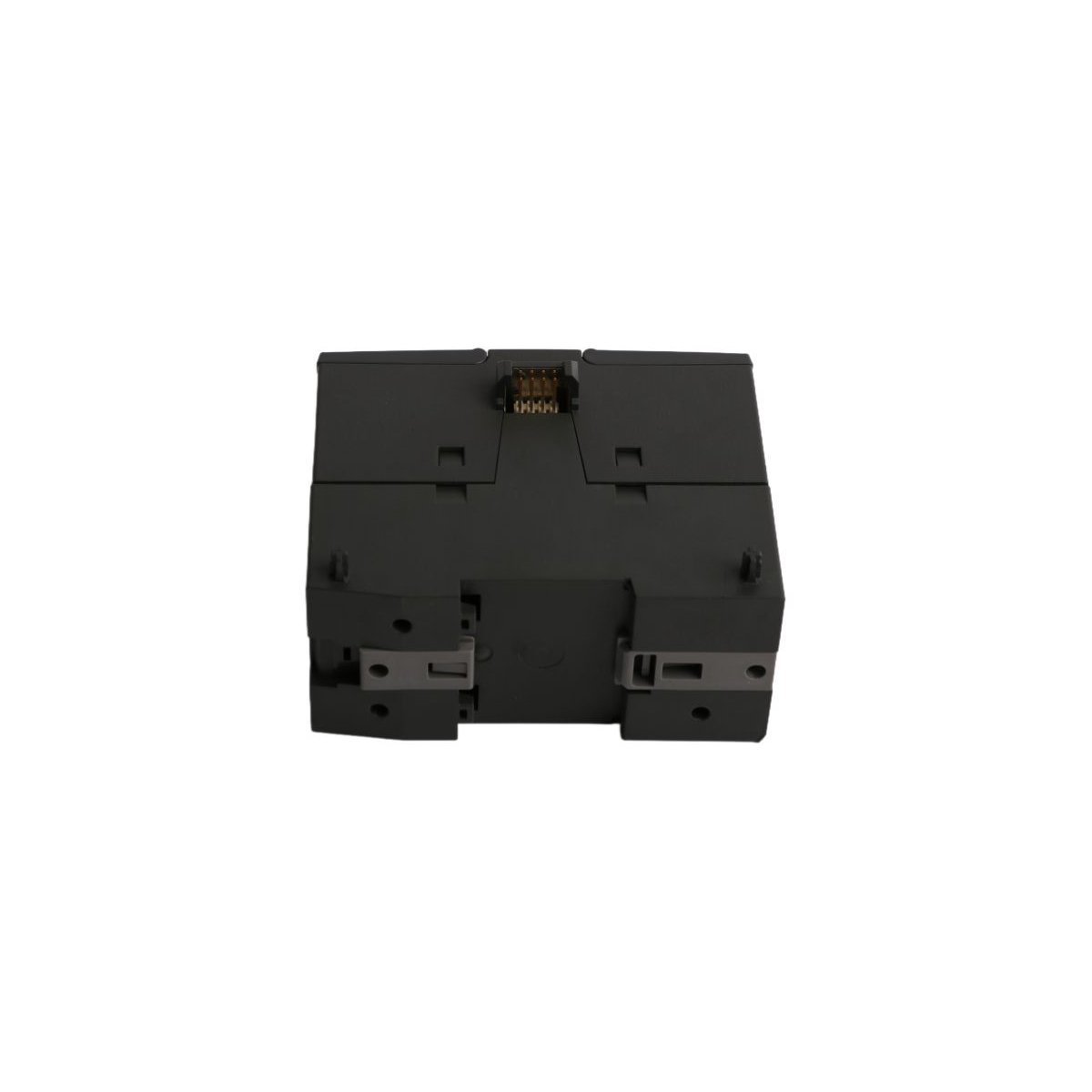

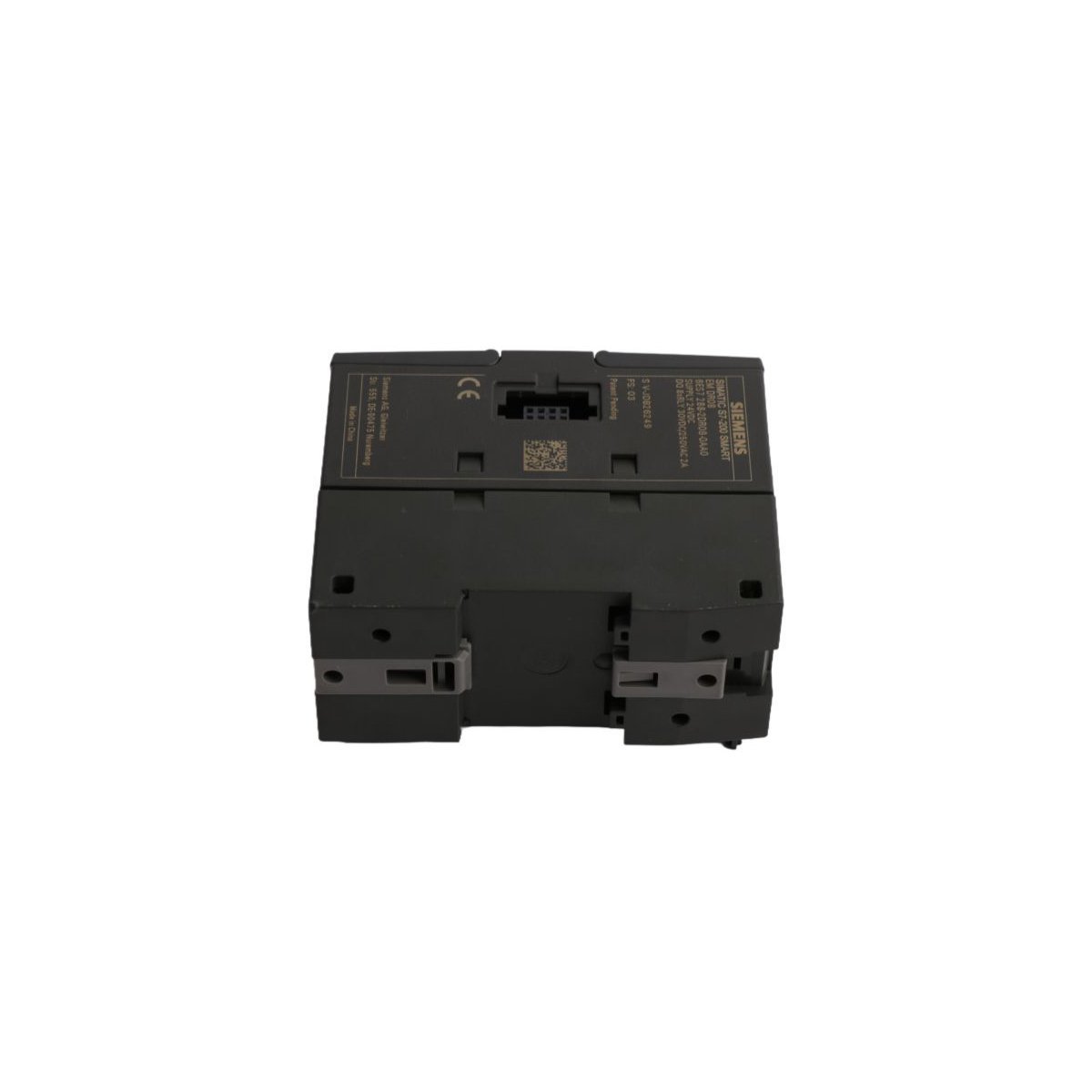

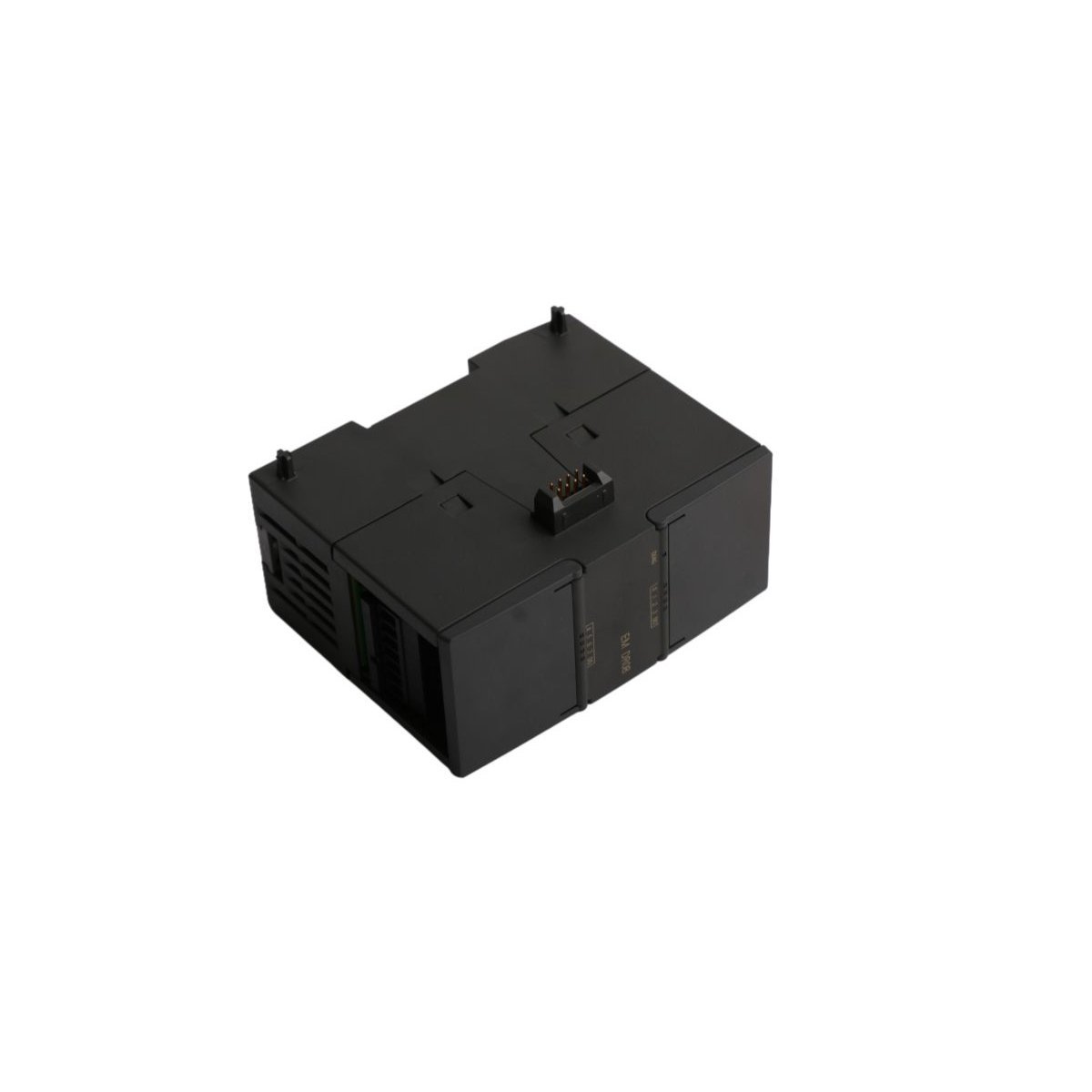

The Siemens 6ES7288-2DR08-0AA0 serves as a high-density expansion module for the S7-200 SMART PLC series. This unit provides eight independent relay outputs for diverse control tasks. It effectively bridges the gap between low-level logic and high-power field devices. Furthermore, the relay design supports both AC and DC load switching. This versatility makes it ideal for managing various actuators in factory automation. The module ensures reliable signal isolation between the CPU and the industrial process.

Electrical Characteristics and Connectivity

This SM DR08 module operates within a standard 24V DC power framework. It specifically accepts a voltage range between 20.4V and 28.8V DC. For internal logic, the module draws 90mA from the 5V DC backplane bus. The relay contacts handle current loads up to 2A per channel. Additionally, integrated reverse polarity protection prevents damage during installation. These technical safeguards ensure long-term stability in electrically noisy environments. The hardware connects seamlessly to the CPU via the standard S7-200 SMART bus connector.

Technical Specifications

Industrial Applications and Housing

The compact footprint allows for efficient use of space within control cabinets. Consequently, engineers utilize this module for automated assembly lines and packaging machinery. It also performs exceptionally well in conveyor system synchronization. The robust German engineering guarantees durability under demanding thermal conditions. Furthermore, the module supports simultaneous operation of all eight channels without significant derating. This makes it a dependable choice for high-frequency switching applications.

Integration within the SMART Ecosystem

Compatibility remains a core advantage of the 6ES7288-2DR08-0AA0 within the Siemens portfolio. It works harmoniously with SMART line CPUs to expand I/O capacity. The plug-and-play architecture simplifies both hardware setup and software configuration. Moreover, the clear LED indicators on the front panel provide instant status updates. This visibility assists technicians during routine maintenance and troubleshooting. Therefore, the module enhances the overall efficiency of the SIMATIC automation framework.
