Description

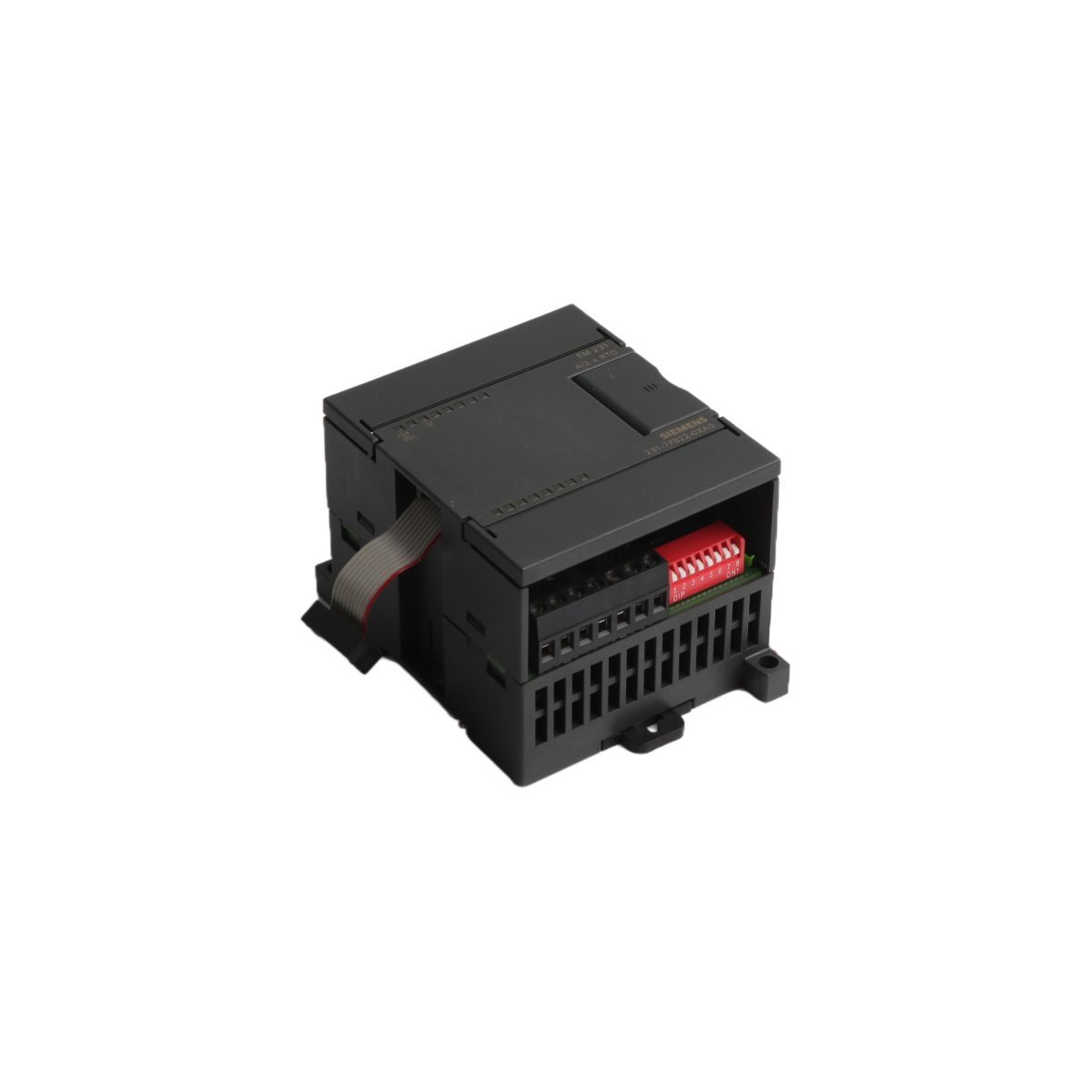

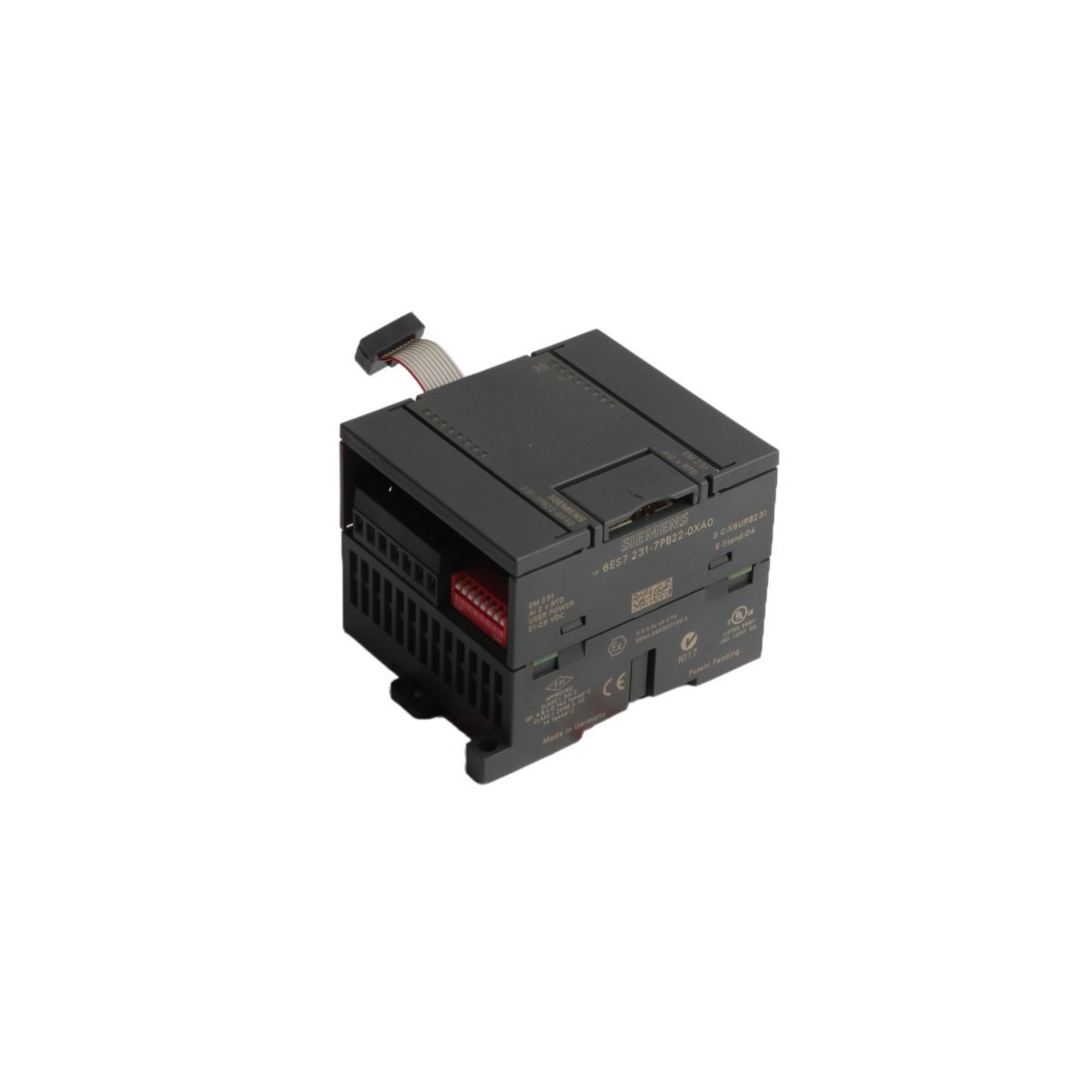

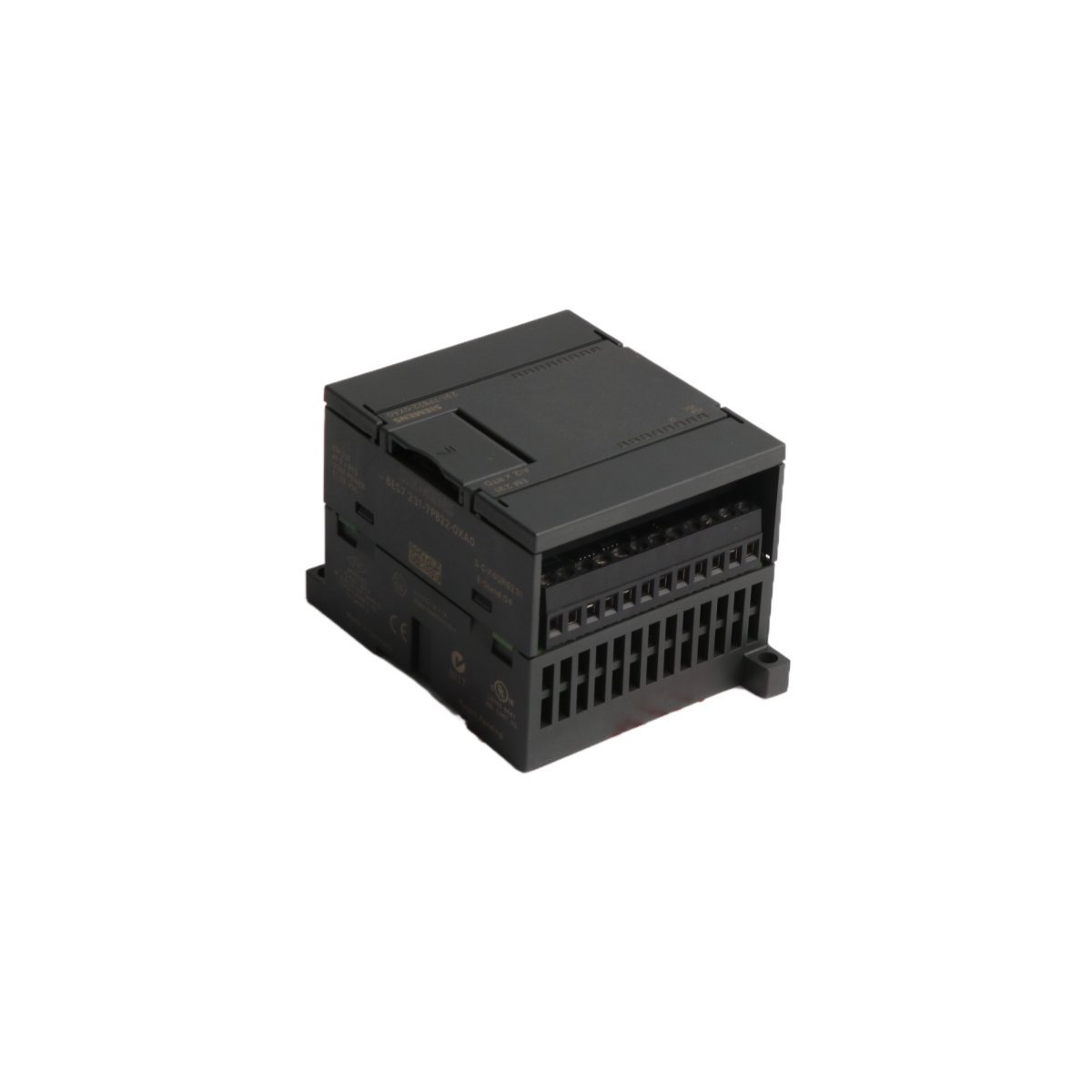

The Siemens 6ES7231-7PB22-0XA0 is a specialized EM 231 expansion module for the SIMATIC S7-200 controller series. This unit provides dedicated Resistance Temperature Detector (RTD) processing capabilities. It features two precision analog input channels for high-accuracy temperature monitoring. Consequently, it allows the PLC to interpret thermal data from industrial environments directly.

This expansion module converts resistance variations into linear temperature values for the CPU. Because it focuses on RTD signals, it eliminates the need for external transducers. The compact design ensures easy mounting on standard DIN rails. Furthermore, it integrates seamlessly into existing S7-200 automation architectures.

Technical Specifications

Operational Features

Advanced Signal Processing

The module uses sophisticated signal conditioning to maintain measurement integrity. It effectively suppresses electrical noise commonly found in industrial settings. Therefore, the PLC receives stable and accurate temperature readings. The 15-bit resolution ensures fine-grained data acquisition for sensitive process control.

Versatile Sensor Compatibility

Users can configure the two channels for various standard RTD types. This includes platinum and nickel sensors with different resistance curves. The module supports 2-wire, 3-wire, and 4-wire connection methods. Specifically, the 4-wire configuration provides the best compensation for long cable runs. This versatility makes the module suitable for diverse mechanical applications.

Diagnostic and Safety Functions

Integrated diagnostics enhance the reliability of the temperature control loop. The module monitors for common field faults like open circuits or shorted sensors. If a signal goes out of range, the PLC identifies the error immediately. Consequently, maintenance teams can resolve issues before they impact production quality.
