Description

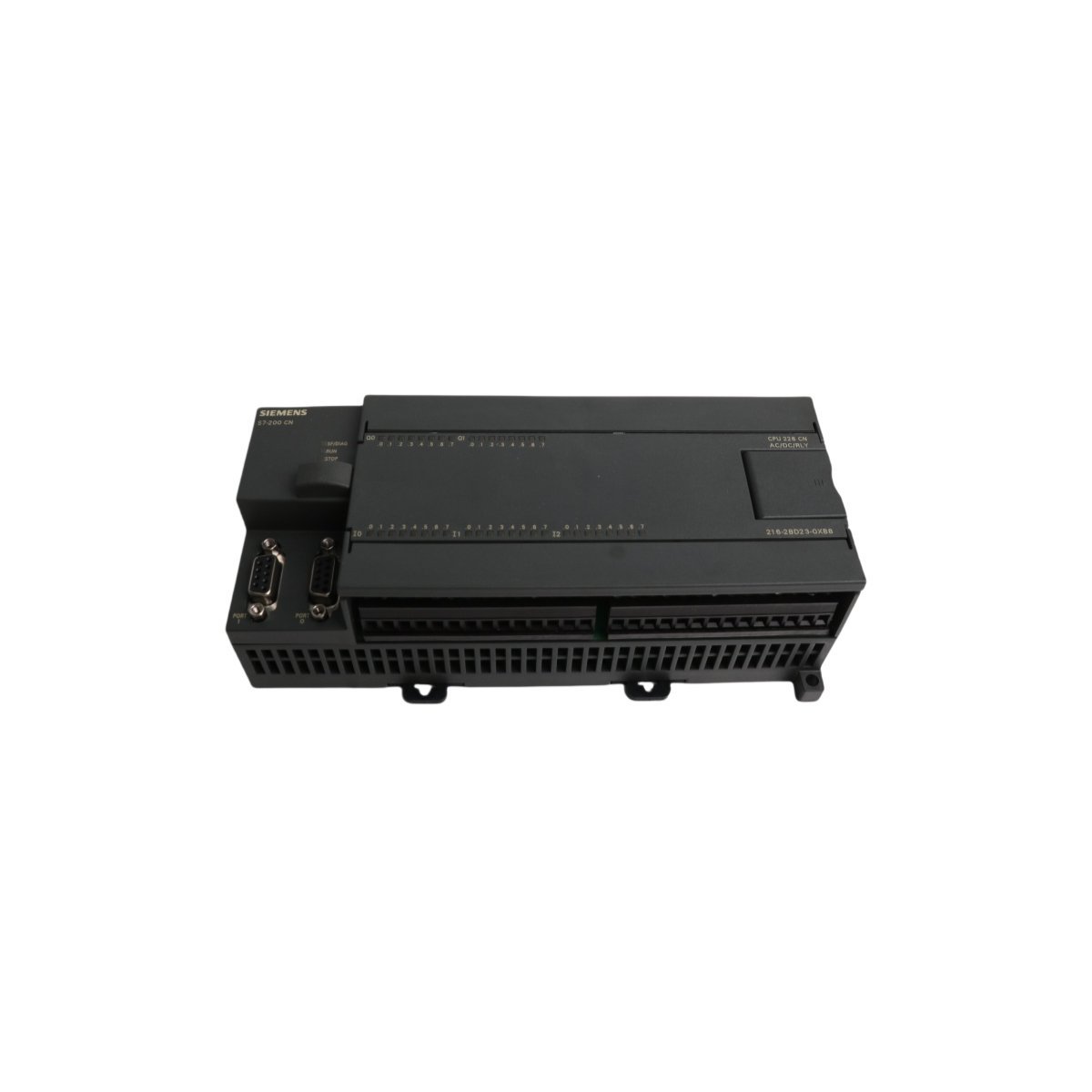

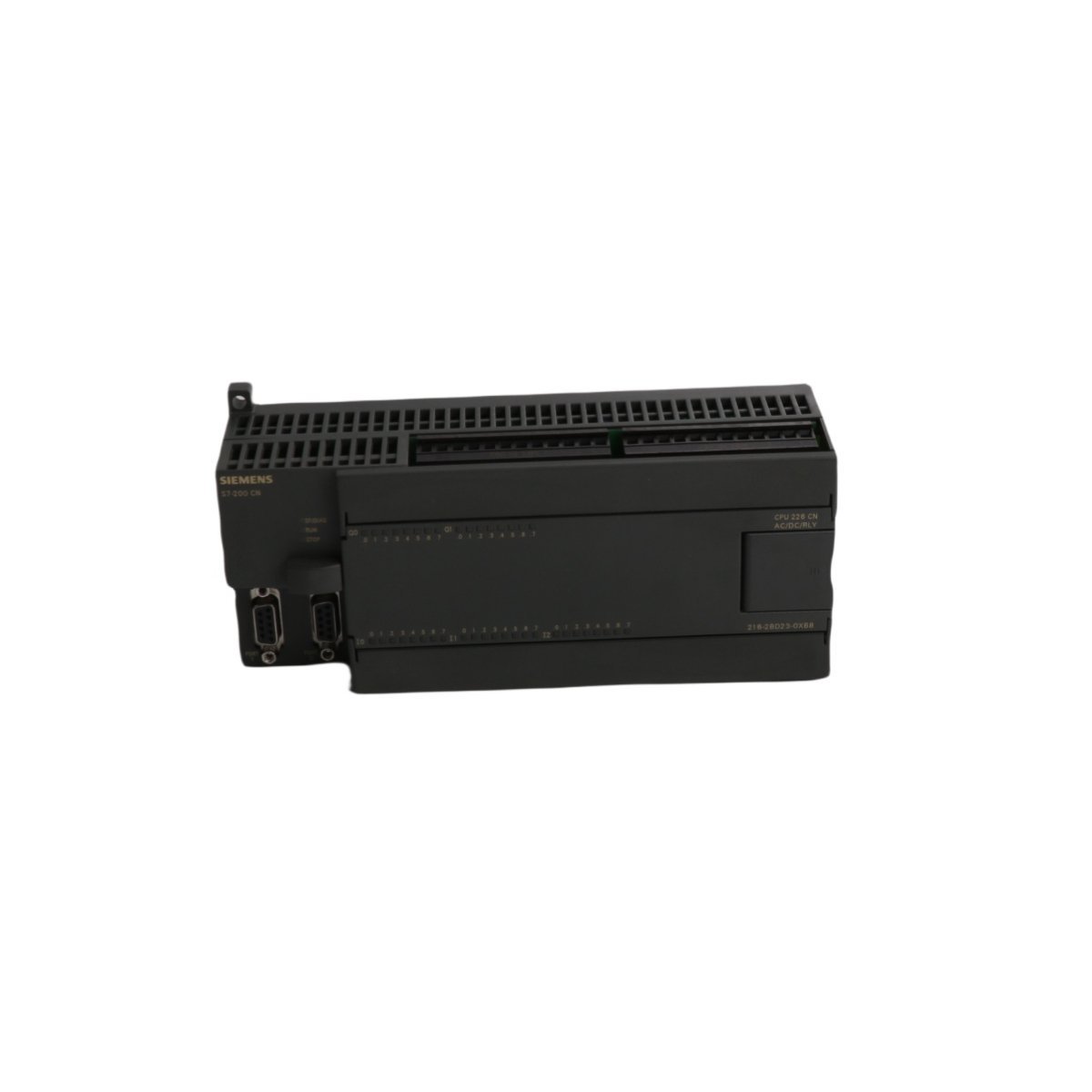

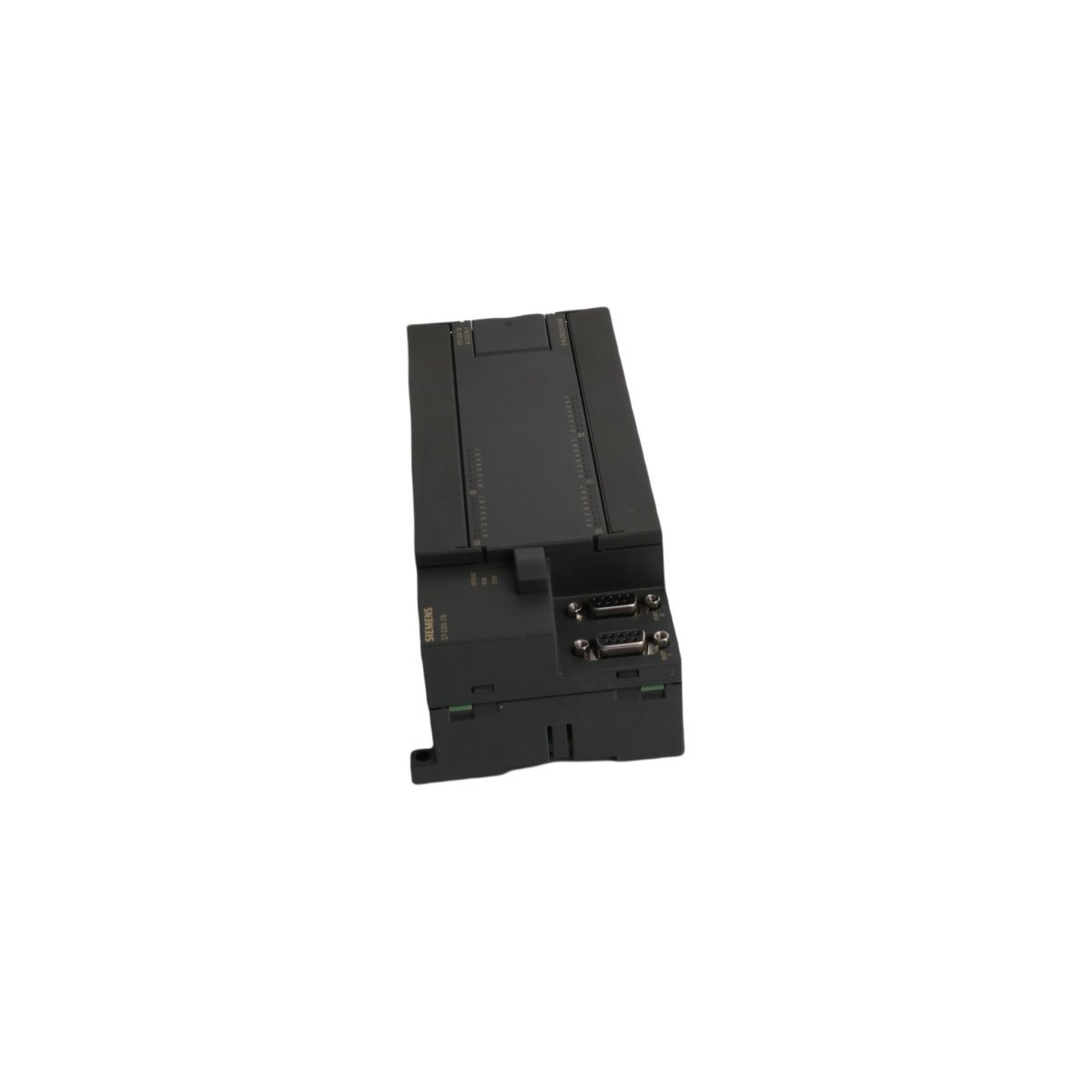

The Siemens 6ES7216-2BD23-0XB8 serves as a high-performance central processing unit within the SIMATIC S7-200 series. This compact controller integrates both logic processing and I/O handling into a single robust housing. It features 24 digital inputs and 16 relay outputs to manage diverse field devices. Consequently, it excels in standalone machine control and distributed automation architectures. The unit provides a cost-effective solution for small to medium-scale industrial projects.

Furthermore, this CPU 226 model includes dual RS485 communication ports. These interfaces support Point-to-Point Interface (PPI) and user-programmable Freeport protocols. This connectivity allows for seamless integration with HMI panels and other PLC network nodes. The controller handles complex local logic while maintaining a small installation footprint.

Technical Capabilities and Memory Specifications

Reliable Performance in Industrial Environments

The 6ES7216-2BD23-0XB8 prioritizes operational stability for manufacturing applications. It utilizes AC power supply for easy integration into standard electrical panels. The relay outputs allow for direct switching of actuators without additional interposing hardware. Moreover, the unit supports various expansion modules to increase total I/O capacity. This flexibility ensures the system grows alongside your specific automation requirements.

Additionally, the programming environment utilizes standard SIMATIC tools for efficient code development. The internal memory safely stores critical process data during power interruptions. Integrated high-speed counters support precise timing and frequency measurements for pulse-based sensors. These professional features make the CPU 226 a reliable choice for machine builders worldwide.

Primary Application Areas

• Control of packaging machinery and labeling equipment.
• Management of small-scale conveyor and sorting systems.
• Basic process control in water treatment facilities.
• Building automation for lighting and HVAC sequences.
• Standalone motor control and status monitoring applications.
