Description

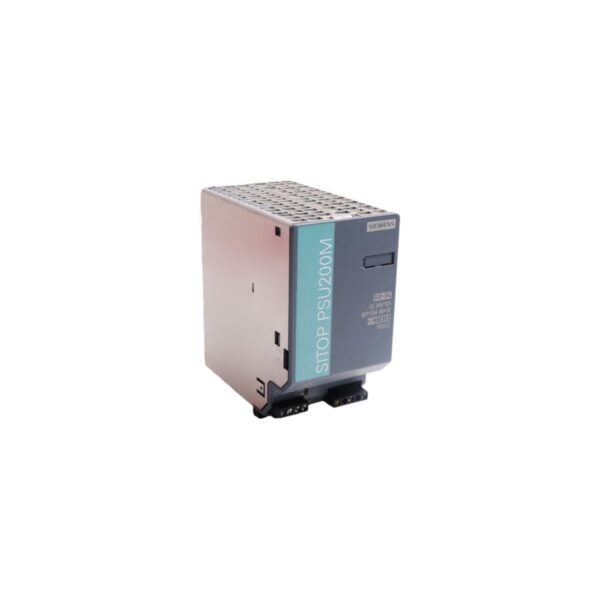

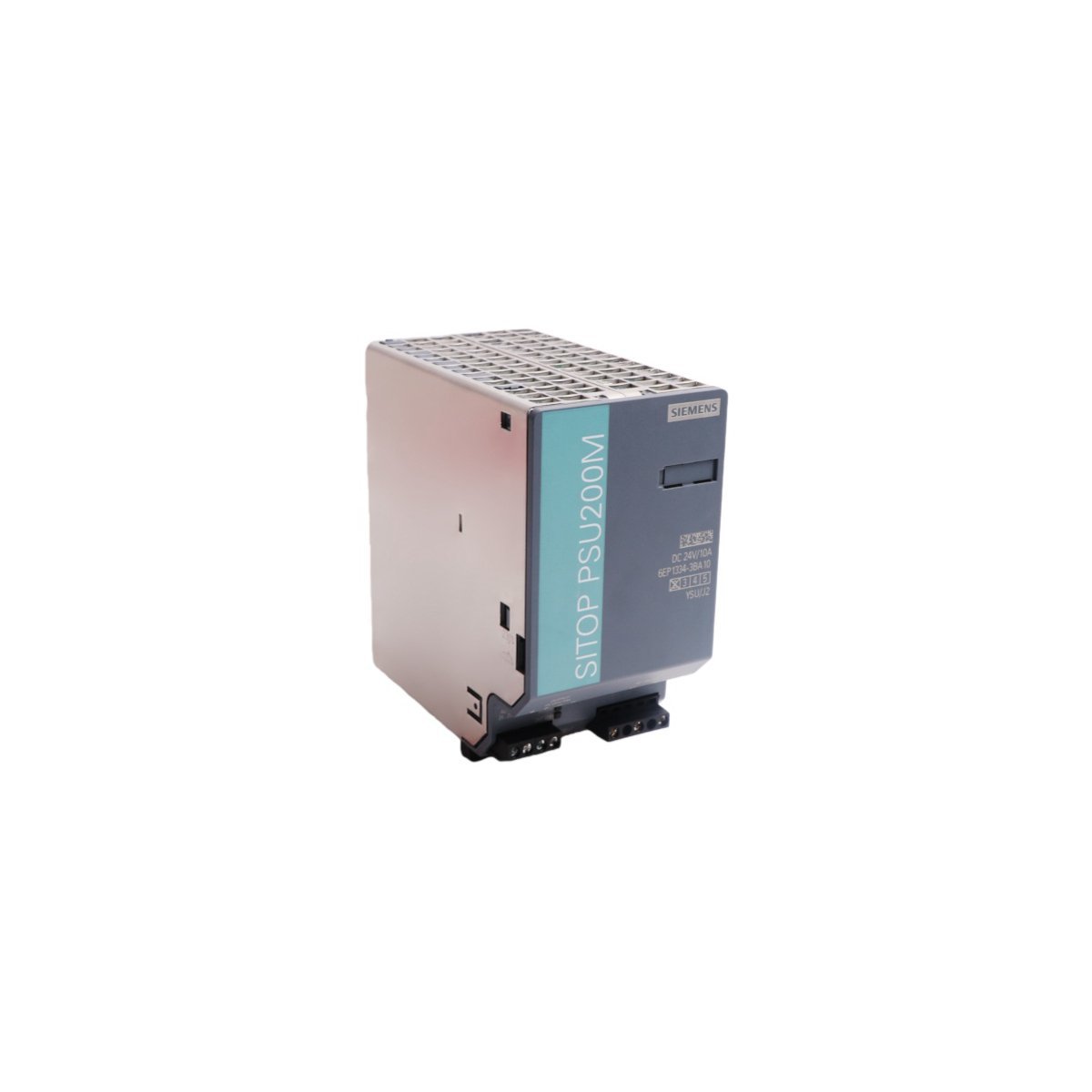

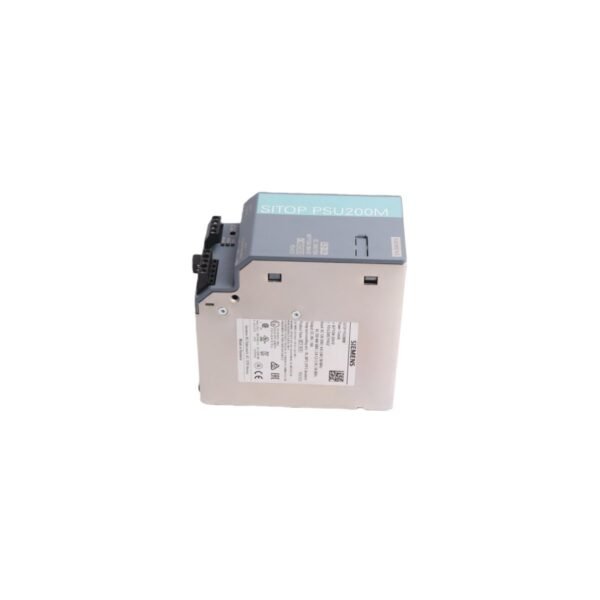

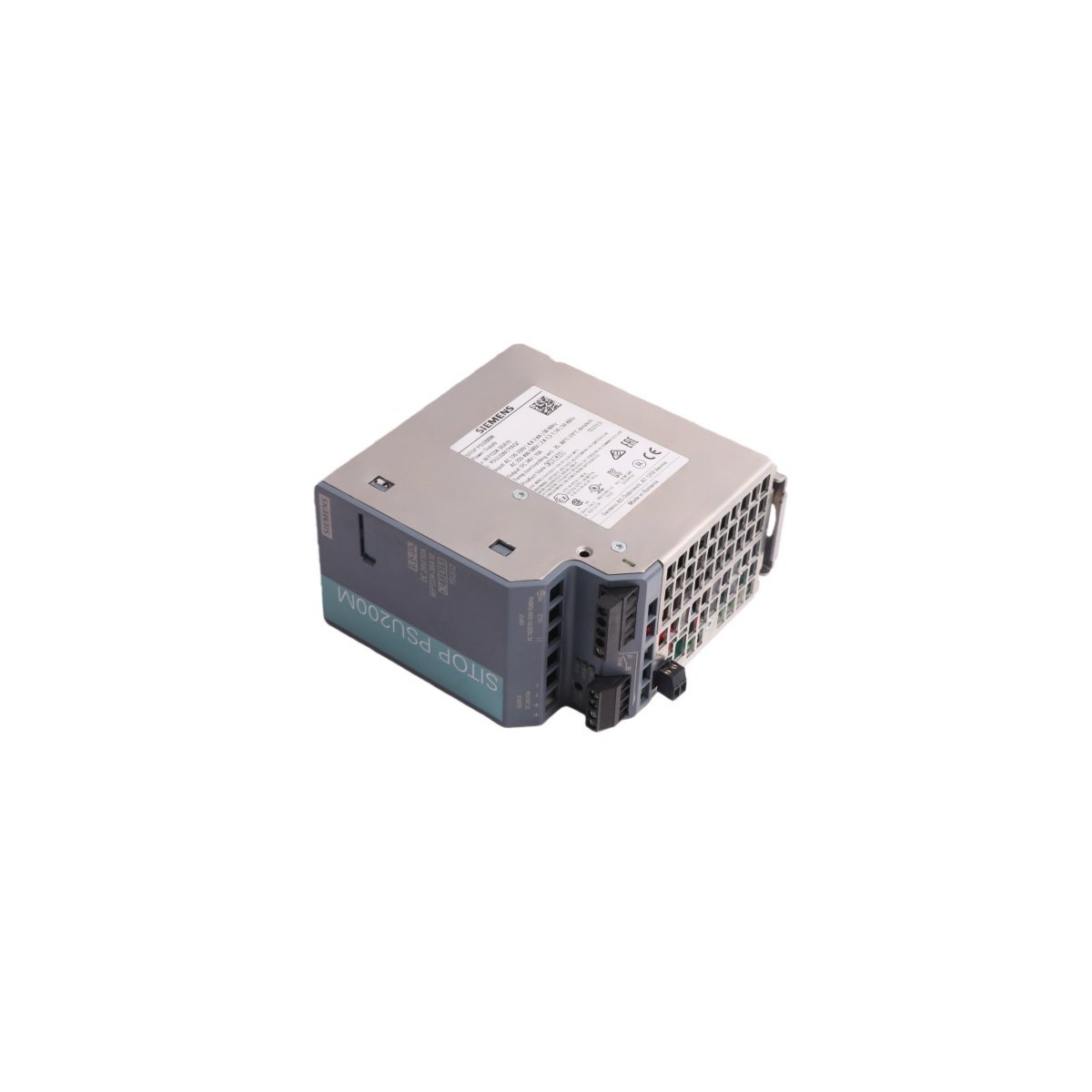

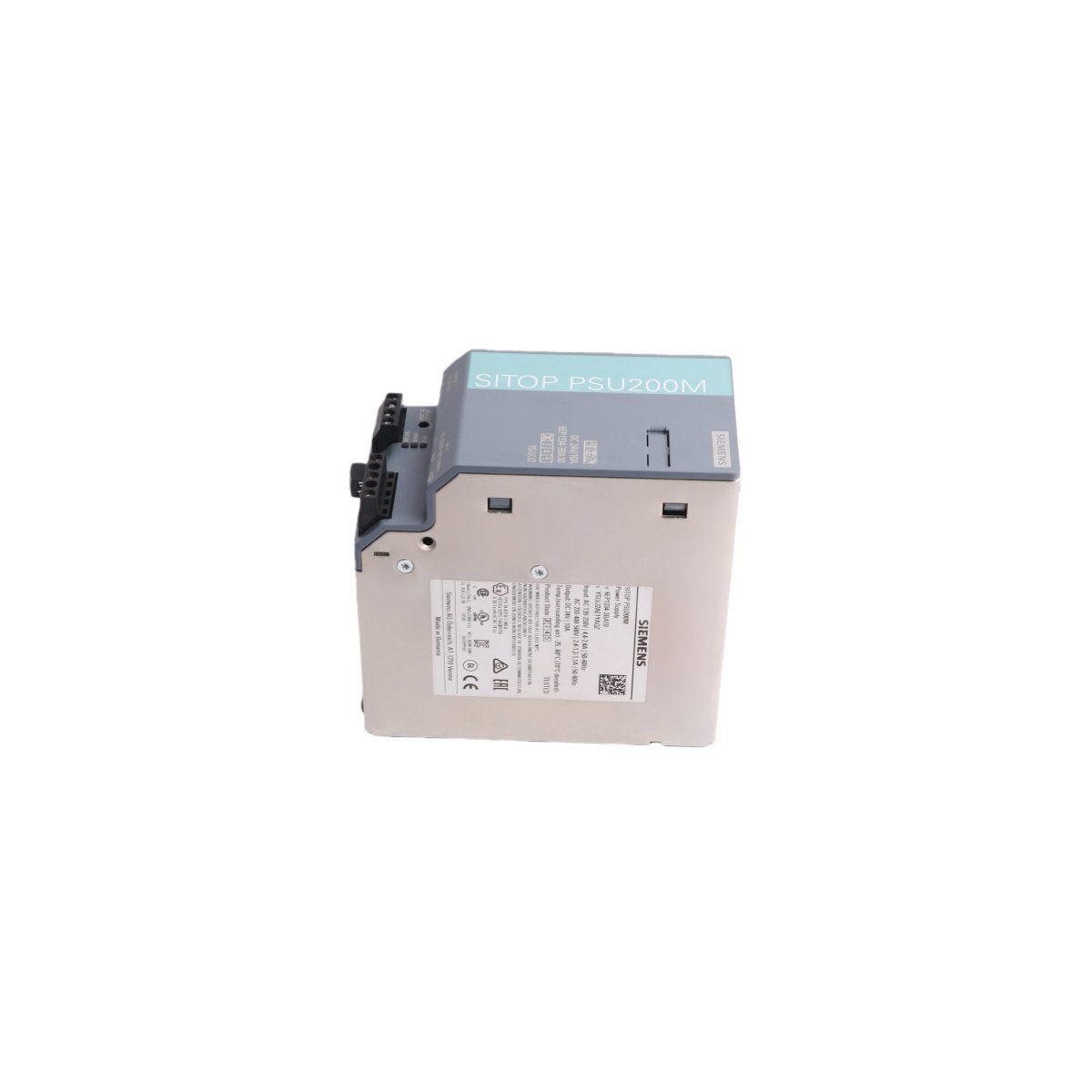

The Siemens 6EP1334-3BA10 is a high-performance stabilized power supply from the modular SITOP PSU200M family. This unit provides a constant 24V DC output at 10A to power critical industrial automation and control devices. Because it features a wide-range input, the device operates seamlessly across various global electrical grids. It supports single-phase or two-phase AC networks with high resistance to voltage fluctuations. The robust design ensures stable energy delivery for complex machinery in demanding environments.

Technical Specifications

Advanced Power Management and Protection

A significant technical highlight of this module is the integrated Power Boost functionality. This capability delivers triple the rated current for brief periods during startup. Consequently, the unit manages heavy inrush currents from multiple connected motors or capacitive loads effectively. For long-term protection, users can toggle between two distinct overload response modes. You may choose an automatic restart with constant current or a safety-focused latching shutdown. These features prevent unnecessary downtime while safeguarding sensitive electronic components from electrical stress.

Industrial Integration and Efficiency

The 6EP1334-3BA10 utilizes a compact metal enclosure to optimize heat dissipation and save DIN rail space. Its high operational efficiency minimizes energy loss and reduces the thermal footprint within control cabinets. Furthermore, the module serves as a base for highly available power systems. It integrates perfectly with SITOP expansion modules, including redundancy, selectivity, and DC UPS units. This flexibility allows engineers to build fault-tolerant architectures for mission-critical applications. The unit meets global standards, ensuring reliable performance in manufacturing, processing, and infrastructure sectors.

Primary Technical Advantages

• Operates on wide-range AC inputs for international compatibility.
• Provides 10A of stabilized 24V DC power for industrial controllers.
• Delivers exceptional peak current capacity via the Power Boost feature.
• Offers selectable overload behaviors to suit specific safety requirements.
• Minimizes cabinet heat generation through high-efficiency power conversion.
• Supports modular expansion with SITOP redundancy and buffer modules.
• Features a slim, durable design for high-density installation environments.
