Description

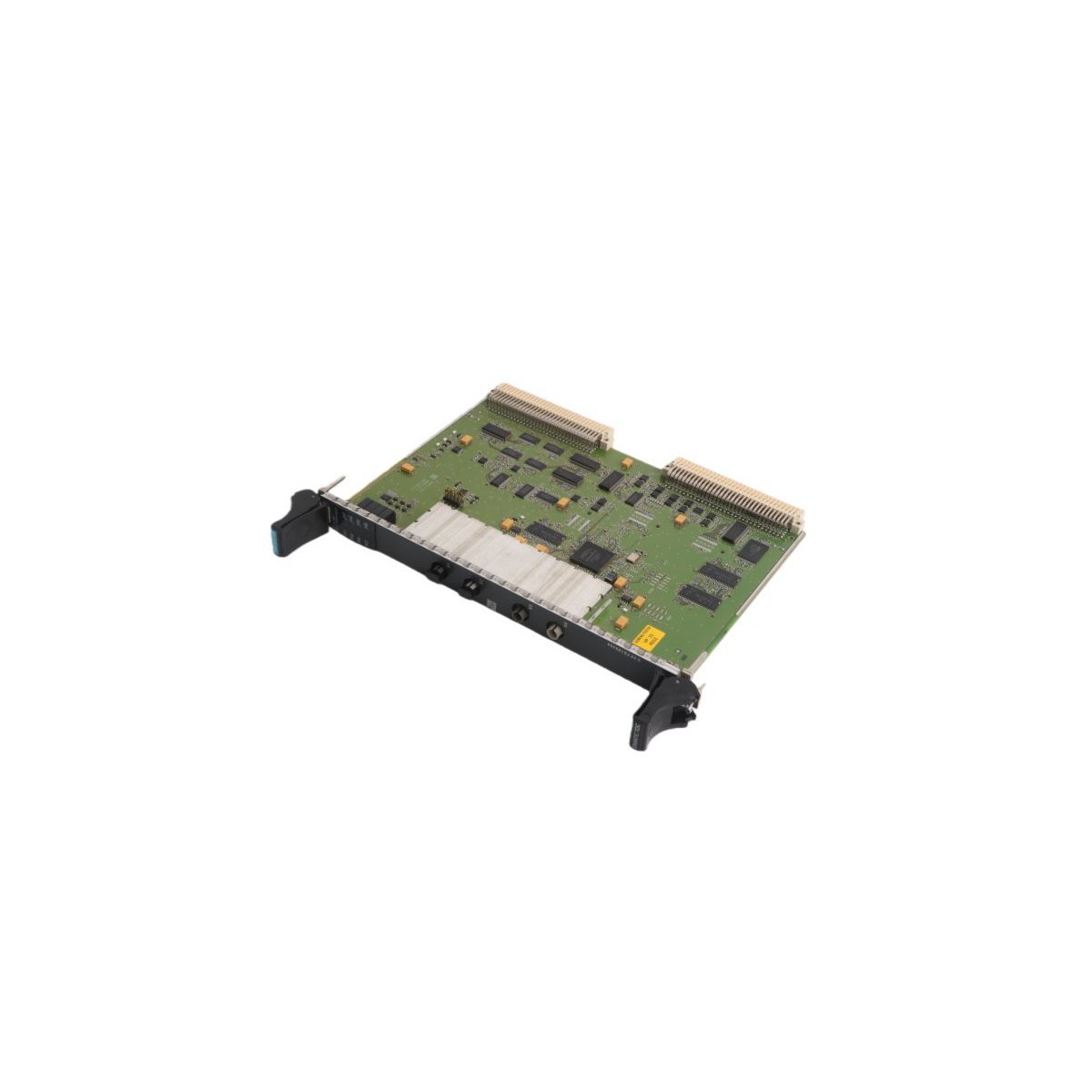

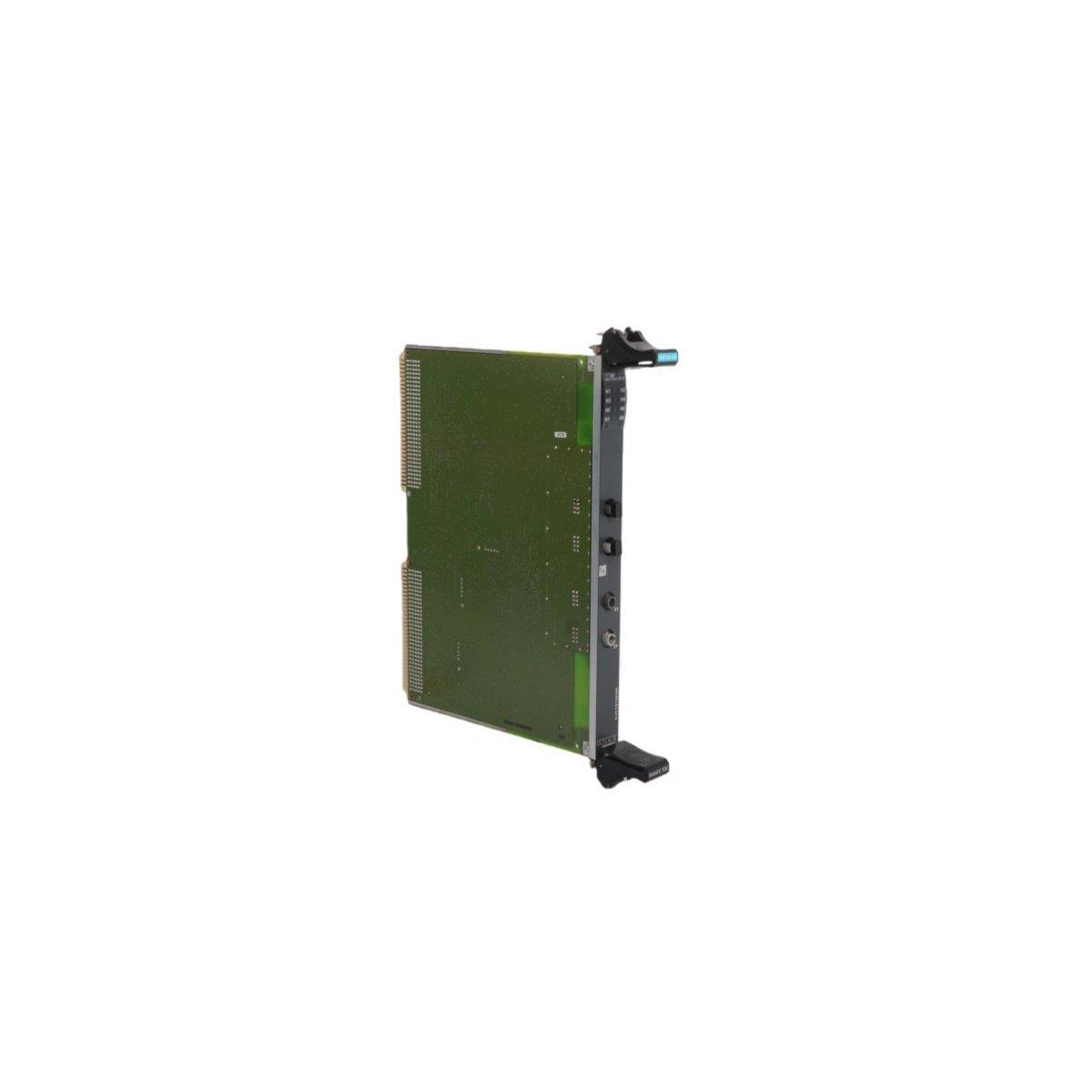

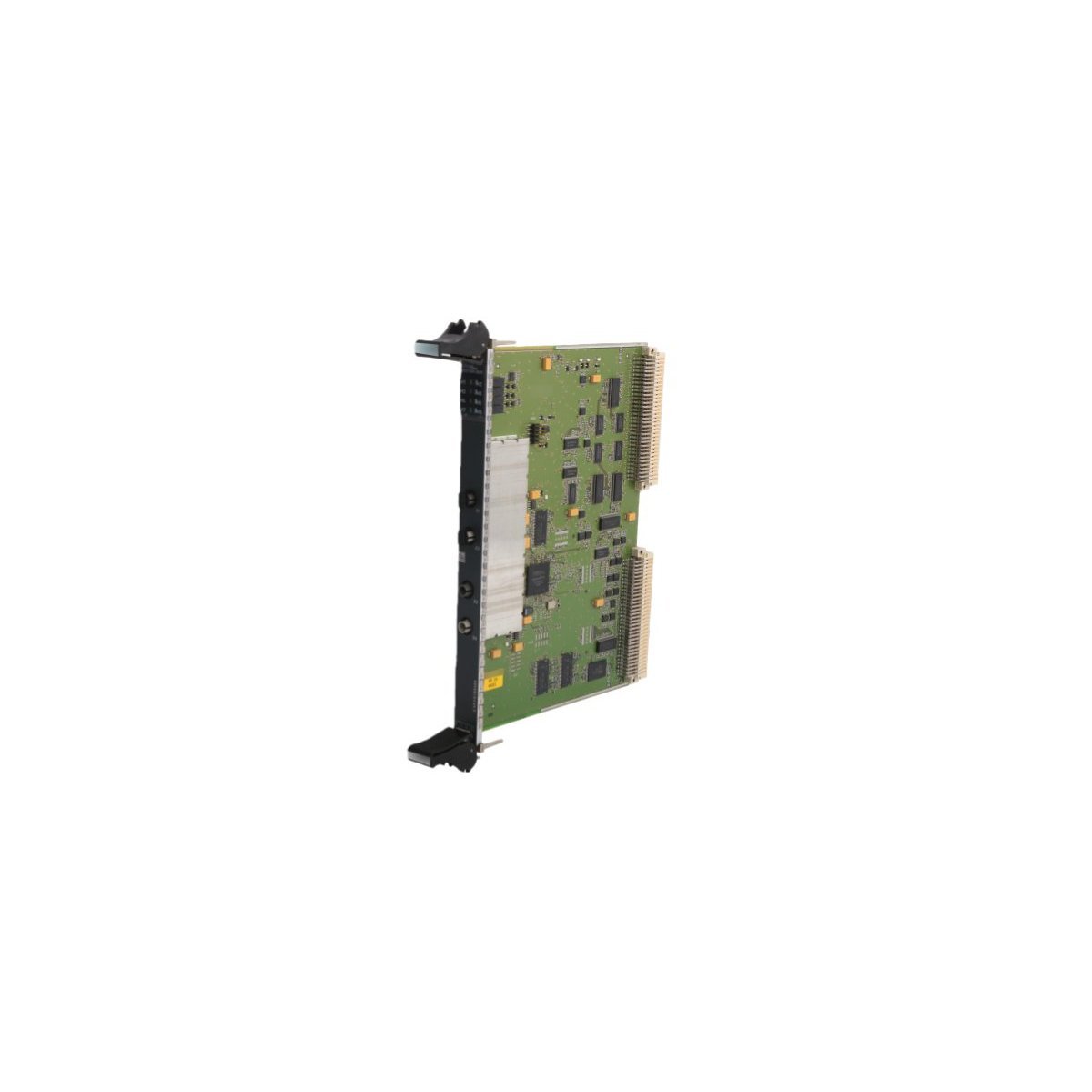

The Siemens 6DD1660-0BB0 serves as a high-performance master coupling module for SIMATIC TDC and SIMADYN D control systems. This specialized hardware enables rapid data synchronization across multiple subracks using fiber optic technology. It primarily targets large-scale industrial plants that require massive processing power and distributed architectures. Consequently, it maintains consistent system performance during high-speed control tasks.

Engineers implement this module to bridge communication between central and expansion racks. It ensures zero-interference signal transmission over long distances in electrically noisy environments. Furthermore, the robust German construction guarantees long-term stability for mission-critical legacy systems. This makes it an essential component for maintaining high-availability automation infrastructures.

Technical Specifications

Key Technical Characteristics

High-Speed Fiber Optic Coupling

The 6DD1660-0BB0 utilizes fiber optic interfaces to link various controller segments. This method provides total galvanic isolation between connected subracks. As a result, the system remains immune to electromagnetic interference and ground loops. The module facilitates real-time data exchange with minimal latency across the entire bus system.

Flexible System Scalability

This communications module supports the connection of up to four additional expansion racks. It allows users to scale their control architecture without upgrading the primary CPU. Because the module handles the heavy data traffic, it frees up processing resources for core automation logic. This scalability is vital for complex metal processing or power plant applications.

Reliable Legacy Support

Siemens designed this board to meet the rigorous standards of the SIMADYN D and TDC series. Although these systems are older, the 6DD1660-0BB0 remains highly reliable for ongoing operations. It integrates seamlessly into existing racks for immediate hardware restoration. Therefore, it provides a dependable solution for facilities looking to extend the life of their control assets.

Industrial Grade Durability

The hardware features a rugged PCB design suitable for continuous operation in harsh climates. High-quality connectors ensure secure physical links even in high-vibration environments. Moreover, the slim form factor optimizes the physical footprint within the control cabinet. This precision engineering minimizes heat generation and maximizes the operational lifespan of the module.
