Description

Brief Product Description

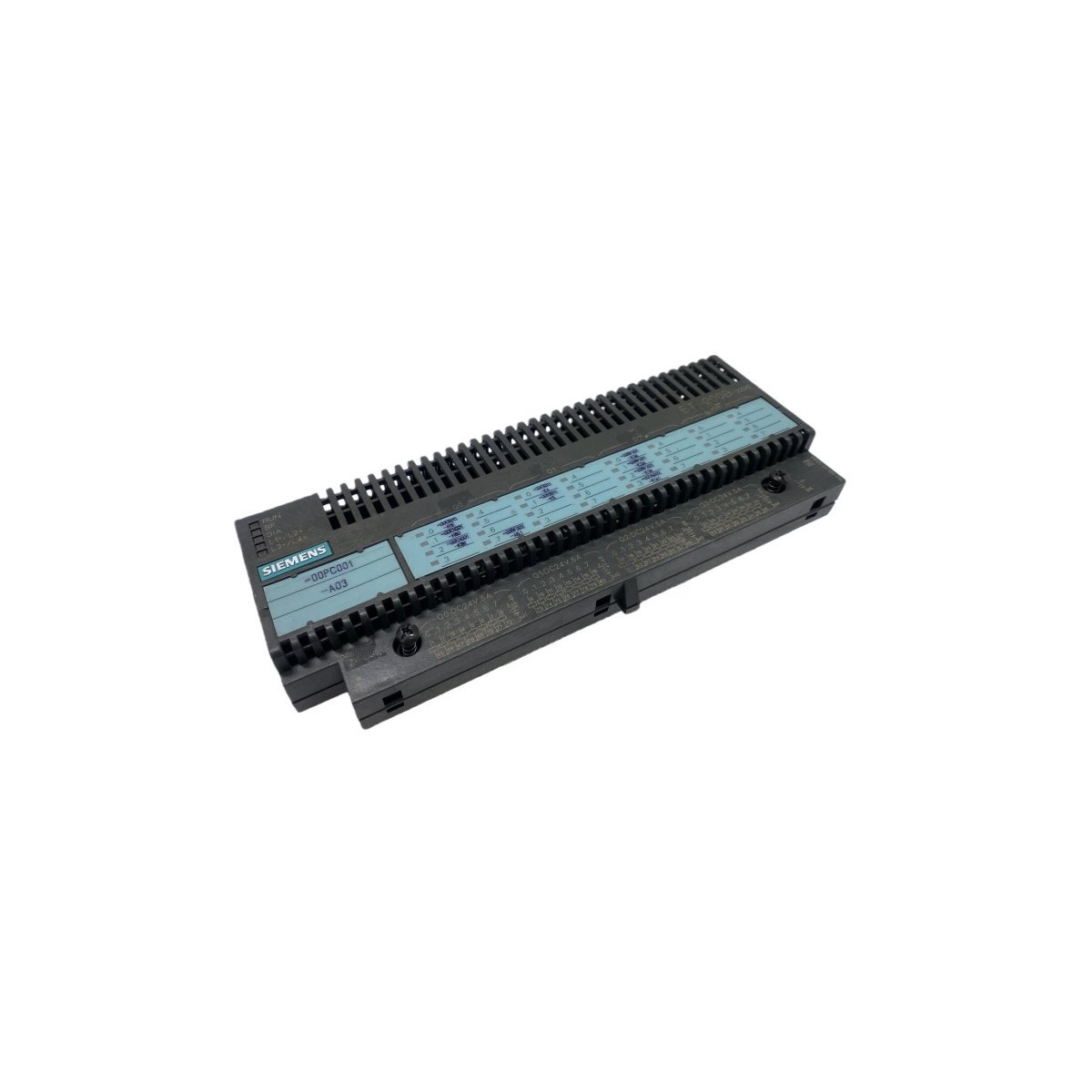

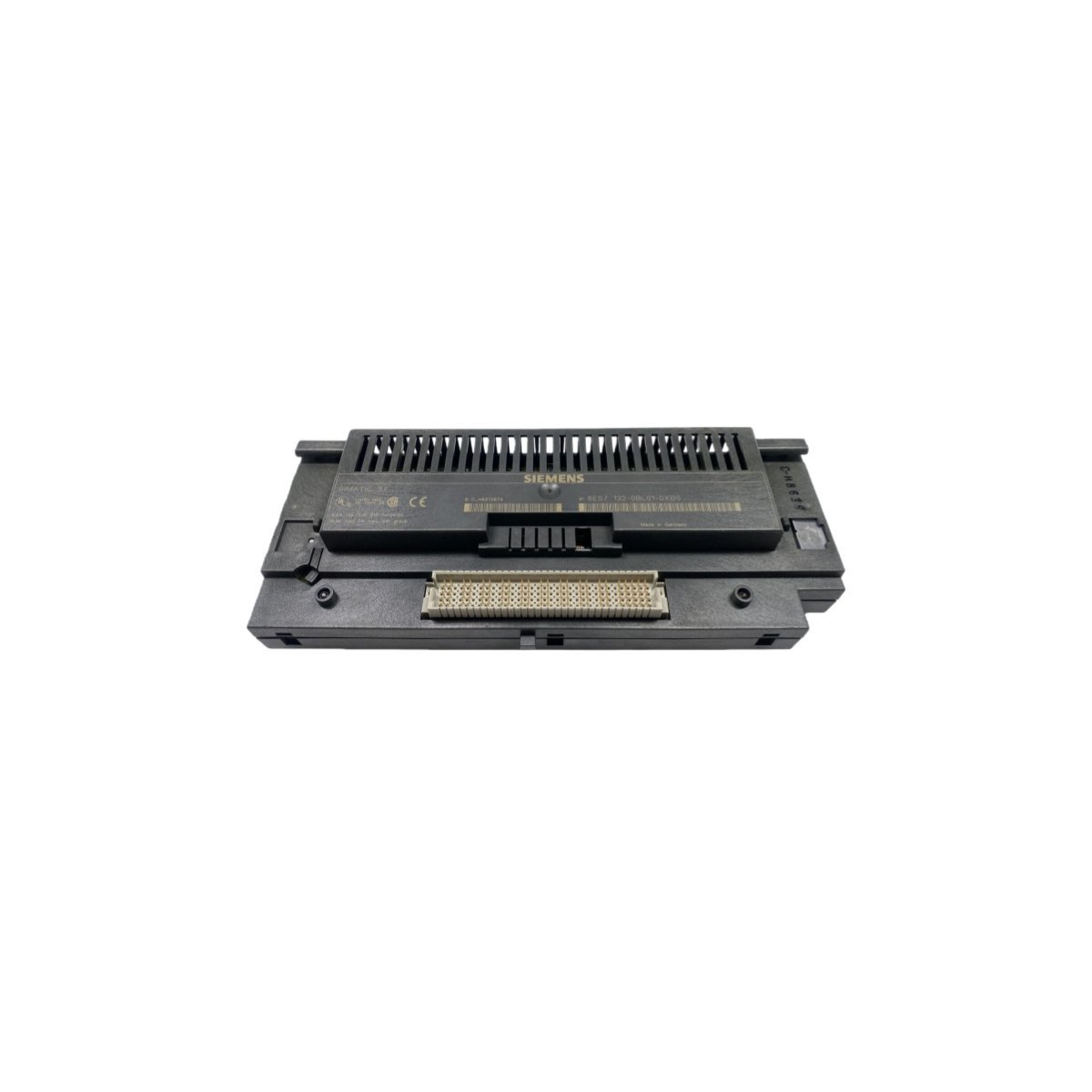

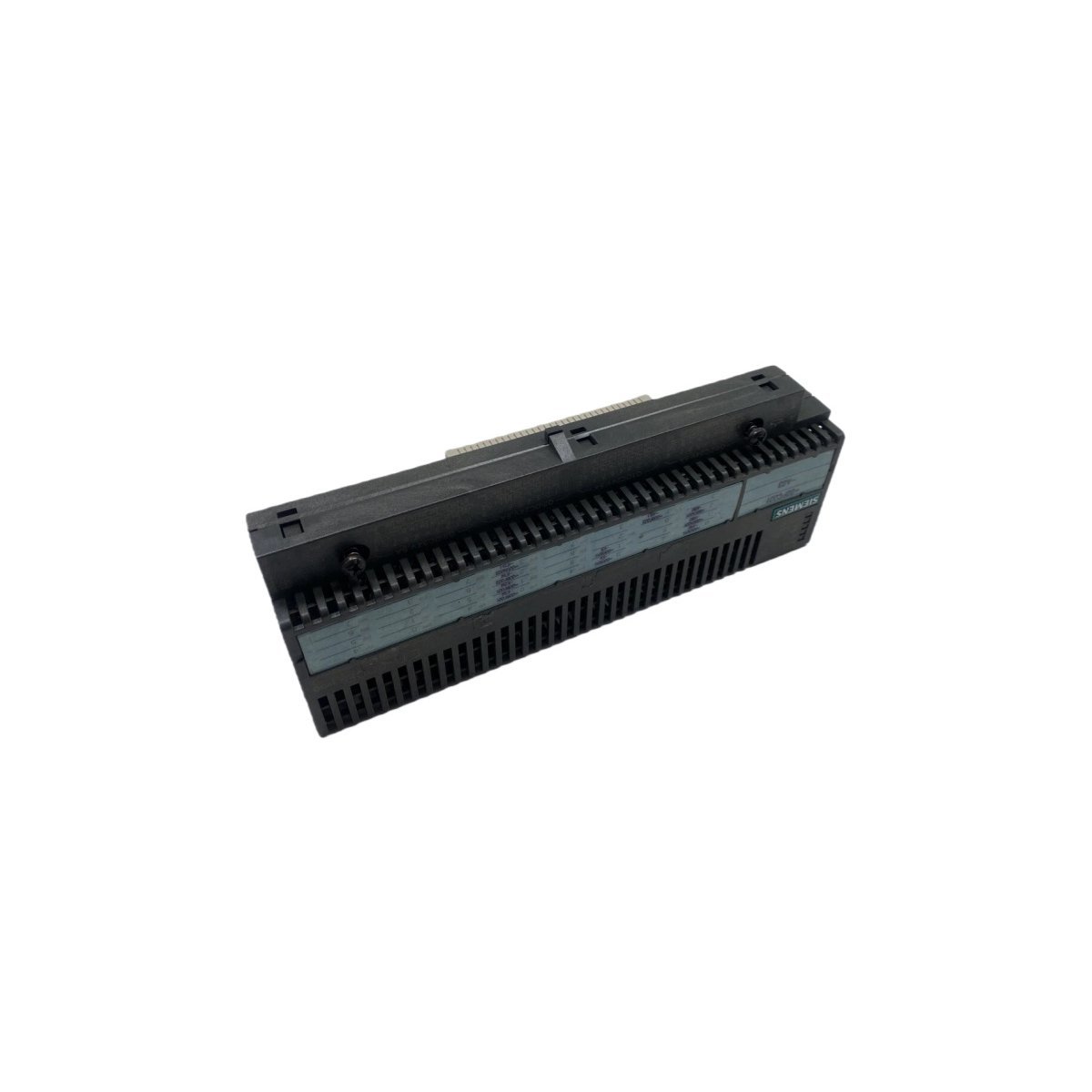

The Siemens 6ES7132-0BL01-0XB0 is a high-density 32-channel digital output module designed for the SIMATIC ET 200B distributed I/O system. Operating at 24V DC with 0.5A per channel, this module provides reliable and fast-acting control for large-scale industrial actuator networks.

High-Density Control for Distributed I/O Systems

The Siemens 6ES7132-0BL01-0XB0 functions as a powerful expansion component for the SIMATIC ET 200B series, offering 32 independent digital output channels.¹ This electronic module excels in environments that require the simultaneous control of numerous valves, solenoids, and signaling devices. By consolidating 32 outputs into a single 235mm-wide housing, the module significantly reduces the required footprint in control cabinets. Each channel provides a 0.5A output current at 24V DC, making it an ideal choice for localized automation tasks within manufacturing and process engineering sectors.

Robust Electrical Protection and Precision Timing

Reliability remains a core feature of the 6ES7132-0BL01-0XB0 hardware architecture. The module includes integrated electronic short-circuit protection, which instantly safeguards the circuitry against external wiring faults. Furthermore, it manages inductive shutdown voltages by limiting them to approximately -55V, effectively protecting sensitive field instruments from inductive spikes. Performance-wise, the module delivers impressive response speeds; transition times from “0” to “1” occur within 20 microseconds, while the “1” to “0” delay is held to just 0.5 milliseconds for resistive loads. These rapid switching capabilities allow for high-precision synchronization in fast-moving assembly lines.

Versatile Integration and Thermal Efficiency

The 6ES7132-0BL01-0XB0 simplifies complex wiring projects through its compatibility with standard ET 200B terminal blocks, such as the TB2/DC and TB4/DC. Siemens engineers organized the 32 outputs into four groups of eight, which facilitates structured power distribution and easier circuit isolation for maintenance. Even when operating at maximum capacity, the module maintains efficiency with a peak power loss of only 7.9W. This low thermal output prevents overheating in enclosed panels, ensuring the long-term stability of the PLC system. Whether used in material handling or general factory automation, this module provides a proven, high-channel-count solution for modern industrial demands.

Key Technical Characteristics

• 32 Digital Outputs: High-density configuration provides extensive control in a compact 235mm width.
• Fast Response Times: Switching delays as low as 20μs ensure precision for time-sensitive applications.
• Comprehensive Circuit Protection: Integrated short-circuit logic and inductive voltage limiting protect connected hardware.
• Grouped Architecture: Outputs are arranged in four groups of eight for simplified power management.
• Variable Load Support: Handles resistive loads up to 100Hz, lamp loads up to 8Hz, and inductive loads up to 0.5Hz.
• Industrial Voltage Range: Operates reliably between 18.5V and 30.2V DC to accommodate industrial power fluctuations.
