​Brief Product Description

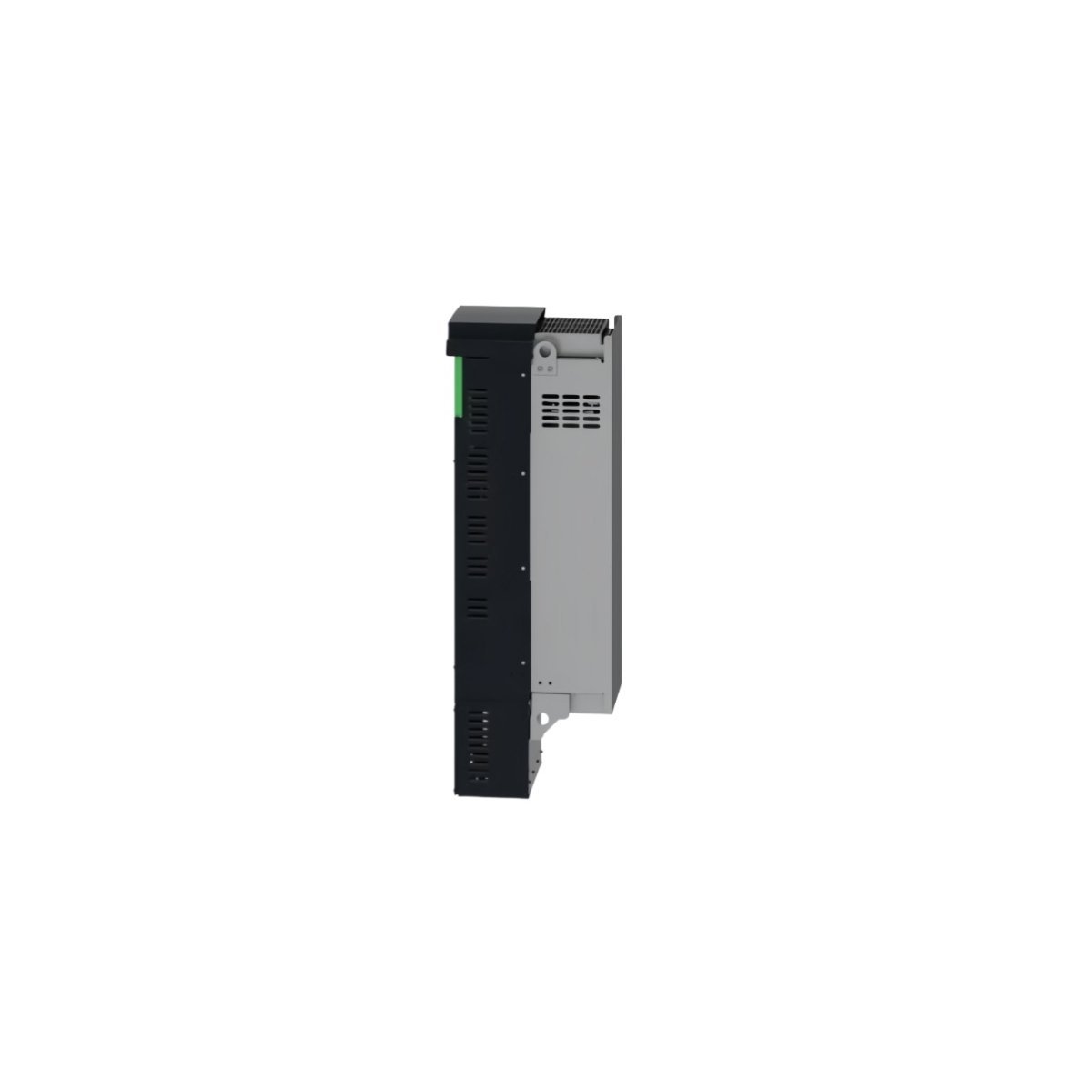

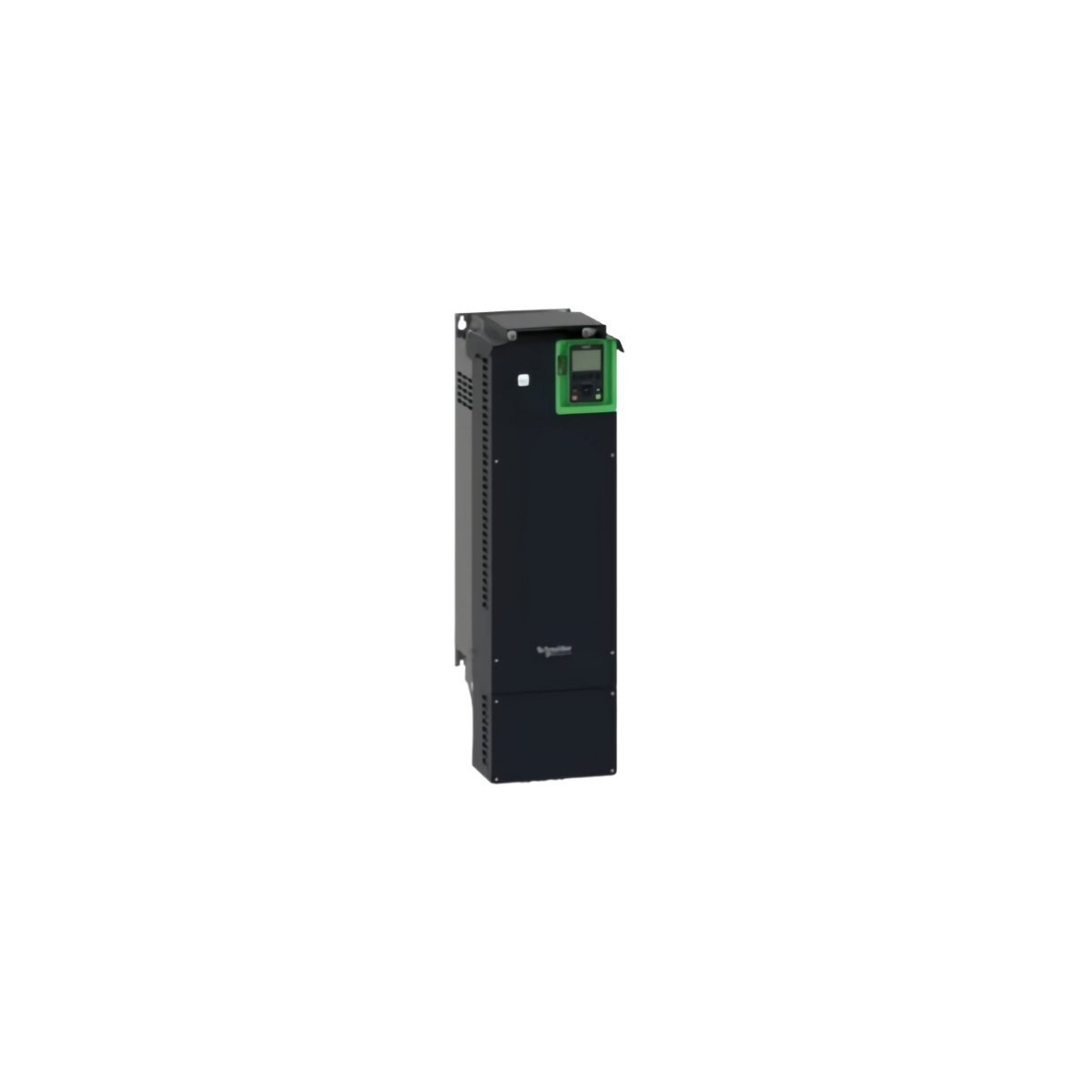

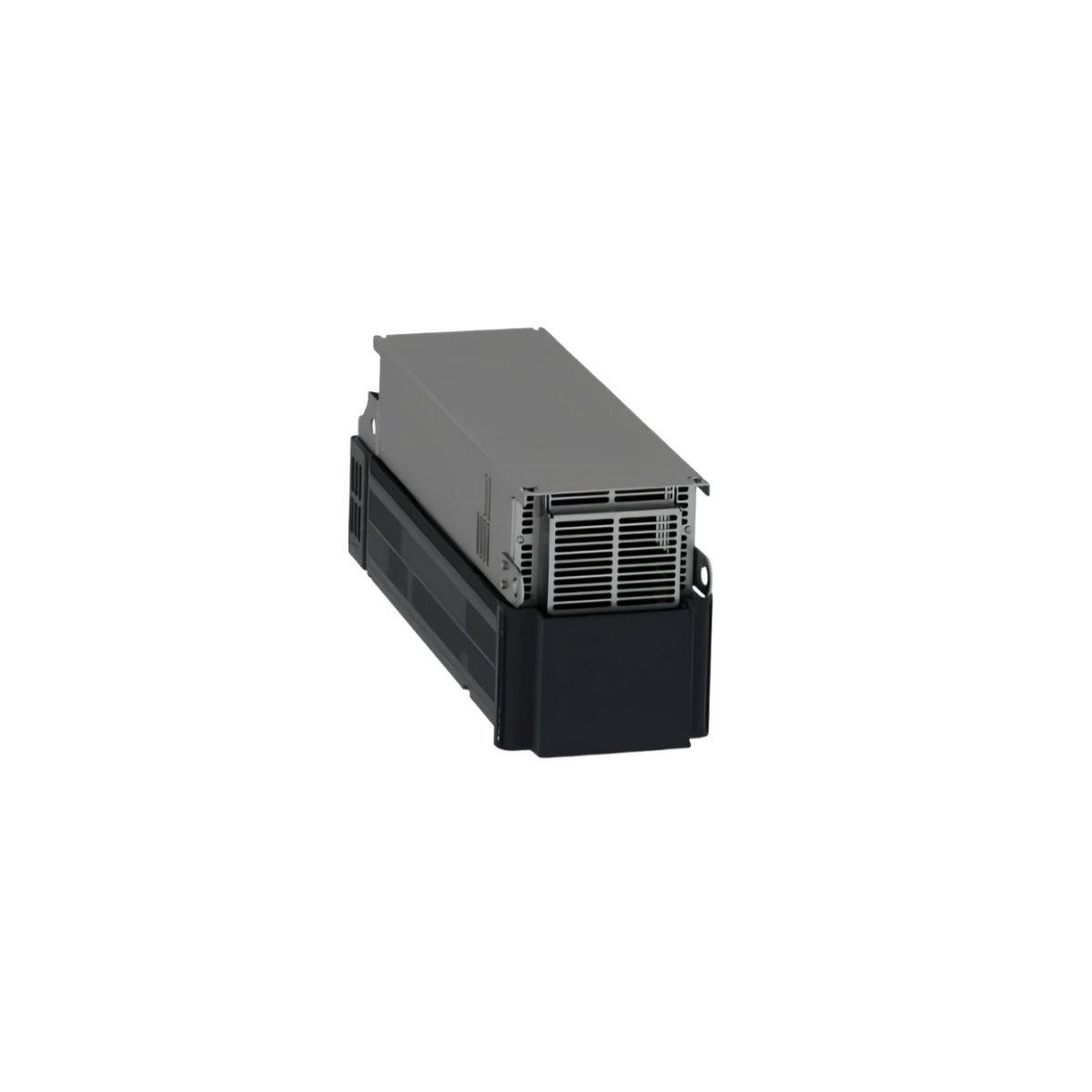

The Schneider Electric ATV630D75N4 is a sophisticated 75 kW (100 hp) Altivar Process variable speed drive designed to optimize fluid management and process efficiency.¹ This industrial-grade frequency inverter provides advanced energy monitoring and precise control for both asynchronous and synchronous motors in demanding utility and infrastructure applications.²

Intelligent Process Optimization and Energy Savings

The Schneider Electric ATV630D75N4 belongs to the Altivar Process ATV600 family, a series of “Services Oriented Drives” engineered to reduce the total cost of ownership in industrial plants. This drive actively manages energy consumption through integrated “Stop and Go” technology, which minimizes power usage during idle periods.³ By providing real-time intelligence on pump performance and system efficiency, the ATV630D75N4 allows operators to optimize fluid handling processes in sectors like water treatment and chemical processing. Furthermore, the drive supports variable torque and constant torque loads, ensuring stable motor performance even under fluctuating process demands.

Advanced Connectivity and System Integration

To support the requirements of Industry 4.0, the ATV630D75N4 features a robust communication architecture.⁴ It includes dual Ethernet ports and Modbus serial connectivity as standard, enabling seamless data flow between the field level and the enterprise control layer. These built-in RJ45 ports facilitate remote diagnostics, configuration, and energy monitoring without the need for additional gateway hardware.⁵ The drive’s firmware also includes embedded web servers and cybersecurity features, protecting industrial assets while providing engineers with the data necessary for predictive maintenance and asset management.

Industrial-Grade Design and Reliability

Built for longevity in harsh environments, the ATV630D75N4 utilizes a rugged IP21-rated enclosure suitable for vertical wall mounting.⁶ It handles significant overloads, sustaining up to 120% current for normal duty applications (75kW) and up to 150% for heavy-duty requirements (55kW). Its thermal management system is designed for high reliability, and the unit supports a wide range of expansion options, including additional I/O modules and EMC filters. With a dedicated focus on protecting people and equipment, the drive incorporates safety functions that comply with international industrial standards, ensuring secure operation in mining, oil and gas, and utility infrastructures.⁷

Key Technical Characteristics

• Optimized Fluid Control: Specialized functions for pump monitoring, pressure control, and flow regulation.
• High Power Output: Delivers 75 kW (100 hp) for standard 3-phase asynchronous and synchronous motors.
• Embedded Intelligence: Integrated energy metering and process performance dashboards.⁸
• Versatile Overload Capacity: Provides up to 150% overload for 60 seconds in heavy-duty configurations.
• Extensive Networking: Built-in Ethernet/IP and Modbus TCP for high-speed industrial communication.⁹
• Sustainable Operation: “Stop and Go” functionality significantly reduces standby power dissipation.¹⁰
