Description

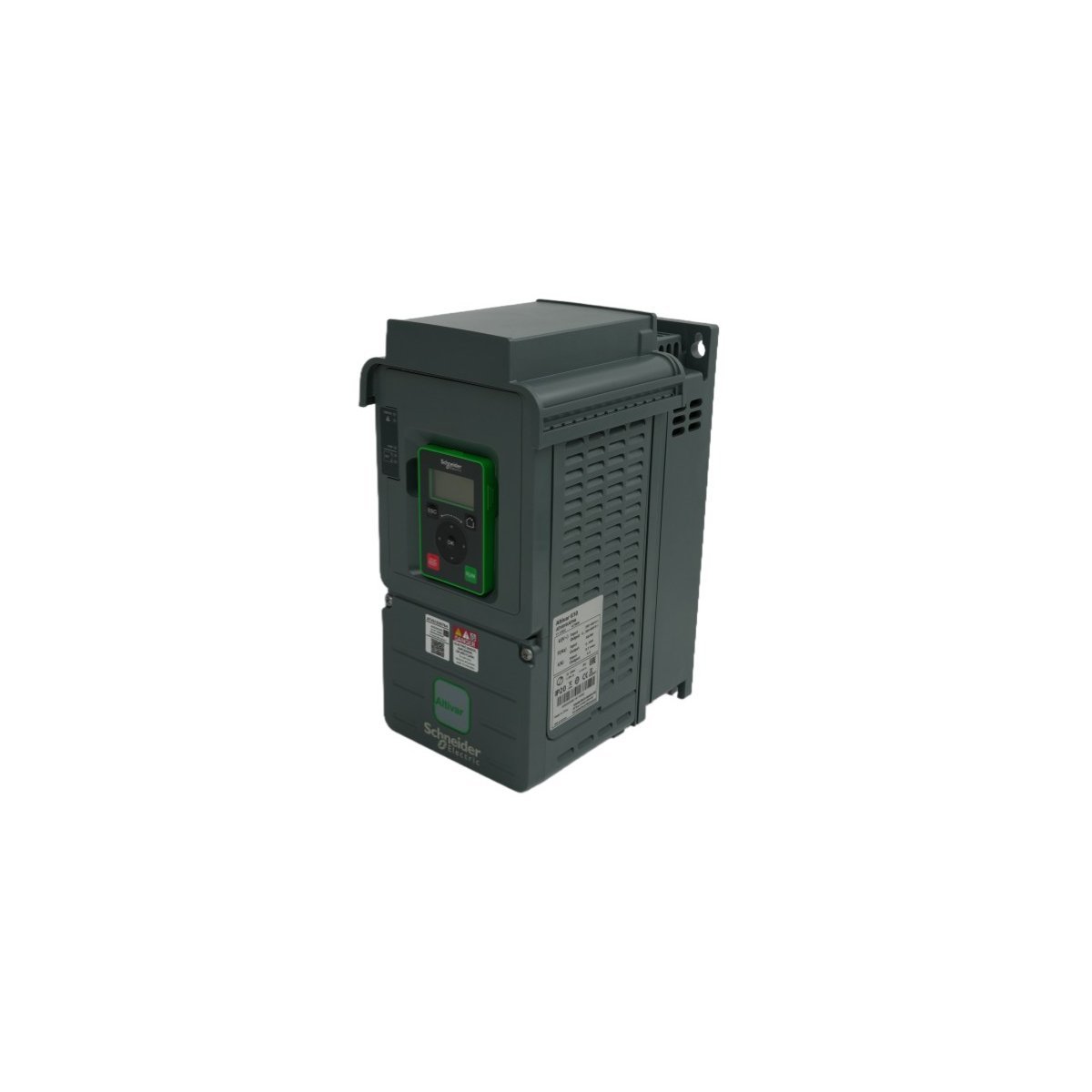

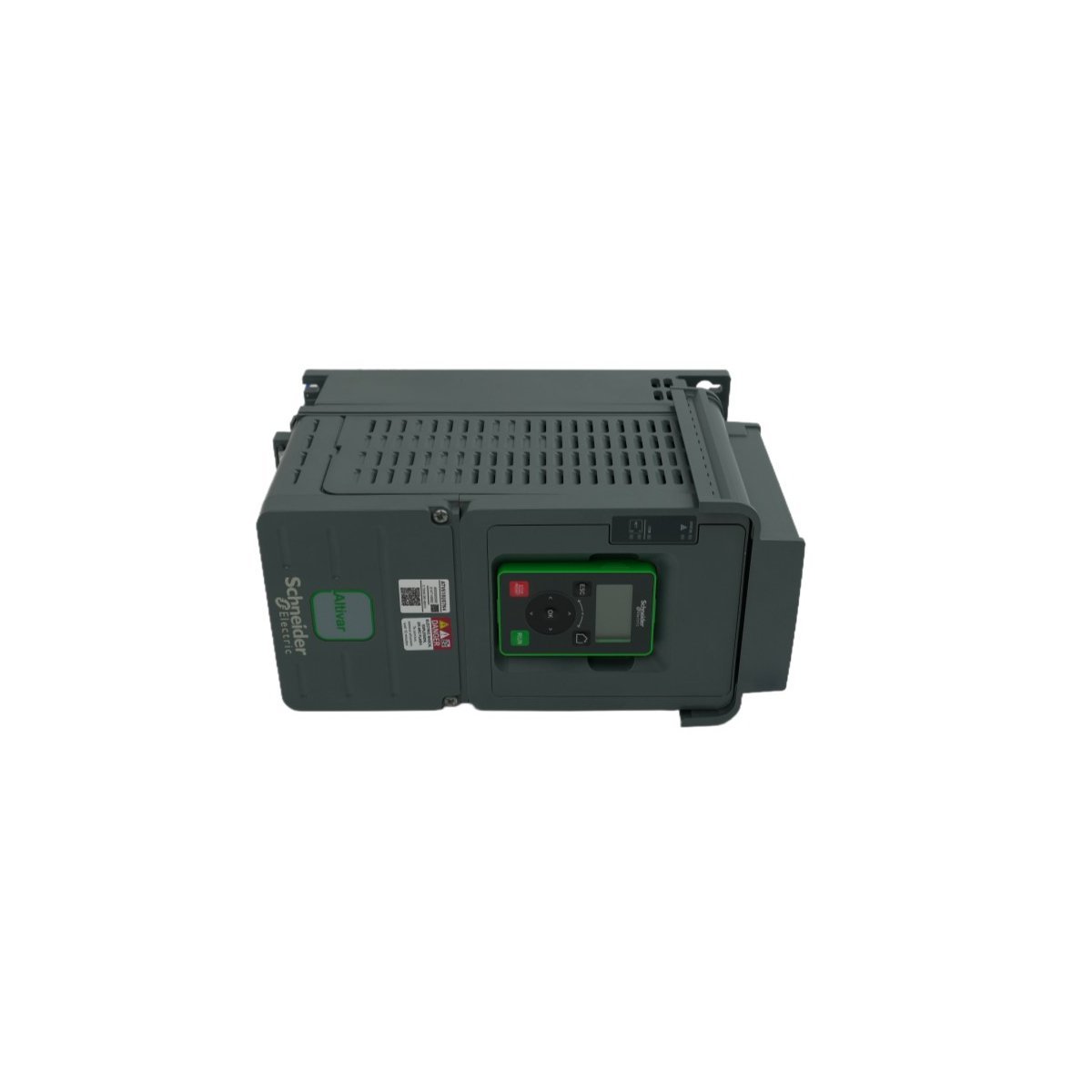

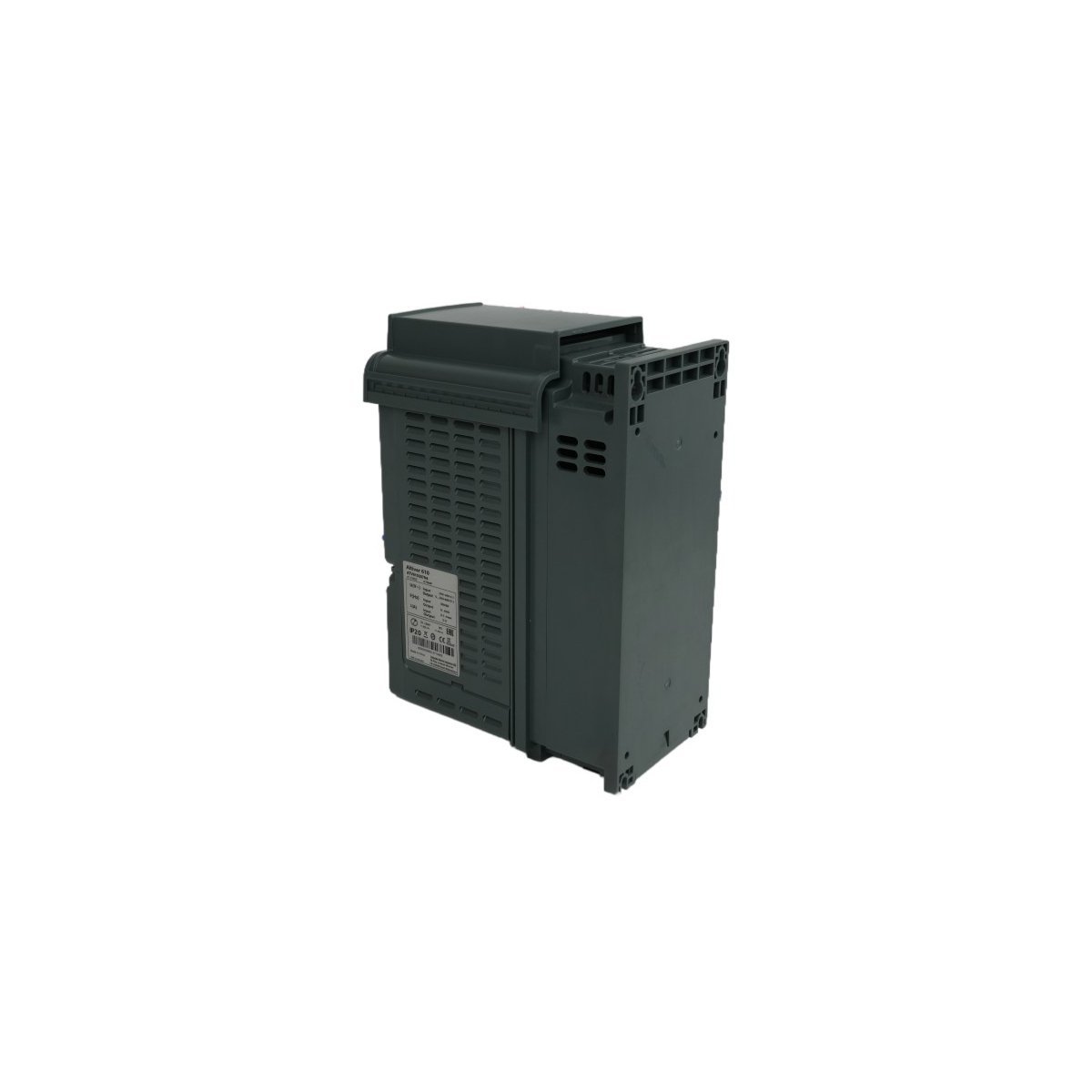

The Schneider Electric ATV610D90N4 delivers high-performance control for three-phase asynchronous motors. This 90 kW (125 hp) inverter belongs to the Easy Altivar 610 family. It operates efficiently on a 380V to 415V AC supply. The drive specifically addresses the needs of process and utilities industries. Furthermore, the unit features a simplified commissioning process through factory-preset parameters. This plug-and-play approach reduces installation time for technical teams. It provides a reliable balance between powerful output and operational simplicity.

Key Technical Specifications

• Brand: Schneider Electric
• Model Number: ATV610D90N4
• Product Type: Variable Speed Drive (VFD)
• Motor Power: 90 kW (Normal Duty) / 75 kW (Heavy Duty)
• Supply Voltage: 380V to 415V AC (Three-Phase)
• Continuous Output Current: 173 A at 4 kHz
• Maximum Transient Current: 190.3 A for 60 seconds
• Output Frequency: 0.1 to 500 Hz
• EMC Filter: Integrated C3 radio interference filter
• Protection Class: IP20 (Optional IP21/UL Type 1)
• Communication: Built-in Modbus RTU

Performance and Energy Optimization

This frequency inverter utilizes advanced motor control algorithms to maximize energy savings. It significantly reduces power consumption in centrifugal pump and fan applications. Internal monitoring systems safeguard the motor against overloads and electrical faults. Additionally, the integrated EMC filter ensures compliance with strict electromagnetic compatibility standards. The drive maintains stable torque even during varying load conditions. Its thermal management system allows for continuous operation in demanding environments. These features protect your capital investment and extend equipment life.

Application and System Integration

The ATV610D90N4 excels in water, wastewater, and oil and gas sectors. It manages large-scale HVAC systems and industrial pumping stations with precision. The drive supports seamless integration into existing PLC-based automation architectures. Because it uses standardized protocols, data exchange remains fluid and transparent. Clear diagnostic indicators on the front panel allow for rapid troubleshooting. Moreover, its robust physical construction withstands typical industrial vibrations. This model serves as an ideal solution for medium to large-scale infrastructure projects.
