Description

Brief Product Description

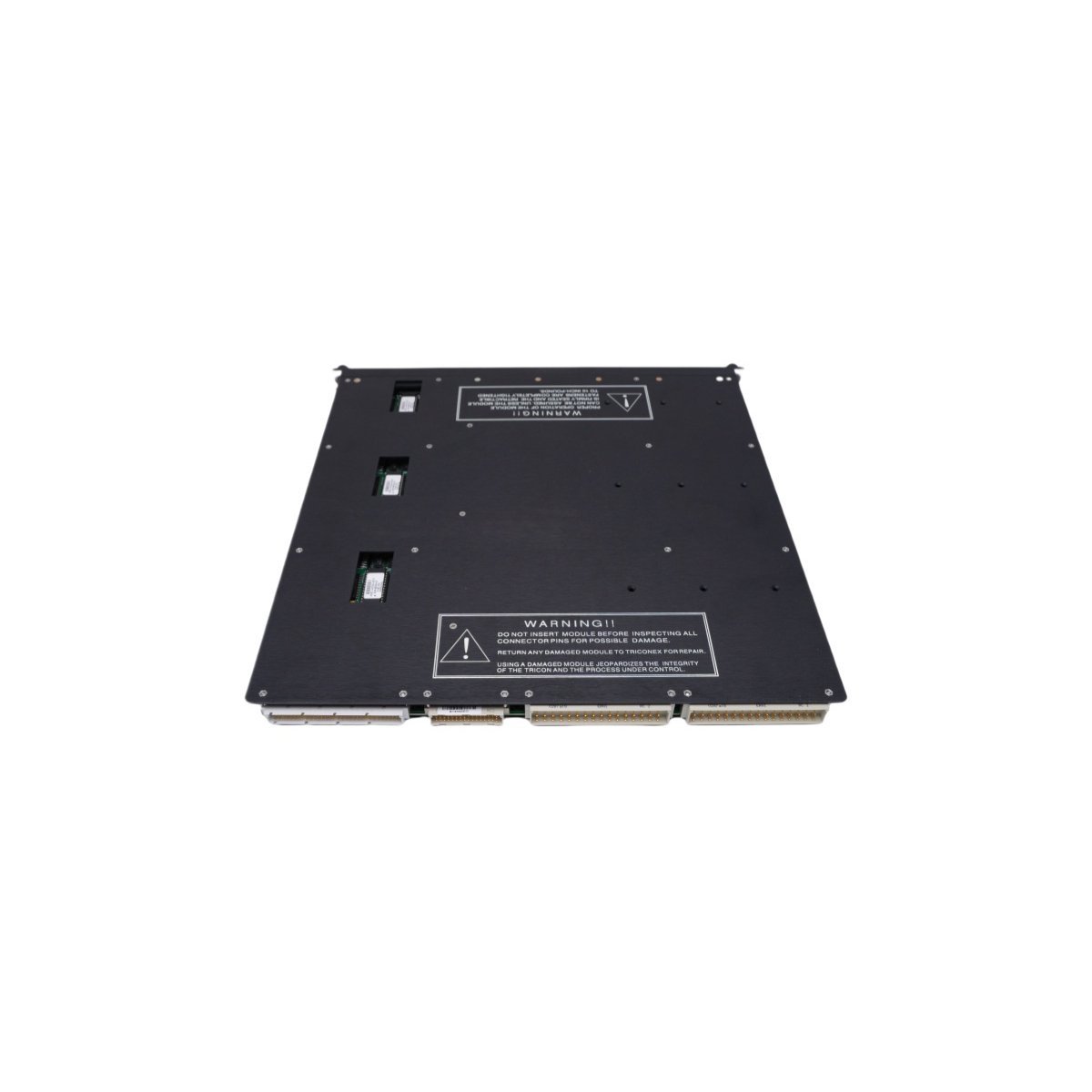

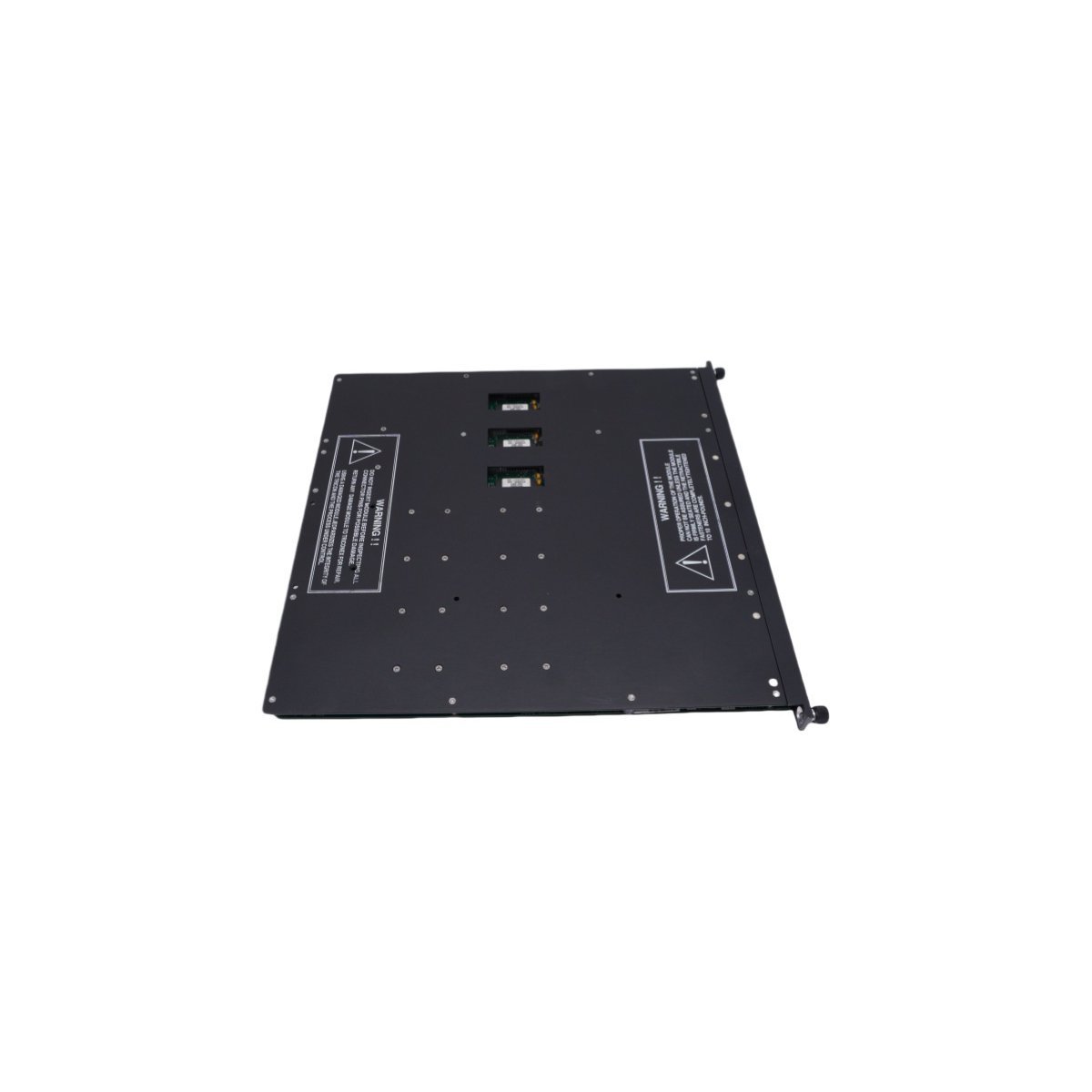

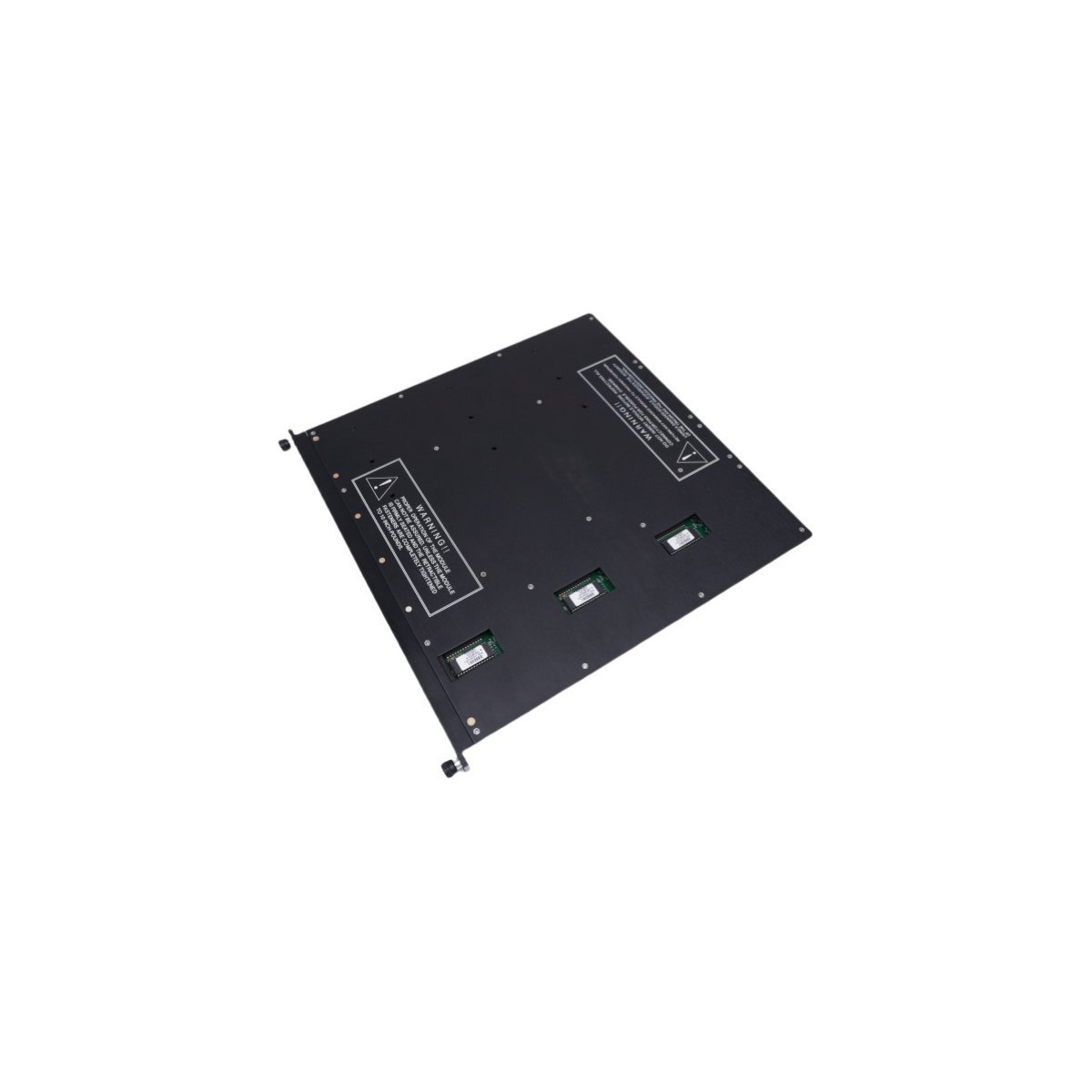

The Triconex 3533E is a high-performance Main Processor module designed for the Tricon Triple Modular Redundancy (TMR) safety system. It manages high-speed logic execution and system-wide diagnostics to ensure the highest levels of safety and availability in critical industrial processes.

Product Description

Centralized Command and Control

The Triconex 3533E functions as the primary intelligence center for the Tricon safety platform. This processor module executes complex control programs and manages all I/O polling with extreme precision. By utilizing three identical sub-processors on a single module, the 3533E performs continuous two-out-of-three (2oo3) voting on all data. This TMR architecture ensures that even if a hardware fault occurs within one processing path, the system continues to operate safely and without interruption. Consequently, this module is the standard choice for high-stakes environments such as emergency shutdown (ESD) and burner management systems (BMS).

Superior Processing Power and Synchronization

To handle the data-intensive requirements of modern industrial plants, the 3533E module delivers rapid logic execution and enhanced memory capacity. It synchronizes with other main processors in the chassis via a dedicated high-speed bus, ensuring that all three channels remain perfectly aligned. This synchronization allows the module to maintain a fast scan time while simultaneously performing background self-diagnostics. These internal checks proactively scan for memory errors, communication faults, or board-level irregularities, allowing the system to alert operators before a minor fault can escalate into a process trip.

Industrial Connectivity and Rugged Reliability

The Triconex 3533E facilitates seamless data exchange between the safety system and external plant networks through its integrated communication interfaces. It supports multiple industrial protocols, enabling transparent integration with Distributed Control Systems (DCS) and Human-Machine Interfaces (HMI). Furthermore, the module is built to withstand extreme environmental stress, featuring a wide operating temperature range and robust protection against electromagnetic interference. Because the unit is hot-swappable, maintenance teams can replace or upgrade processors without shutting down the controlled process, thereby maximizing plant uptime and operational efficiency.¹
