Description

Brief Product Description

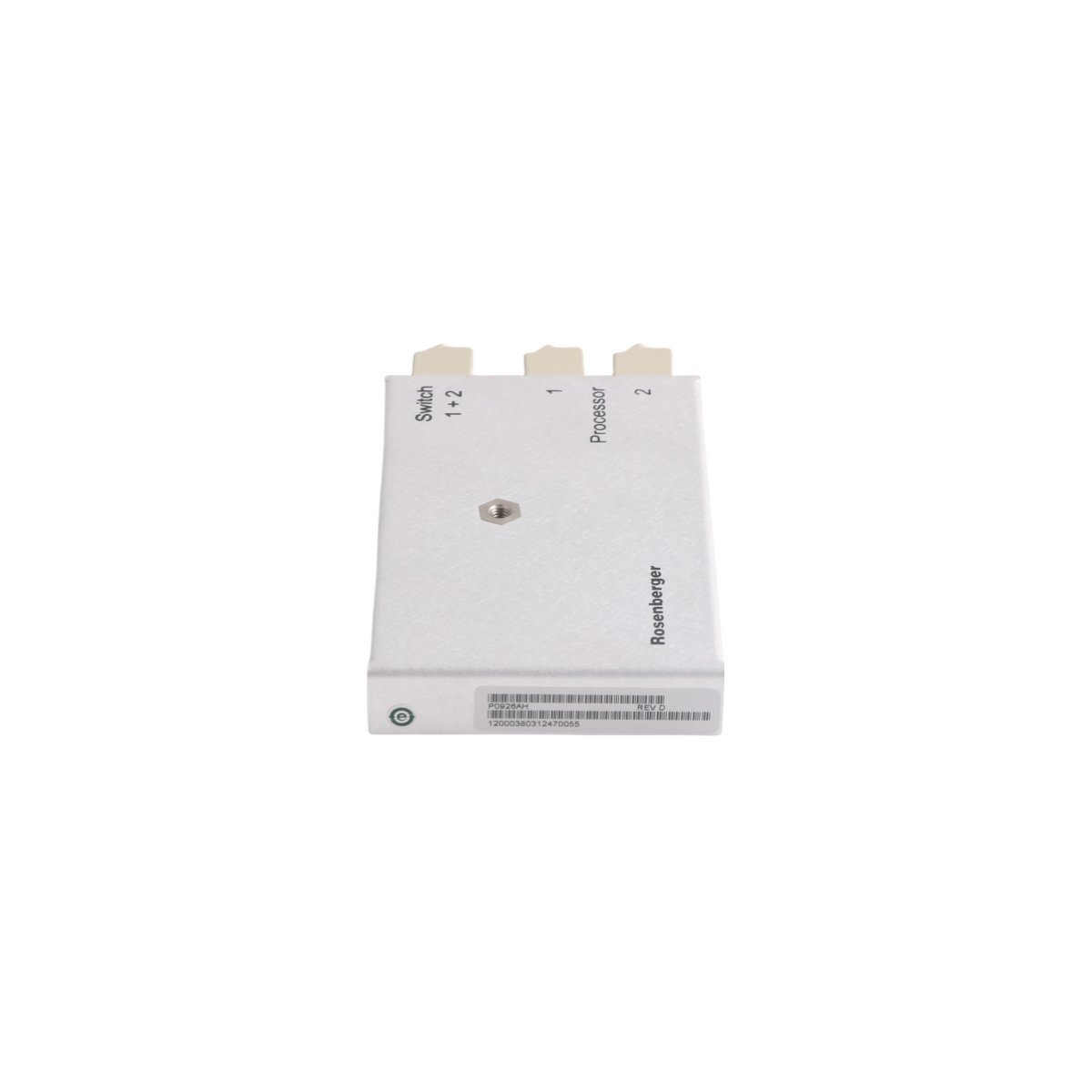

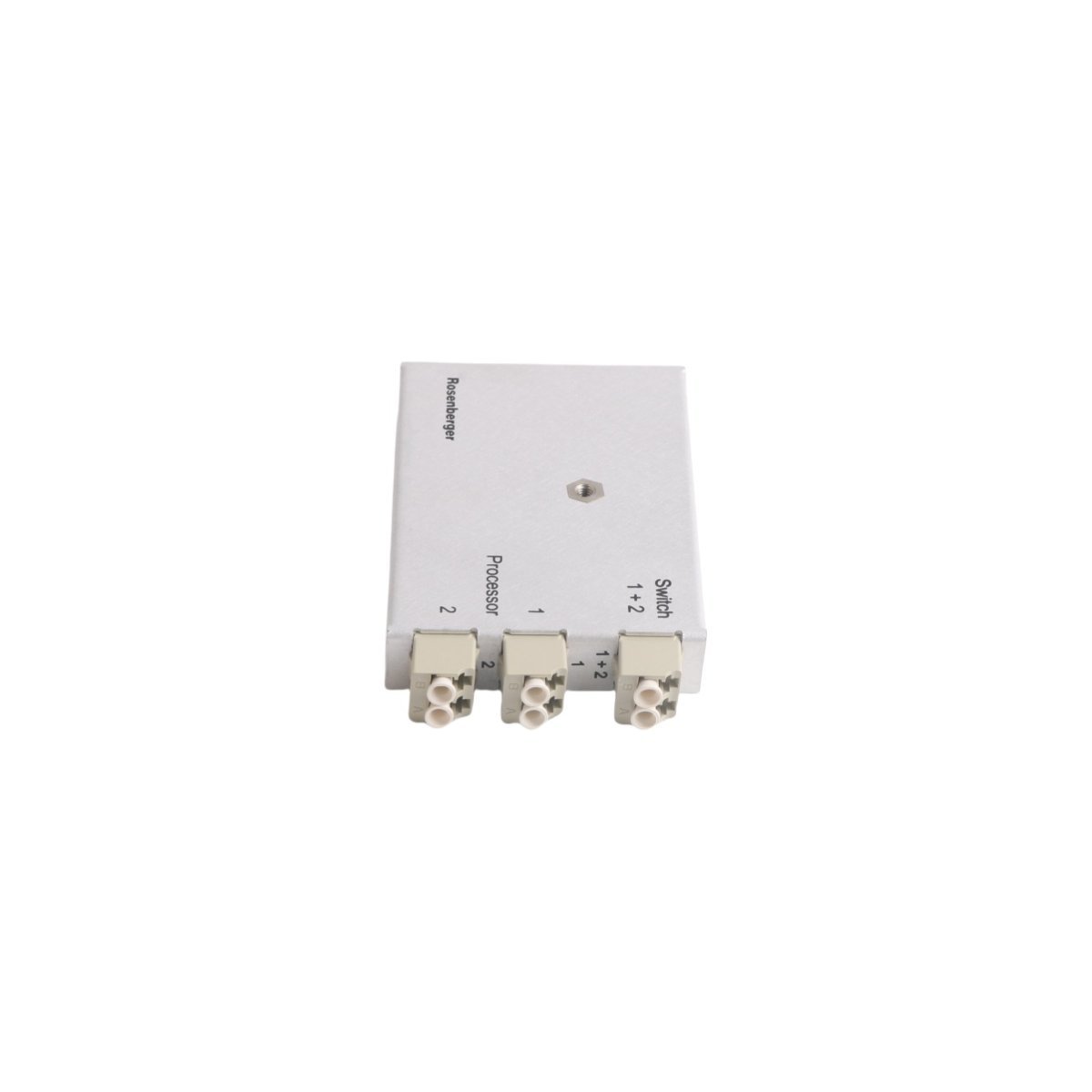

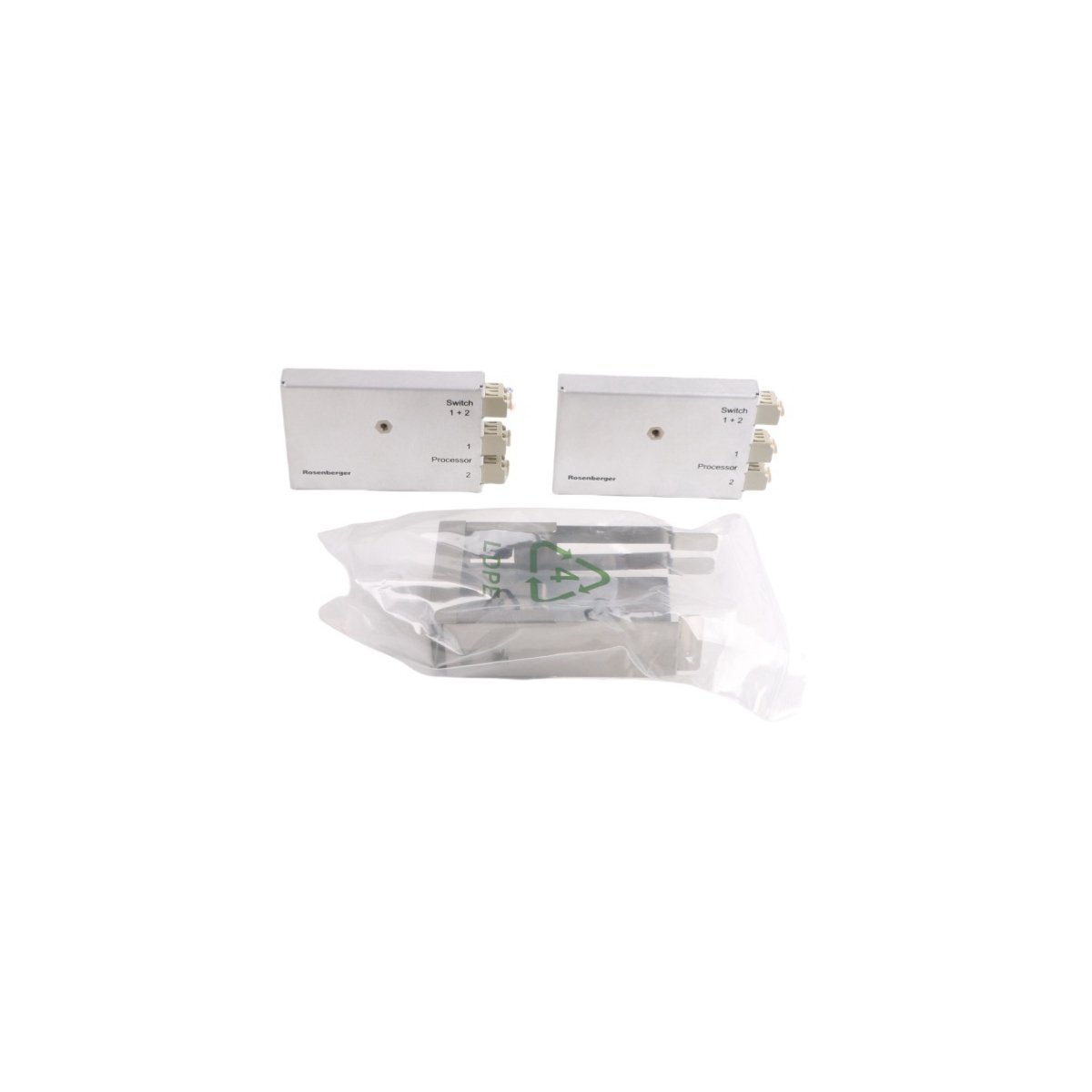

The Foxboro P0926MX is a rugged 8-channel signal splitter designed for the I/A Series DCS, providing high-reliability distribution and interface capabilities. It supports 220V operating voltages and 20A current capacity to ensure stable signal transmission in mission-critical automation environments.

Efficient Signal Distribution for DCS Architectures

The Foxboro P0926MX serves as a vital signal distribution hub within the Invensys I/A Series Distributed Control System (DCS). This module facilitates the splitting and routing of critical control signals, allowing a single input to drive multiple output paths without compromising signal integrity. By implementing the P0926MX, plant engineers can simplify complex wiring infrastructures and improve the redundancy of their control loops. Consequently, this interface module enhances the overall reliability of process automation in high-stakes industries such as chemical processing, power generation, and large-scale manufacturing.

High-Capacity Performance and Versatility

Designed to handle significant electrical loads, the P0926MX Splitter manages up to 220V operating voltages and maintains a high current capacity of 20A. The board features 8 independent input and output channels, which provides substantial flexibility for various sensor and actuator configurations. Furthermore, the module supports a frequency output of 30 kHz, ensuring that rapid signal transitions remain crisp and synchronized across all connected devices. This combination of power handling and channel density makes it an ideal solution for upgrading legacy control systems or implementing new, high-demand automation layers.

Engineered for Extreme Industrial Reliability

Environmental resilience remains a core characteristic of the P0926MX hardware. Foxboro built this module to sustain continuous operation in harsh industrial climates, featuring a functional temperature range from -40°C to +85°C. Additionally, the unit incorporates high humidity tolerance to prevent circuit degradation in damp or unconditioned control rooms. To ensure user confidence and compliance with global safety regulations, the P0926MX carries CE, UL, and ISO 9001 certifications. This adherence to international standards confirms that the module provides a safe, dependable interface for critical infrastructure where downtime is not an option.

Key Technical Characteristics

• 8-Channel Configuration: Provides versatile routing for multiple input and output signal paths.
• High Power Handling: Supports 220V AC operation and a robust 20A current capacity for heavy-duty applications.
• Precise Signal Timing: Features a 30 kHz frequency output to maintain synchronization in fast-moving processes.
• Rugged Thermal Profile: Engineered for stability in extreme environments ranging from -40°C to +85°C.
• Global Certification: Fully compliant with UL, CE, and ISO 9001 quality and safety management standards.
• Seamless DCS Integration: Optimized specifically for the Foxboro Invensys I/A Series ecosystem.
