Description

Brief Product Description

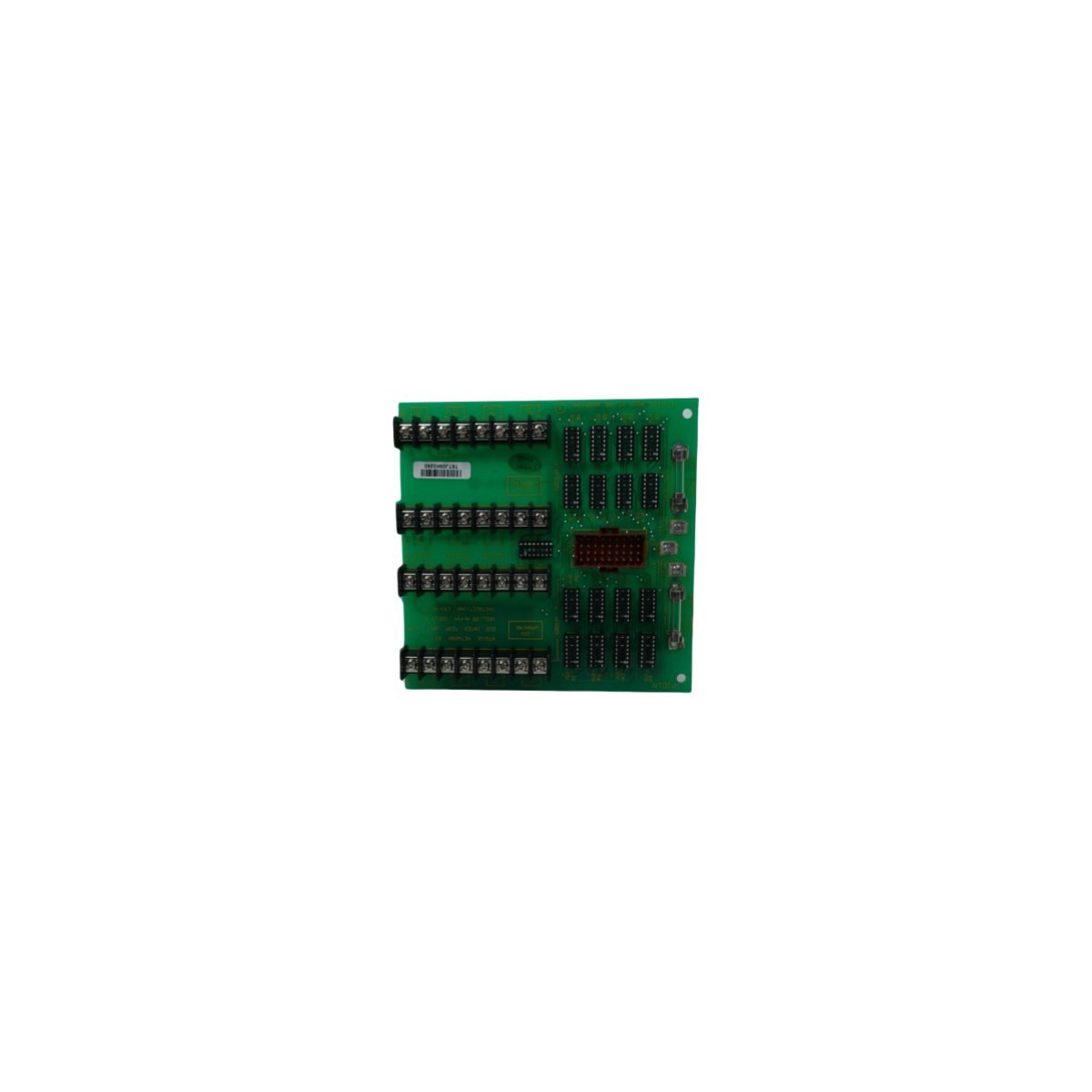

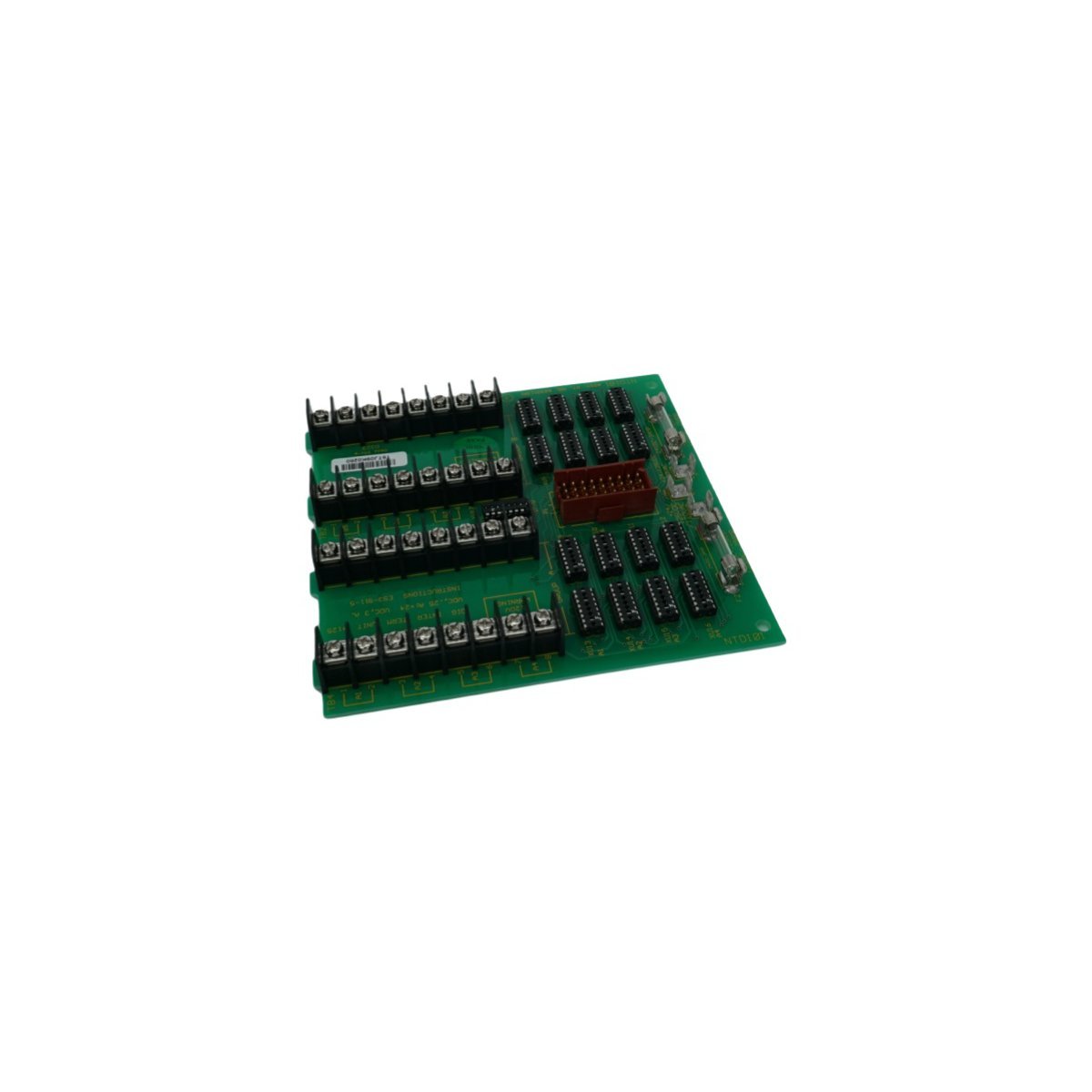

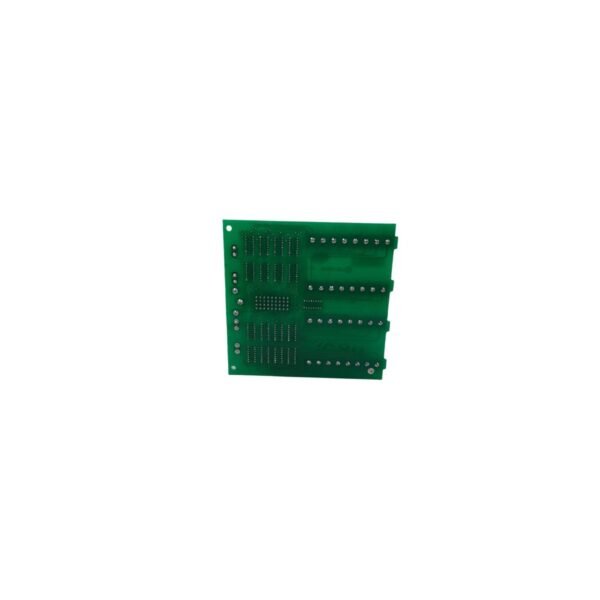

The ABB NTDI0-A is a dedicated Digital I/O Termination Unit designed for the Bailey Net 90 and Infi 90 DCS platforms. It bridges field signals with control logic, providing high-speed data exchange and robust protection for industrial process applications.

Essential Signal Interface for Bailey Systems

The ABB NTDI0-A serves as a fundamental hardware interface within the Bailey Net 90 and Infi 90 Distributed Control System (DCS) architectures. This termination unit facilitates the secure connection between field-side digital devices and the system’s processing modules. By providing a centralized point for signal conditioning and routing, the NTDI0-A ensures that digital inputs and outputs maintain timing accuracy across the control network. This module remains a critical component for facilities looking to maintain or optimize their legacy Bailey infrastructure while ensuring modern reliability standards.

Versatile Protocol Support and Connectivity

Seamless communication defines the functionality of the NTDI0-A board. The unit incorporates high-speed serial interfaces, including RS-485 and RS-232, which enable rapid data synchronization between localized system components. Furthermore, the termination unit effectively manages various fieldbus protocols such as Modbus and CANopen. This broad compatibility allows engineers to integrate a diverse array of actuators and sensors into a unified automation environment. Consequently, the NTDI0-A acts as a versatile gateway, translating complex field data into actionable control logic for the central DCS.

Industrial Hardening and Operational Stability

ABB engineered the NTDI0-A to perform consistently in the most demanding manufacturing environments. The unit features an impressive operating temperature range from -20°C to +70°C, making it suitable for both cold storage applications and high-heat processing floors. Each output channel provides a 200 mA current capacity, which offers sufficient power for driving relays and low-power industrial indicators directly. Moreover, the module operates on a standard 24V DC supply, simplifying installation within existing electrical cabinets. This combination of thermal resilience and electrical stability guarantees long-term performance and reduces the likelihood of unplanned system downtime.

Key Technical Characteristics

• Optimized Bailey Integration: Designed specifically for full compatibility with Net 90 and Infi 90 DCS hardware.
• High-Speed Serial Ports: Includes onboard RS-485 and RS-232 interfaces for efficient local data exchange.
• Multi-Protocol Flexibility: Supports industrial communication standards including Modbus, DeviceNet, and CANopen.
• Precise Output Control: Each channel handles up to 200 mA to drive industrial actuators and motors with high accuracy.
• Extreme Thermal Range: Maintains steady operation in environments ranging from -20°C to +70°C.
• Standardized Powering: Utilizes a 24V DC input for easy integration into existing automation power grids.

Technical Specifications
