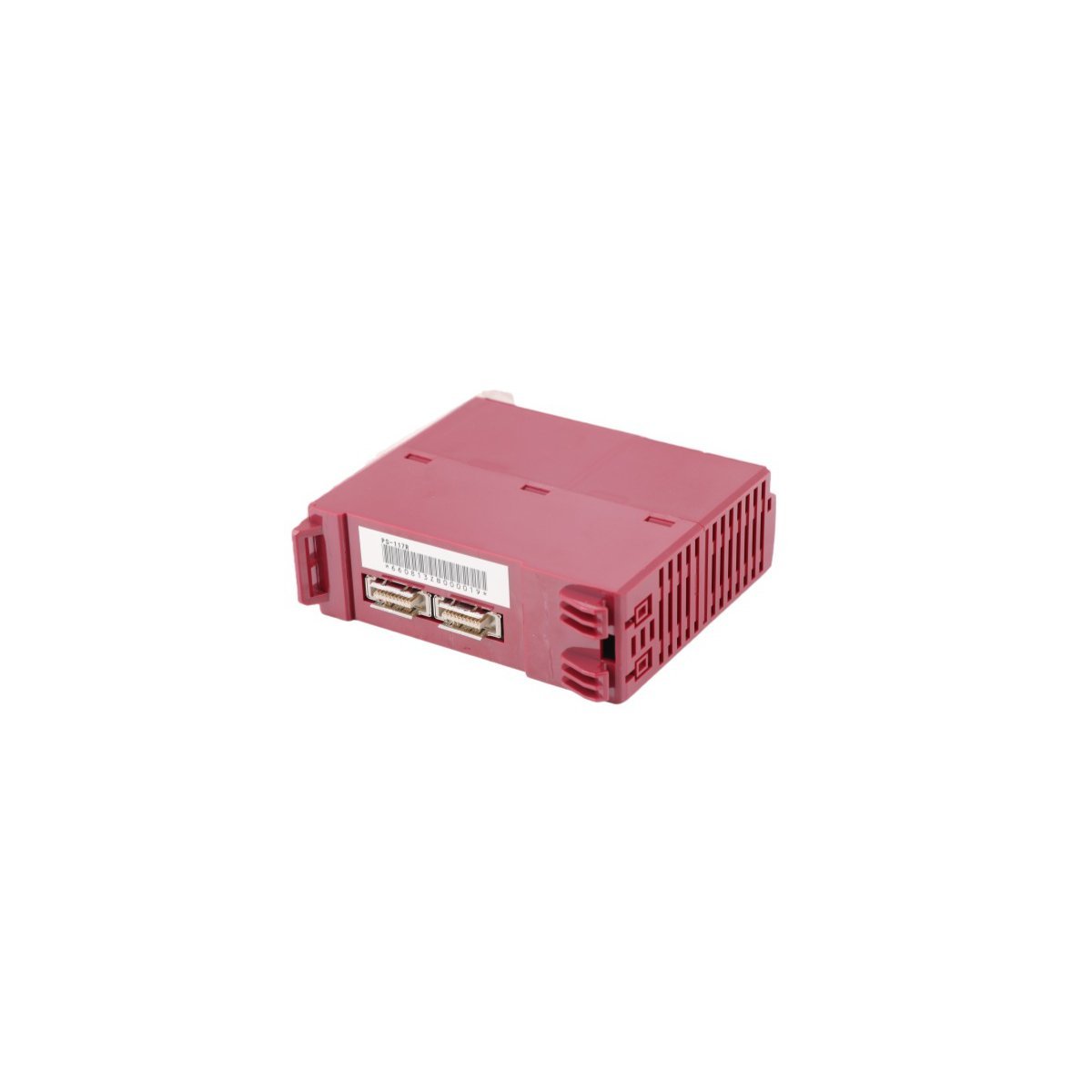

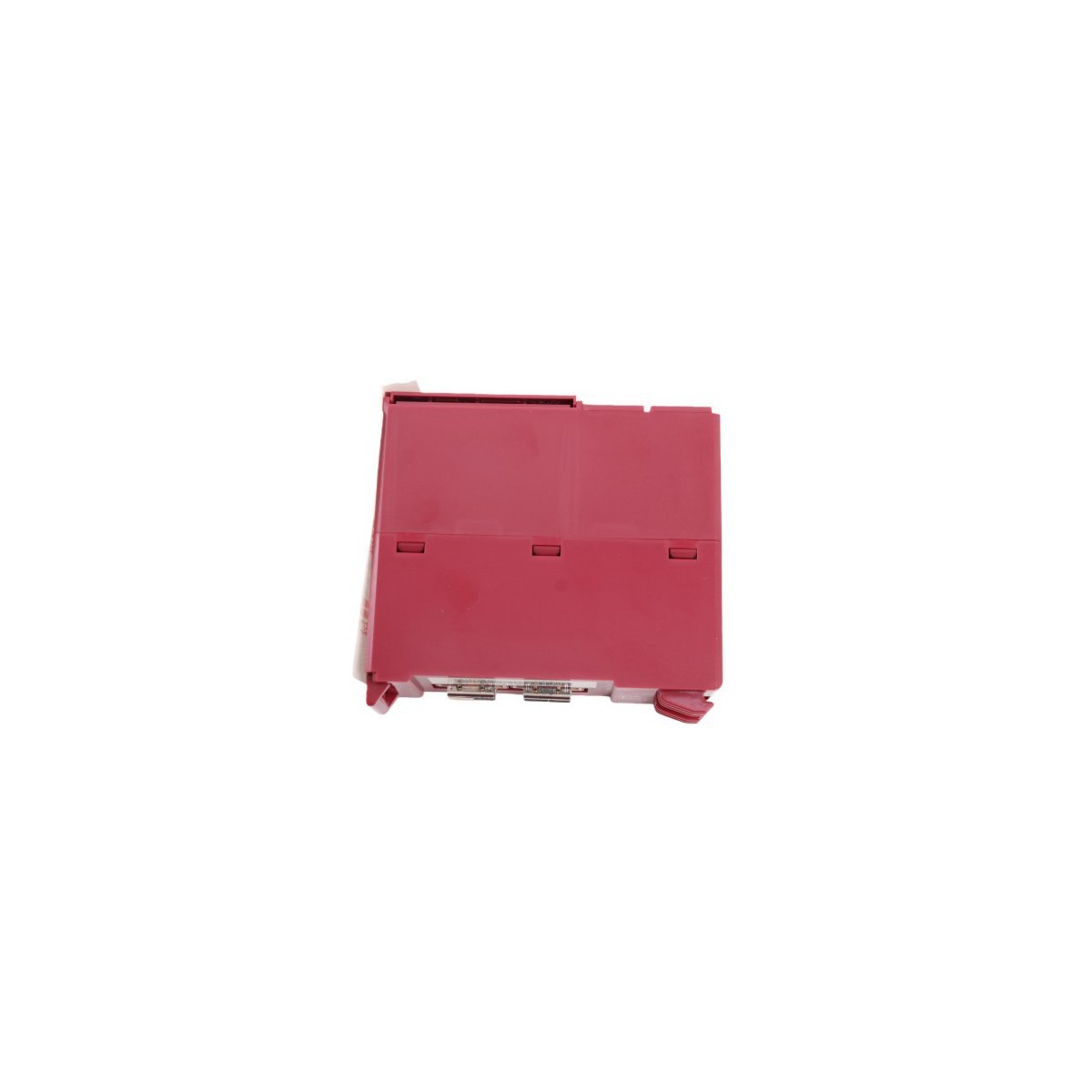

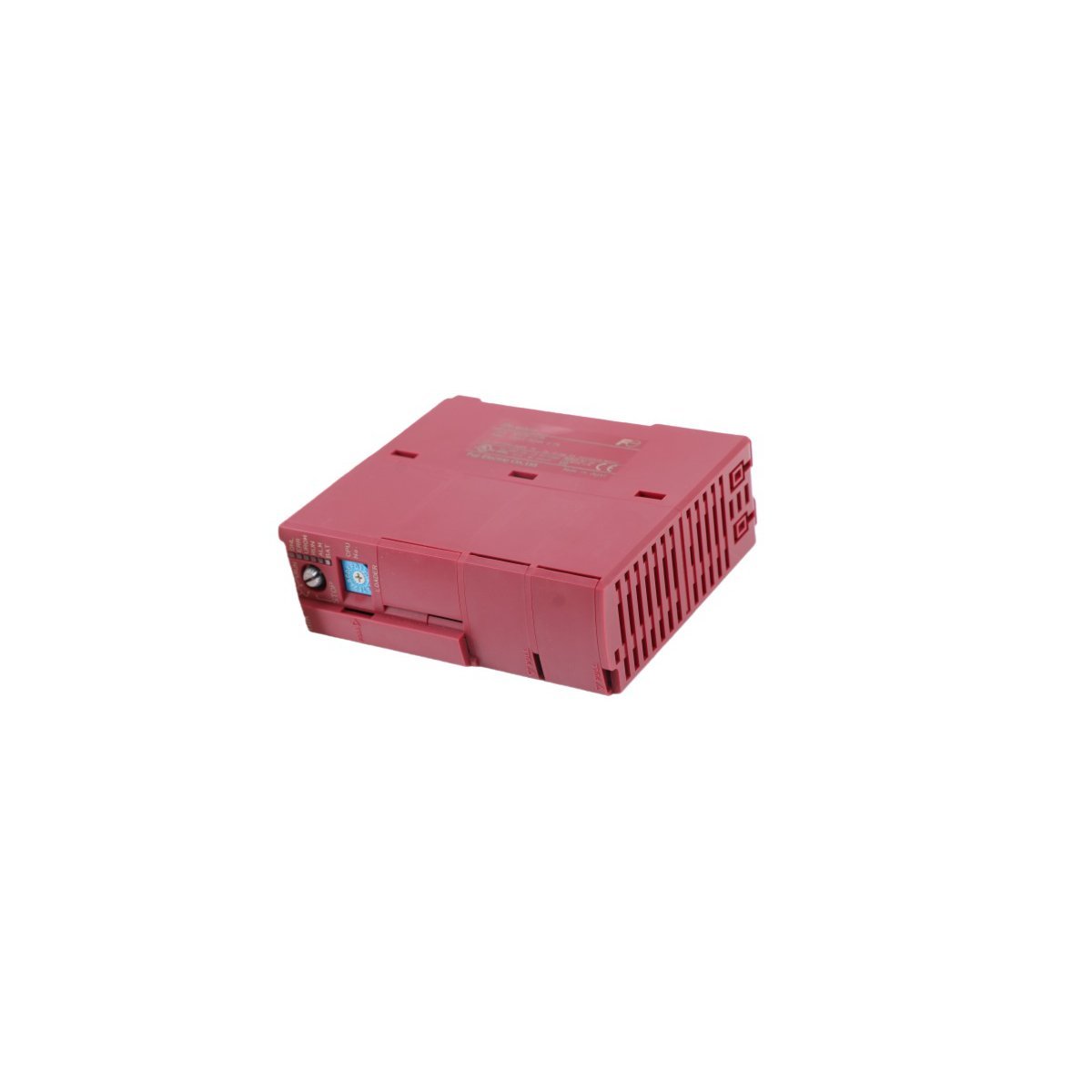

NP1PH-08 Fuji Programmable Logic Controller CPU Processor Module
The Fuji NP1PH-08 is a professional MICREX-SX SPH series CPU module designed for high-speed industrial PLC applications. It features IEC 61131-3 compliance, 24V DC operation, and supports redundant configurations to ensure maximum reliability in automated control systems.
Description
Product Description
The Fuji Electric NP1PH-08 is a high-performance central processing unit specifically designed for the MICREX-SX SPH series programmable logic controller (PLC) platform. This module serves as the primary logic engine for automated systems, executing complex control algorithms with high speed and precision to ensure seamless industrial operations.
Core Functionality and System Integration
The NP1PH-08 manages coordinated tasks across machine and motion control systems. By adhering to the IEC 61131-3 international standard, the module provides a versatile programming environment that supports multiple languages, including Ladder Diagram and Structured Text. This standardization allows engineers to develop sophisticated software sequences while maintaining cross-platform compatibility. Furthermore, the module supports redundancy configurations, which significantly increases system uptime for mission-critical manufacturing processes.
Key Technical Characteristics
The hardware architecture emphasizes both efficiency and resilience. Operating on a 24V DC power source, the module balances low power consumption with high-speed data processing.
- Program Memory: Optimized for medium-scale applications with capacity typically ranging up to 64K steps.
- Environmental Resistance: The unit functions reliably in ambient temperatures from 0°C to 55°C.
- Compact Form Factor: The space-saving design permits installation in dense control cabinets where rail space is limited.
- Diagnostic Capabilities: Integrated status indicators allow for real-time monitoring and rapid troubleshooting of CPU and system errors.
Industrial Applications
The NP1PH-08 excels in environments requiring fast response times and high reliability. Typical deployment scenarios include:
- Automated assembly lines and packaging machinery
- Multi-axis motion control and synchronization
- Remote monitoring and data acquisition systems
- Critical infrastructure control requiring redundant CPU failover
Technical Specifications
| Feature | Specification |
| Manufacturer | Fuji Electric |
| Series | MICREX-SX SPH |
| Model | NP1PH-08 |
| Input Voltage | 24V DC |
| Programming Standard | IEC 61131-3 |
| Operating Temperature | 0 to +55°C |
| Mass | 0.38 kg |
Additional information
| Weight | 0.2 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 8.3 x 5.2 x 4m |
