Description

Product Overview

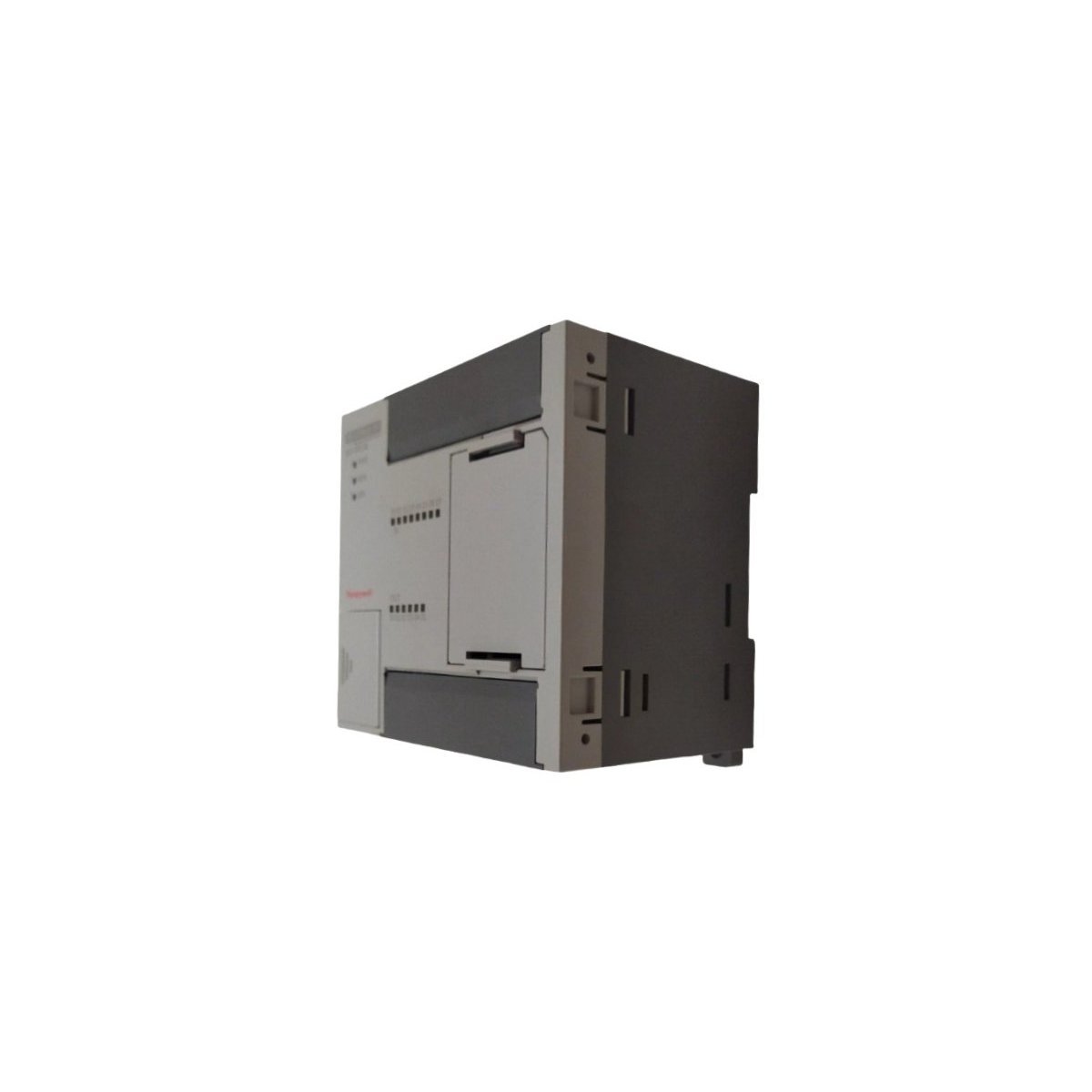

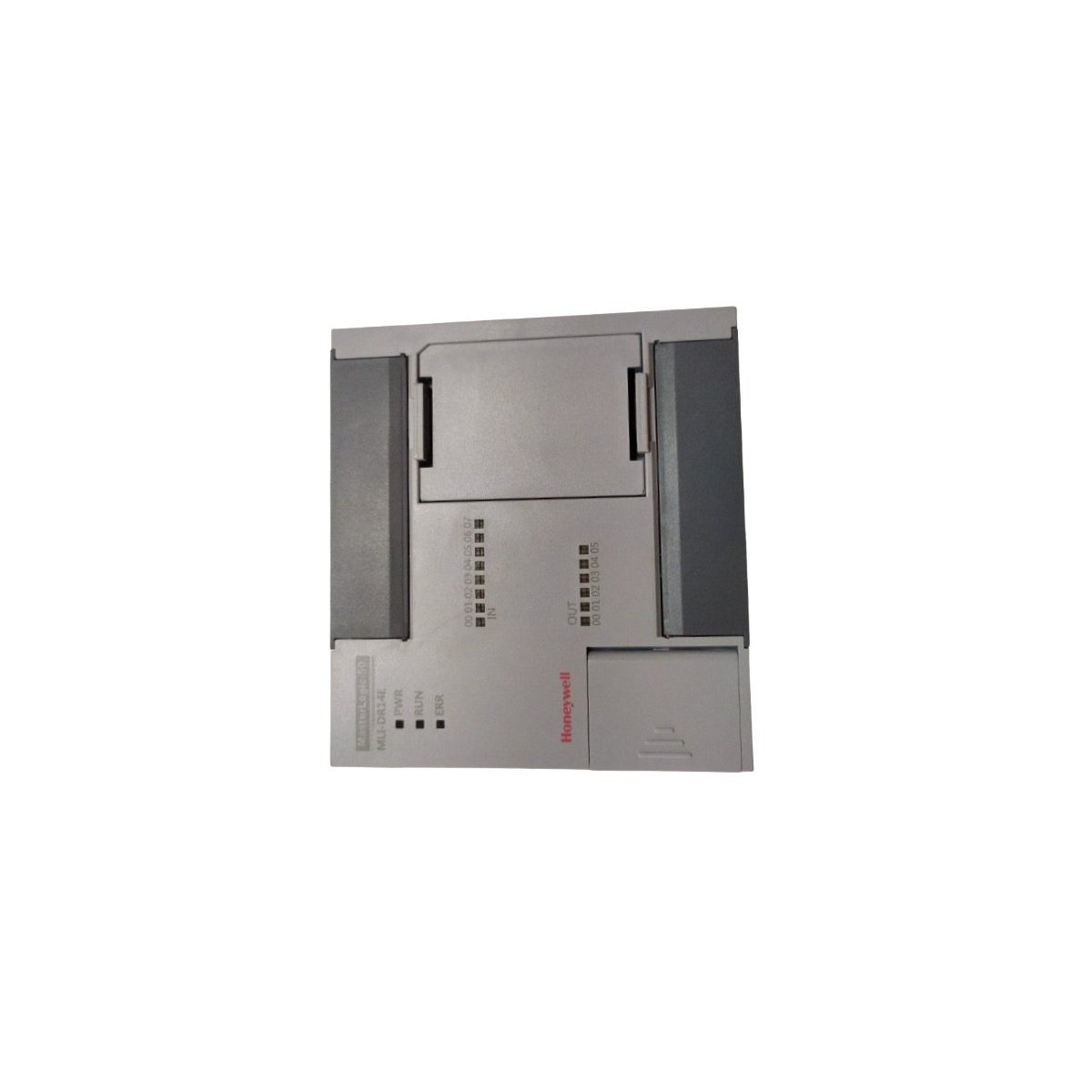

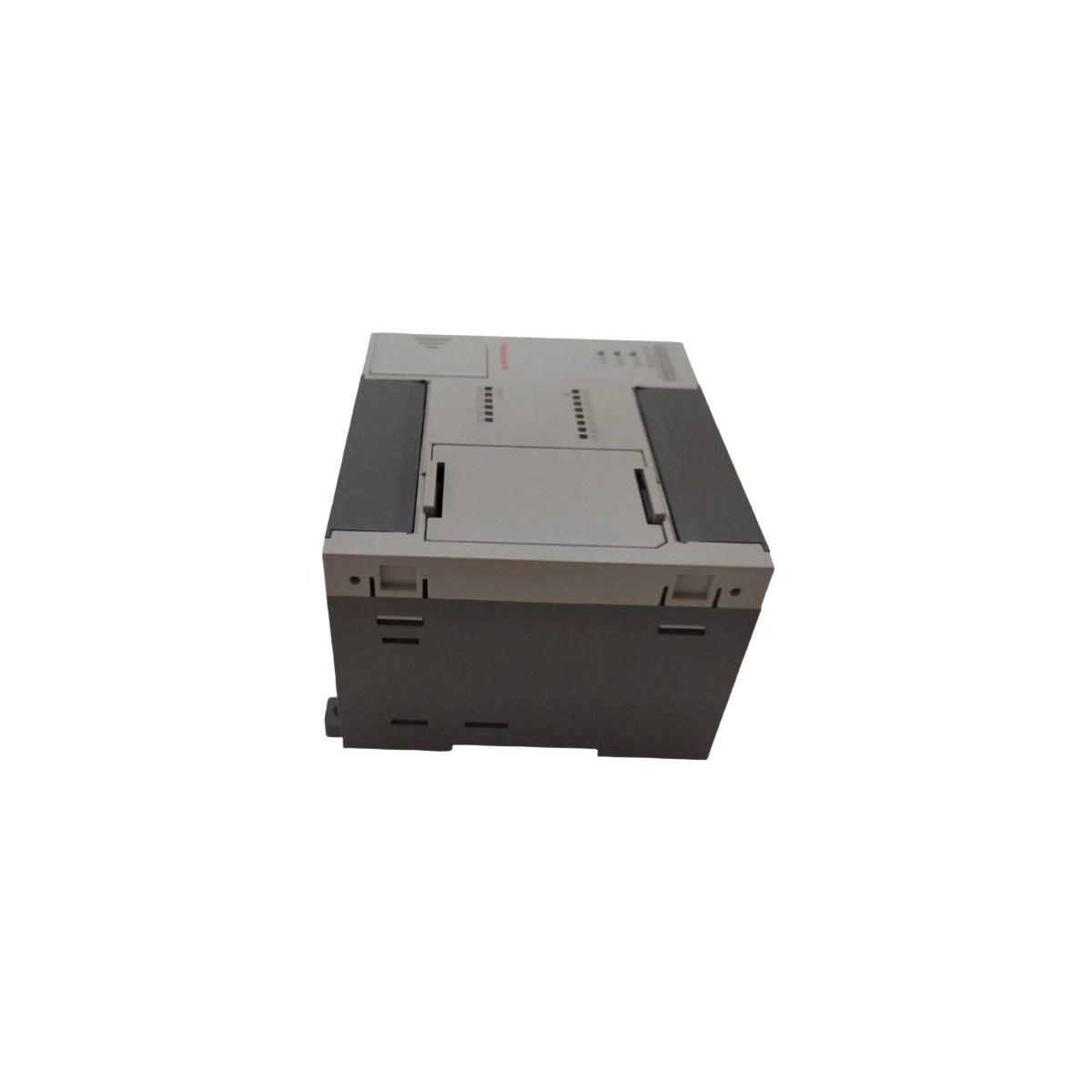

The Honeywell MLI-DP10E is a high-performance transistor (TR) digital output module engineered for the ML50 series logic controllers. It provides 4 channels of source-configured open collector outputs to manage precision switching in automated industrial environments.

Reliable Actuation and Signal Isolation

The MLI-DP10E serves as a critical interface between the control logic and field-level actuators. Because it utilizes a transistor-based source configuration, the module delivers rapid switching speeds ideal for high-frequency operations where traditional relays might fail. To safeguard the central processor and surrounding hardware, the module incorporates robust 1,500V AC channel-to-channel isolation. This dielectric strength prevents electrical surges from propagating through the system, ensuring that volatile industrial environments do not compromise the integrity of the DCS architecture.

Enhanced Contact Durability and Power Handling

Honeywell utilizes silver alloy contacts within the MLI-DP10E to maintain low contact resistance and long-term durability. The module supports a significant contact rating of 2A at 30V DC, making it powerful enough to drive solenoids, small motors, and industrial indicators directly. While it excels at DC loads, the unit also supports a maximum switching voltage of up to 120V AC. Furthermore, the internal circuitry ensures a minimum switching current of 100 mA, which provides the necessary stability for mid-range electrical loads while maintaining an efficient thermal profile within the control cabinet.

Compact Design for Modern Control Cabinets

Engineered with space efficiency in mind, the MLI-DP10E fits seamlessly into the compact MasterLogic footprint. The module weighs approximately 0.4 kg (net), reducing the mechanical load on DIN rail assemblies. This lightweight yet rugged construction facilitates easy installation in diverse settings, ranging from factory floor automation to remote process monitoring stations. By integrating this module into a Series ML50 setup, engineers gain a reliable, high-current switching solution that exemplifies Honeywell’s commitment to industrial precision and fault-tolerant operation.

Technical Characteristics
