The Emerson KJ3202X1-BA1 is a high-density discrete output module designed for the DeltaV™ M-series I/O subsystem. This 32-channel card provides reliable high-side switching for industrial actuators and indicators within a distributed control system environment.

​Product Description

High-Density Discrete Control

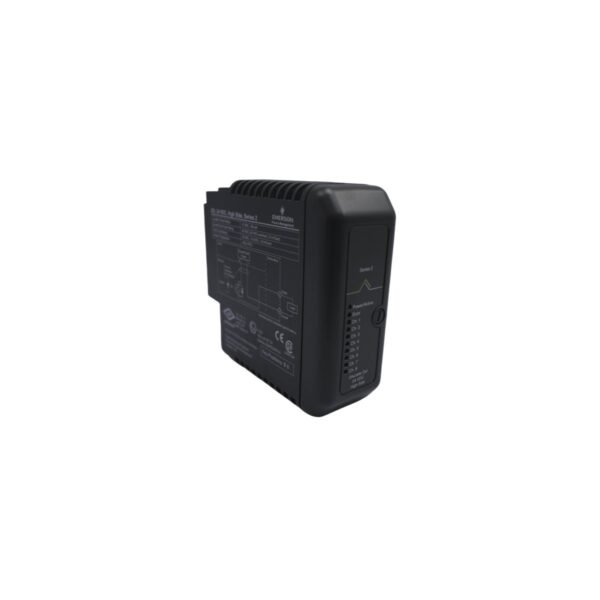

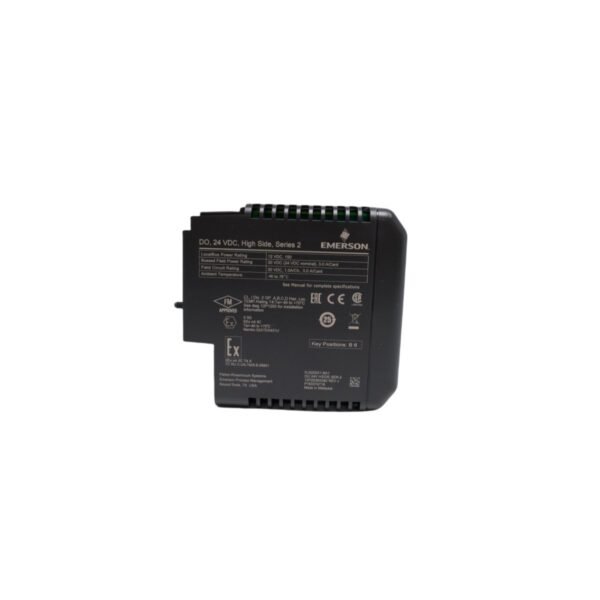

The Emerson KJ3202X1-BA1 (also identified by part numbers 12P2536X042 and VE4032S1T2B1) functions as a primary interface for controlling discrete field devices. As part of the DeltaV™ M-series Traditional I/O family, this module manages 32 individual output channels, typically used to drive solenoids, relay coils, and status lamps. By utilizing a high-side output configuration, the module ensures that power is provided to the load only when the output is energized, which aligns with standard industrial safety and wiring practices.

Reliability in Demanding Environments

Emerson engineered the VE4032S1T2B1 to withstand the rigorous conditions found in chemical processing, oil and gas, and power generation facilities. The module features a ruggedized internal architecture that maintains signal integrity despite electronic noise and varying thermal conditions. Furthermore, this specific model supports redundant configurations. When paired with a redundant terminal block, the system ensures that a single module failure does not interrupt process control, thereby maximizing plant availability and reducing the risk of costly unscheduled shutdowns.

Advanced System Diagnostics and Maintenance

To streamline troubleshooting, the KJ3202X1-BA1 incorporates intelligent diagnostic features that report the status of each channel directly to the DeltaV™ explorer. These diagnostics allow operators to detect hardware faults early and pinpoint specific channel issues without manual field testing. The modular “plug-and-play” design allows for “hot-swapping” under power, which significantly simplifies maintenance routines. Consequently, facilities can upgrade or replace I/O components without disrupting the overall operation of the Distributed Control System (DCS).
