Description

Brief Product Description

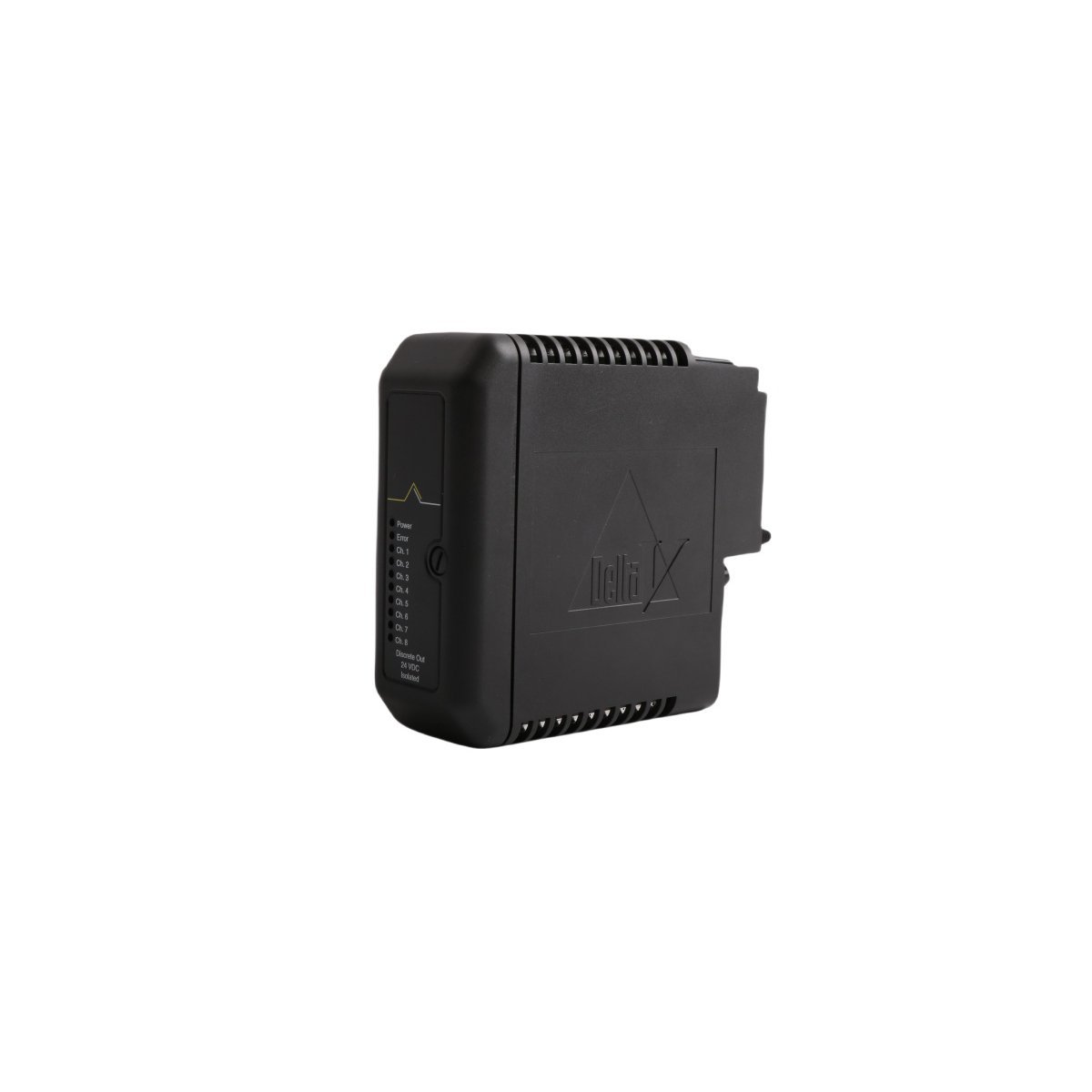

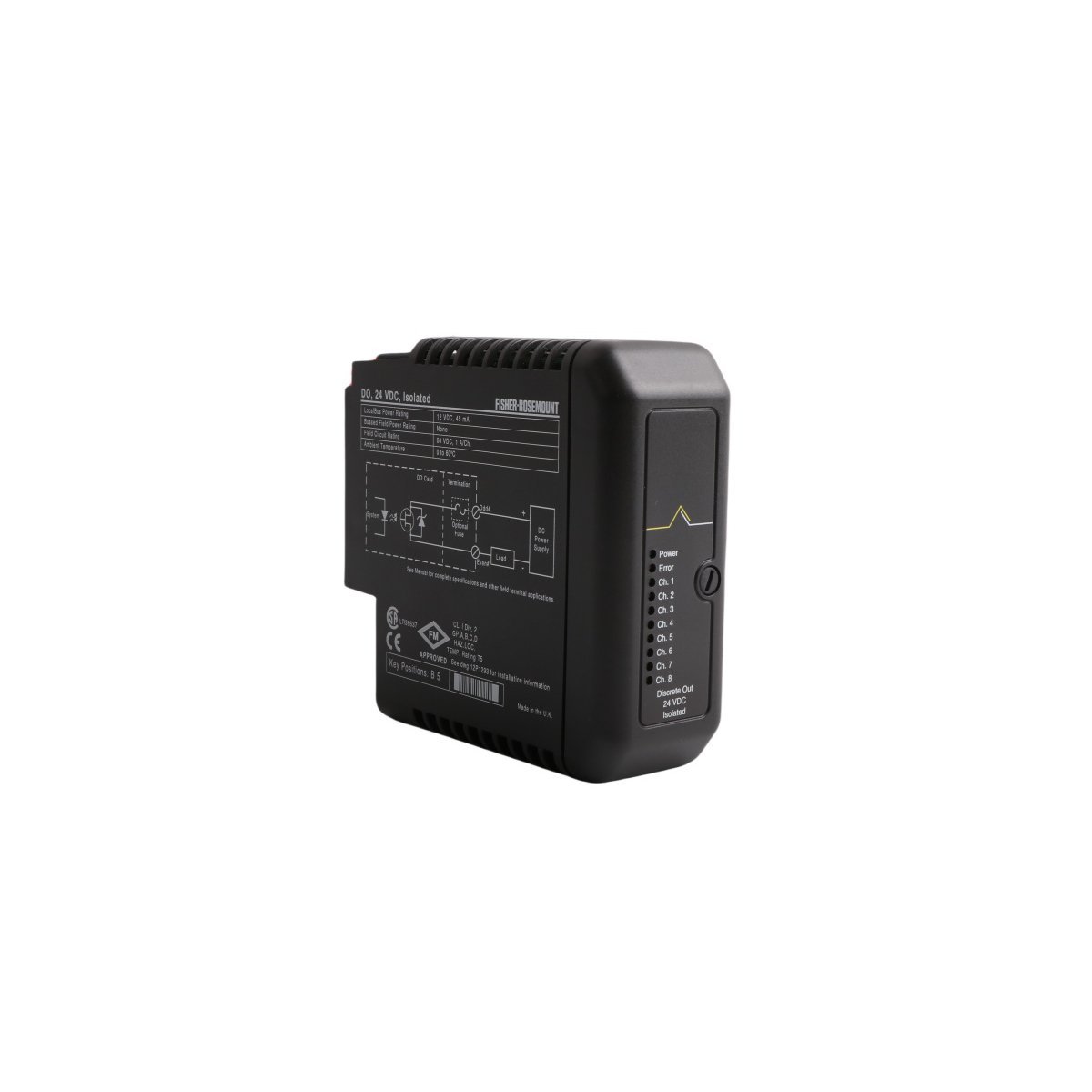

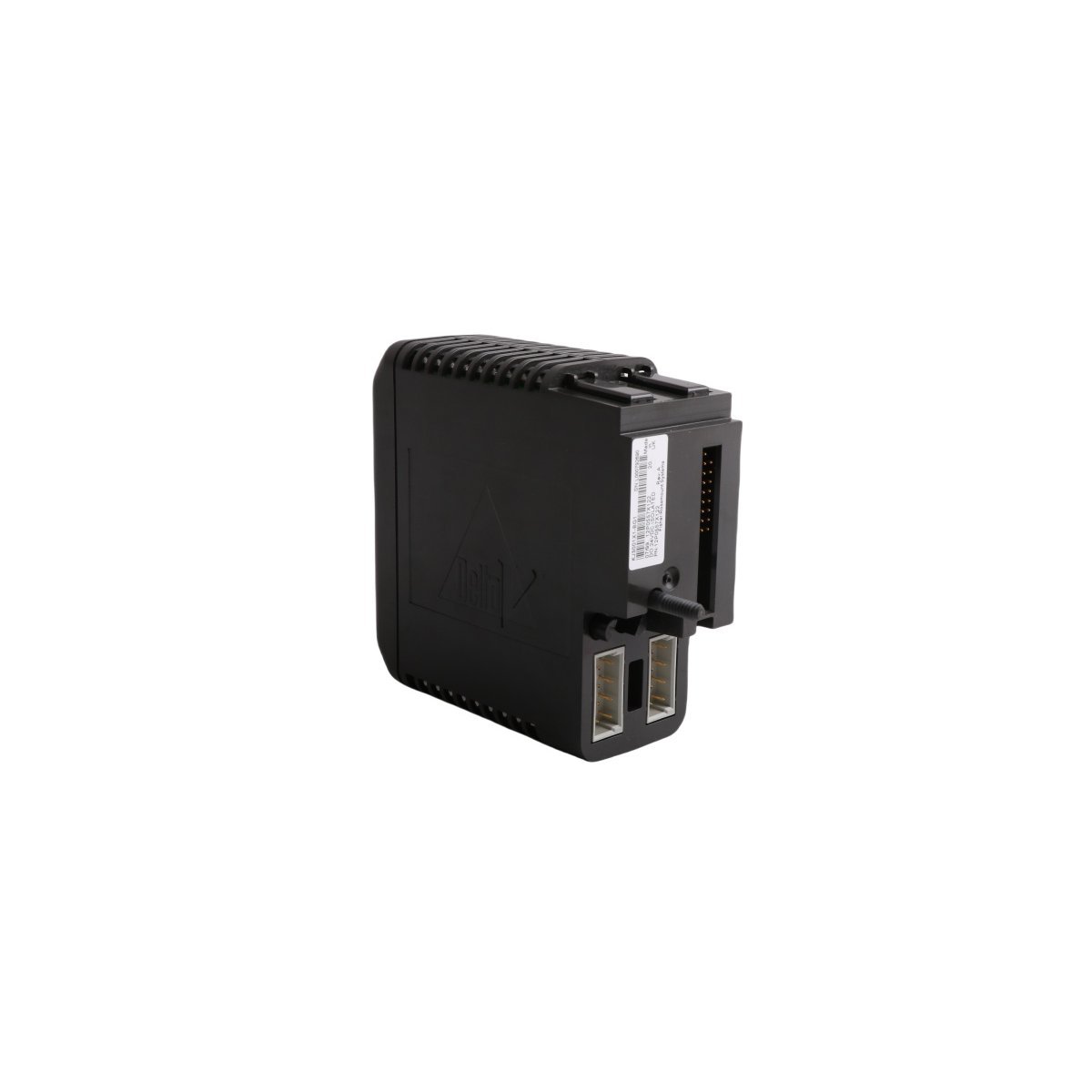

The Emerson KJ3001X1-BG1 (12P0557X122 / VE4002S1T1B1) is a high-reliability digital output module designed for the DeltaV SIS™ process safety system. It provides galvanically isolated control signals to field equipment, ensuring maximum protection for the DCS backplane against electrical surges and ground loops.

Product Description

Mission-Critical Safety Integration

The Emerson KJ3001X1-BG1 serves as a specialized digital output component within the DeltaV SIS (Safety Instrumented System) framework. This module translates logic-level commands from the safety controller into isolated power signals that drive field-mounted hardware. Because the unit belongs to the DeltaV SIS family, it adheres to rigorous safety standards, making it ideal for Emergency Shutdown (ESD) and Fire and Gas (F&G) applications. The module maintains high system availability by supervising output channels and providing comprehensive diagnostics to the operator station.

Advanced Galvanic Isolation and Signal Protection

To safeguard the broader control architecture, the KJ3001X1-BG1 12P0557X122 utilizes advanced galvanic isolation. This technical feature prevents hazardous electrical transients, noise, and ground loops from traveling from the field wiring back to the sensitive system electronics. Consequently, the module ensures that a failure in a field device does not compromise the integrity of the entire safety rack. This robust protection is particularly vital in heavy industrial sectors such as oil and gas or chemical processing, where electromagnetic interference is frequent.

Versatile Control and Functional Reliability

The VE4002S1T1B1 module offers significant flexibility for various digital control strategies, ranging from simple solenoid actuation to complex safety interlocking. Its compact design allows for high-density installation in DeltaV M-series and S-series carriers. Furthermore, the module facilitates “Hot-Swapping,” which enables maintenance personnel to replace components without powering down the safety system. This capability, combined with its resistance to harsh industrial climates, reinforces the product’s role as a cornerstone for long-term operational stability and predictive maintenance strategies.
