Product Overview

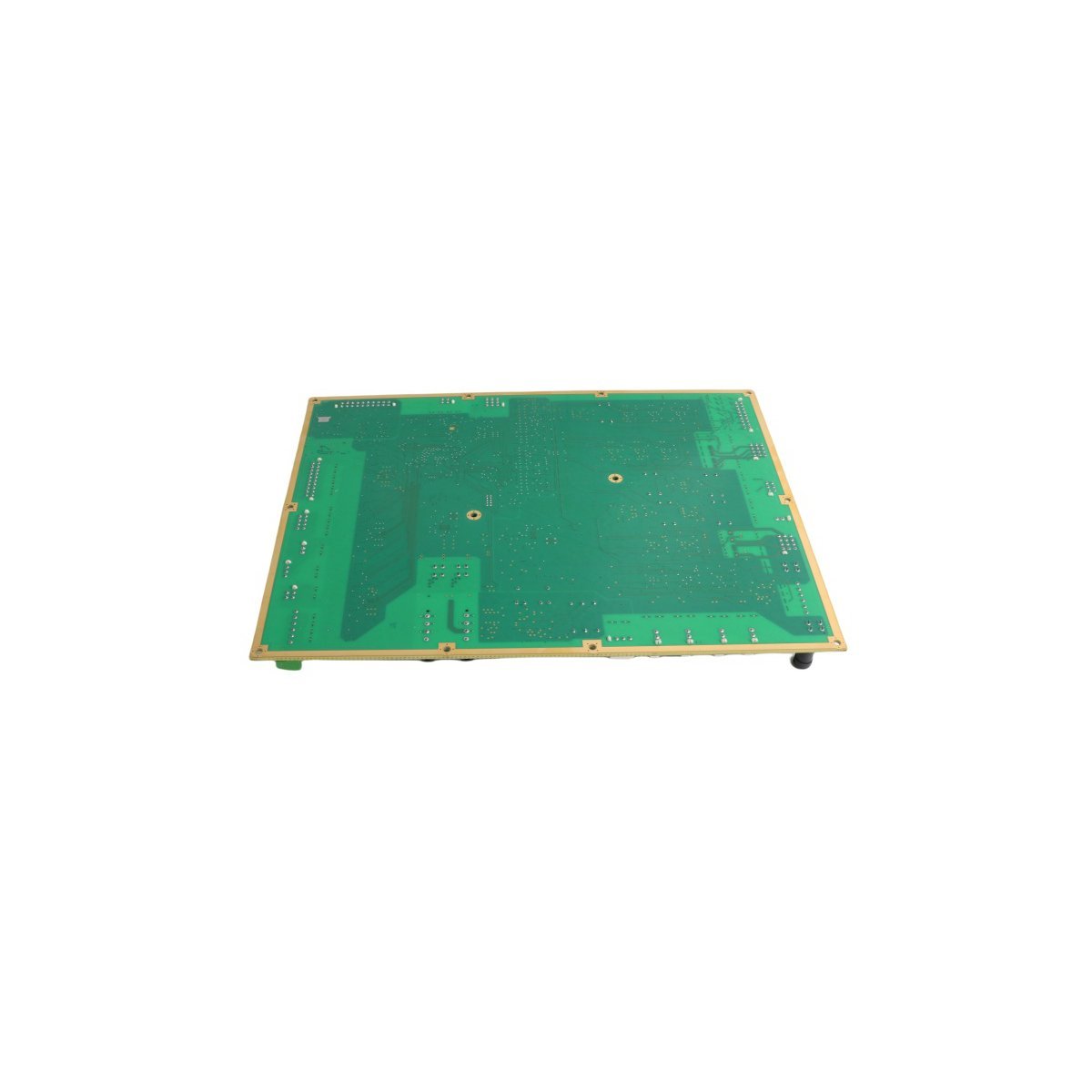

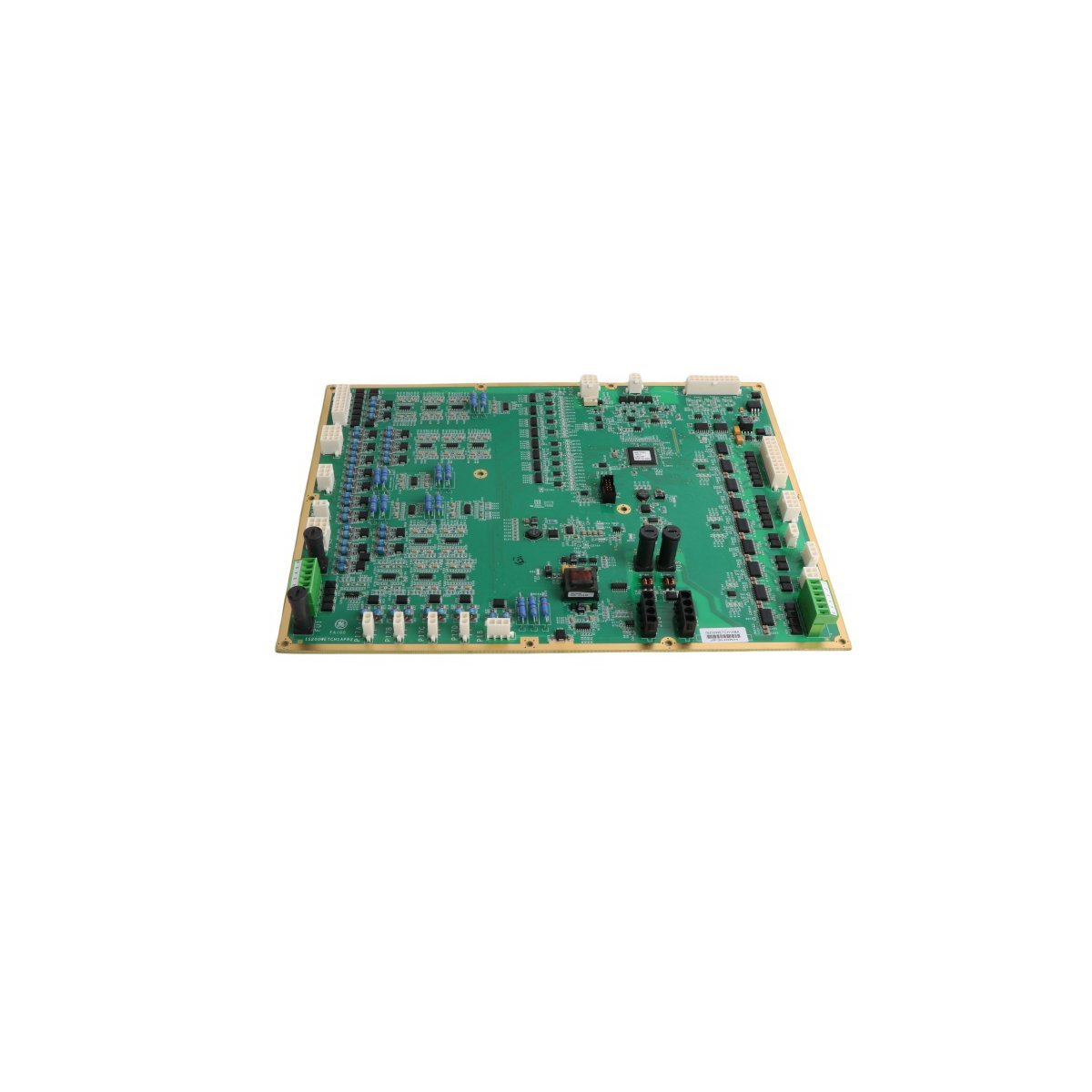

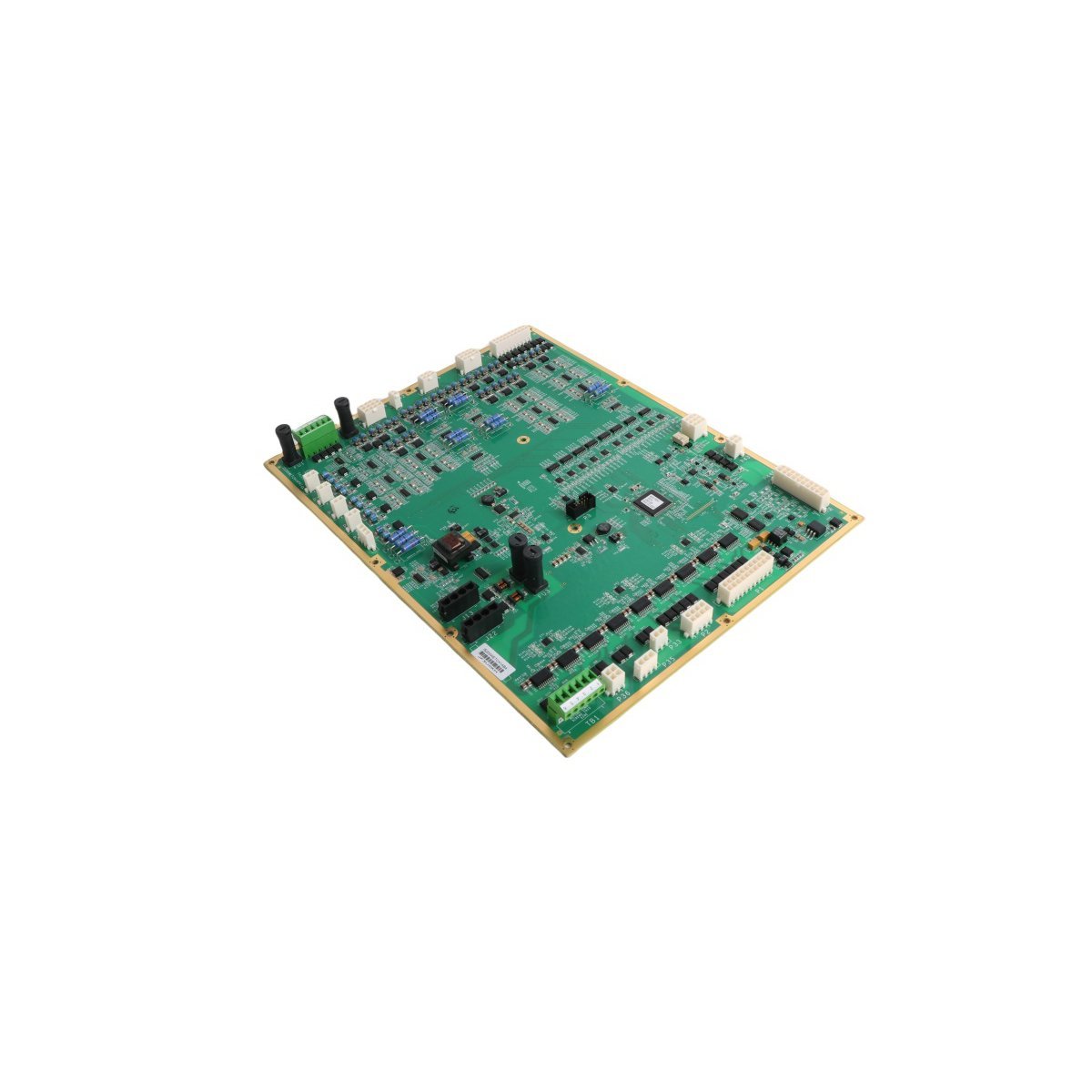

The General Electric IS200WETBH1B is a sophisticated Elevator Control Board developed for the Mark VI Speedtronic and EX2100 control platforms. This component-dense assembly manages specialized signal routing and power distribution to ensure the high-performance operation of steam and gas turbine systems.

Advanced Control and Signal Management

The IS200WETBH1B serves as a multi-functional interface within the Mark VI architecture, facilitating the monitoring of critical turbine parameters such as synchronization, vibration, and flame detection. It features an exceptionally complex hardware layout designed to handle high-current switching and precise signal regulation simultaneously. The board integrates an onboard transformer and an array of over thirty relays to manage discrete control logic and power isolation. To protect sensitive downstream electronics, the assembly includes ten replaceable fuses and a series of varistors that suppress voltage transients and electrical surges.

Robust Hardware Configuration

Engineers designed the IS200WETBH1B with a focus on thermal stability and connectivity. The board utilizes seven dedicated heat sinks and nine voltage regulators to maintain consistent power levels across its fifty-plus integrated circuits. Connectivity is established through an extensive interface system, including more than 65 multi-position connectors and female jacks. Furthermore, three vertical male pins (P1, P2, and P3) provide specialized power and communication links. The PCB itself is reinforced with a copper strip along the edges and features pre-drilled factory holes for secure mounting within standardized industrial control cabinets.

Application and Maintenance

While the IS200WETBH1B is primarily used in turbine excitation and speed control, its robust design makes it suitable for various Distributed Control System (DCS) applications. The board includes test points (TP) and a manual switch to assist technicians during field diagnostics and system calibration. Because turbine environments are electrically demanding, the use of high-voltage electrolytic capacitors and precision metal film resistors ensures long-term reliability. This board remains an essential spare part for facilities seeking to maintain the operational integrity of their legacy GE Speedtronic assets.
