Description

Brief Product Description

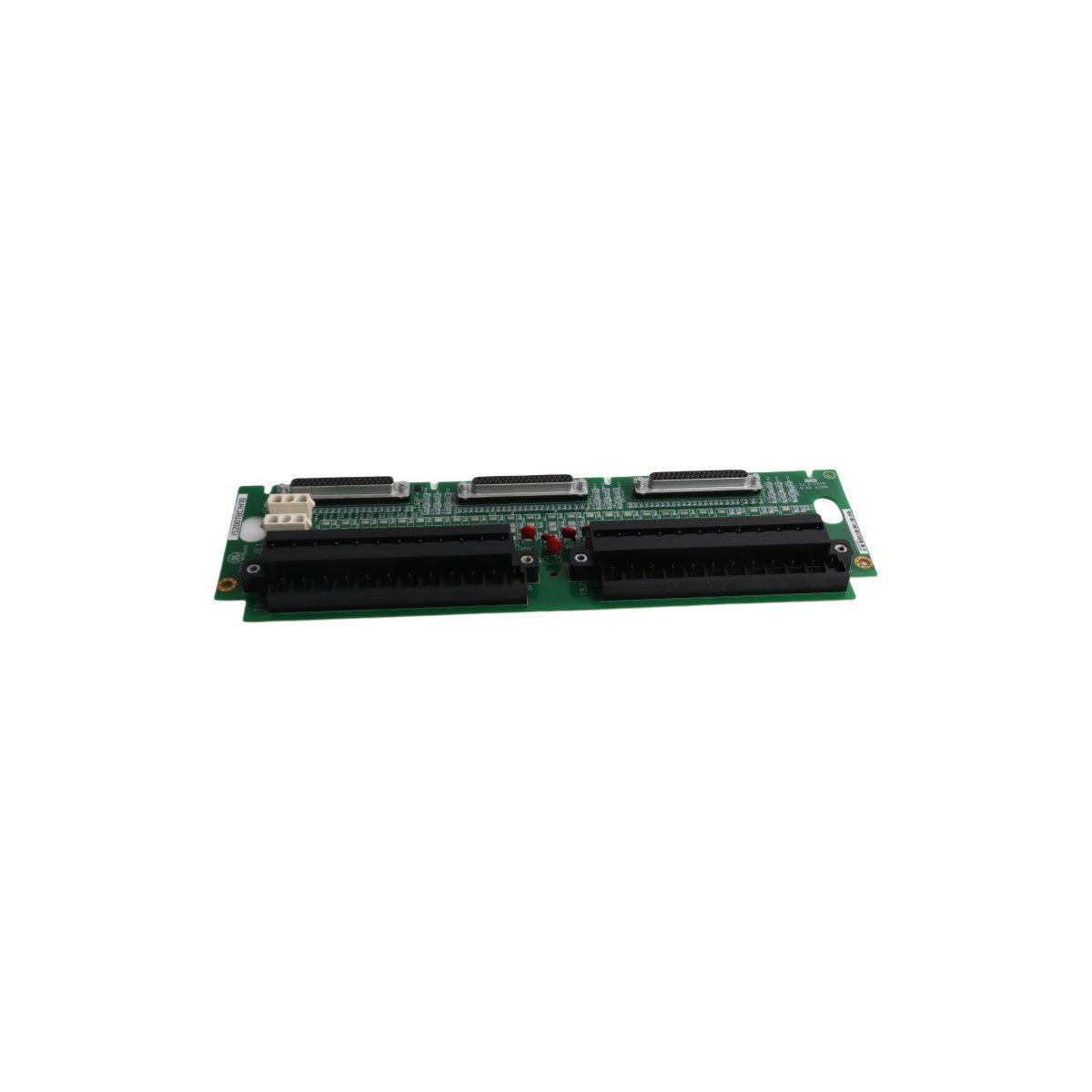

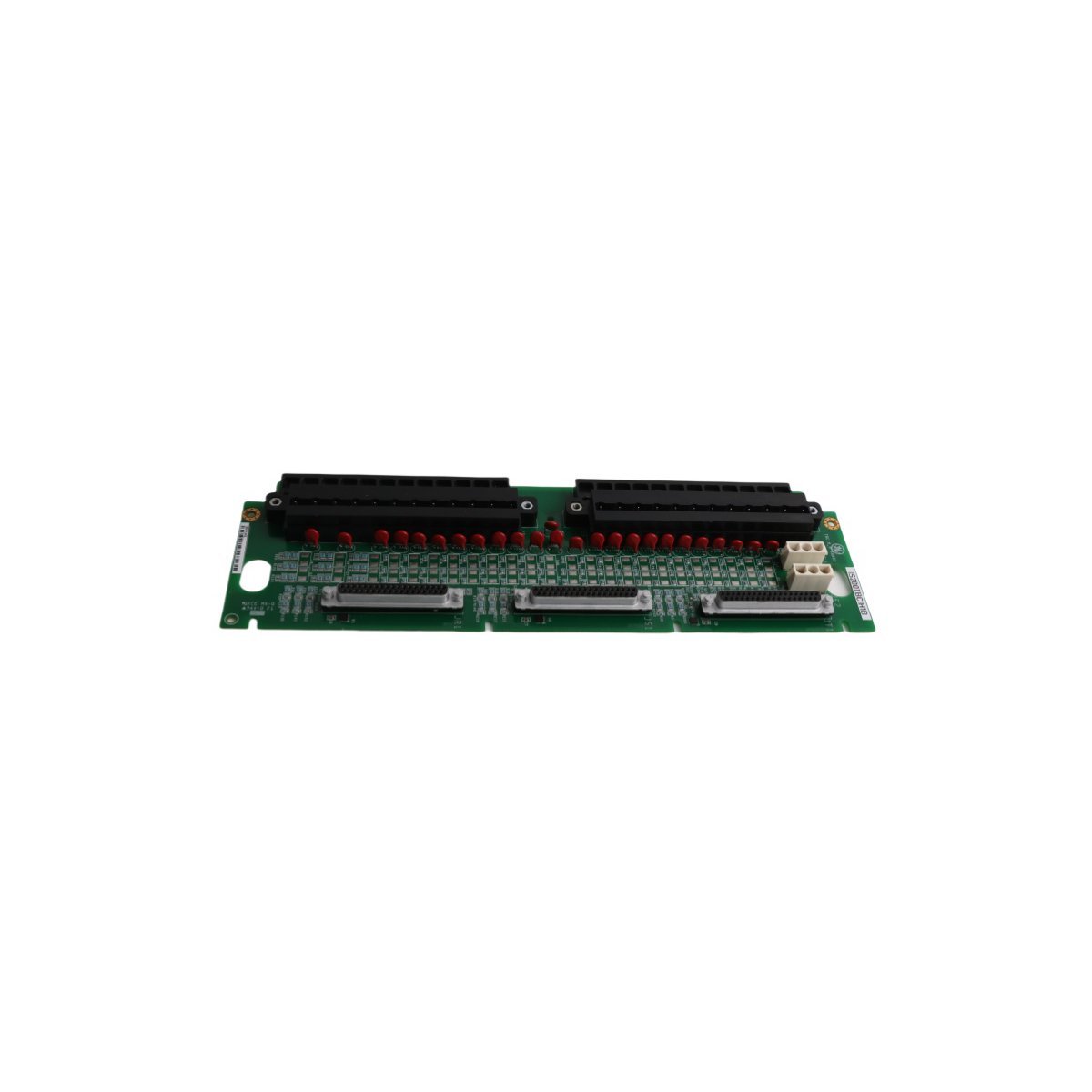

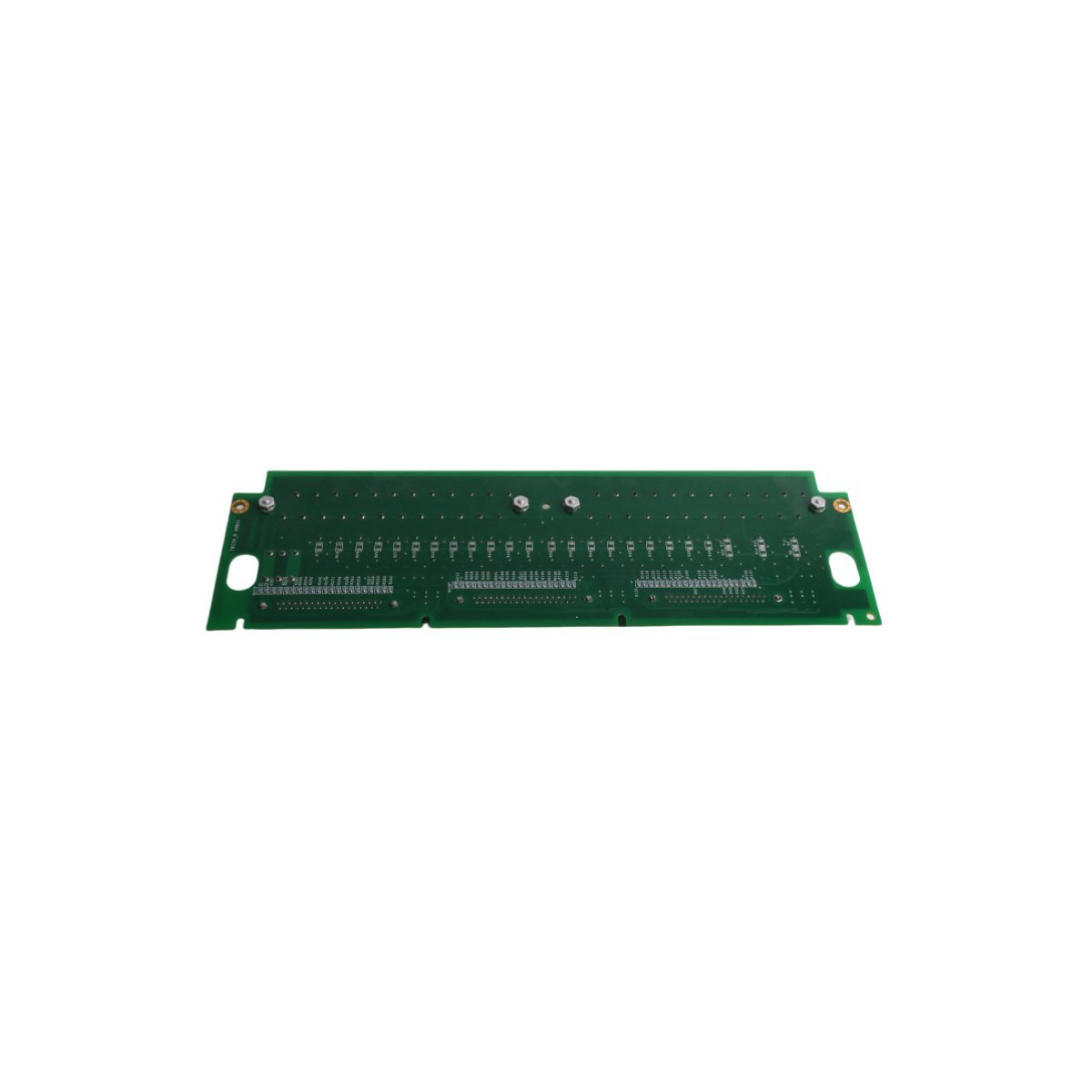

The GE IS200TBCIH1B is a high-performance contact input terminal board engineered for the Speedtronic Mark VIe control system. It provides a ruggedized interface for field signals, facilitating secure data transmission between external sensors and the internal I/O processor.

Product Description

High-Integrity Signal Routing and Communication

The General Electric IS200TBCIH1B functions as a primary connection point for discrete field inputs within the Mark VIe Distributed Control System (DCS). This terminal contact board actively manages signal distribution from field devices to the I/O processors, ensuring high-speed data acquisition with sub-microsecond latency. By utilizing optimized circuit pathways, the board minimizes electromagnetic interference (EMI), which maintains signal purity in electrically noisy power plant environments. This precision allows turbine operators to monitor critical states with absolute confidence in data accuracy.

Fault Tolerance and Industrial Resilience

Reliability remains the cornerstone of the IS200TBCIH1B design, as it supports both Simplex and Triple Modular Redundant (TMR) architectures. The board features a dual-channel communication path that prevents single-point failures from disrupting turbine operations. Furthermore, the hardware incorporates industrial-grade components and a conformal-coated PCB to resist moisture, dust, and chemical contaminants. To streamline maintenance, the board supports hot-swapping capabilities, allowing technicians to replace or service components without requiring a full system shutdown.

Monitoring and Environmental Durability

The Mark VIe IS200TBCIH1B is built to withstand the rigorous mechanical stress of peaking power stations and combined-cycle plants. It utilizes MIL-spec connectors and vibration-resistant mounting to ensure long-term stability under thermal and physical strain. For real-time diagnostics, the module includes onboard LED status indicators that provide immediate visual confirmation of channel health and data flow integrity. These integrated diagnostic features, combined with its high-speed performance, make this terminal board an essential component for critical infrastructure where continuous uptime is mandatory.

Technical Specifications
