Description

Brief Product Description

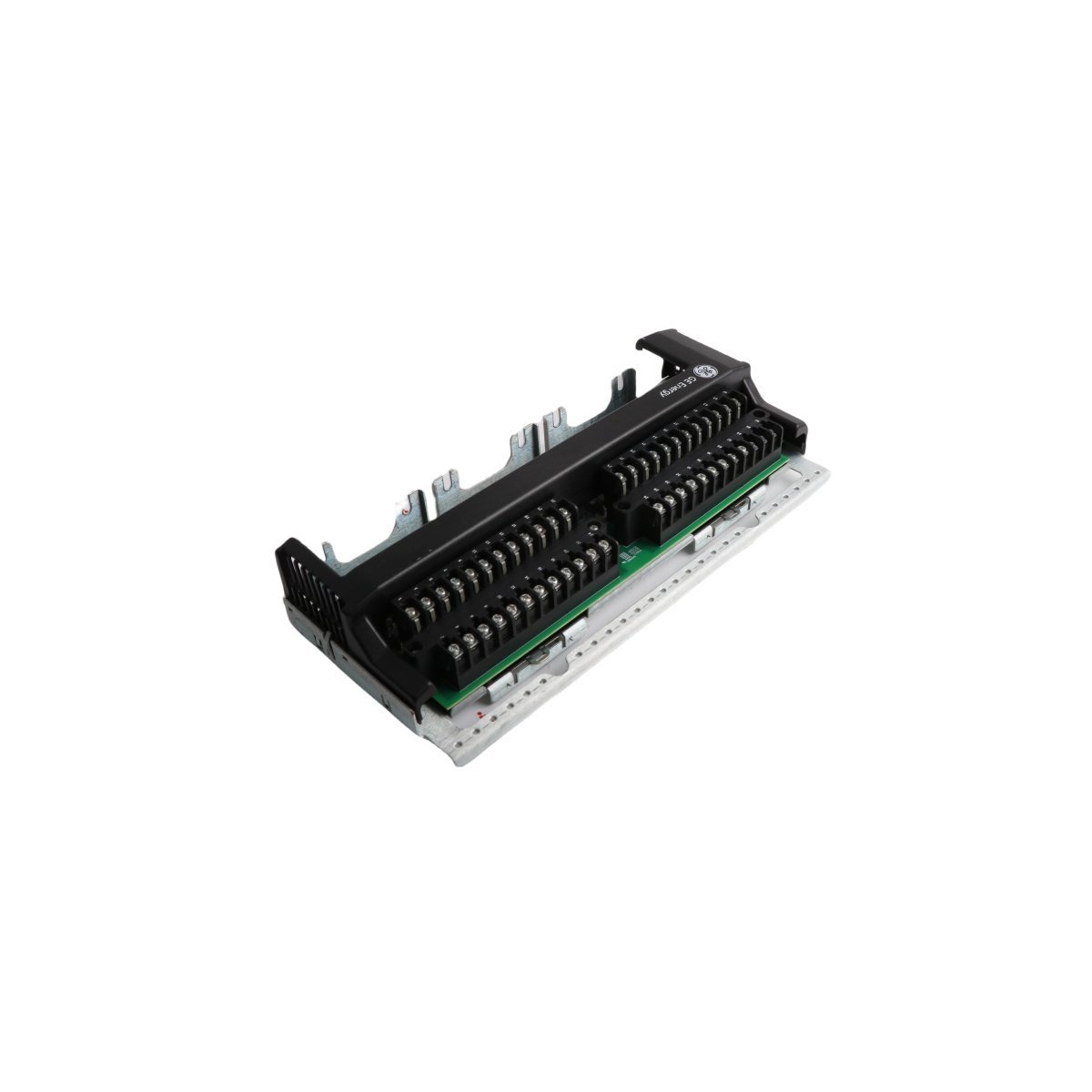

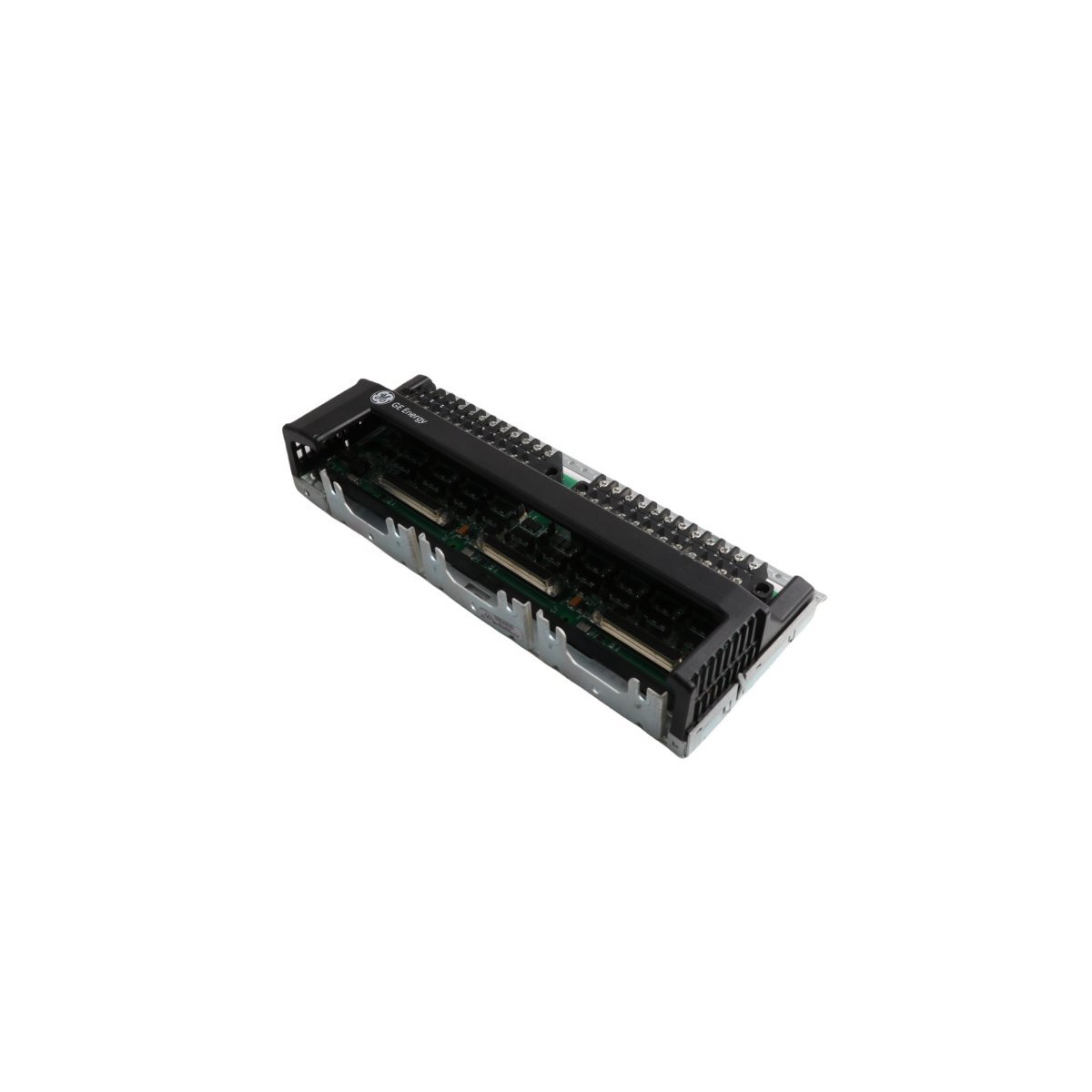

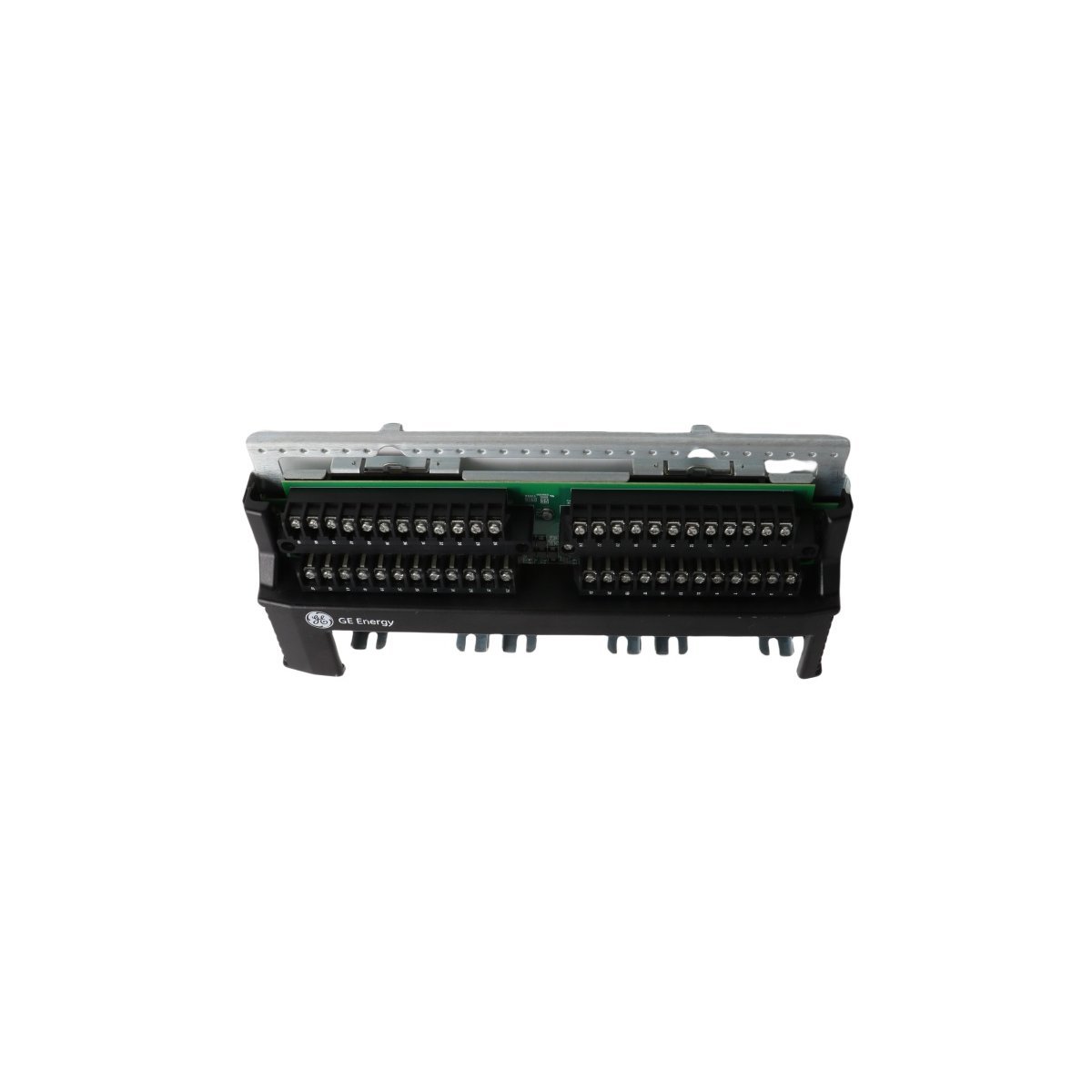

The General Electric IS200TBAIS1C is a high-performance analog terminal board designed for the Mark VIe control platform. It facilitates the routing and aggregation of critical analog signals for both simplex and Triple Modular Redundant (TMR) industrial applications.

Product Description

Redundant Signal Architecture

The GE IS200TBAIS1C functions as a primary interface for analog signals within the Mark VIe control ecosystem. This terminal board supports advanced fault-tolerant configurations by utilizing three DC-37 pin connectors. While simplex operations require only the JR1 connector, Triple Modular Redundant (TMR) installations leverage all three interfaces to fan input signals across the R, S, and T control processors. This architectural redundancy ensures that the system maintains continuous operation even if a single processor fails. Furthermore, the board aggregates output currents from triple drivers, utilizing an onboard measuring shunt to calculate the total current for precise regulation by the I/O processors.

Intelligent Identification and Monitoring

Reliability in the IS200TBAIS1C is bolstered by an integrated electronic ID chip. This component stores vital hardware data, including the board type, serial number, revision level, and specific connection coordinates. When the board interfaces with the Mark VIe system, the I/O processor queries this chip to verify hardware compatibility and prevent configuration errors. Additionally, the board maintains constant surveillance over output current health, providing real-time diagnostic feedback to the central controller. These automated checks significantly reduce the risk of manual setup errors and enhance the overall safety integrity of the control loop.

Durable Industrial Design

General Electric engineered the IS200TBAIS1C Terminal Board to operate reliably in volatile industrial settings. The module maintains peak performance across a broad temperature spectrum ranging from -30°C to 65°C. Its vertical, space-saving form factor—measuring approximately 33.02 cm in height—allows for high-density mounting within control cabinets. Because the board handles sensitive analog I/O, its construction prioritizes signal isolation and accuracy. This makes the IS200TBAIS1C an essential hardware component for gas turbine control, power generation, and other critical infrastructure where precision and uptime are non-negotiable.
