Description

Brief Product Description

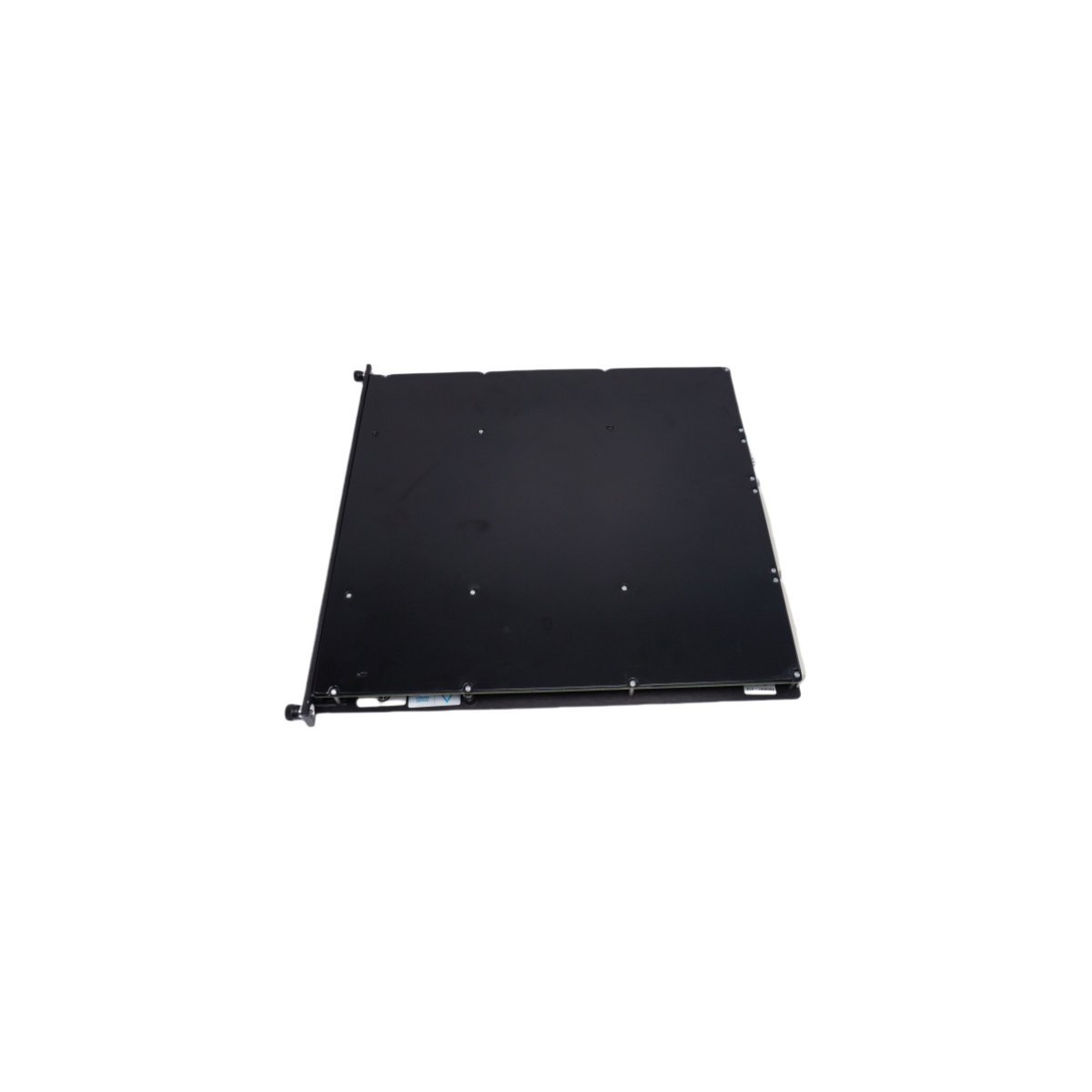

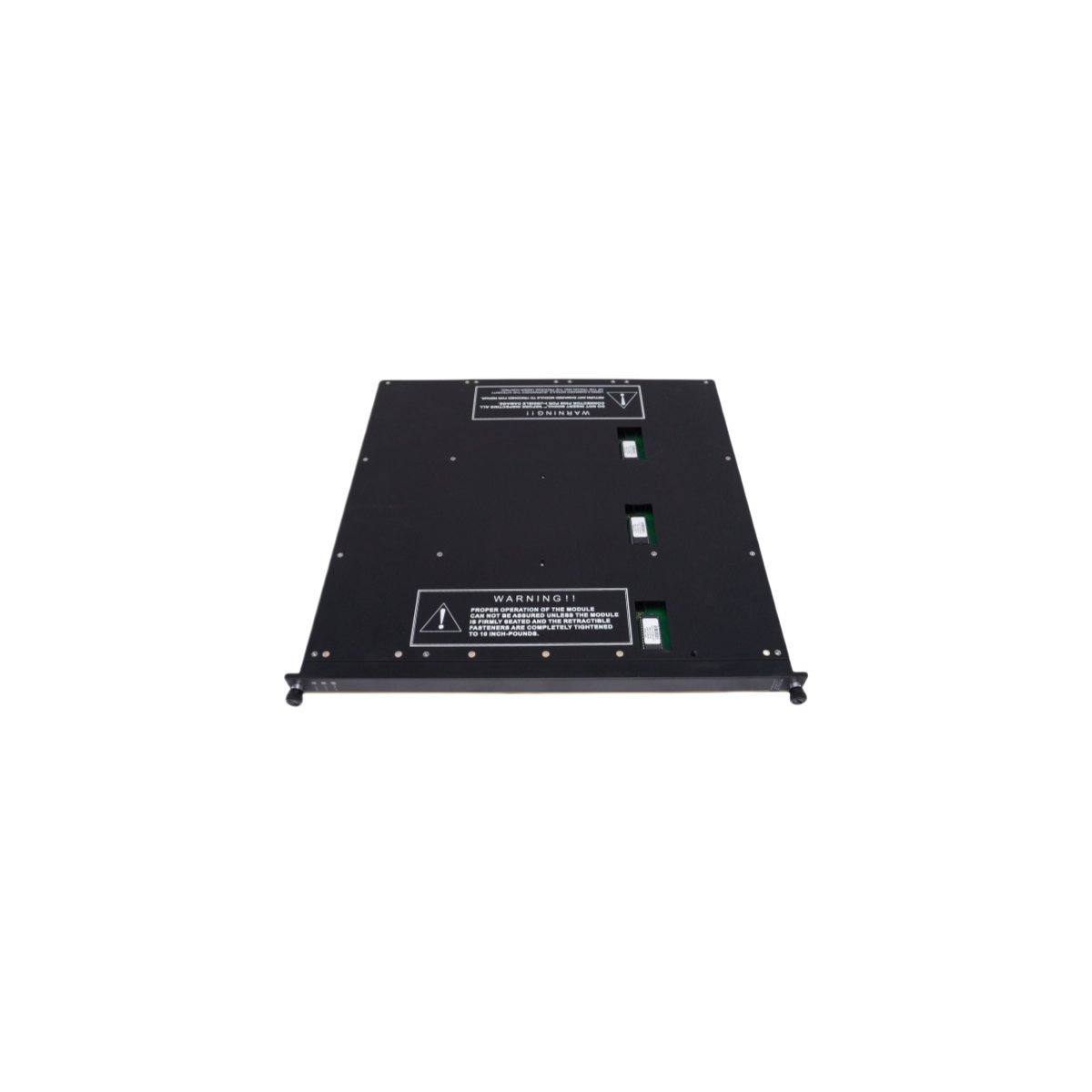

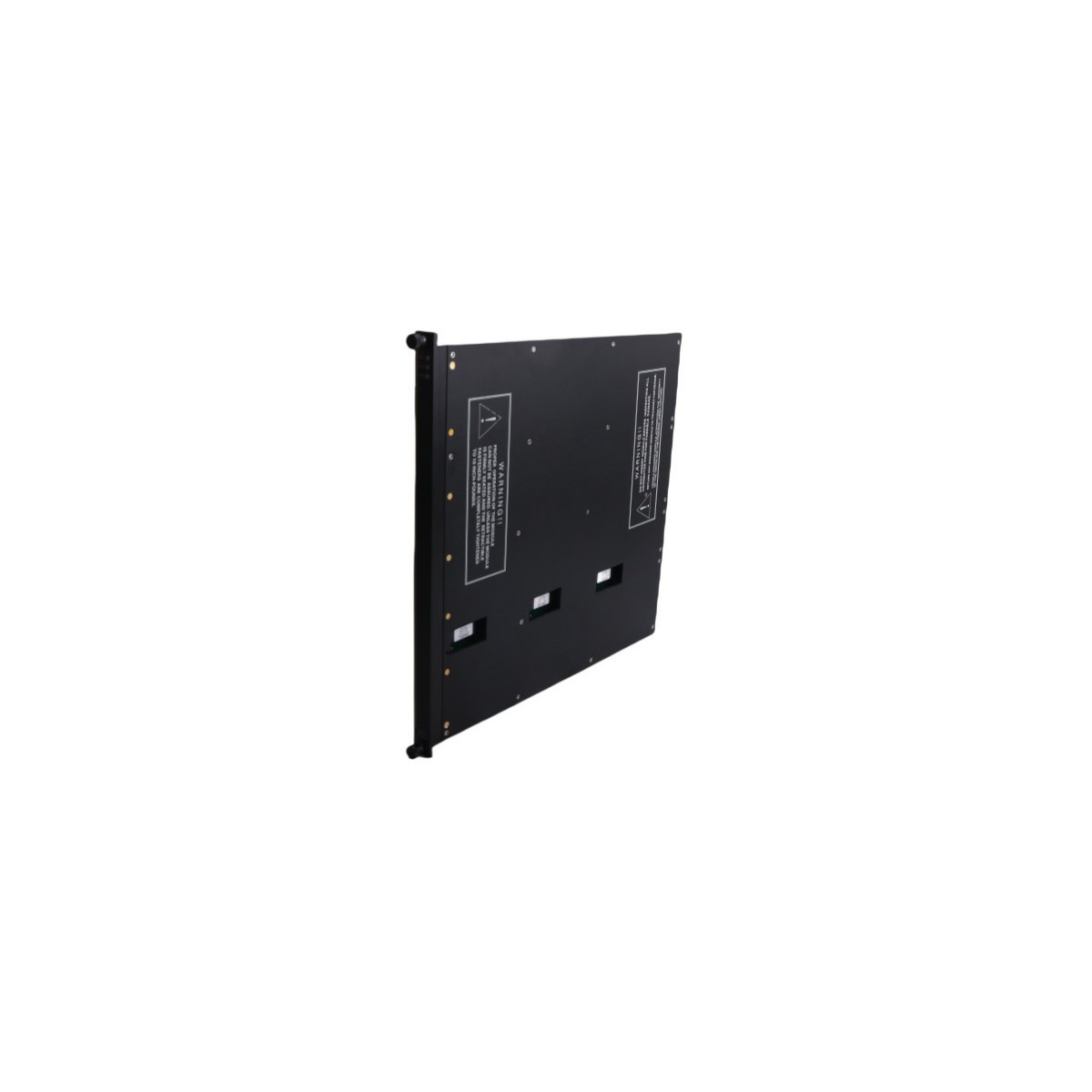

The Triconex 3700A is a high-precision analog input module designed for the Tricon Triple Modular Redundancy (TMR) safety system.¹ It provides fault-tolerant signal acquisition for mission-critical industrial applications by supporting both voltage and current loop inputs.

Product Description

Triple Modular Redundancy for Safety-Critical Tasks

The Triconex 3700A serves as a core component within the Invensys Tricon safety-instrumented system (SIS).² This module utilizes Triple Modular Redundancy (TMR) architecture to provide the highest level of system availability and fault tolerance.³ By processing incoming signals through three isolated sensing paths, the unit identifies and compensates for hardware failures without interrupting the process. Consequently, this module excels in emergency shutdown (ESD) systems, fire and gas monitoring, and turbine control where operational continuity is non-negotiable.

High-Precision Signal Acquisition

Industrial operators rely on the 3700A for its superior measurement accuracy and rapid response times. The module supports standard industrial signal ranges, including 0-10 VDC and 4-20 mA current loops, allowing for versatile interfacing with pressure, flow, and temperature transmitters. Furthermore, each channel features an impressive accuracy rating of ±0.05%, ensuring that the safety controller receives high-fidelity data for logic execution. Because the module maintains a high sampling rate, it provides real-time visibility into dynamic process conditions, which significantly enhances the safety integrity of the entire plant.

Industrial Durability and Maintenance

Engineered for longevity, the Triconex 3700A features a ruggedized design capable of withstanding the harsh electrical and environmental conditions found in DCS and PLC environments.⁴ The module facilitates straightforward integration into Tricon chassis via a standardized 6-pin screw terminal interface, which simplifies both initial wiring and subsequent maintenance. Although the 3700A series reached its formal discontinuation date in late 2018, it remains a critical spare part for global facilities maintaining existing Tricon v9 and v10 systems. Its energy-efficient 12V DC power consumption and robust heat dissipation ensure stable performance over a long service life.

Technical Specifications
