Description

Brief Product Description

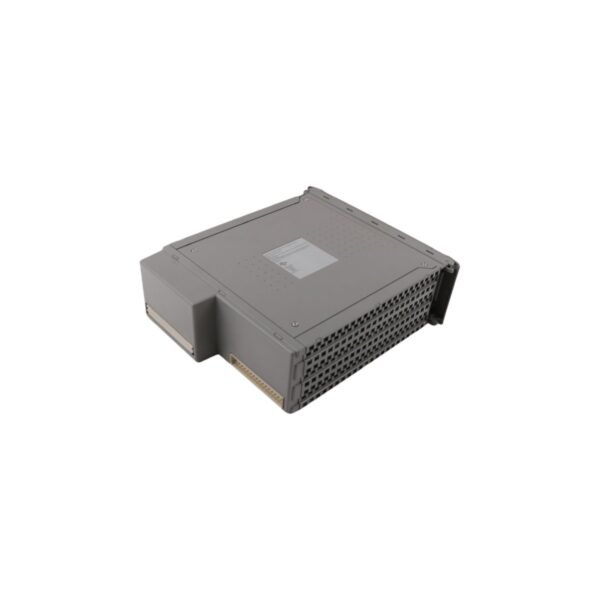

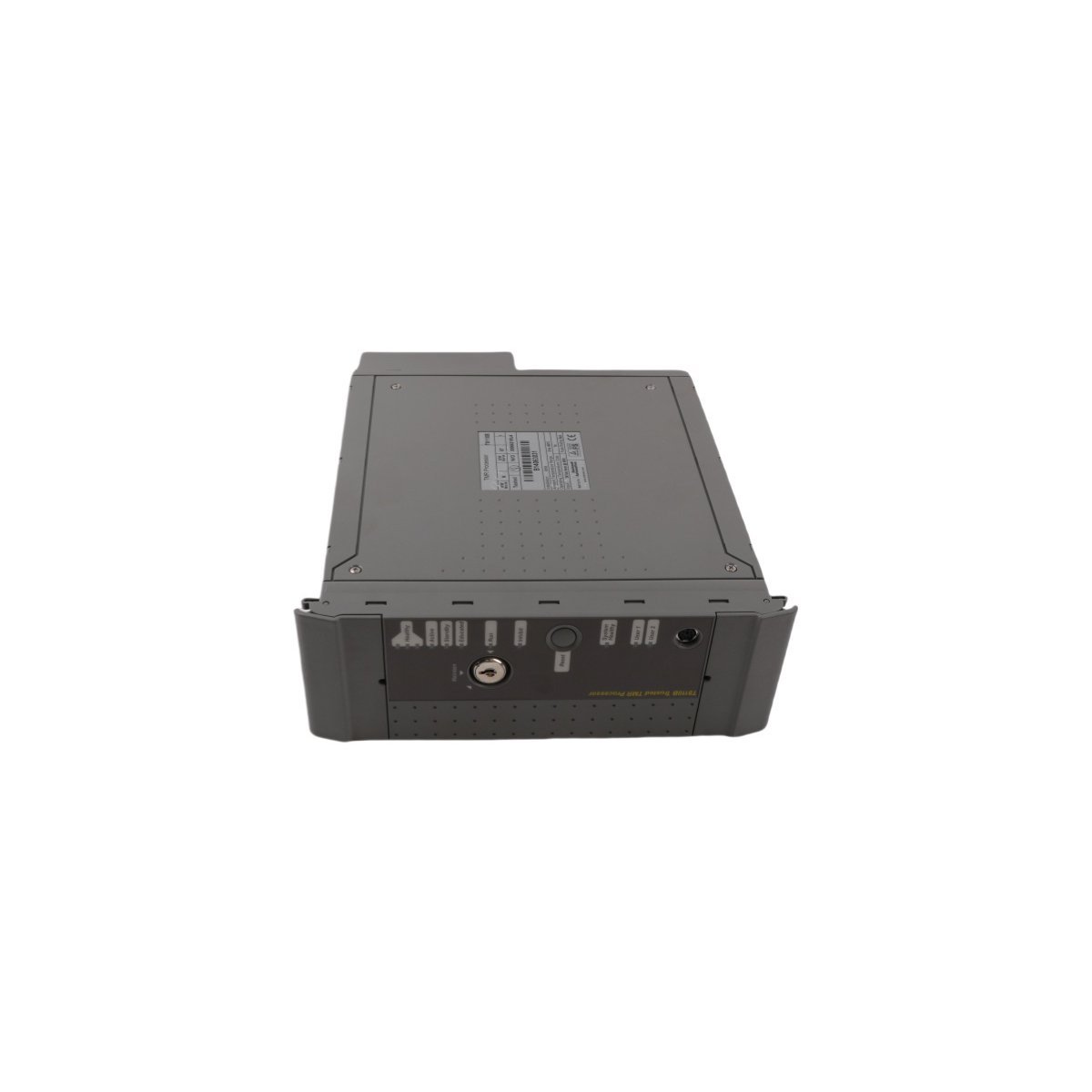

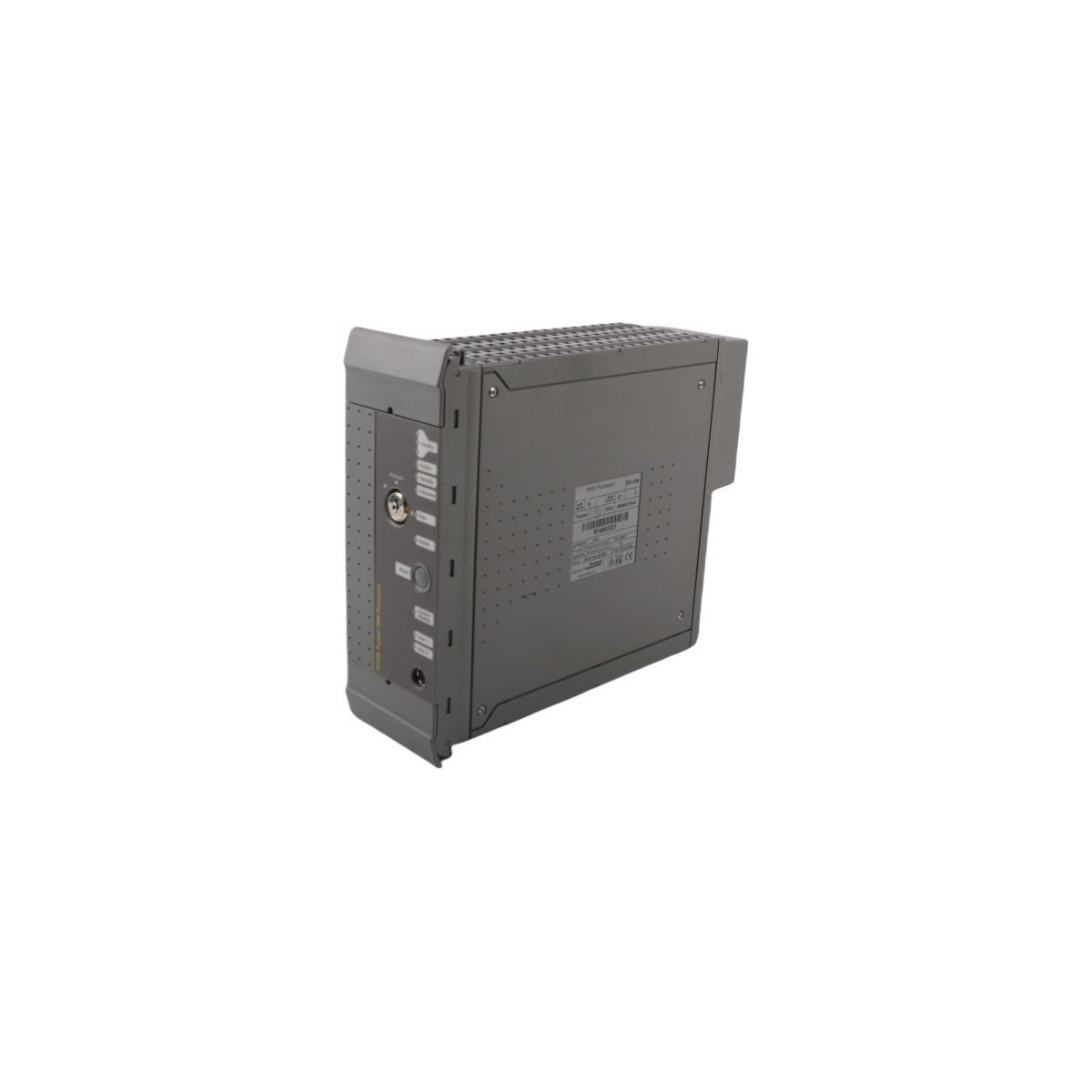

The ICS Triplex T8110B is the central processing powerhouse of the Trusted TMR system, providing high-integrity control for Safety Instrumented Systems (SIS). It utilizes a fault-tolerant Triple Modular Redundant architecture to execute complex logic while ensuring absolute process safety and maximum uptime.

High-Integrity Triple Modular Redundant Processing

The ICS Triplex T8110B functions as the primary intelligence unit within the Trusted platform. This processor module leverages a Triple Modular Redundant (TMR) architecture, which executes application logic across three isolated sub-processors. By employing hardware-implemented 2-out-of-3 (2oo3) voting, the T8110B identifies and masks potential faults in real time. This ensures that the system continues to operate safely even if a component fails, making it a critical component for Emergency Shutdown (ESD) and Fire and Gas (F&G) protection.

Robust Computational Performance and Storage

To manage modern industrial demands, the T8110B incorporates a powerful 2.0 GHz processing core. This high-speed execution environment handles intensive data calculations and complex safety logic with minimal scan times. Furthermore, the module features integrated 128 MB of RAM alongside 128 MB of Flash memory. These resources provide a stable foundation for sophisticated application software and comprehensive local data logging, ensuring the system remains responsive under heavy communication loads.

Versatile Connectivity and Environmental Resilience

The T8110B facilitates seamless integration into existing industrial networks through its support for diverse communication protocols. The module features multiple interfaces, including high-speed Ethernet and RS-485 ports, which enable real-time data exchange with HMI systems and peer-to-peer controllers. Additionally, ICS Triplex engineered this processor to thrive in volatile climates. With an operational temperature range spanning from -20°C to +70°C, the T8110B maintains structural and functional integrity in unconditioned field enclosures.

Key Technical Characteristics

• TMR Fault Tolerance: Provides hardware-based voting to eliminate single points of system failure.
• High-Speed Processing: Executes safety-critical logic via a 2.0 GHz processor for low latency.
• Scalable Communication: Integrates easily with Ethernet and serial-based control networks.
• Industrial Hardening: Operates reliably in extreme temperatures and high-vibration environments.
• Hot-Swap Capability: Allows for module replacement without shutting down the active process.
• Comprehensive Memory: Ample storage for safety-related application code and diagnostic data.
