Description

Brief Product Description

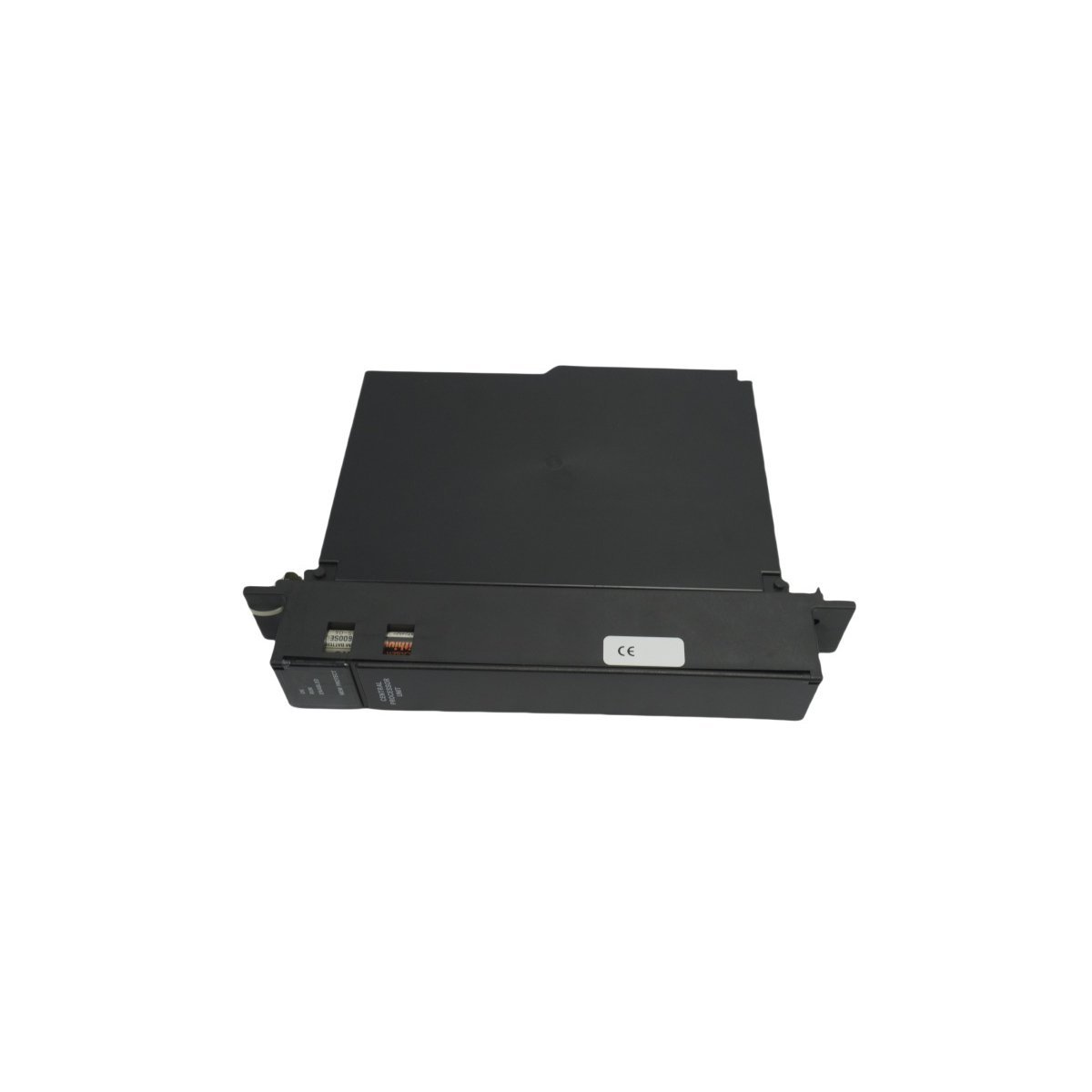

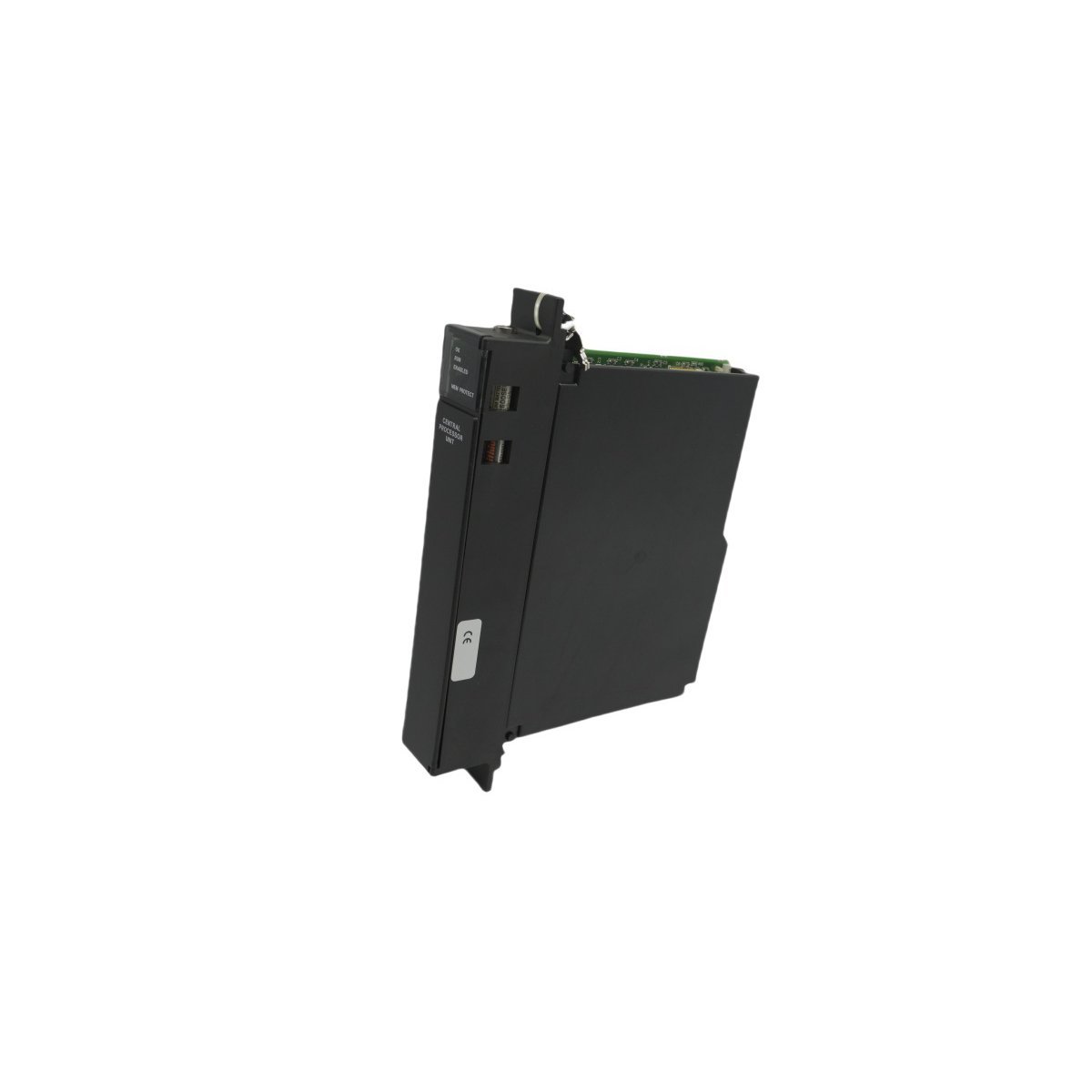

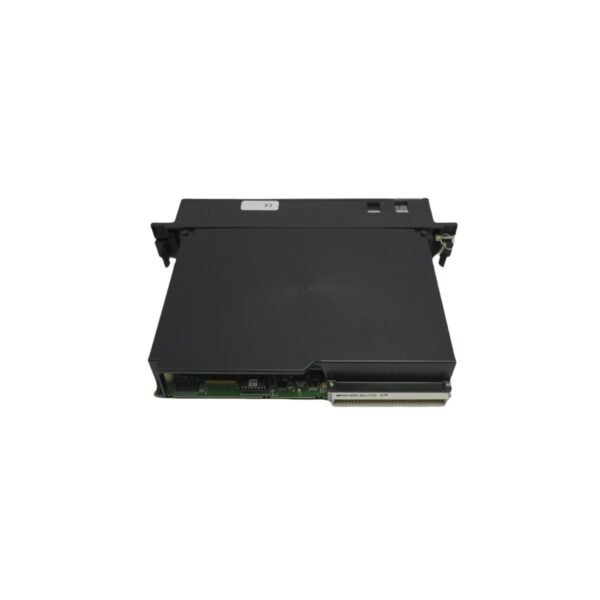

The GE Fanuc IC697CPM915 is a high-performance, single-slot central processing unit designed for the Series 90-70 PLC platform. It features a 32 MHz processor with integrated floating-point math capabilities to handle complex industrial logic and material handling automation.

​Product Description

Advanced Processing and Performance

The IC697CPM915 operates as the primary control intelligence for the GE Fanuc Series 90-70 PLC system. Equipped with a 32 MHz, 32-bit processor, this unit executes complex algorithms and high-speed logic solving with precision. Because it includes native floating-point hardware, it excels in applications requiring mathematical calculations, such as PID control and advanced motion coordination. The module utilizes the VME C.1 standard backplane for communication, ensuring rapid data exchange with I/O modules and co-processors across the rack.

Memory Configuration and Data Security

This CPU module provides 1 MB of user-configurable memory for program storage and register data. To ensure operational continuity, the unit incorporates a lithium battery backup system that preserves user memory for up to six months in the absence of primary power. Furthermore, GE utilized Flash memory for the system firmware, allowing for convenient field updates without hardware replacement. This robust memory architecture makes the IC697CPM915 a reliable choice for critical processes where data retention and uptime are non-negotiable.

Communication and System Integration

Engineered for flexible integration, the IC693CPM915 supports multiple programming environments, including MS-DOS and Windows-based software. Users can communicate with the processor via the built-in SNP port (RS-422/RS-485) or through high-speed Ethernet when paired with an optional Ethernet module. The front panel features a three-position RUN/STOP switch for manual control and four green LED indicators that provide real-time status on CPU health and system operations. For optimal performance, the module must be installed in Slot 1 of compatible IC697 racks, such as the CHS750 or CHS790 series.

Technical Specification Table
