Description

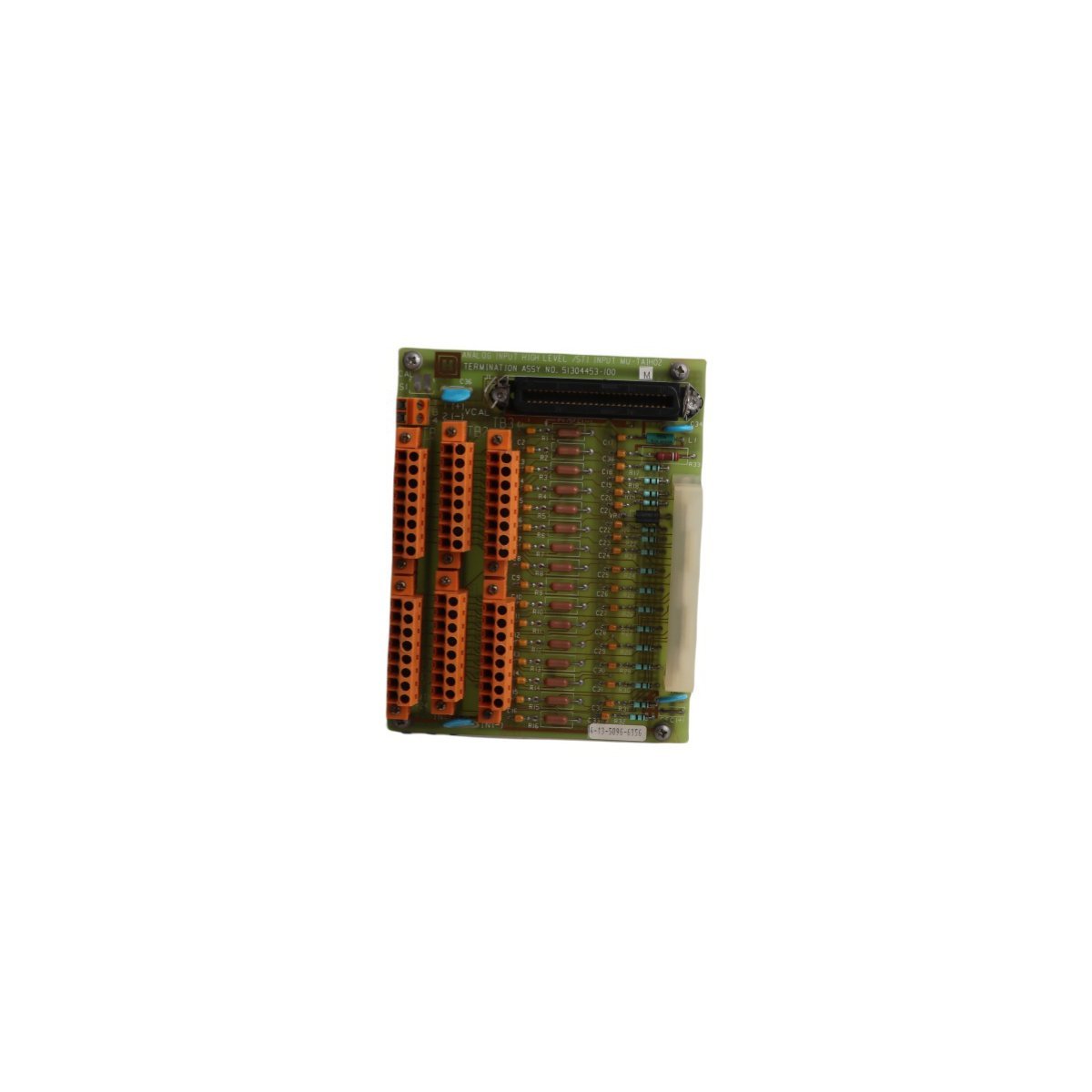

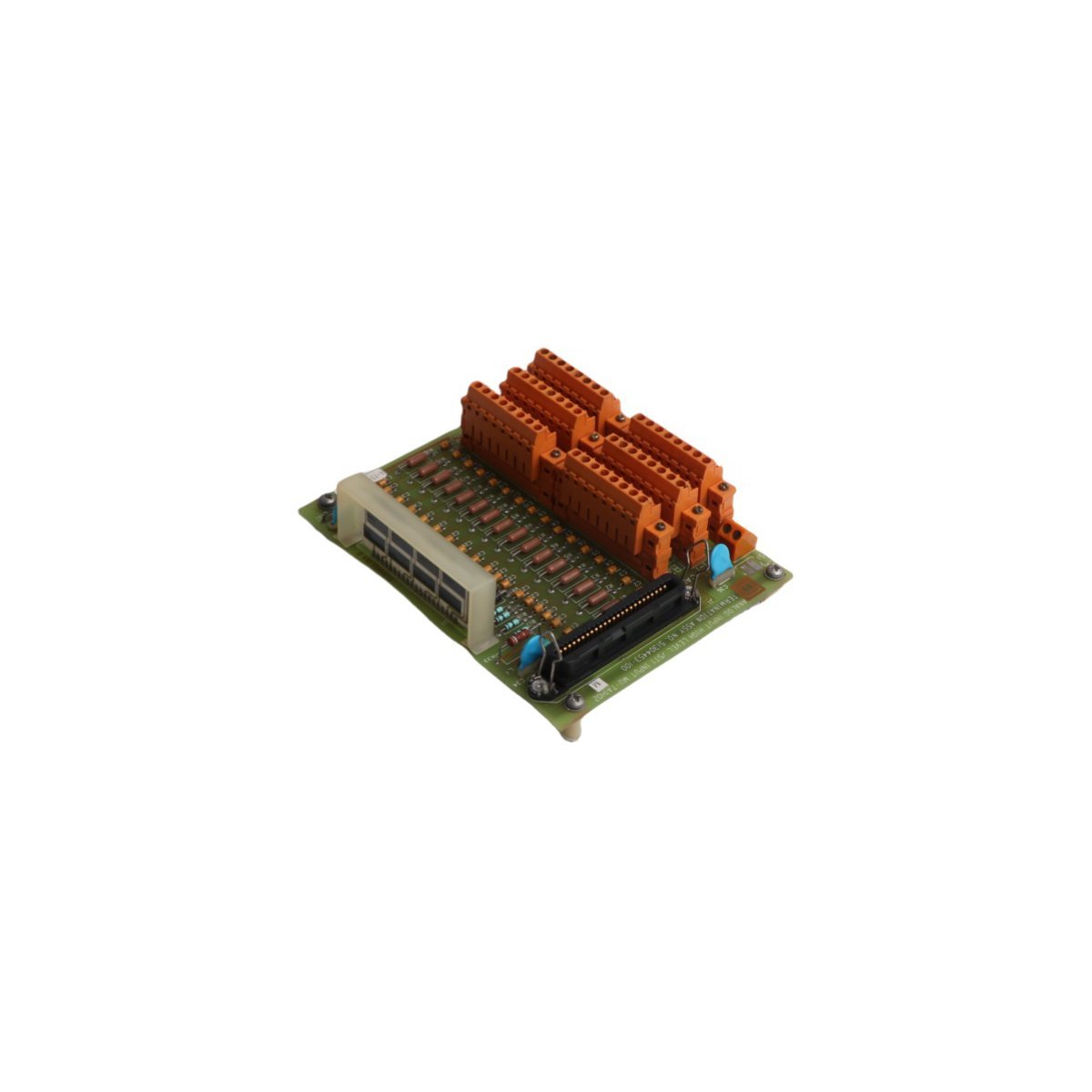

Configured for signal interfacing in DCS infrastructures, the Honeywell MU-TAIH02 51304453-100 (MU-TAIH02 Analog Input STI Termination Board) provides direct physical/electrical execution. This hardware assembly acts as a field wiring interface, routing analog signal inputs to the corresponding I/O modules within the Honeywell MU-T series ecosystem.

Suffix Breakdown & Model Matrix

The MU-TAIH02 51304453-100 is a fixed-design termination assembly. The model number MU-TAIH02 identifies the functional series, while the assembly number 51304453-100 designates the specific manufacturing revision and mechanical layout. This component does not support field-configurable logic; it serves as a passive electrical interface for signal distribution.

Hardware Specifications

Honeywell DCS Process Control Connectivity

The MU-TAIH02 facilitates the connection of field instruments to the DCS controller, supporting 4-20 mA HART loop protocol standards. The board is designed to provide channel-to-channel isolation, preventing electrical fault propagation between interconnected sensors and the control system. Furthermore, the termination layout includes circuitry for cold junction compensation (CJC) to maintain signal integrity during thermocouple input processing, ensuring accurate data conversion for critical control loops.

Frequently Asked Questions

Q: Does the MU-TAIH02 termination board require an external power source?

A: No, the MU-TAIH02 is a passive termination assembly. Power for connected transmitters is typically supplied by the associated analog input module via the backplane or separate power distribution blocks.

Q: Can this board be used for digital signal termination?

A: No, this termination board is engineered specifically for analog input signals. Using this assembly for digital or discrete I/O may lead to incorrect signal termination and damage to the connected field instrumentation.

Q: Is field-level repair of the termination board circuitry recommended?

A: The board assembly is a sealed, non-repairable component. If connection failures occur due to terminal damage or trace degradation, the complete unit must be replaced to ensure signal reliability and system integrity.

Field Installation Guidelines

• Mount the MU-TAIH02 onto the standard DIN-rail or chassis plate within the DCS I/O cabinet.
• Ensure that all field wiring is stripped to the manufacturer-specified length before insertion into the terminal block connectors.
• Verify that each signal wire is tightly secured to prevent intermittent contact and signal noise.
• Check that the shield drains of the field instrumentation cables are connected to the designated ground terminals on the termination board to minimize electromagnetic interference.
• Confirm terminal block polarity matches the field loop diagram before energizing the loop.
