Description

Brief Product Description

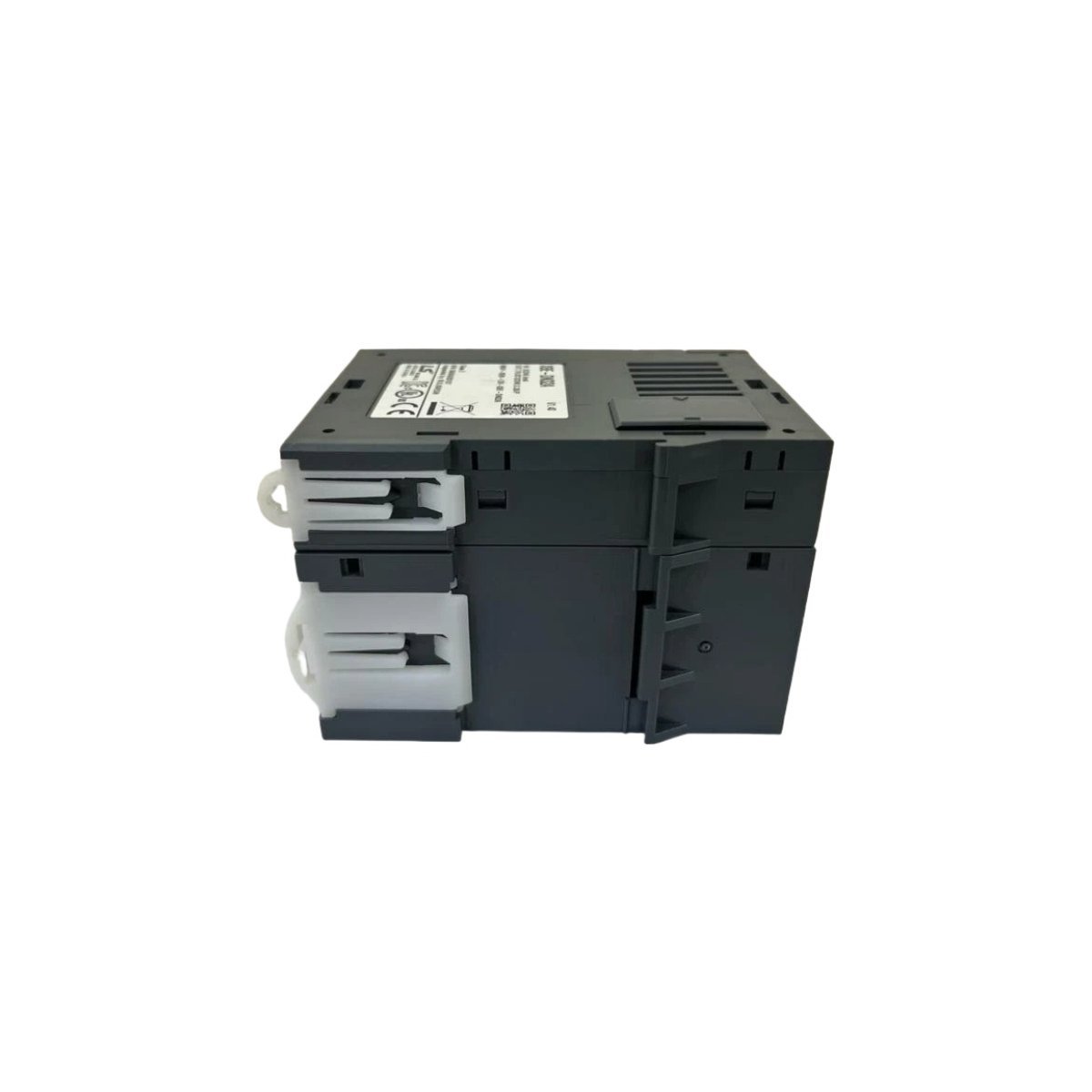

The Honeywell MLU-DN32HP is a high-performance CPU and power base module for the MasterLogic 50 PLC series, featuring 16 DC inputs and 16 sink-type digital outputs. This integrated controller supports advanced 6-axis motion positioning and high-speed communication for sophisticated industrial automation.

Product Description

Integrated Processing and Motion Control

The Honeywell MLU-DN32HP represents a consolidated approach to industrial control by housing a high-speed CPU, a robust power supply, and a dense I/O array within a single base module. Specifically designed for the MasterLogic 50 Series, this unit excels in motion-intensive applications through its native support for six-axis positioning. This capability allows manufacturers to execute complex synchronization and multi-axis movement without requiring additional specialized hardware. Furthermore, the module integrates PID control algorithms, enabling precise regulation of temperature, pressure, and flow variables in processing environments.

Efficient Power Management and Circuit Protection

To ensure stable operation in unstable electrical environments, the MLU-DN32HP incorporates an efficient 24V DC power management system. The module accepts an input range from 20.4V to 28.8V and achieves a power conversion efficiency of 60% or higher. Engineers designed the unit to withstand momentary power dips of up to 1ms, preventing unnecessary system resets during transient fluctuations. Additionally, an internal peak current limiter manages inrush levels up to 70A, while the regulated 5V DC output provides up to 2A to reliably power connected expansion modules and sensors.

Connectivity and Scalable Networking

Connectivity remains a priority for the MLU-DN32HP Honeywell architecture. The module features integrated Ethernet (ENET) and RS-485 ports, facilitating seamless integration into wider plant networks and SCADA systems. These communication interfaces allow for rapid data exchange and remote diagnostics. For physical I/O, the base provides 16 digital inputs and 16 open-collector sink outputs, which users can further expand to meet larger system requirements. Consequently, this module serves as a scalable foundation for both localized machine control and distributed automation tasks.

Technical Specifications
