Description

Product Overview

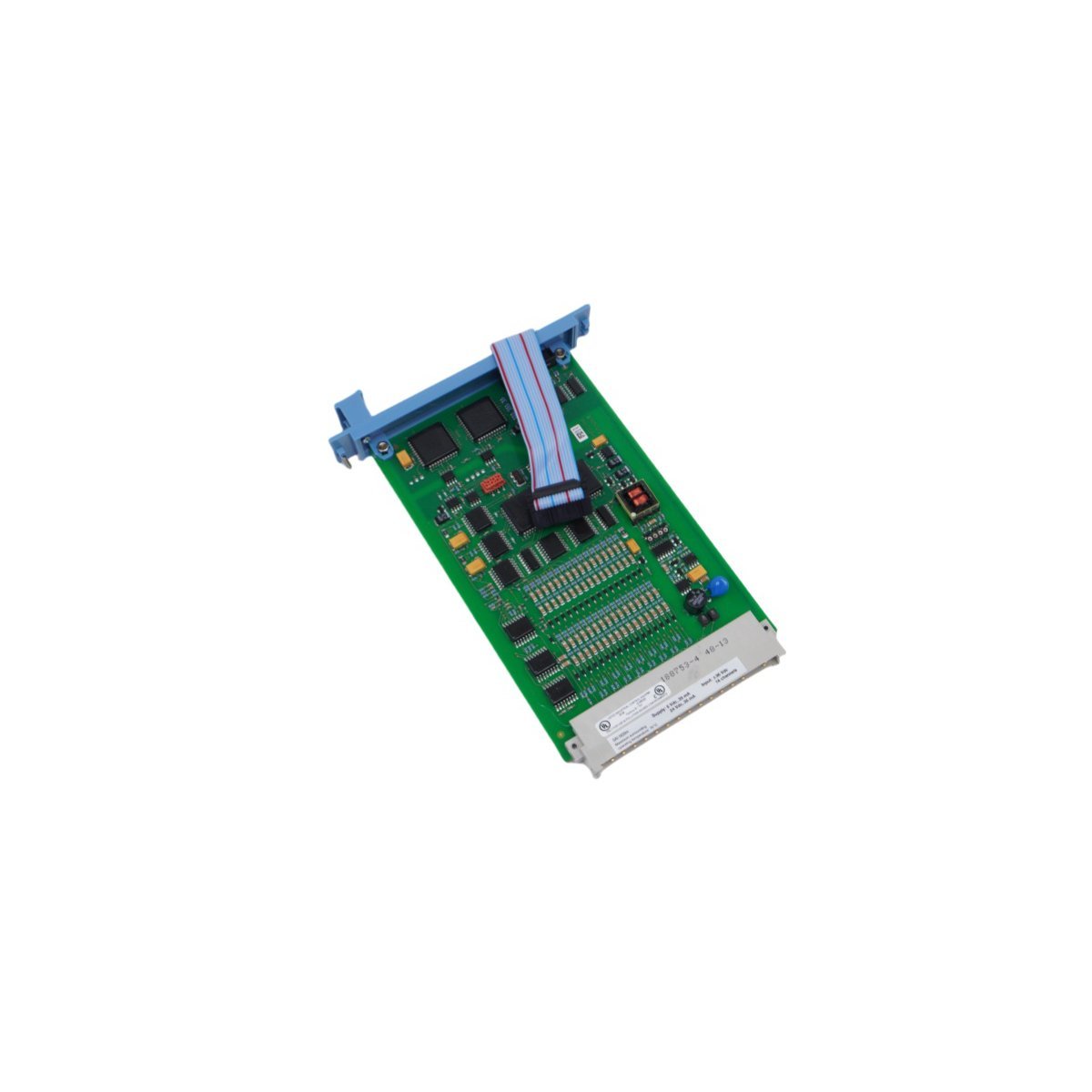

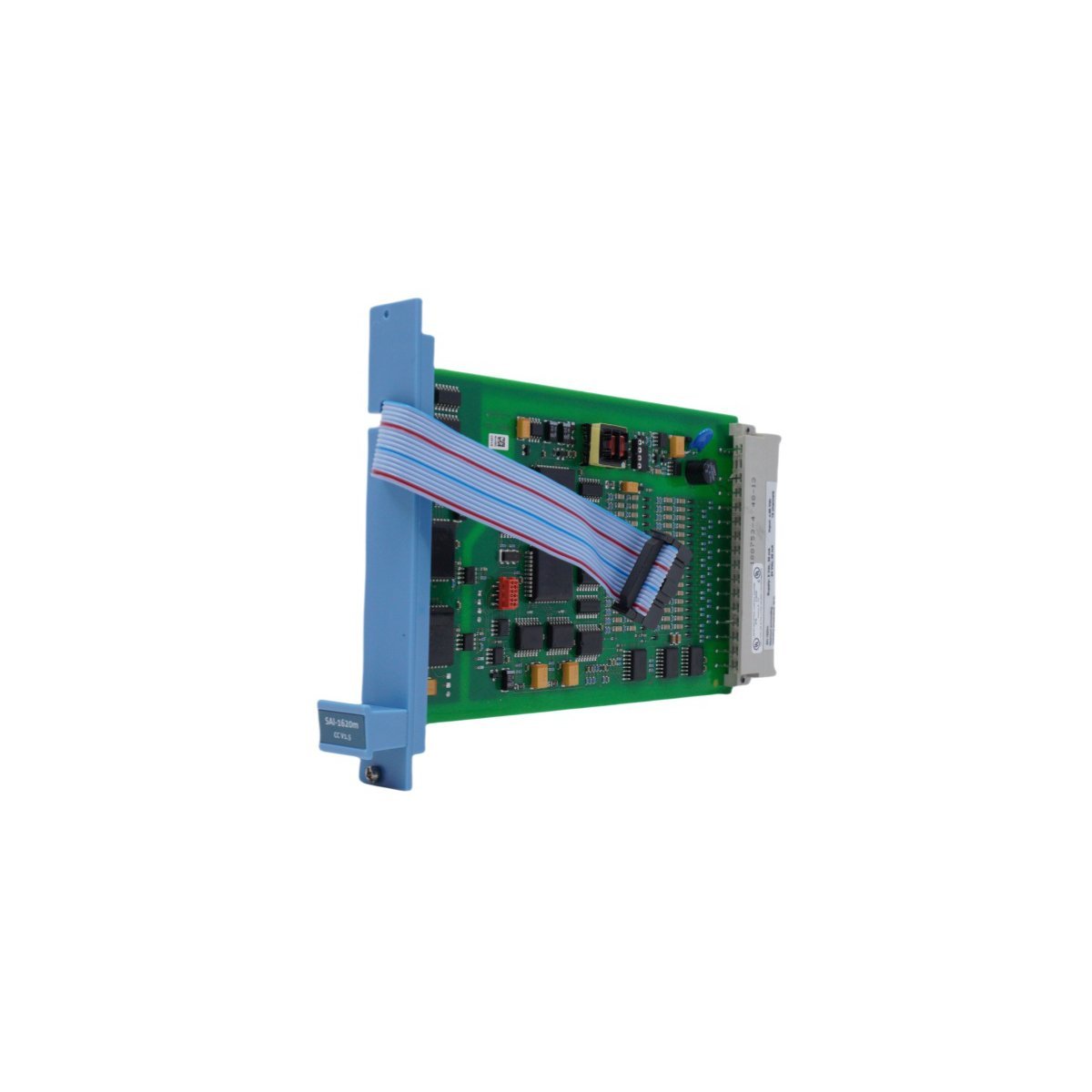

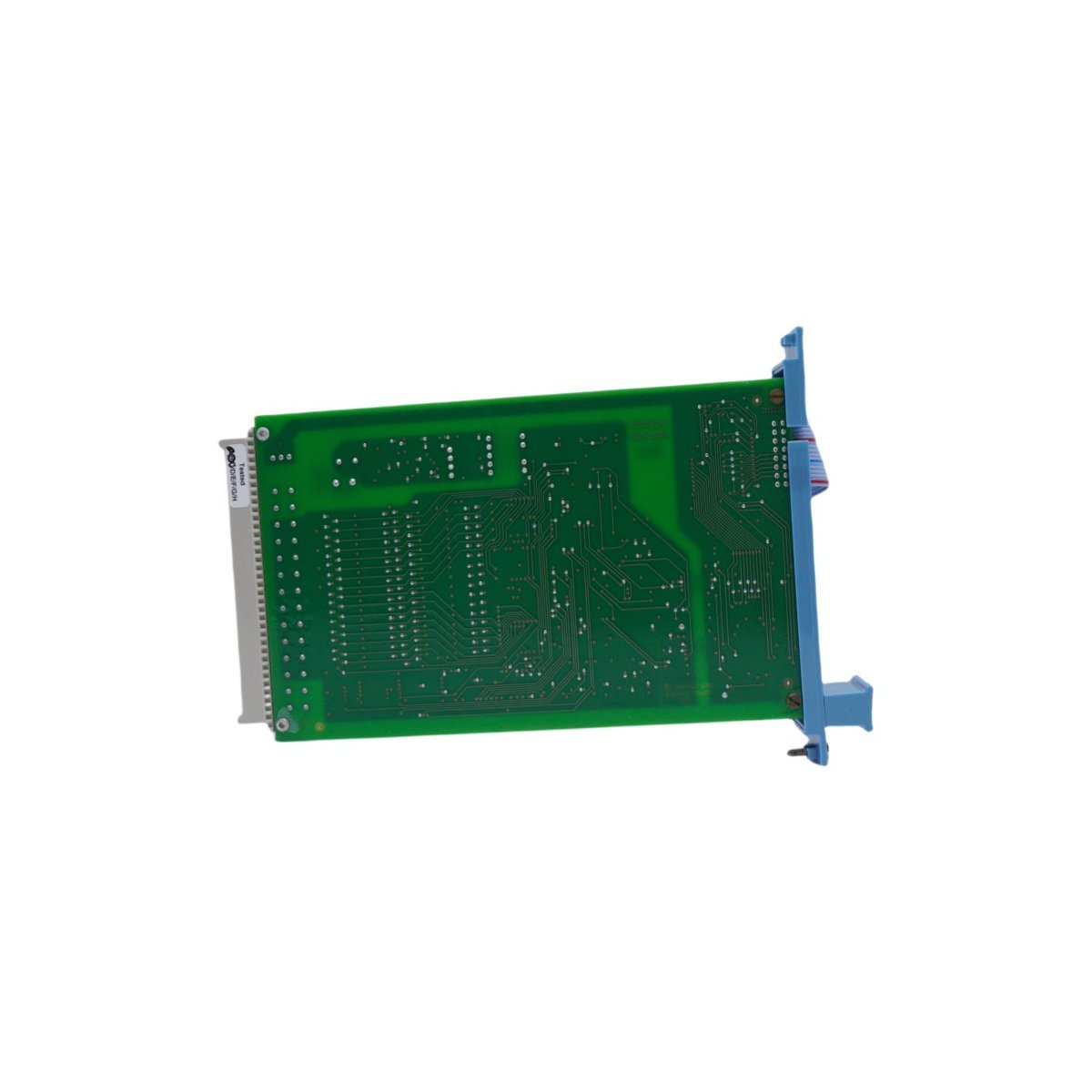

The Honeywell FC-SAI-1620M V1.5 is a high-integrity 16-channel analog input module engineered for the Honeywell Safety Manager and Experion PKS environments. This card provides precise monitoring of safety-critical field variables such as pressure, temperature, and flow, serving as a vital link in Safety Instrumented Functions (SIF).

Precision Signal Acquisition and Safety Integrity

The FC-SAI-1620M V1.5 functions as a dedicated logic solver interface that independently tracks process parameters to ensure they remain within safe operational boundaries. By supporting 16 channels of 4-20mA signals, the module allows for high-density monitoring of multiple safety loops from a single slot. It achieves a remarkable ±0.1% measurement accuracy, which provides the high-resolution data necessary for making split-second safety decisions. Furthermore, the module supports HART communication pass-through, enabling the control system to access secondary diagnostic information from intelligent field transmitters without interfering with the primary safety signal.

Advanced Diagnostics and SIL2 Compliance

Honeywell designed the V1.5 firmware to meet rigorous SIL2 safety standards, incorporating extensive internal self-testing mechanisms. These diagnostics continuously verify the health of each input channel and the integrity of the internal circuitry. Consequently, the module can identify potential faults or signal irregularities before they result in a system failure. This proactive fault detection is essential for maintaining the independence of the Safety Instrumented System (SIS) from the Basic Process Control System (BPCS), thereby reducing the risk of common-cause failures in industrial facilities.

Optimized Integration and Maintenance

The FC-SAI-1620M V1.5 integrates seamlessly into the Safety Manager architecture, facilitating easy configuration and remote monitoring through the Experion PKS network. Its hardware design supports hot-swapping, which allows maintenance personnel to replace modules during active operations without shutting down the safety rack. This capability significantly reduces Mean Time to Repair (MTTR) and minimizes costly process downtime. Additionally, the compact 2x19x12.8cm footprint ensures efficient use of cabinet space, making it an ideal choice for both large-scale new installations and the modernization of existing safety systems.

Technical Characteristics
