Description

Product Overview

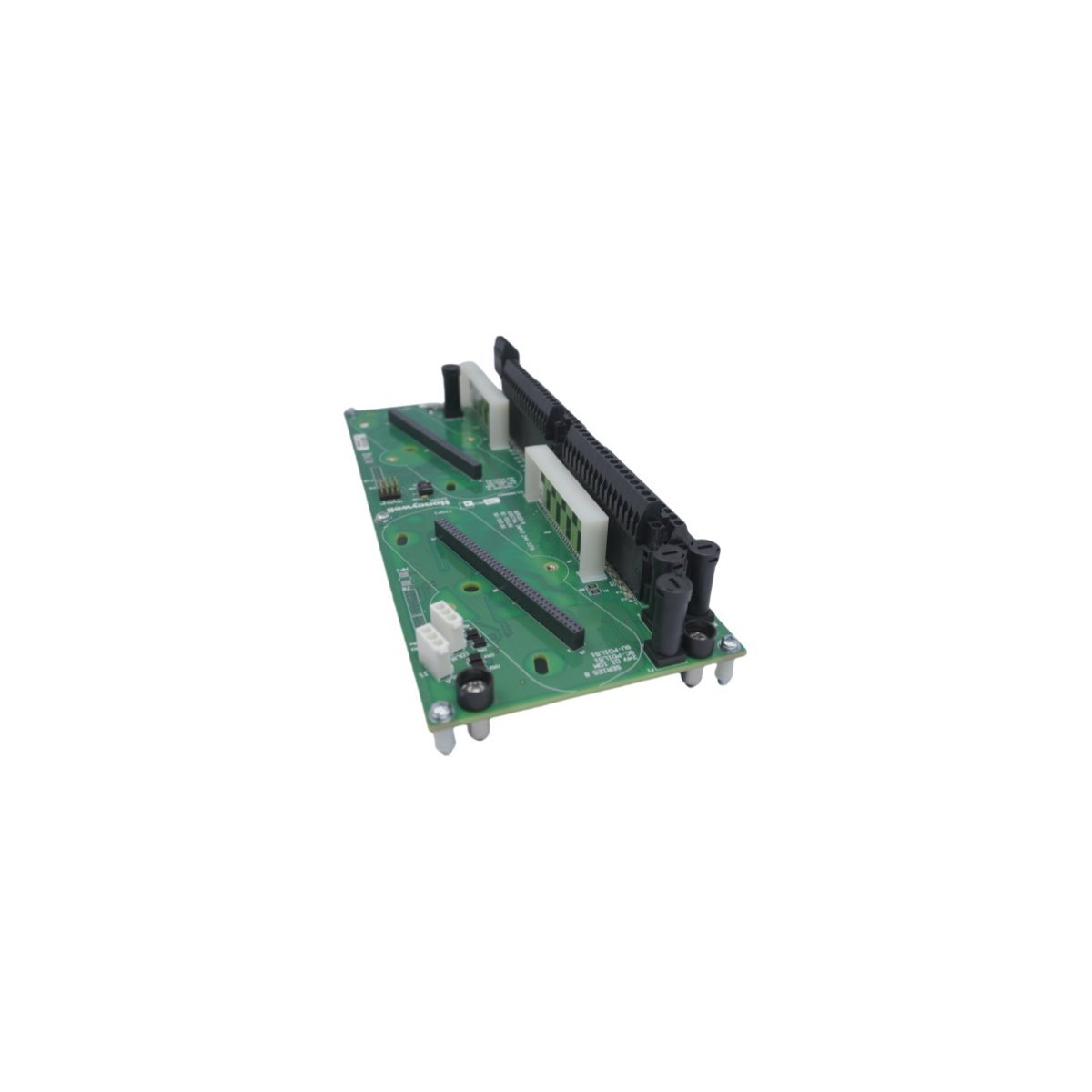

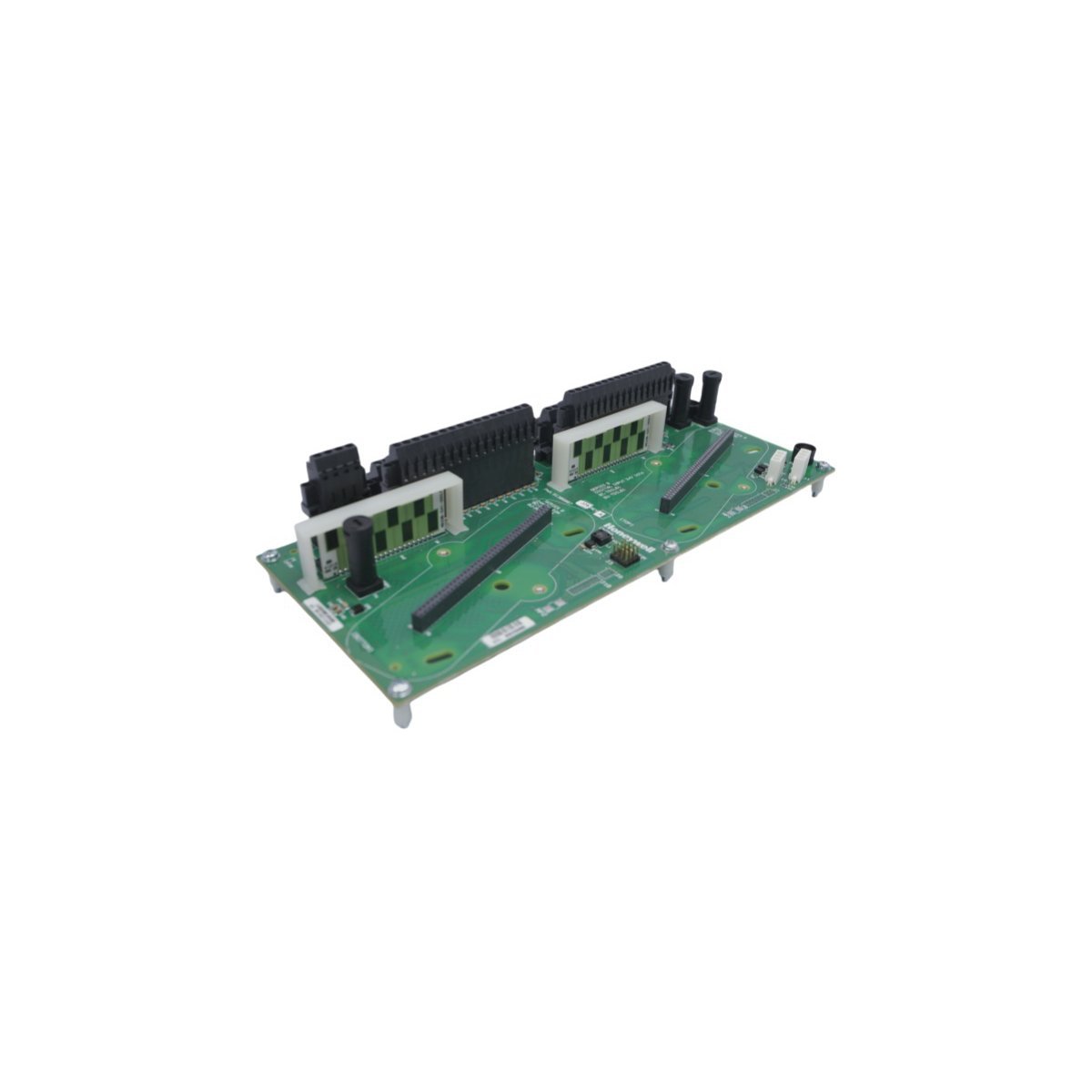

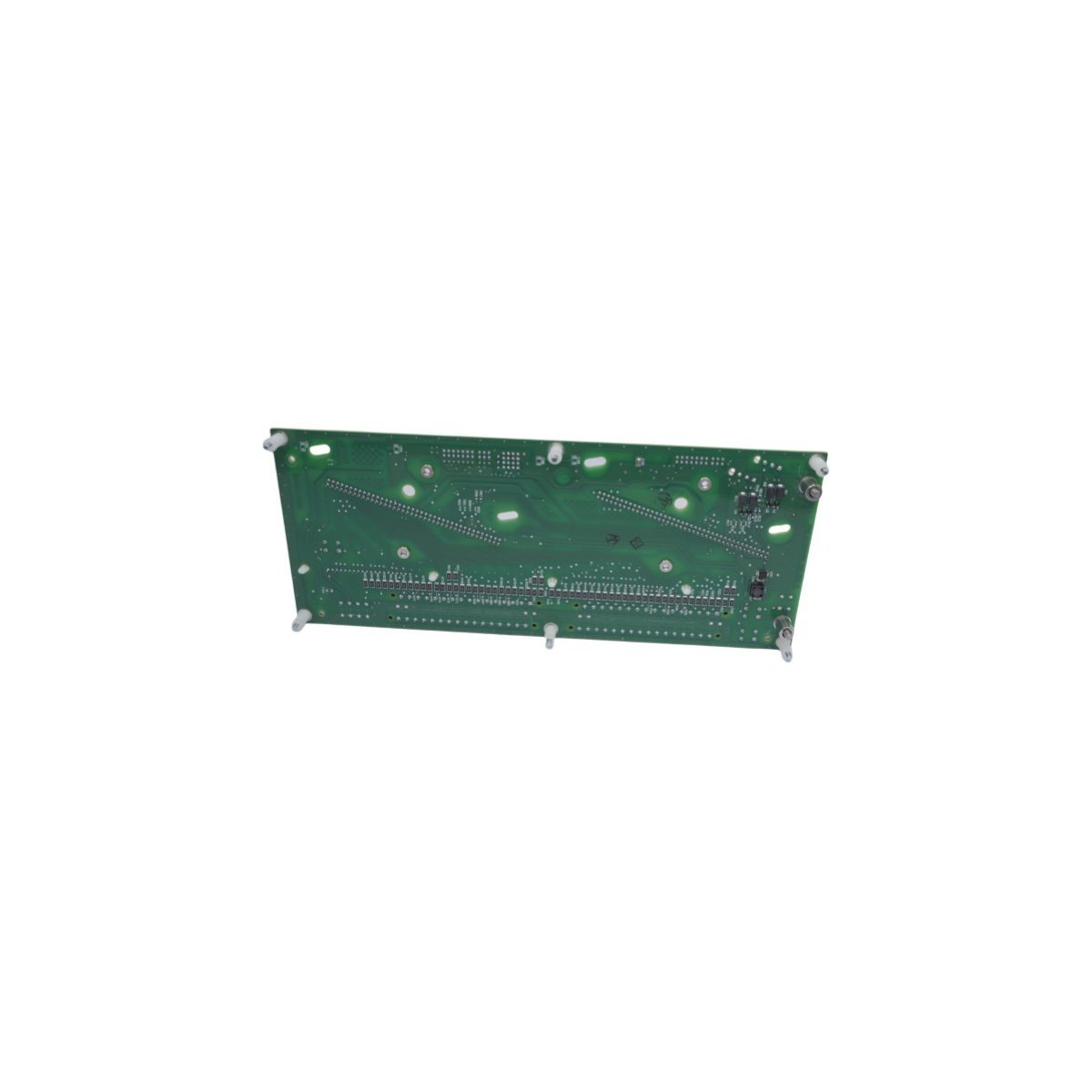

The Honeywell 8C-TDIL61 51306967-175 is a high-density digital input module for the Series 8 I/O family, designed to capture discrete signals from field devices such as switches, pushbuttons, and contacts. This module provides a critical link between field-level status changes and the Experion PKS control environment, ensuring high-speed logic execution for industrial automation.

Efficient Signal Acquisition and Processing

The 8C-TDIL61 module excels at monitoring discrete states with high precision. By converting external 24VDC signals into digital data, the module allows the DCS to monitor process conditions in real-time. It features built-in signal filtering and debounce logic, which effectively prevents false triggering caused by electrical noise or mechanical contact chatter. Consequently, this leads to a more stable control loop and reduces unnecessary alarms within the operator interface.

Advanced Series 8 Architecture and Reliability

Honeywell specifically engineered the 8C-TDIL61 for the Series 8 platform, which utilizes a vertical design for improved heat dissipation and space efficiency within the cabinet. The module supports redundant configurations, allowing for bumpless switchovers that maintain system availability even during hardware maintenance. Furthermore, the 51306967-175 features comprehensive onboard diagnostics that detect field-side faults, such as open wires or short circuits, before they impact plant productivity.

Industrial Durability and Environmental Tolerance

Operating effectively in extreme climates, the 8C-TDIL61 maintains performance across a wide temperature range from -40°C to +70°C. This robustness makes it suitable for remote instrument enclosures in oil and gas fields, chemical plants, and offshore platforms. The module’s compact form factor and simplified wiring through the I/O Termination Assembly (IOTA) significantly reduce installation time and labor costs for both new projects and system expansions.

Technical Characteristics
