Description

Brief Product Description

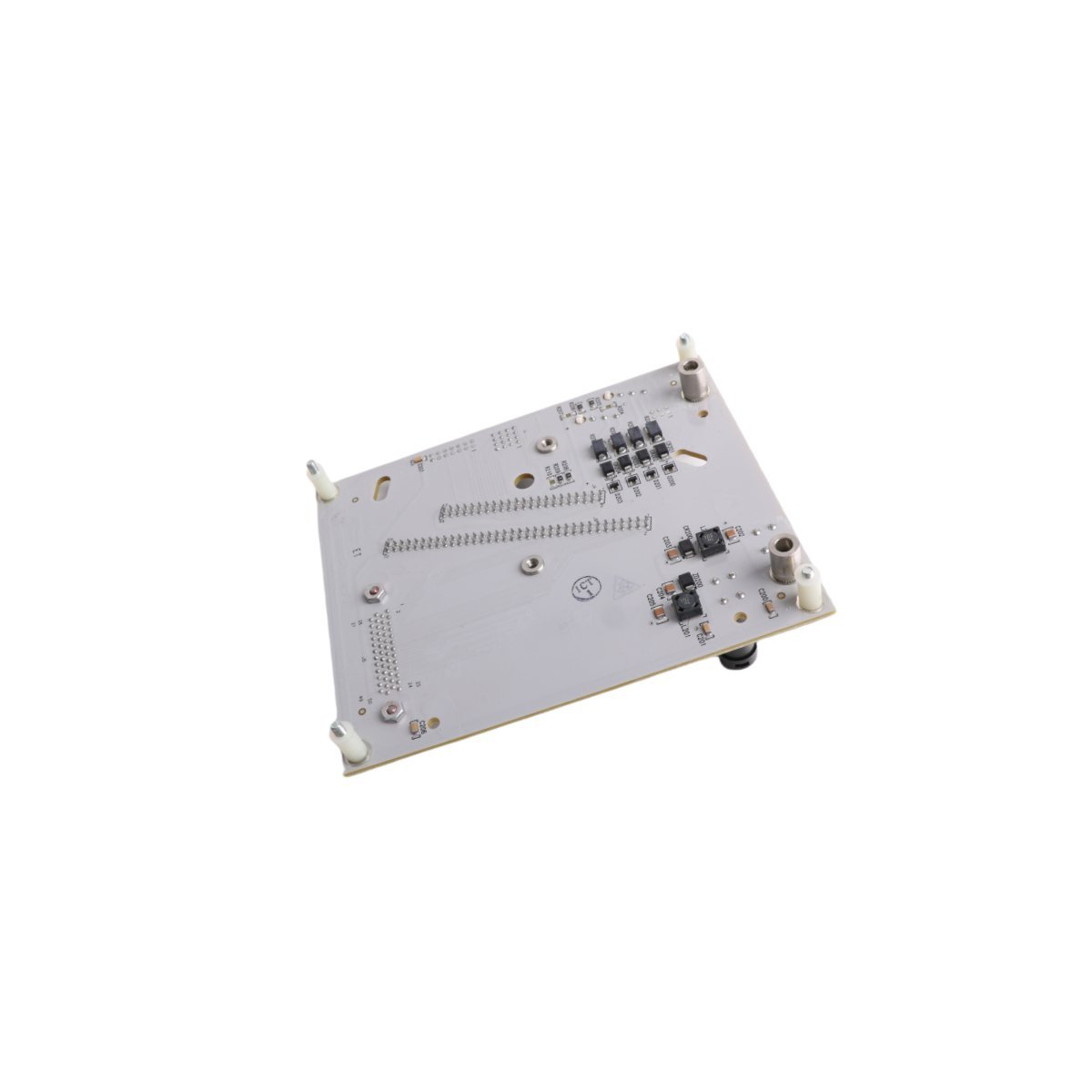

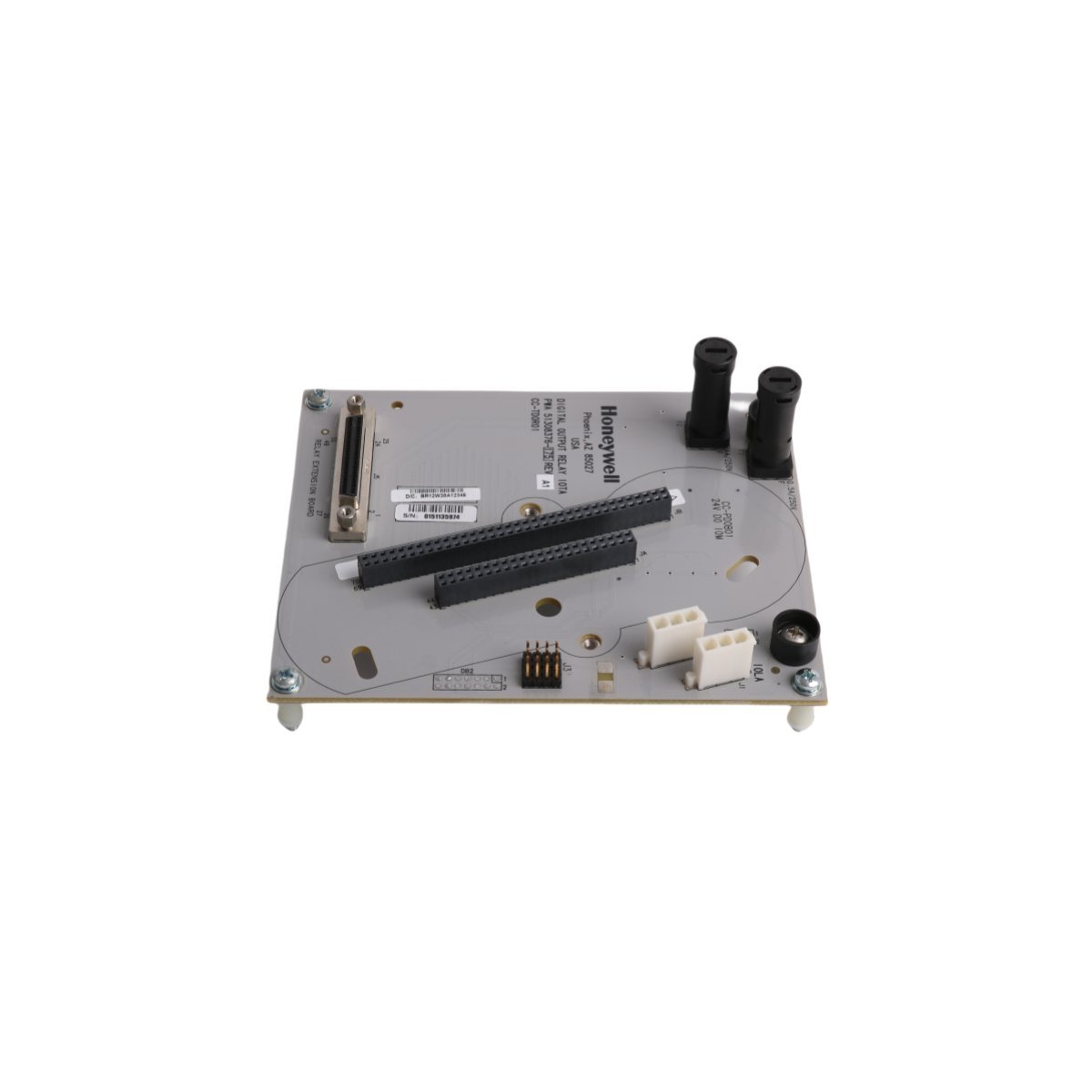

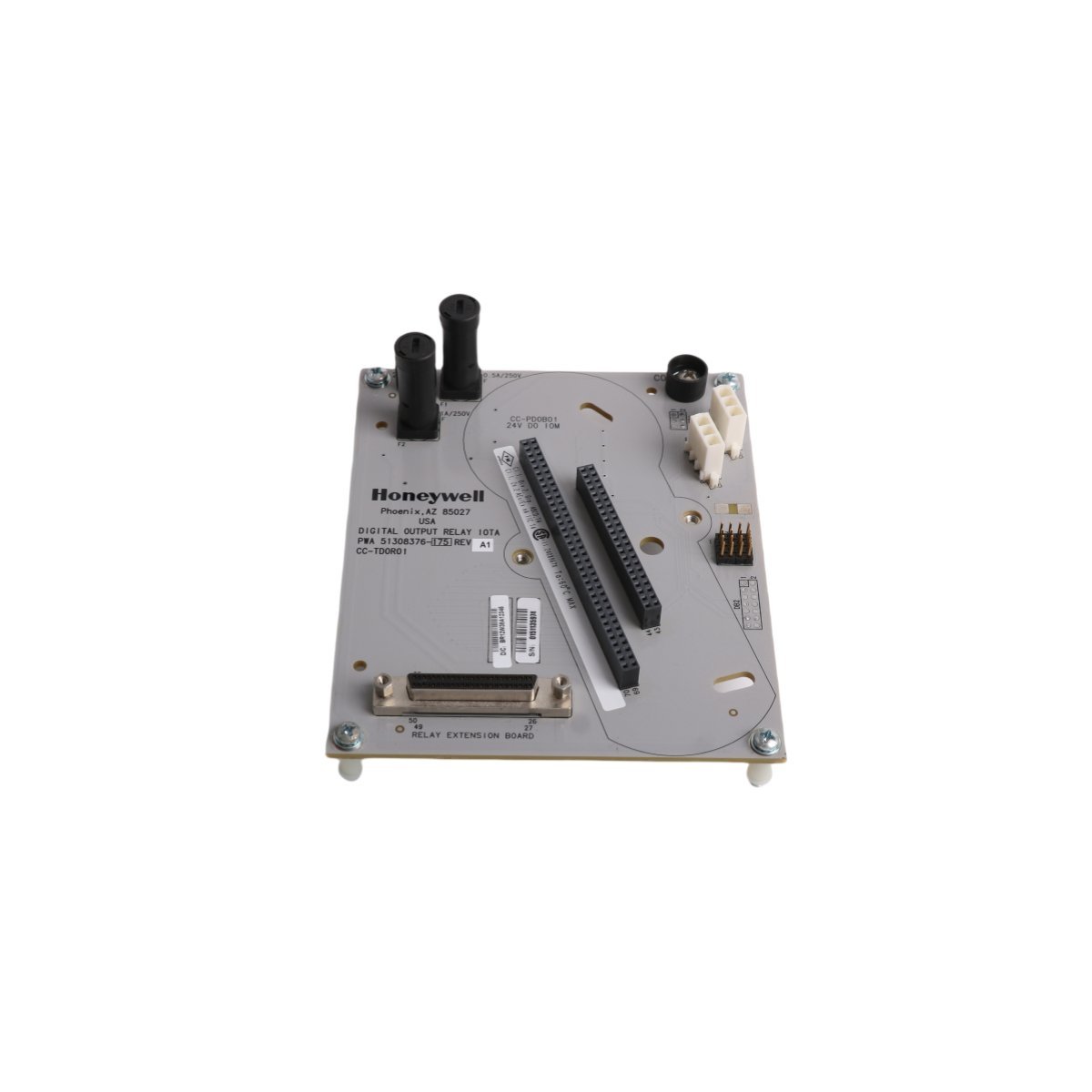

The Honeywell CC-TDOR01 (51308376-175-1) is a high-performance Digital Output Relay Termination Assembly (IOTA) designed for the Experion PKS Series C hardware.¹ It provides a robust interface for switching heavy-duty field loads through isolated relay contacts, ensuring safe and reliable discrete control.

Product Description

Advanced Relay Switching and Process Control

The Honeywell CC-TDOR01 acts as a specialized bridge between the C300 controller’s digital logic and high-power field devices. Unlike standard transistor-based outputs, this relay module utilizes physical contact switching to manage solenoids, motor starters, and interposing relays. This architecture allows the system to handle significantly higher current loads while providing inherent galvanic isolation between the control network and field instrumentation. Consequently, the module prevents electrical interference and surges from compromising the integrity of the broader Distributed Control System (DCS).

Robust Engineering for Industrial Safety

Honeywell engineered the 51308376-175-1 assembly specifically for the stringent requirements of safety-critical environments. The module features a ruggedized mechanical design that withstands the vibration and thermal fluctuations common in process control rooms. Transitioning to this IOTA platform ensures that control actions are executed with high repeatability and precision. Furthermore, the unit’s substantial build quality and USA-based manufacturing guarantee adherence to global industrial standards, making it a dependable choice for oil and gas, chemical processing, and power generation sectors.

Enhanced Diagnostics and Simplified Maintenance

The CC-TDOR01 Relay IOTA significantly improves plant uptime through integrated diagnostic capabilities. The module provides real-time feedback regarding the status of the output channels, allowing maintenance personnel to identify failed coils or wiring faults immediately. Because the unit features a user-friendly interface and a hot-swappable design, technicians can perform maintenance or hardware upgrades with minimal system disruption. This proactive monitoring capability reduces overall downtime and contributes to a lower total cost of ownership by extending the operational lifespan of the control infrastructure.
