Description

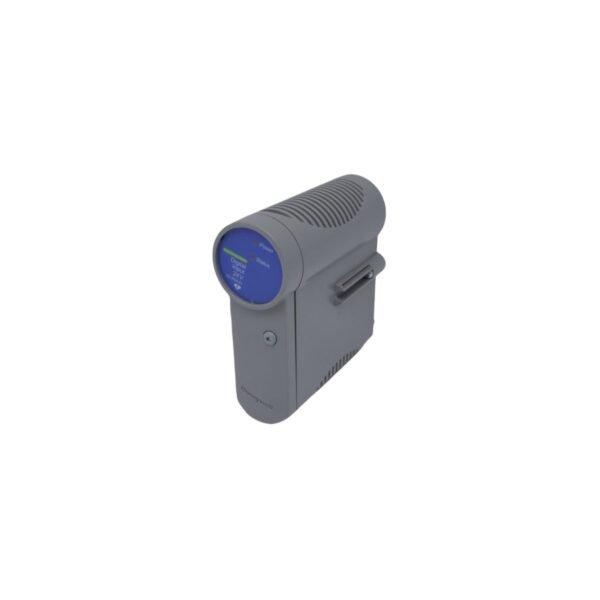

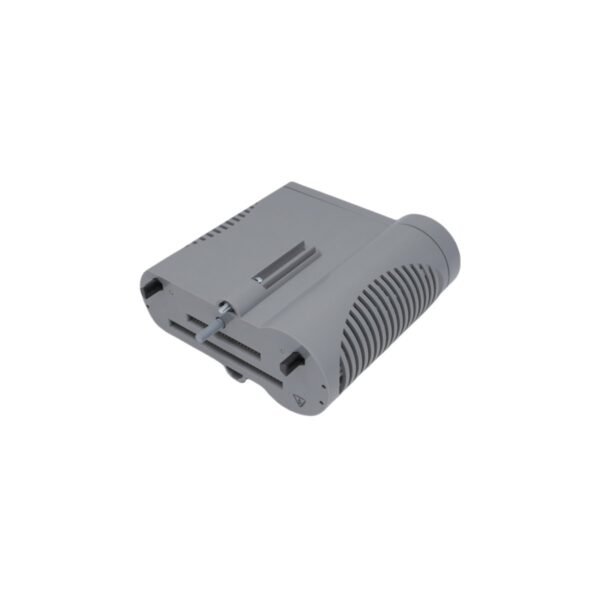

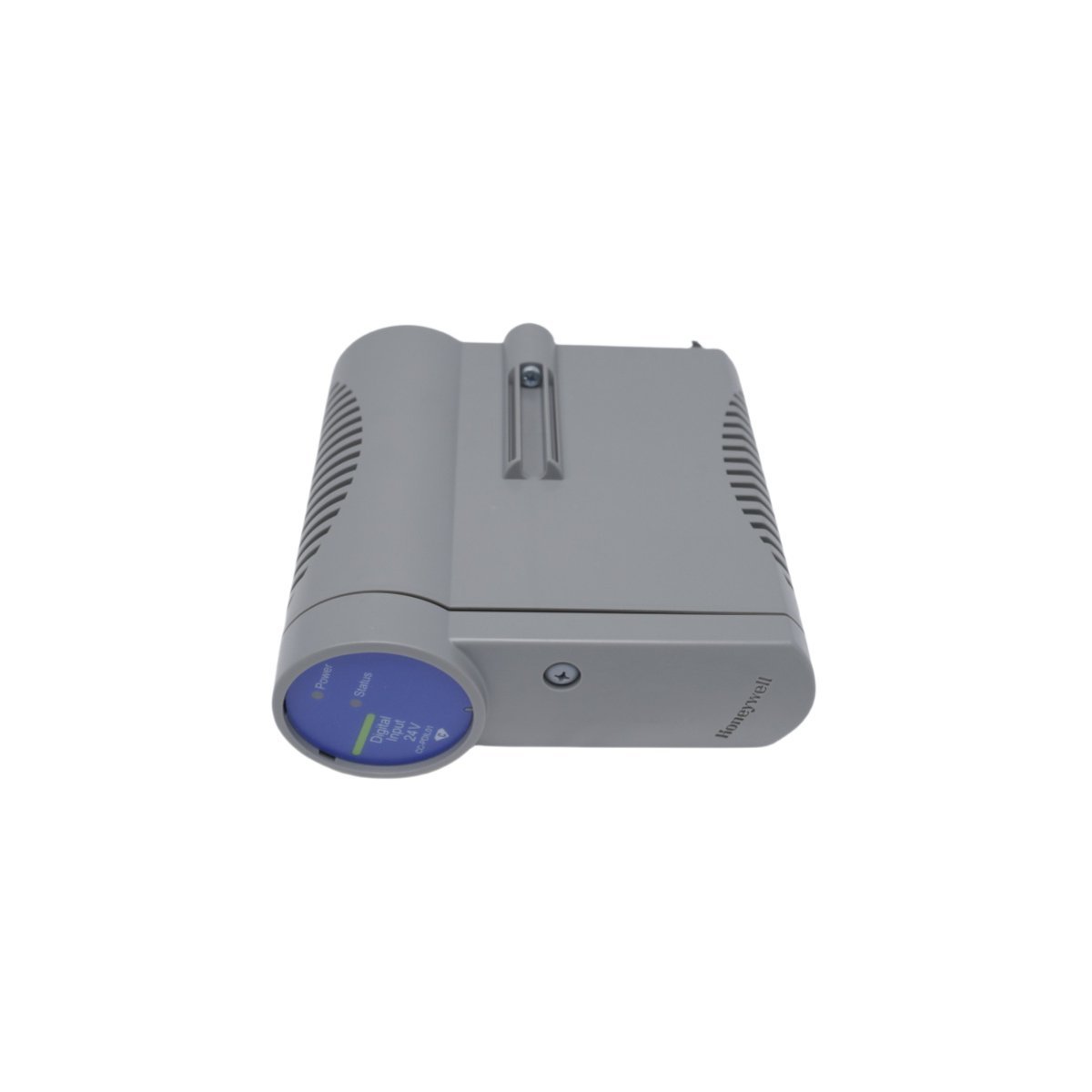

The Honeywell CC-PDIL01, part number 51405040-176, functions as a high-density digital input interface for Experion PKS systems. This module processes 24V DC discrete signals from field devices like switches and sensors. It converts these external states into digital data for the controller. Consequently, the system maintains precise oversight of industrial processes. The hardware utilizes a Series C form factor for optimized cabinet space.

Performance Characteristics

This module features advanced galvanic isolation to protect internal circuitry from field-side voltage spikes. Therefore, it prevents signal cross-talk and enhances overall system stability. Furthermore, integrated noise filters eliminate false triggering from electrical interference. The CC-PDIL01 also supports sophisticated internal diagnostics to identify channel faults. These features collectively reduce troubleshooting time and prevent unexpected process interruptions.

Product Specifications

Operational Applications

Engineers deploy the CC-PDIL01 in diverse sectors including power generation and chemical processing. The module excels in high-speed manufacturing where rapid response times are critical. Because it handles 24V inputs, it integrates easily with standard industrial hardware. Its durable design supports continuous operation in high-temperature environments. Ultimately, this module provides the reliability required for mission-critical automation tasks.
