Description

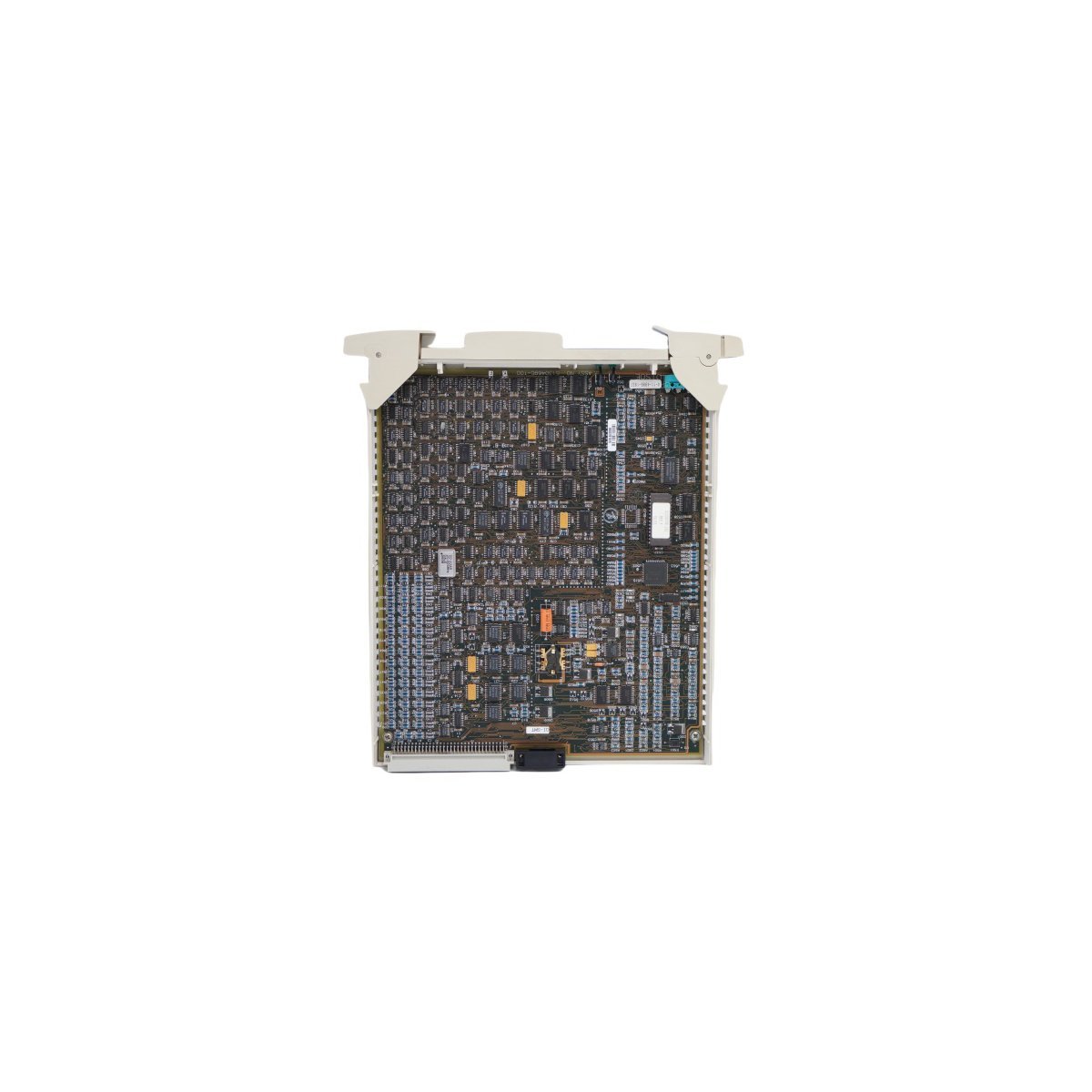

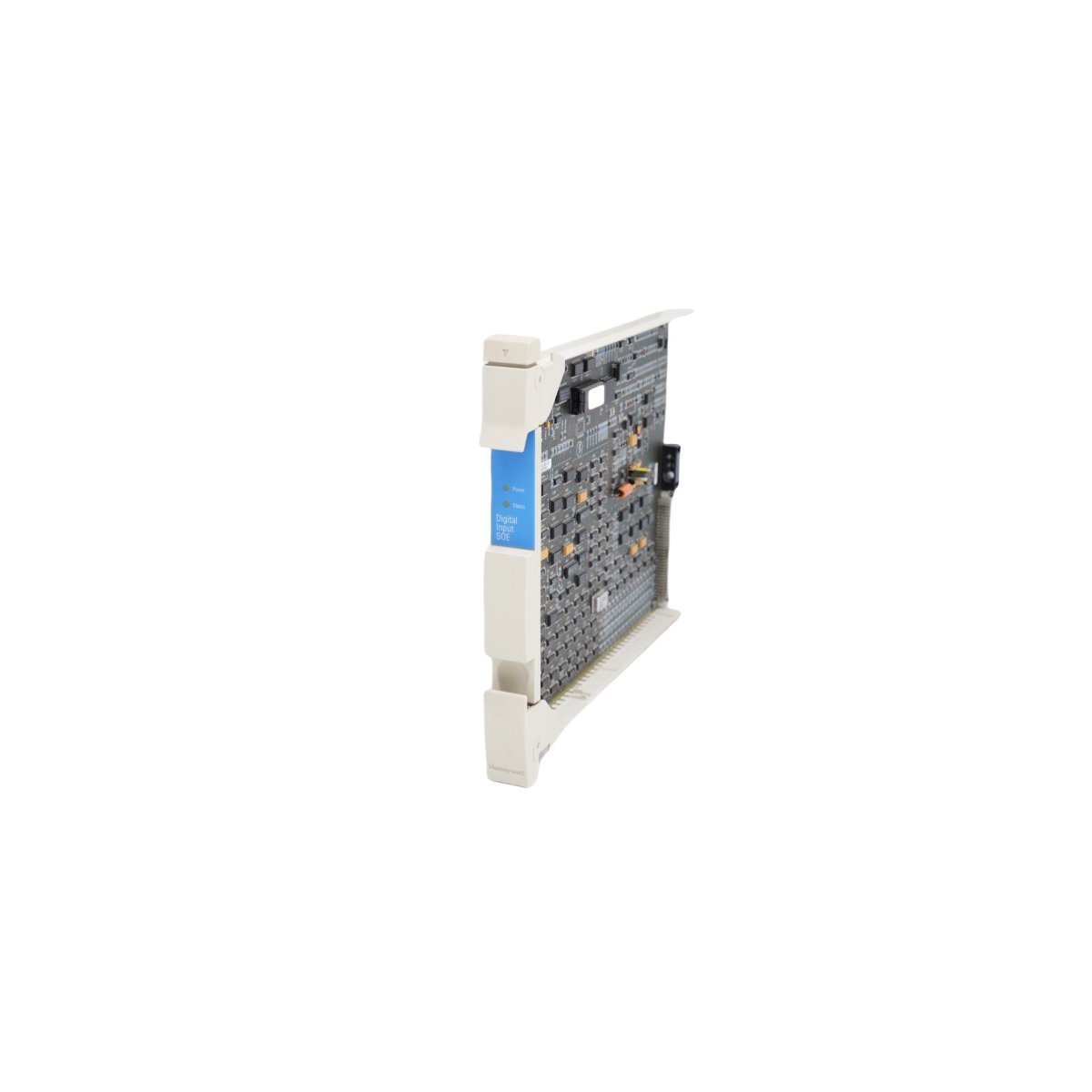

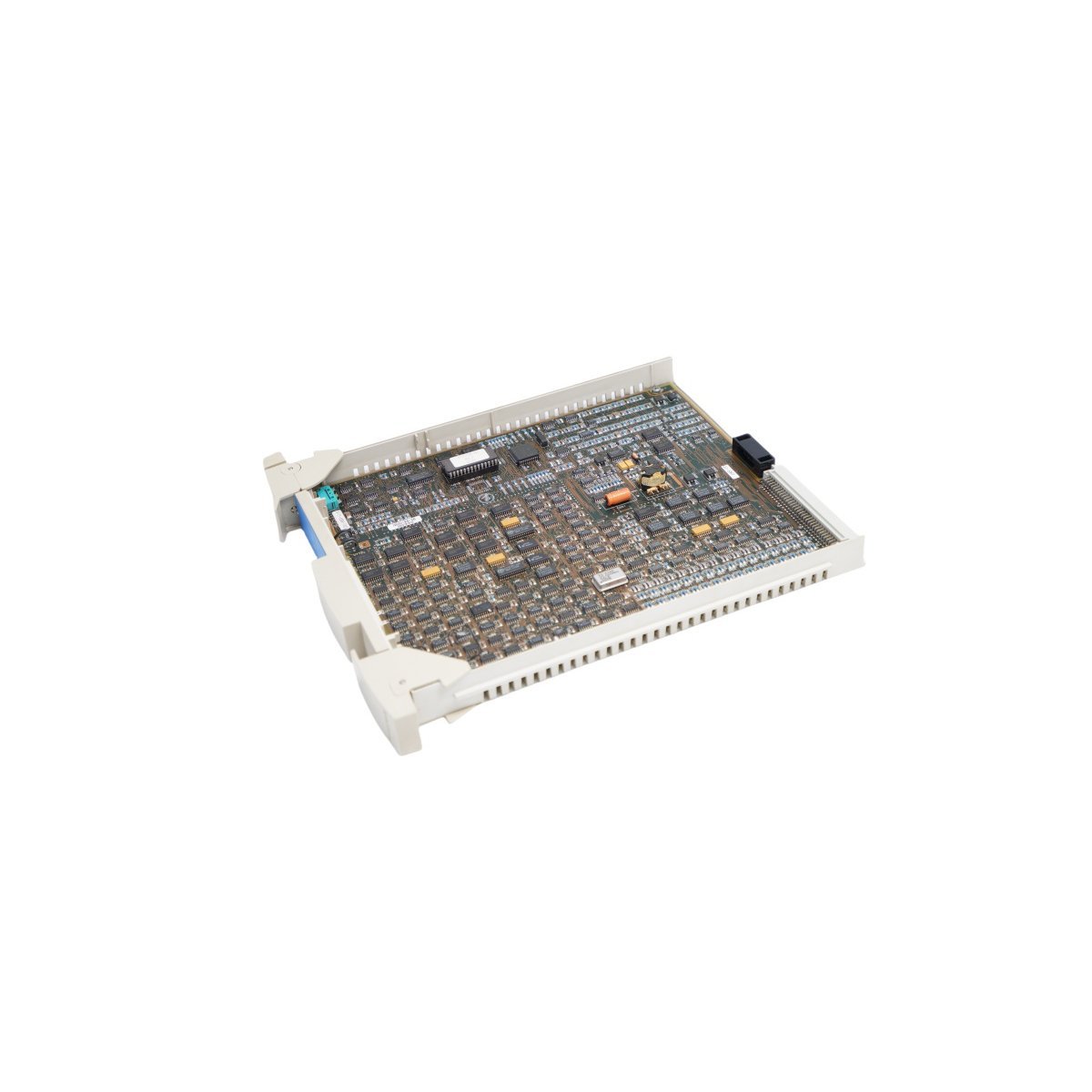

The Honeywell 51304690-100 serves as a high-precision Digital Input module within the legacy TDC 3000 control architecture. This specific card functions as a Sequence of Events (SOE) processor. It captures the exact millisecond state changes of critical field contacts. Consequently, engineers use this data to perform detailed root-cause analysis after process trips. The module monitors discrete signals from switches, relays, and safety interlocks. By logging these transitions in real-time, the card provides an accurate historical record of plant behavior. This capability remains essential for maintaining safety standards in complex industrial environments.

Technical Specifications and Hardware Data

Event Chronology and Diagnostic Performance

The 51304690-100 module excels at identifying the primary trigger in a chain reaction. While standard digital inputs may miss rapid transitions, this SOE card records every change with high resolution. Each input channel filters electrical noise to prevent false triggering. Furthermore, the card communicates directly with the High-Performance Process Manager (HPM) or APM. This integration allows operators to view chronological event lists on their control consoles. Reliable data acquisition helps facilities minimize downtime during investigative procedures. Thus, the module directly supports operational efficiency and regulatory compliance.

Industrial Durability and Maintenance

Honeywell engineered the 51304690-100 to withstand the rigors of heavy industrial cabinets. The circuit board features protective coatings to resist humidity and atmospheric contaminants. Moreover, the hardware maintains high accuracy across a broad operating temperature range. This resilience ensures consistent logging during environmental stress or power fluctuations. Technicians can easily install the card into standard TDC 3000 file slots. Because the design is modular, users can replace units without extensive system reconfiguration. This durability makes it a preferred choice for oil refineries and power generation plants worldwide.
