Description

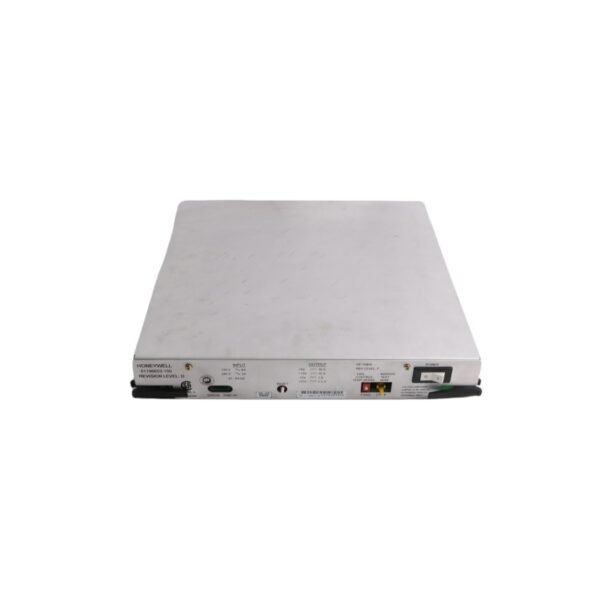

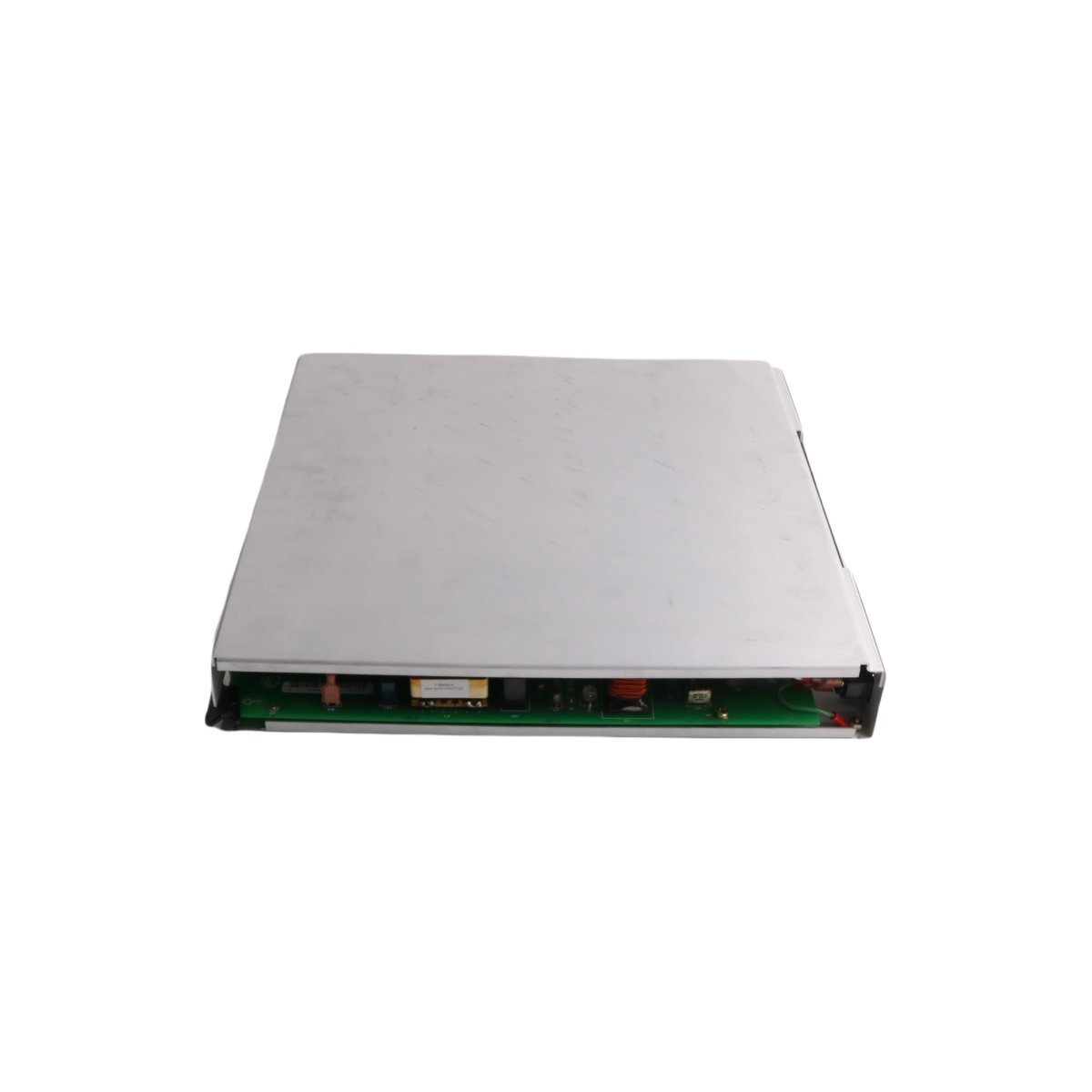

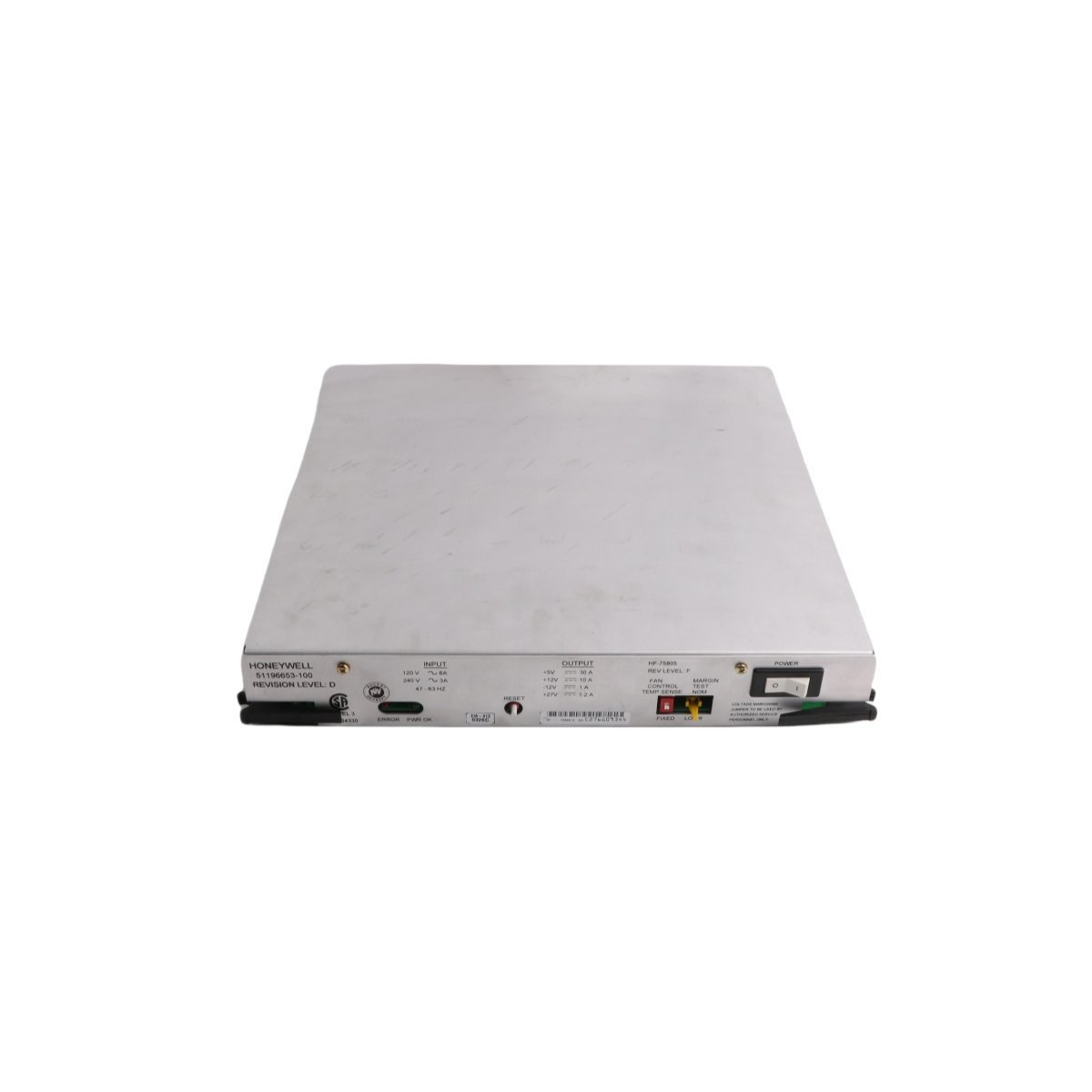

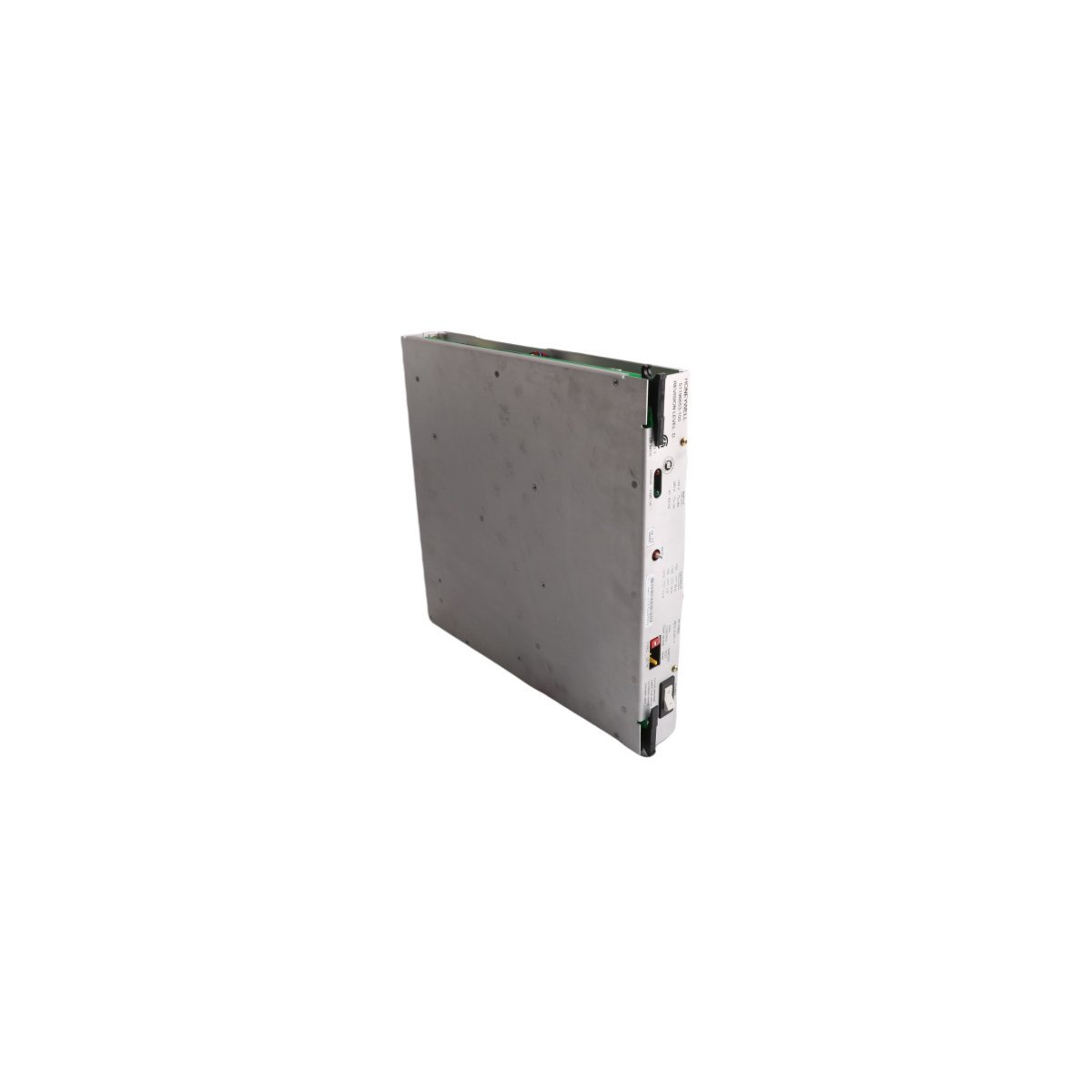

The Honeywell 51196653-100 serves as a critical power management component for TDC 3000 control systems. This Five-slot File Power Supply provides regulated voltage to legacy Distributed Control System (DCS) hardware. It specifically supports card files with five available slots in the cabinet. Consequently, the unit ensures stable electrical delivery to vital processing modules. This hardware remains an essential part of the Experion PKS infrastructure for established industrial plants.

Technical Specifications

• Brand: Honeywell
• Model Number: 51196653-100
• Equipment Type: Five-slot File Power Supply
• System Family: TDC 3000 / Experion PKS
• Net Weight: 3.82 kg
• Hardware Dimensions: 36.6 cm x 37.0 cm x 5.5 cm
• Manufacturing Origin: USA
• HS Classification: 8537101190

Critical Performance Characteristics

This power supply unit features a robust architecture designed for continuous industrial operations. It converts primary source power into the precise DC voltages required by TDC 3000 cards. Furthermore, the 51196653-100 includes advanced thermal management to prevent overheating in enclosed racks. The module offers high electrical efficiency to minimize heat dissipation within the file. Integrated circuit protection guards against voltage spikes and short circuits. These protective measures help prevent damage to expensive downstream I/O modules.

Industrial Applications

Maintenance teams utilize the 51196653-100 in large-scale process automation facilities. It performs reliably in oil refineries, chemical plants, and pulp and paper mills. Because of its weight and dimensions, the unit fits securely into standard five-slot chassis configurations. Operators rely on this power supply to maintain system uptime during 24/7 production cycles. It provides the necessary power foundation for legacy controllers and communication interfaces.
