Description

Brief Product Description

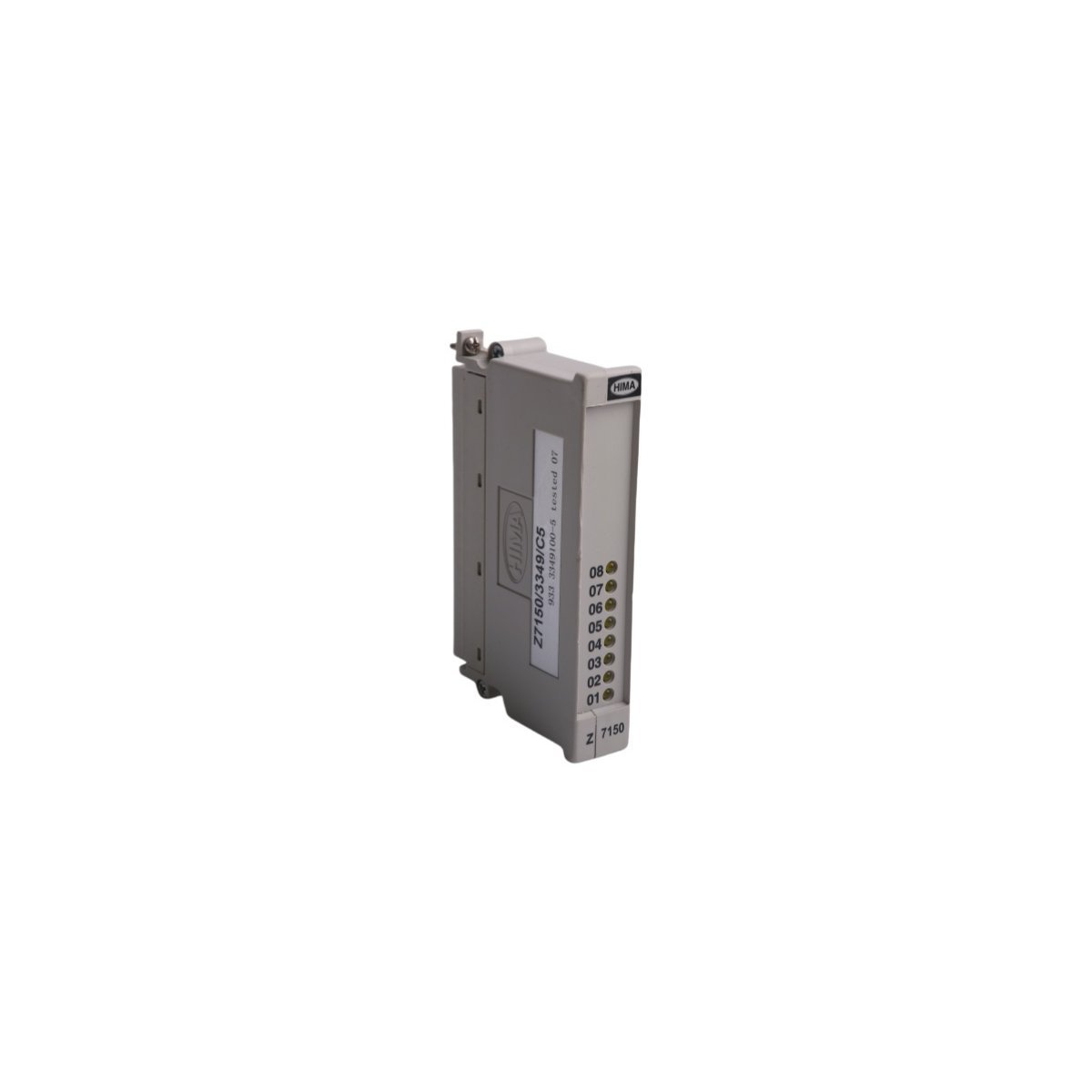

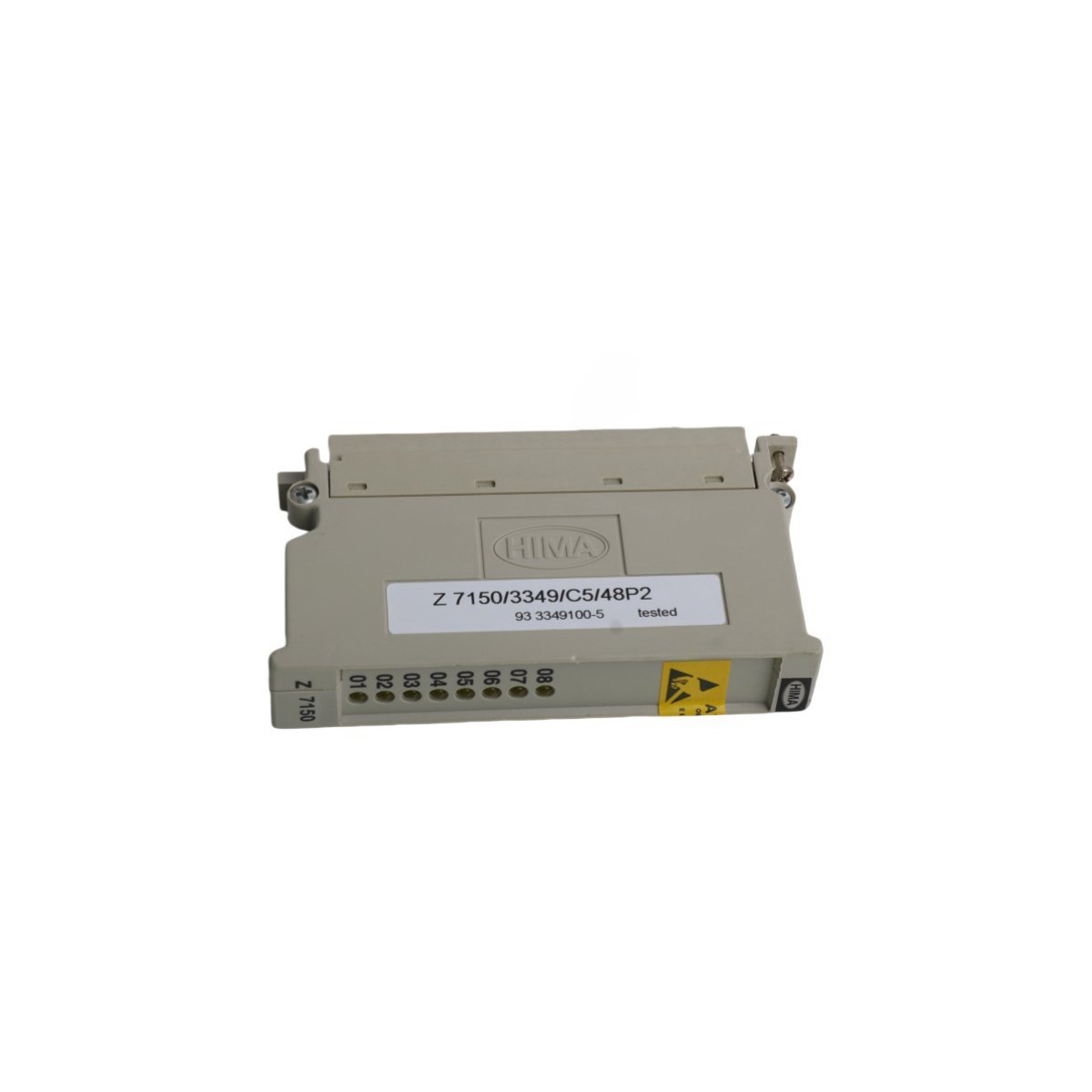

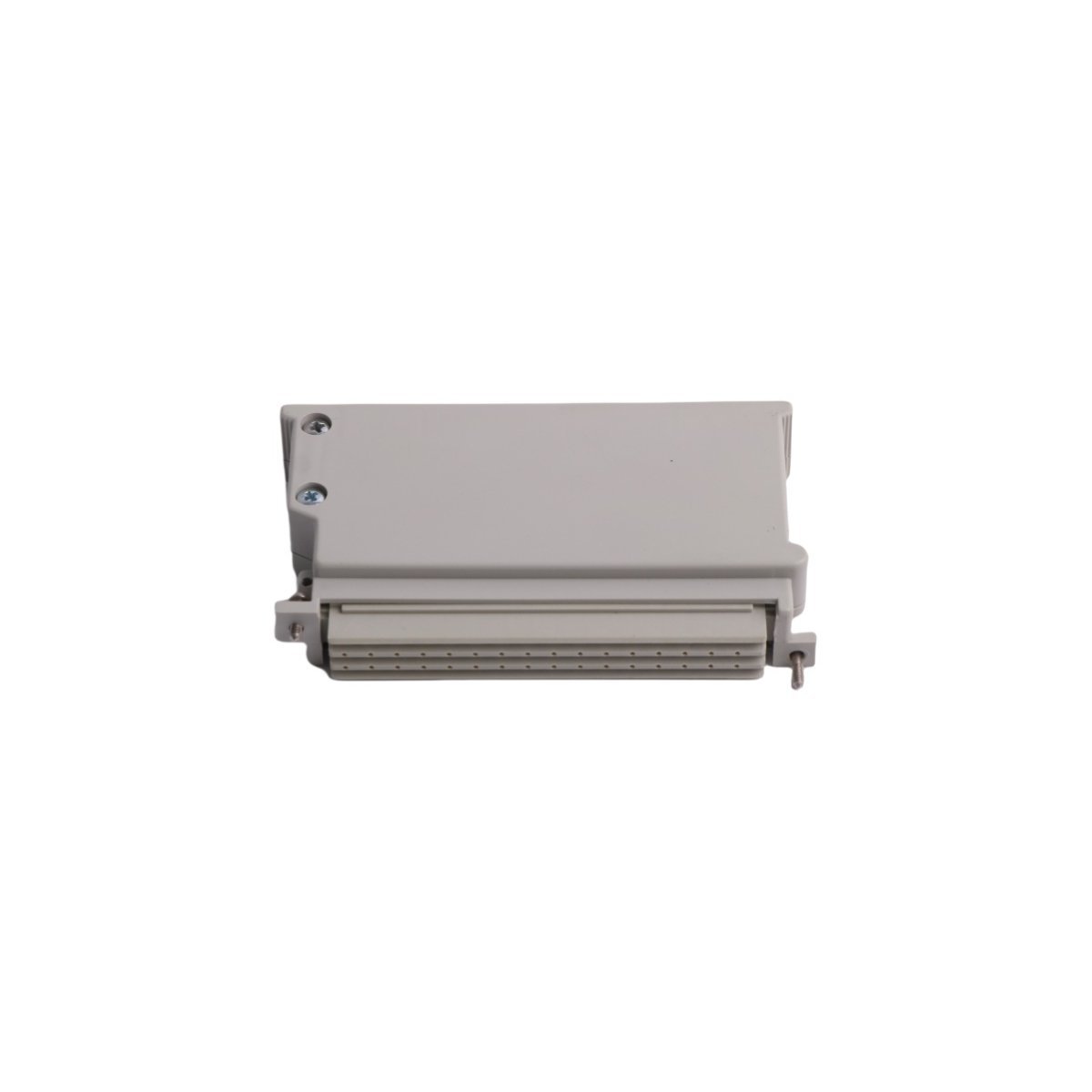

The HIMA Z7150 is a high-performance cable plug designed for secure electrical interfacing within the HIQuad X safety system, featuring IP67 protection and extreme temperature resistance.¹ It facilitates reliable power and signal transmission for demanding industrial automation and safety-critical applications.²

Professional Connectivity for Safety-Critical Environments

The HIMA Z7150 Cable Plug serves as a fundamental component for maintaining electrical integrity within the HIQuad X safety-related system. This connector utilizes high-grade dielectric polymers and precision-engineered brass terminals to facilitate superior conductivity and signal clarity. Because safety systems require unfailing connections, the Z7150 incorporates a design that resists environmental stressors, ensuring that critical data and power lines remain secure. This module acts as a reliable bridge between field devices and the central logic, supporting the high-availability requirements of modern industrial plants.

Rugged Engineering and Environmental Durability

Industrial environments often subject hardware to moisture, debris, and extreme heat.³ Consequently, HIMA engineered the Z7150 with an IP67 rating, which provides comprehensive protection against dust ingress and water immersion. Furthermore, the plug maintains its structural and electrical integrity in temperatures reaching up to 125°C, allowing for installation in high-heat processing zones. With a mechanical lifespan rated for over 10,000 mating cycles, this connector offers exceptional longevity, significantly reducing the total cost of ownership by minimizing the frequency of component replacements.⁴

Versatile Integration and High-Load Capacity

Beyond its physical durability, the Z7150 offers significant electrical versatility to accommodate diverse automation tasks. It manages AC voltages up to 250V and supports current loads of up to 16A, making it suitable for both signal-level communication and moderate power distribution. The plug features standard M8/M12 compatibility, which ensures a seamless mechanical fit with existing industrial infrastructure. This universal approach, combined with the option for various contact configurations, allows engineers to standardize their connectivity solutions across robotics, machinery control, and complex Distributed Control Systems (DCS).

Key Technical Characteristics

• High-Grade Material Construction: Features a dielectric polymer body and brass terminals for optimal electrical performance.
• IP67 Environmental Protection: Ensures complete resistance to dust and temporary immersion in water.⁵
• Exceptional Thermal Range: Operates reliably in extreme industrial conditions up to 125°C.
• High Power Rating: Supports electrical loads up to 250V AC and 16A current.
• Extended Service Life: Rated for more than 10,000 mating cycles to ensure long-term operational reliability.⁶
• Flexible Interfacing: Compatible with standard M8/M12 connection sizes for rapid system integration.
