Description

Brief Product Description

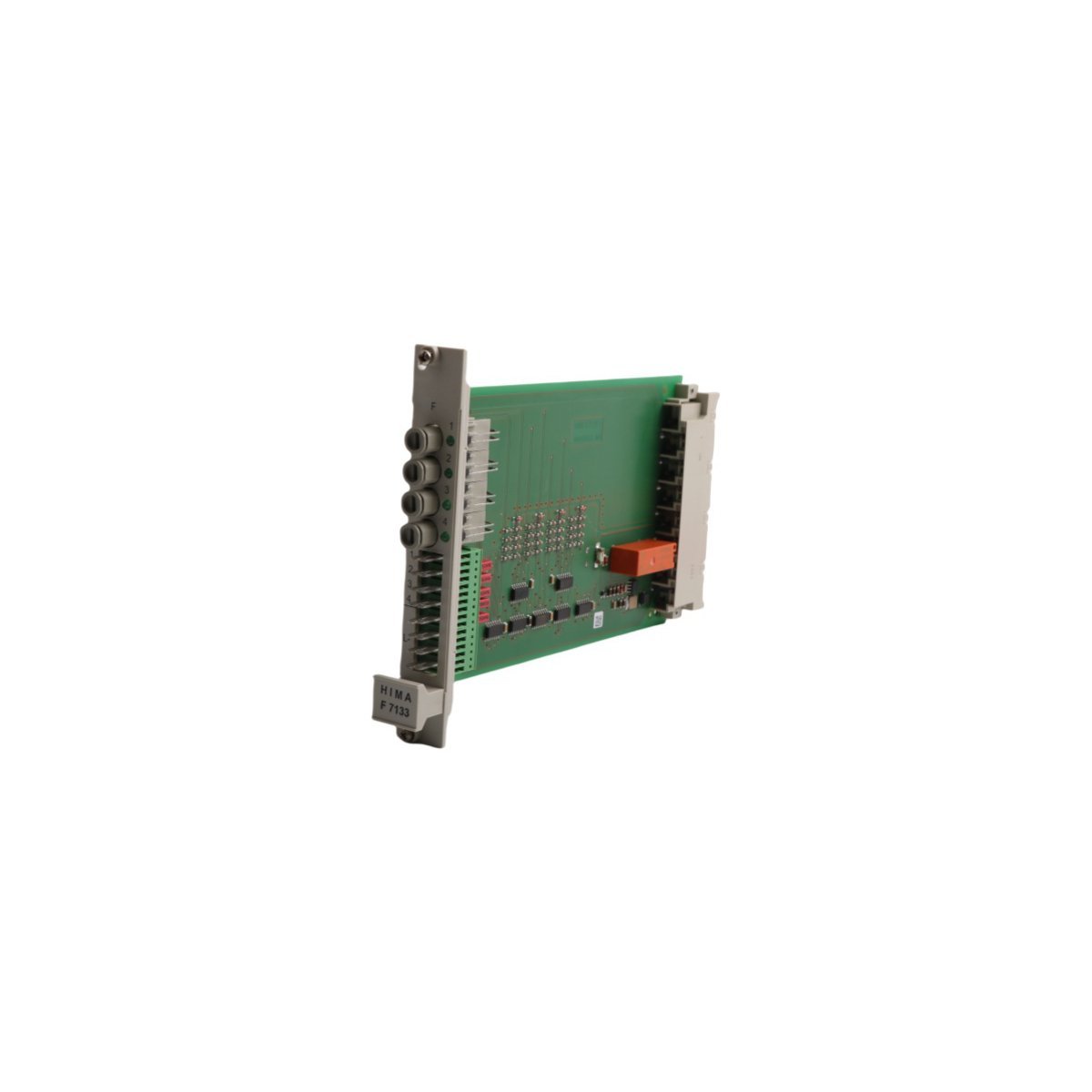

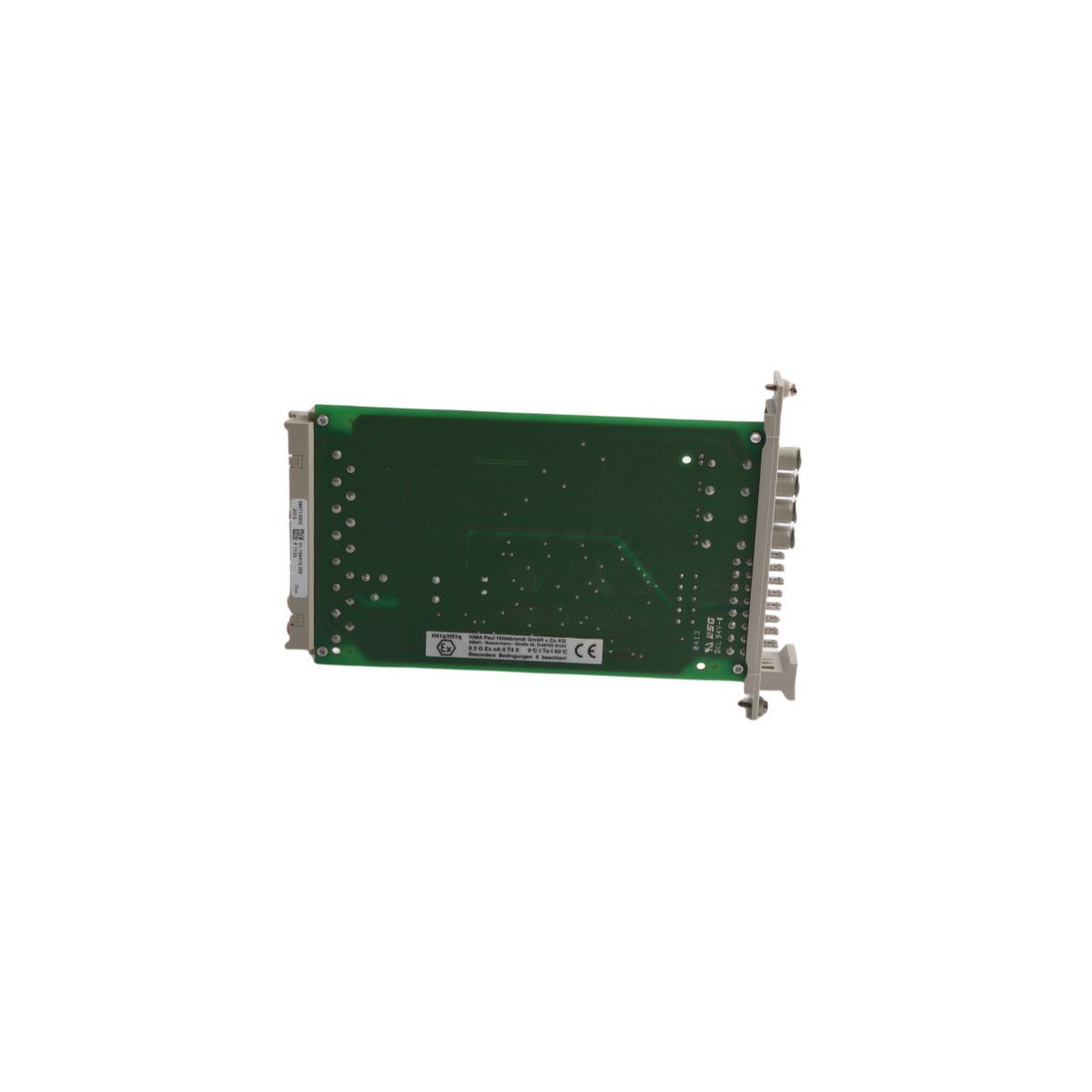

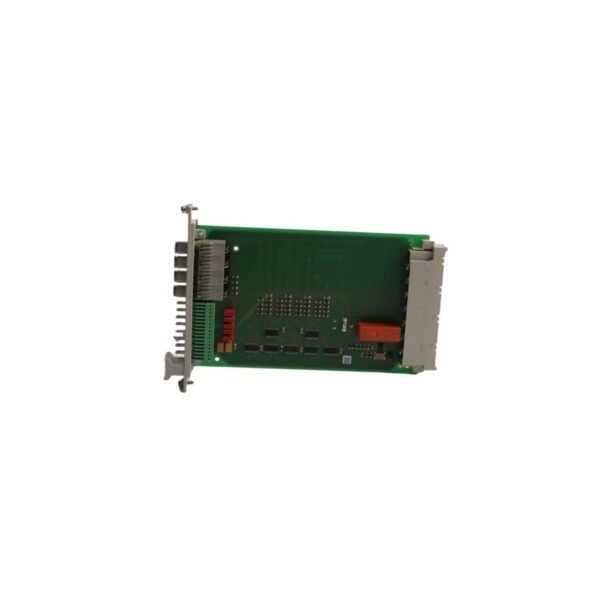

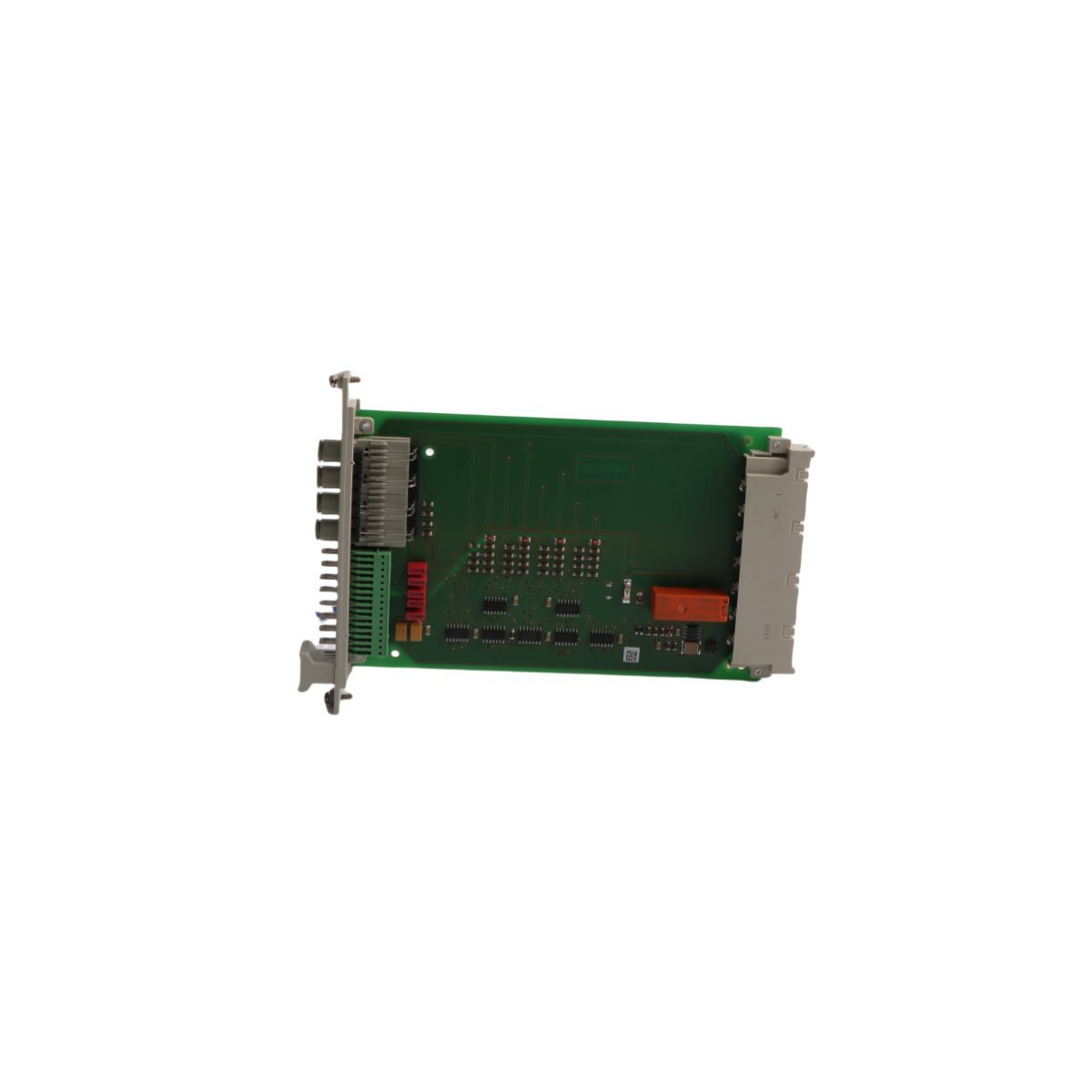

The HIMA F7133 is a 4-channel power distribution module specifically designed for H41q and H51q safety systems, featuring integrated slow-blow fuses for overcurrent protection.² This German-engineered module provides a robust and space-efficient solution for distributing stabilized DC power to field devices and automation controllers.³

Efficient Multi-Channel Power Allocation

The HIMA F7133 excels in managing complex power requirements within Distributed Control System (DCS) architectures. By providing a 4-fold distribution interface, the module allows engineers to split a primary power feed into four distinct channels, simplifying the wiring of multiple field sensors and actuators. This structured approach to power management prevents centralized power failures from impacting the entire system. Furthermore, the precision-engineered circuitry ensures minimal voltage drop across all channels, maintaining the electrical stability required for high-integrity safety loops in manufacturing and process control.

Hardware Protection and System Reliability

Industrial reliability remains the primary focus of the F7133 hardware design. To safeguard against transient electrical faults, each distribution channel incorporates a dedicated slow-blow fuse.⁴ These protective components effectively manage temporary inrush currents without triggering unnecessary system shutdowns, while simultaneously providing robust overcurrent protection during genuine fault conditions. Moreover, the module’s aluminum housing offers superior thermal dissipation and resistance to atmospheric corrosion. This ruggedized construction ensures that the F7133 maintains peak performance even when deployed in the high-vibration and chemically demanding environments typical of the petrochemical and power industries.

Streamlined Integration for Safety Systems

HIMA designed the F7133 for high-density control cabinets where spatial optimization is critical. Its slim profile allows for maximum channel density on the DIN rail or backplane, facilitating easier cable management and cooling airflow. The module is fully compatible with HIMA’s H41q and H51q safety series, supporting rapid “plug-and-play” installation into existing safety-related infrastructure. Because every unit undergoes rigorous German quality testing, the F7133 provides a dependable solution that complies with international industrial safety standards. Transitioning to this fused distribution model enables facilities to enhance system uptime and simplify maintenance troubleshooting.

Key Technical Characteristics

• 4-Fold Distribution: Manages four independent power channels from a single supply input.⁵
• Integrated Fuse Protection: Features slow-blow fuses on each channel to prevent overcurrent damage.⁶
• Aluminum Construction: Utilizes high-grade aluminum for enhanced durability and thermal management.
• Safety System Compatibility: Specifically engineered for seamless use with H41q and H51q safety platforms.
• Space-Saving Design: Compact footprint (2×18.8×12.8cm) ideal for high-density cabinet layouts.
• Industrial Grade Resilience: Maintains stable operation across broad temperature and humidity variations.
