Description

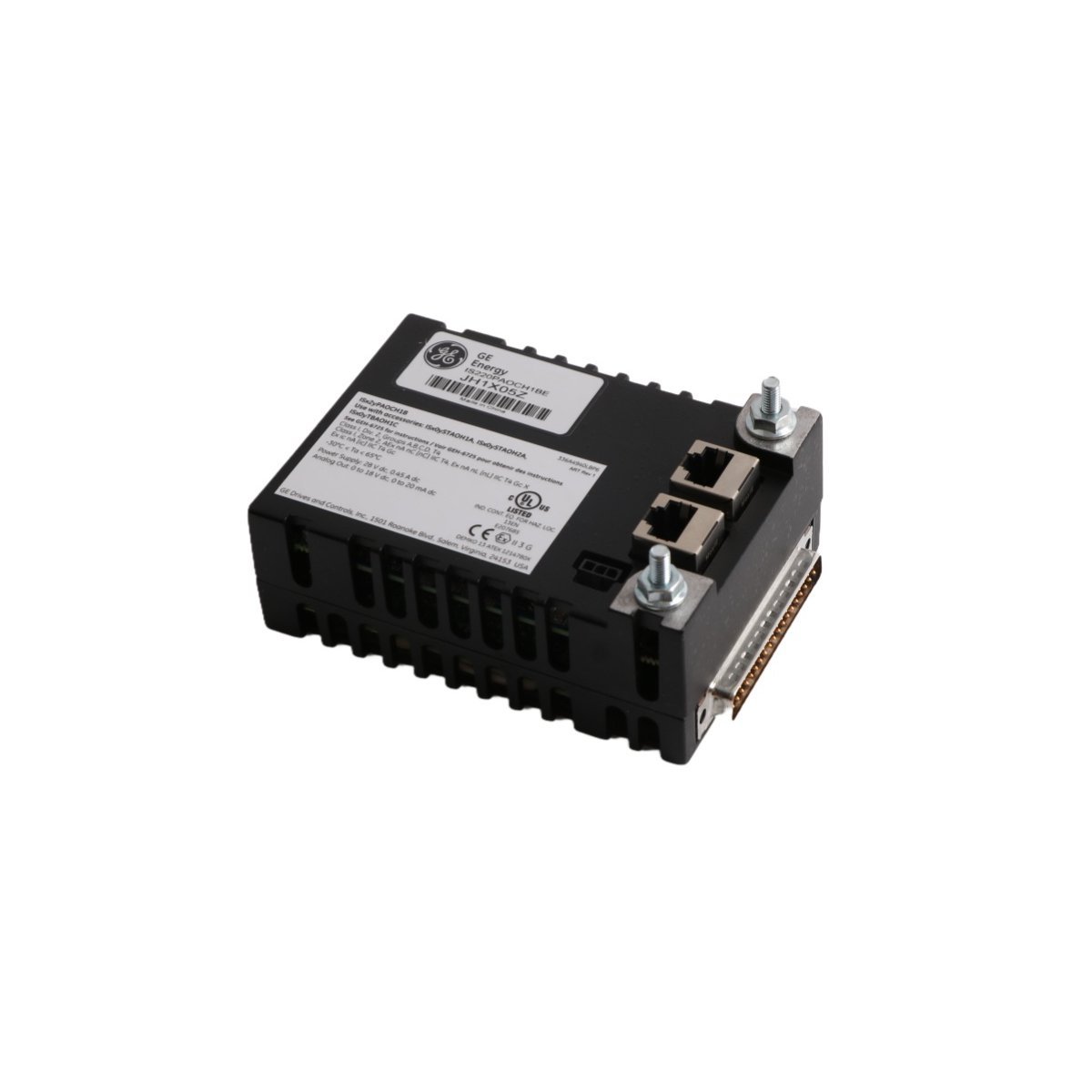

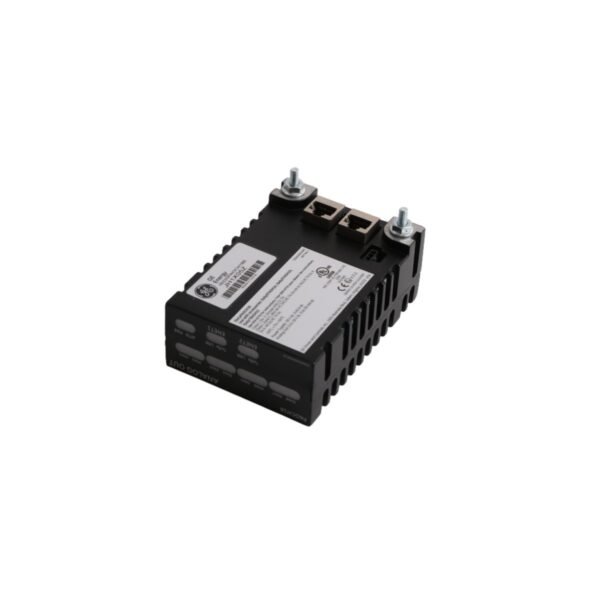

The GE IS220PAOCH1B serves as a high-precision analog output interface for the Mark VIe Distributed Control System. This module provides eight simplex channels for 0-20 mA current loops. It facilitates accurate signal transmission for turbine control and process automation. Furthermore, the unit features 16-bit digital-to-analog converters to ensure superior signal resolution. Its compact design allows for high-density installation in modern industrial cabinets. Consequently, engineers rely on this module for mission-critical power generation and industrial applications.

Technical Specifications and Hardware Architecture

System Redundancy and Fault Tolerance

The IS220PAOCH1B supports flexible configuration modes to meet specific reliability requirements. Users can deploy the module in simplex, dual, or triple modular redundant (TMR) architectures. This adaptability provides essential fault tolerance for critical control loops. Additionally, each channel includes an independent feedback monitoring circuit. Mechanical relays and status LEDs offer clear visual confirmation of output states. Internal sensors also track module temperature to prevent thermal damage during operation. These features significantly enhance the safety of the overall control network.

Compatibility and Installation Requirements

The module interfaces directly with TBAOH1C and STAO terminal boards for efficient field wiring. However, the hardware does not support DIN-rail mounted DTAO terminal boards. Dual RJ45 connectors facilitate seamless integration into the IONet communication fabric. Furthermore, the 18V compliance voltage ensures stable performance across various loop impedances. Infrared diagnostic ports allow for rapid troubleshooting without physical disconnection. Maintenance teams benefit from the modular design during routine system upgrades. Ultimately, the IS220PAOCH1B represents a robust solution for demanding industrial environments.
