Description

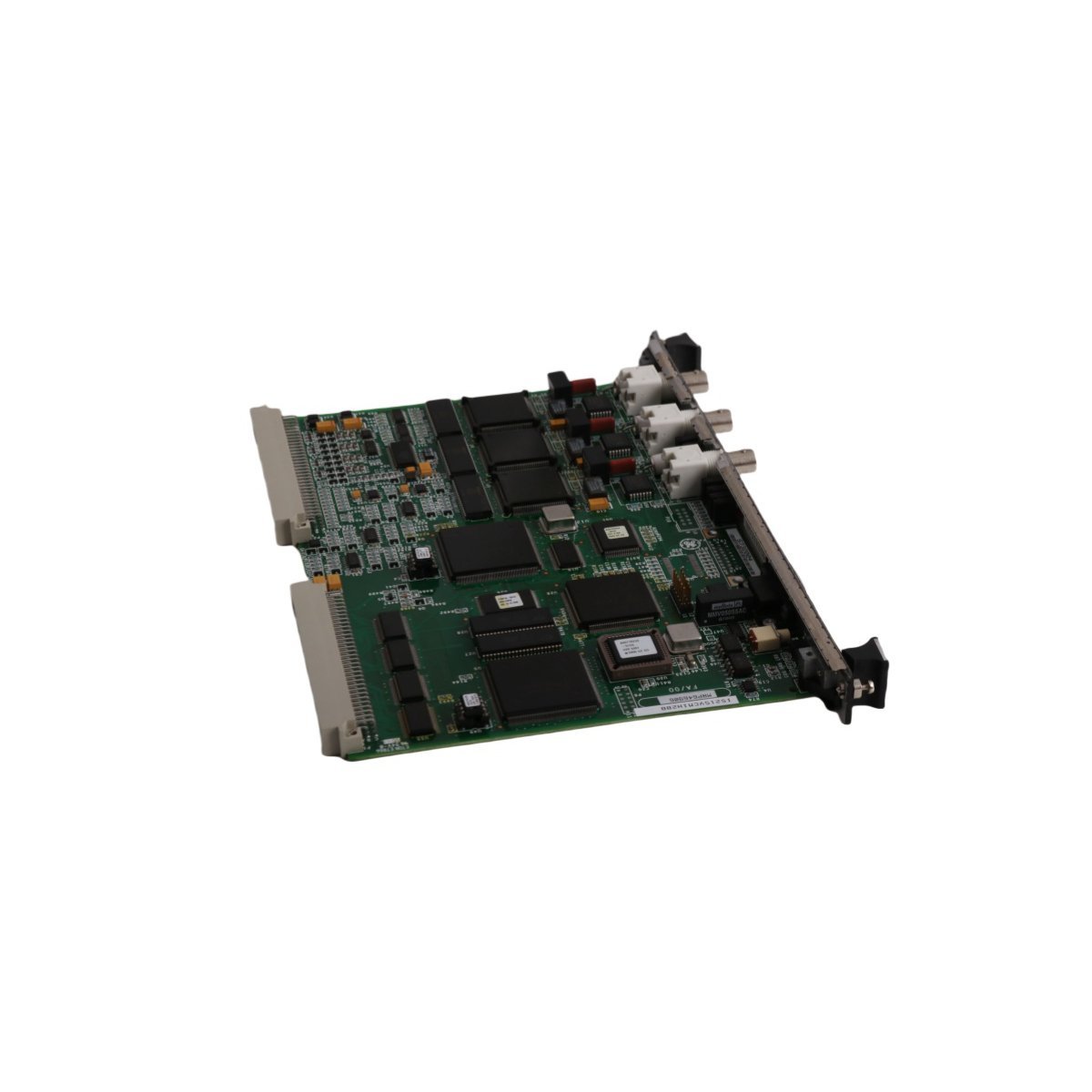

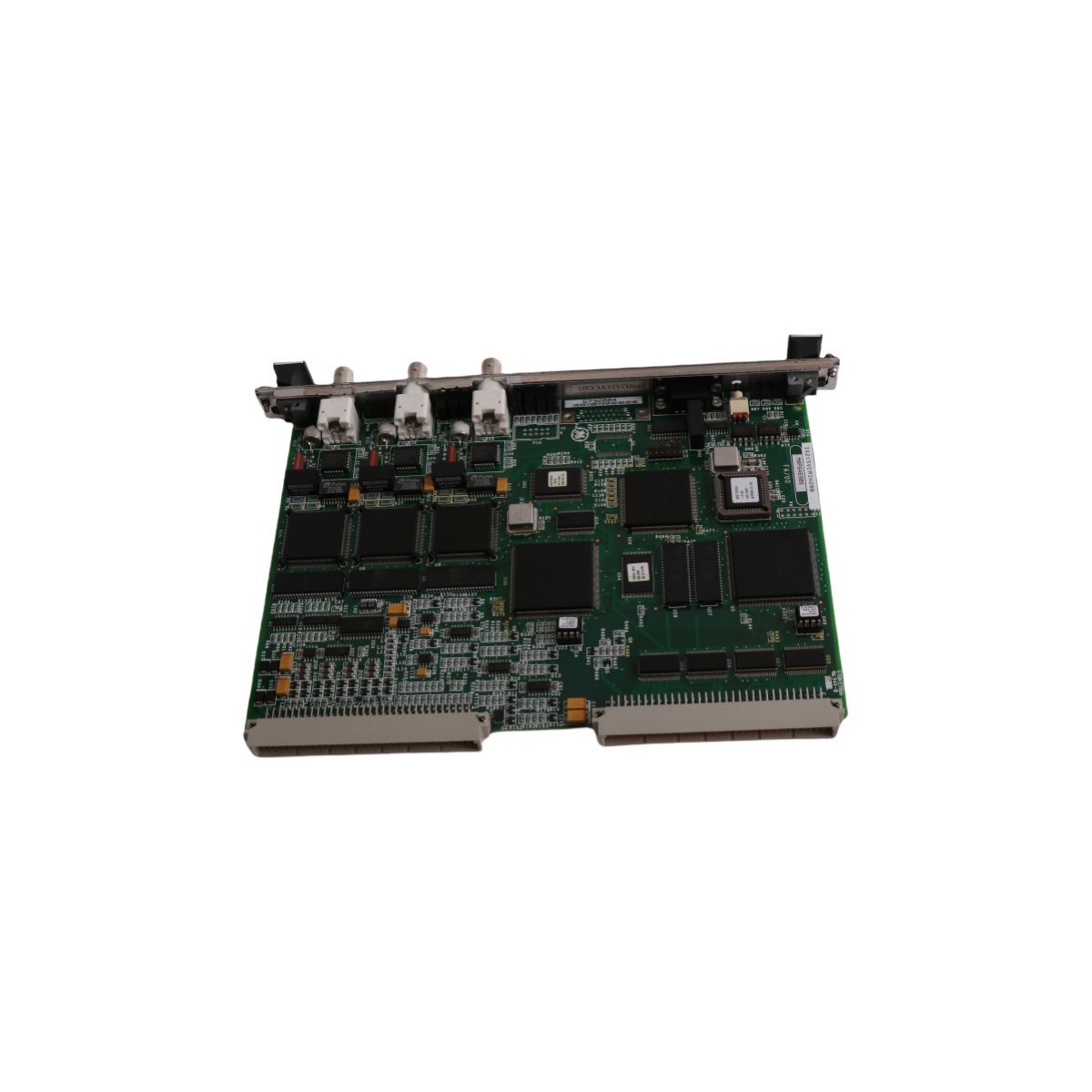

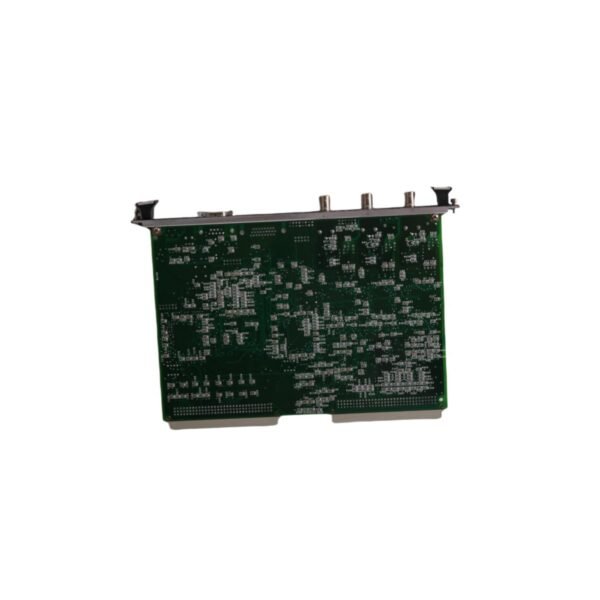

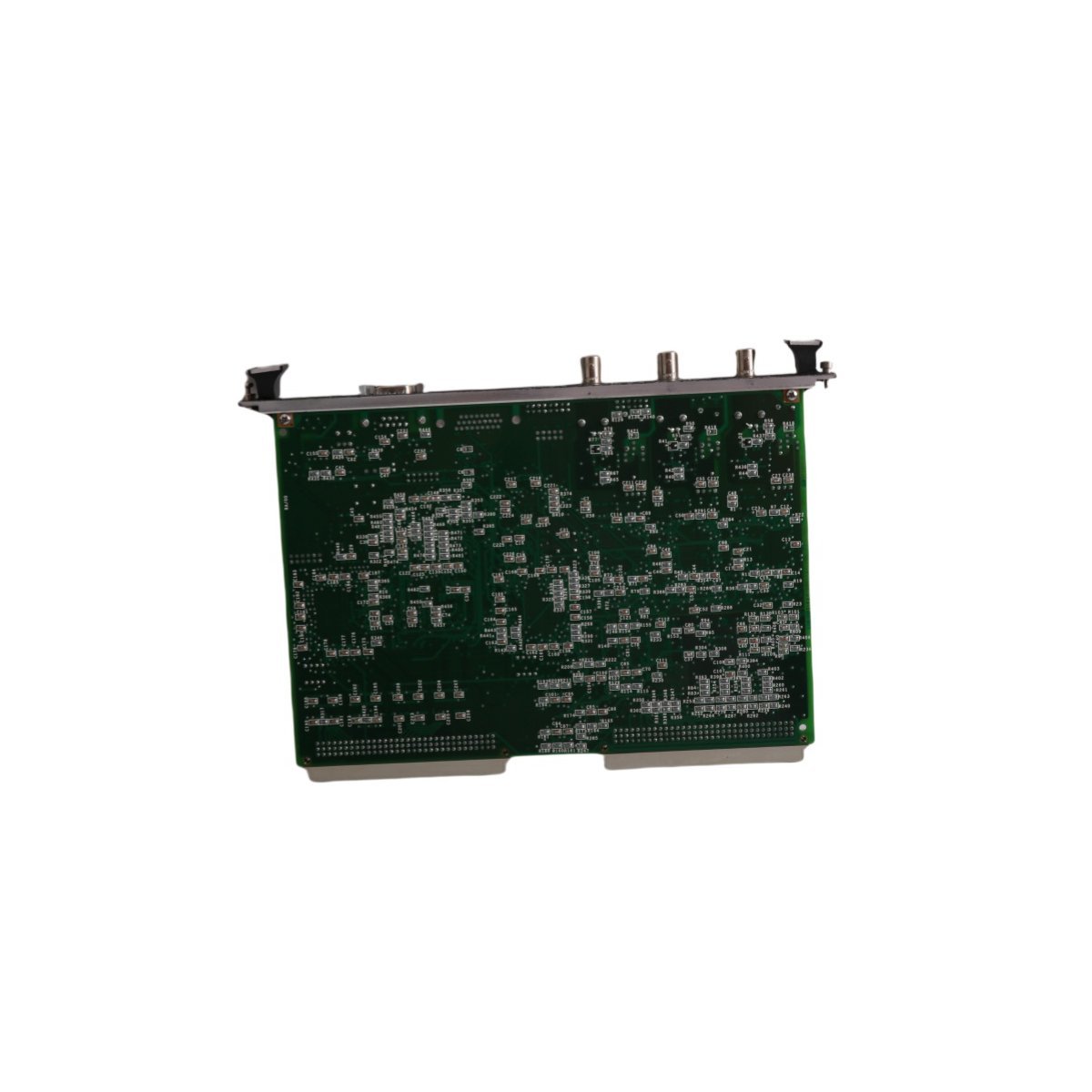

The GE IS200VSVOH1B operates as a high-precision VME Servo Control Board within the Speedtronic Mark VI system. This module primary regulates fuel and steam flow by managing four electro-hydraulic servo valves. It utilizes Linear Variable Differential Transformer (LVDT) feedback to achieve pinpoint accuracy in valve positioning. Furthermore, the board processes pulse rate flow inputs to synchronize mechanical movement with control logic. This makes it an essential component for maintaining stable turbine speeds during power generation.

System Redundancy and Reliability

This interface card supports both Simplex and Triple Modular Redundant (TMR) control architectures. In TMR setups, the board works alongside TSVO or DSVO terminal boards to ensure fault-tolerant operation. This redundancy prevents a single point of failure from causing a turbine trip. Additionally, the PCB features a robust design with over 70 integrated circuits and four dedicated K-series relays. A high-quality conformal coating protects these sensitive electronics from moisture and industrial dust.

Diagnostic Monitoring and Physical Interface

The front panel provides immediate visual diagnostics through three distinct LED indicators. A green LED signals a successful RUN state, while red and orange LEDs indicate FAIL or STATUS alerts. Technicians can access the system via the integrated J5 connector on the faceplate. Internally, the board contains ten inductor beads to filter electrical noise in high-vibration environments. Multiple test points also allow for manual signal verification during commissioning or routine maintenance.

Installation and Hardware Compatibility

The IS200VSVOH1B belongs to the B-revision hardware group for optimized signal processing performance. It fits into the standard VME rack and connects through primary P1 and P2 backplane headers. Proper installation requires securing the card into the chassis to ensure consistent electrical ground. Because it follows the Speedtronic design standard, it offers backward compatibility for legacy Mark VI system upgrades. This reliability ensures the card remains a trusted solution for global power plant operators.

Technical Specifications
