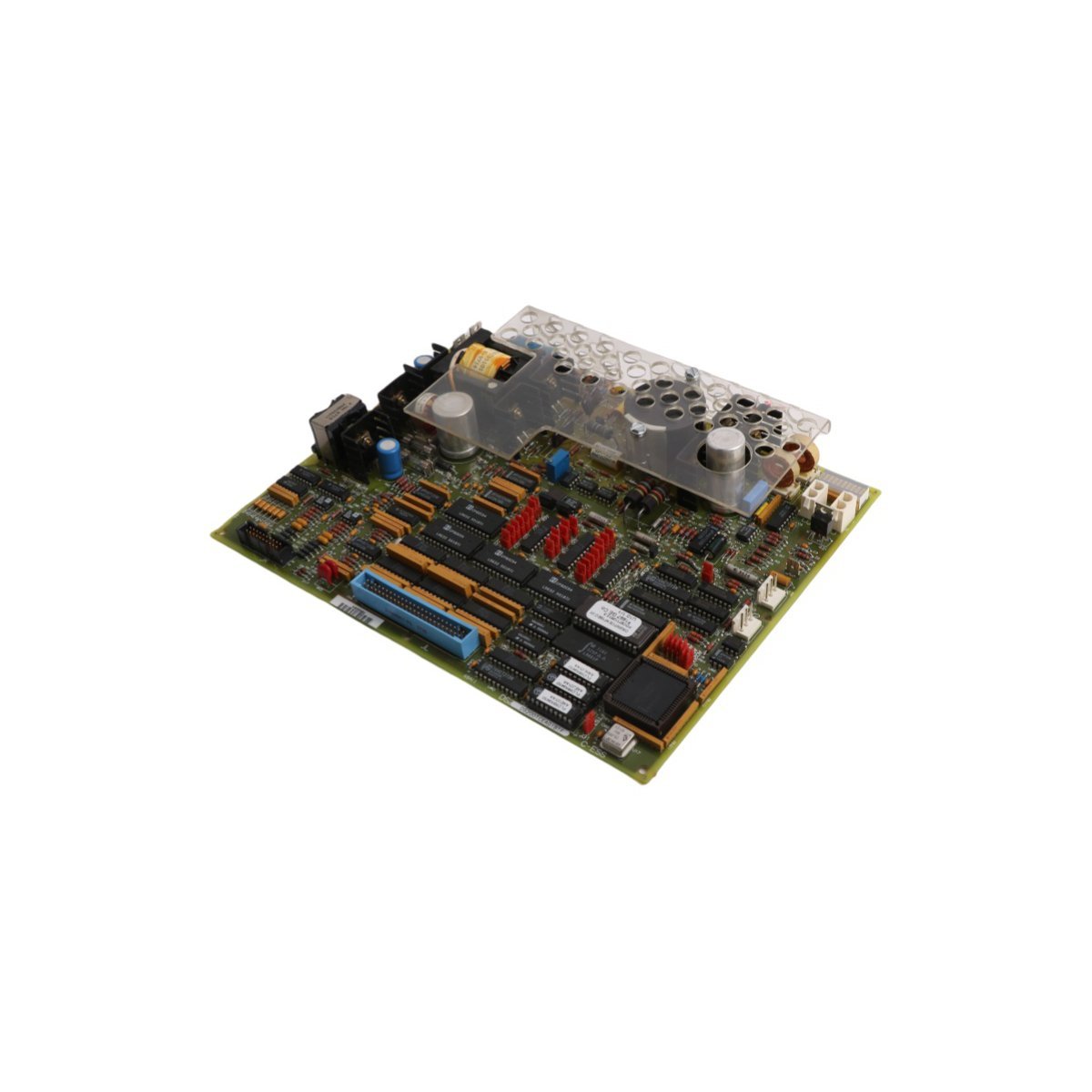

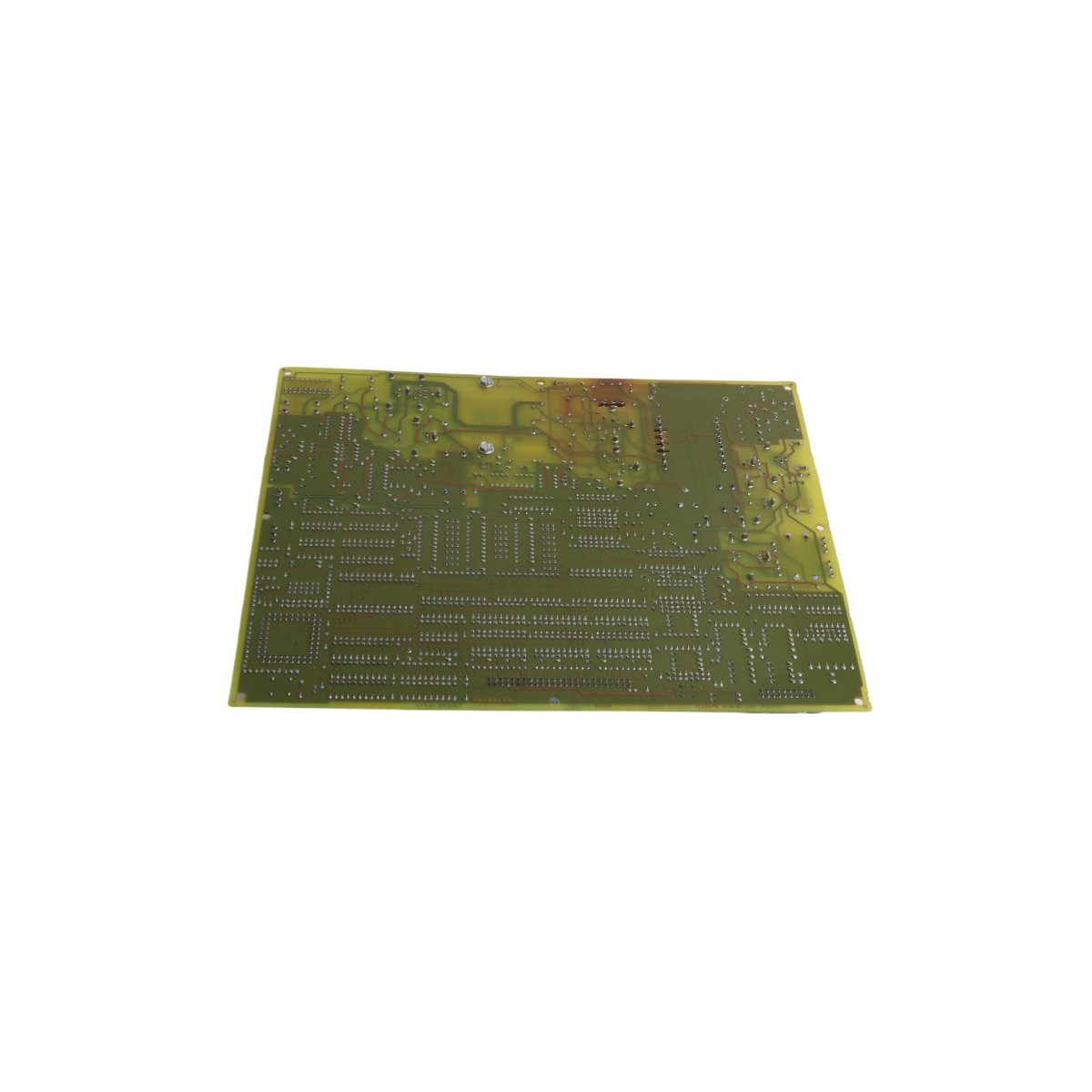

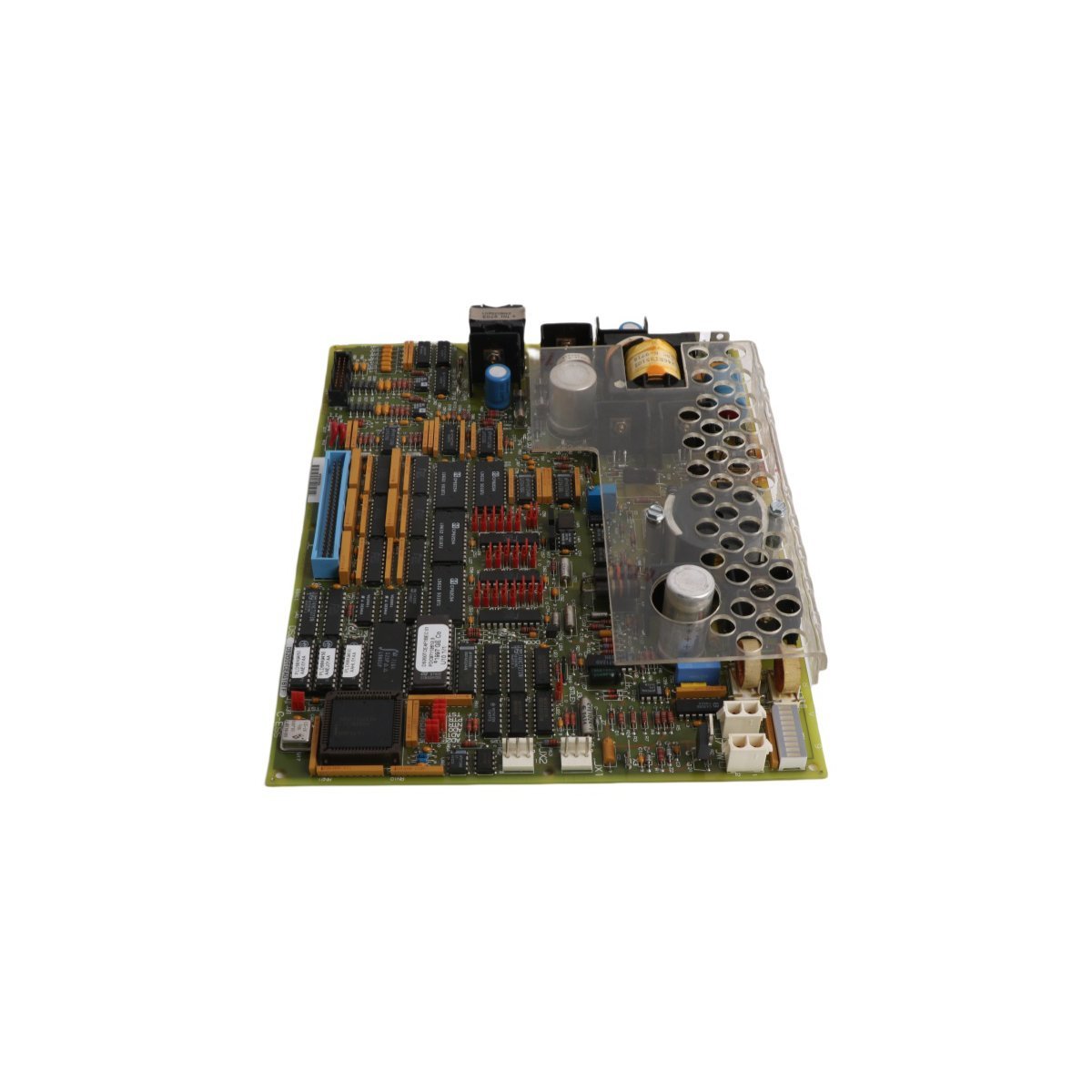

The GE DS200TCEBG1ACE is a specialized protective termination expander board designed for the Mark V Speedtronic control system. It provides critical emergency trip functionality and signal expansion to ensure rapid protective responses for gas and steam turbine operations.

Product Description

High-Speed Protective Trip Functionality

The GE DS200TCEBG1ACE operates as a vital safety component within the Mark V turbine control architecture. This protective termination expander board manages emergency trip sequences with extreme precision, achieving response times under 10 milliseconds. By acting as a high-speed interface for critical fault conditions, the board ensures that turbines shut down safely before mechanical damage occurs. Its primary role involves expanding the termination capacity of the core protective processors, allowing the system to monitor a broader range of digital inputs dedicated to system safety.

Electrical Isolation and Performance Standards

Reliability in power generation depends on robust electrical separation, and the DS200TCEBG1ACE module delivers this through 1500 VAC of electrical isolation. The board runs on a 24VDC power supply and maintains a low power profile, typically consuming only 8W during standard operation. These electrical characteristics prevent signal interference and protect the central control logic from field-side voltage spikes. Furthermore, the board is engineered to process 24VDC digital signals reliably, ensuring that every protective command reaches the final control elements without delay or degradation.¹

Environmental Resilience and Integration

Designed for the demanding conditions of industrial control rooms and turbine enclosures, the General Electric DS200TCEBG1ACE functions across a wide temperature spectrum from -40°C to +70°C. This thermal range, combined with its ability to handle up to 95% non-condensing humidity, makes it suitable for global deployment in various climates. The board’s compact form factor allows for seamless installation within existing Mark V control panels. Because it serves as a direct expansion for protective termination, it integrates intuitively with the system’s overspeed and emergency stop circuits, maintaining the high safety standards required for heavy-duty rotating machinery.
