Description

Brief Product Description

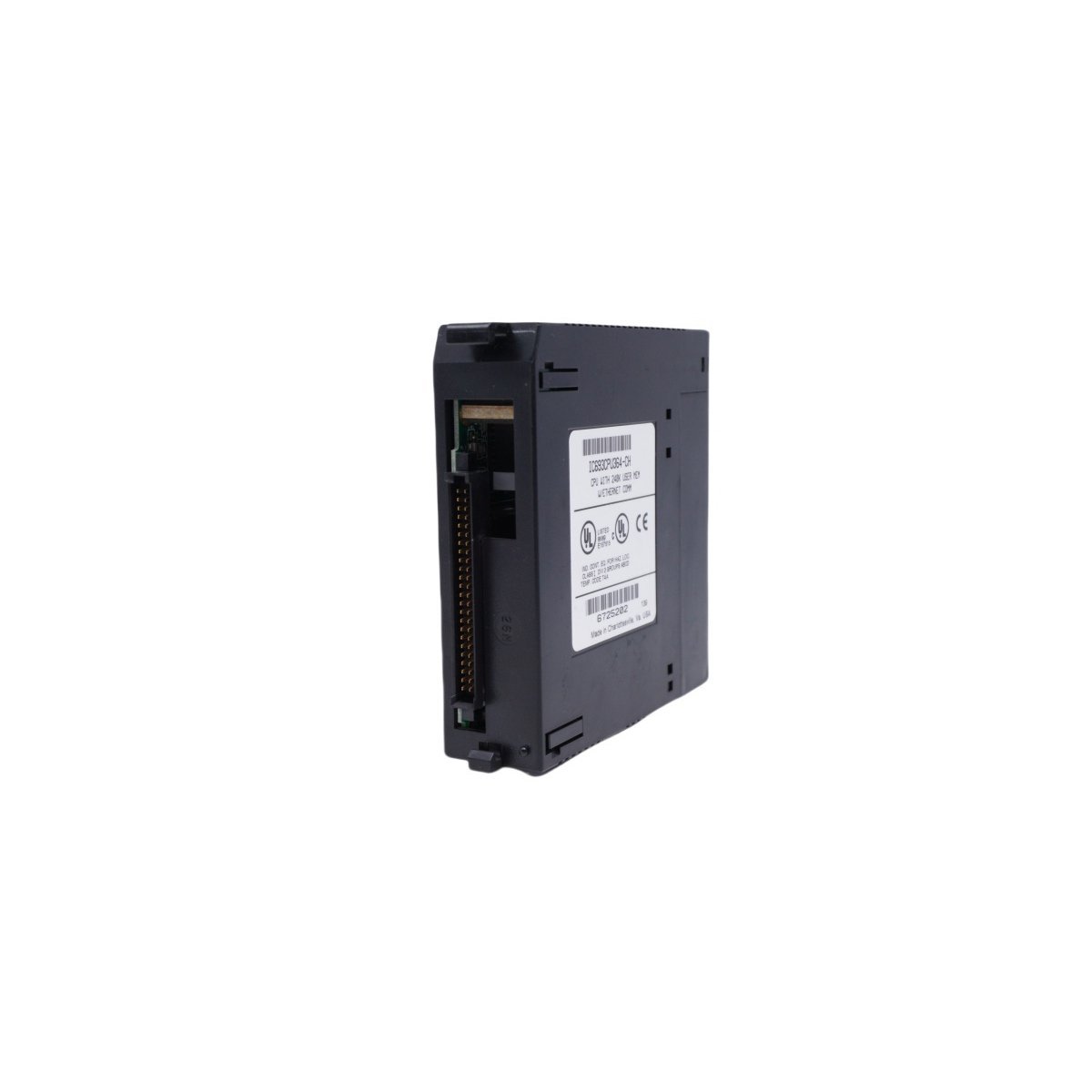

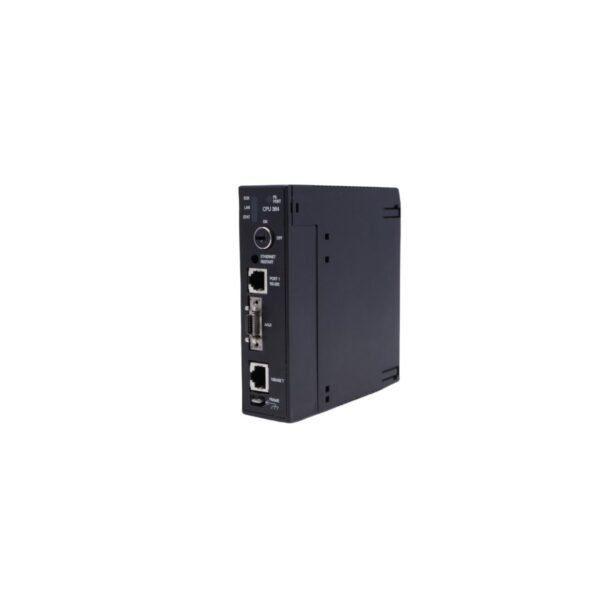

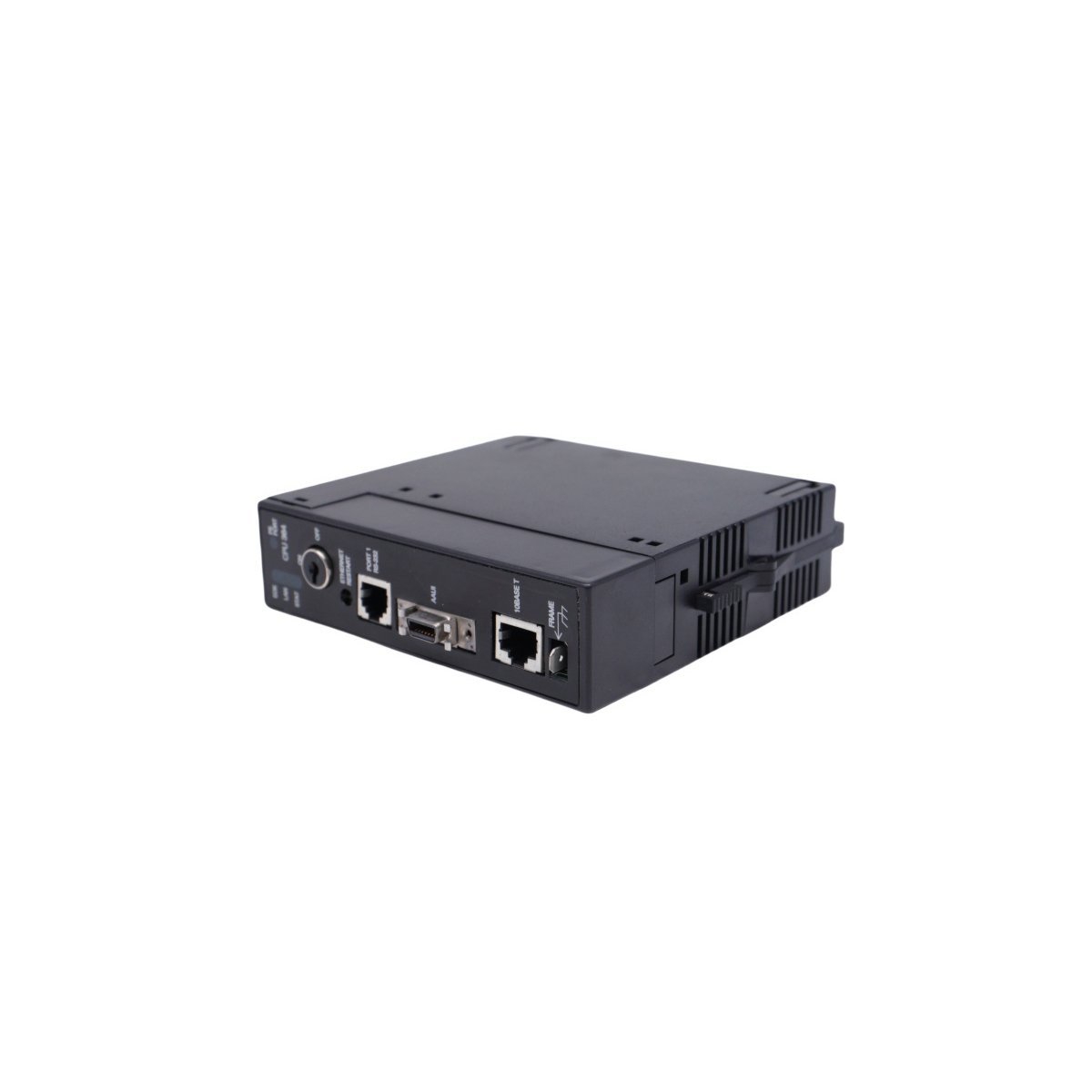

The GE Fanuc IC693CPU364 is a 25MHz high-performance processor module for the Series 90-30 PLC, featuring an integrated Ethernet port and 240KB of configurable user memory. It delivers rapid Boolean execution and supports extensive I/O expansion across up to eight baseplates.

Advanced Processing and Performance Architecture

The GE Fanuc IC693CPU364 serves as a powerful central processing unit for the Series 90-30 platform, utilizing an 80386EX microprocessor. Operating at a clock speed of 25 MHz, this controller achieves a rapid scan rate of 0.22 milliseconds per 1K of Boolean logic. This high-speed execution facilitates precise control over complex automated sequences. The module resides in a single slot of the main baseplate and supports a total system configuration of eight racks, consisting of one CPU baseplate and up to seven expansion or remote racks. This scalable architecture ensures that the IC693CPU364 can manage both localized machinery and broad factory-wide processes.

Integrated Connectivity and Memory Management

This controller distinguishes itself through a built-in Ethernet interface, which simplifies network integration and high-speed programming. Besides the Ethernet port, the system utilizes the RS-485 serial port located on the PLC power supply for additional peripheral communication. The IC693CPU364 features 240KB of user-configurable memory, allowing engineers to allocate space flexibly between logic code, register data (%R), and analog I/O tables (%AI and %AQ). The processor manages a substantial I/O map, supporting up to 2,048 discrete inputs and 2,048 discrete outputs. Furthermore, it provides 1,280 bits of discrete global memory to streamline data sharing across a networked control environment.

Industrial Reliability and Configuration Flexibility

GE engineered the IC693CPU364 to maintain stable performance within demanding industrial climates, supporting an operational temperature range from 0 to 60°C. The module draws 1.51 Amps from the 5V DC bus, requiring a compatible Series 90-30 power supply for optimal function. Transitioning to this CPU allows users to implement sophisticated control algorithms, as it supports configurable analog registers in 128-word increments and provides 4,096 internal coils. Consequently, the IC693CPU364 remains a premier choice for users seeking to modernize their Series 90-30 systems with integrated networking and expanded logic capabilities.

Key Technical Characteristics

• High-Speed CPU: Employs an 80386EX processor to deliver 0.22ms Boolean execution speeds.
• Integrated Ethernet: Provides a native RJ-45 port for seamless LAN connectivity and programming.
• Large Memory Capacity: Includes 240KB of RAM for complex logic, registers, and system diagnostics.
• Extensive Expansion: Controls up to 2,048 I/O points and coordinates up to seven expansion baseplates.
• Configurable Analog I/O: Supports flexible mapping of %AI and %AQ registers to meet specific application needs.
• Serial Communication: Interacts with the power supply serial port to support RS-485 communication protocols.
