Description

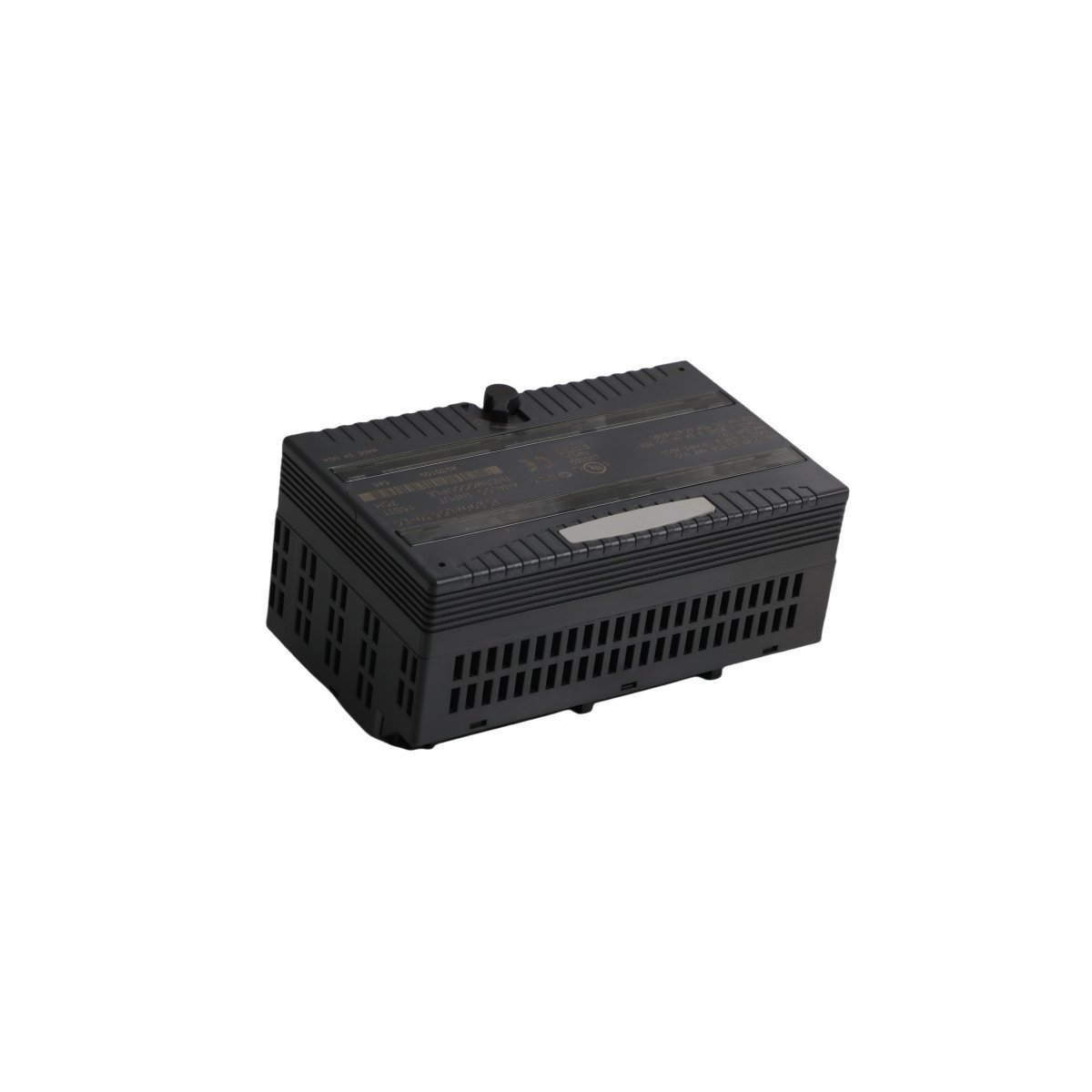

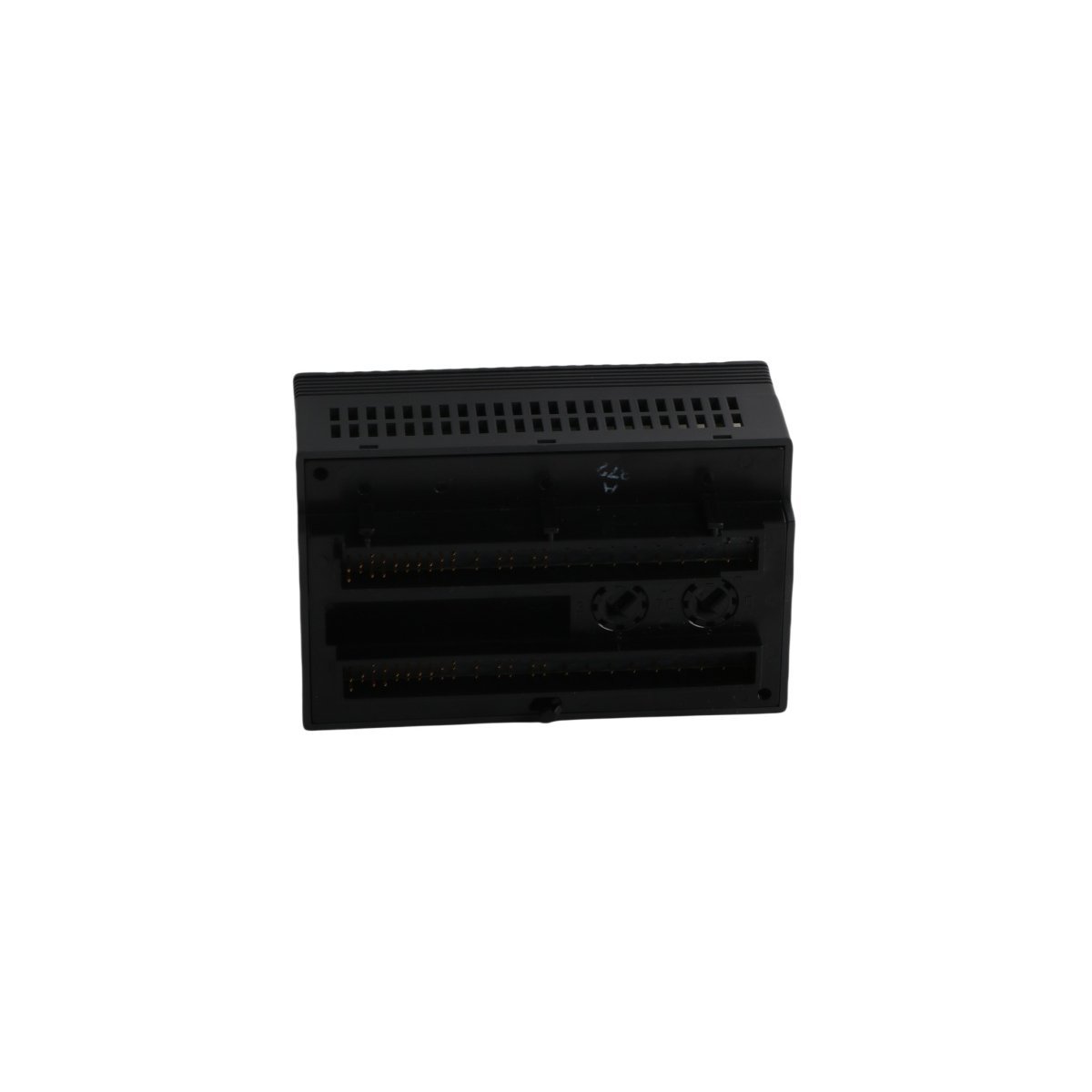

The GE Fanuc IC200ALG322 serves as a precision interface for the VersaMax PLC platform. This module converts digital CPU data into four independent analog voltage signals. These signals typically control actuators, variable speed drives, or industrial instrumentation. While the backplane powers the internal logic, the output circuits require a separate external power supply. This design ensures electrical separation between the control logic and field-side equipment.

Performance and Precision

Engineers can rely on the 12-bit resolution for accurate control of voltage-driven devices. The module provides a standard output range of -10VDC to +10VDC. It effectively drives resistive loads of 5,000 Ohms or greater. Under standard operating conditions, the unit maintains a high accuracy rating of ±0.3%. Furthermore, the hardware features excellent channel-to-channel isolation with 70 dB crosstalk rejection. This capability prevents interference between neighboring signal paths during high-speed operations.

System Diagnostics and Safety

The IC200ALG322 includes integrated monitoring tools to enhance system uptime. The VersaMax CPU continuously analyzes module health and field-side connectivity. Users receive immediate alerts if the system detects a loss of field power. Consequently, maintenance teams can identify and resolve wiring faults quickly. To ensure long-term reliability, avoid installing the module near high-frequency radio equipment. Excessive RF interference can negatively impact the signal conversion quality.

Technical Specifications

Installation Guidelines

Mount the IC200ALG322 onto a compatible VersaMax carrier during system assembly. Ensure all terminal connections match the documented wiring patterns for voltage outputs. Always record the serial number before securing the module into the PLC rack. Proper ventilation remains essential for maintaining accuracy across the full temperature range. Standard protective measures against electrostatic discharge prevent damage to the internal CMOS circuitry.
