Description

Brief Product Description

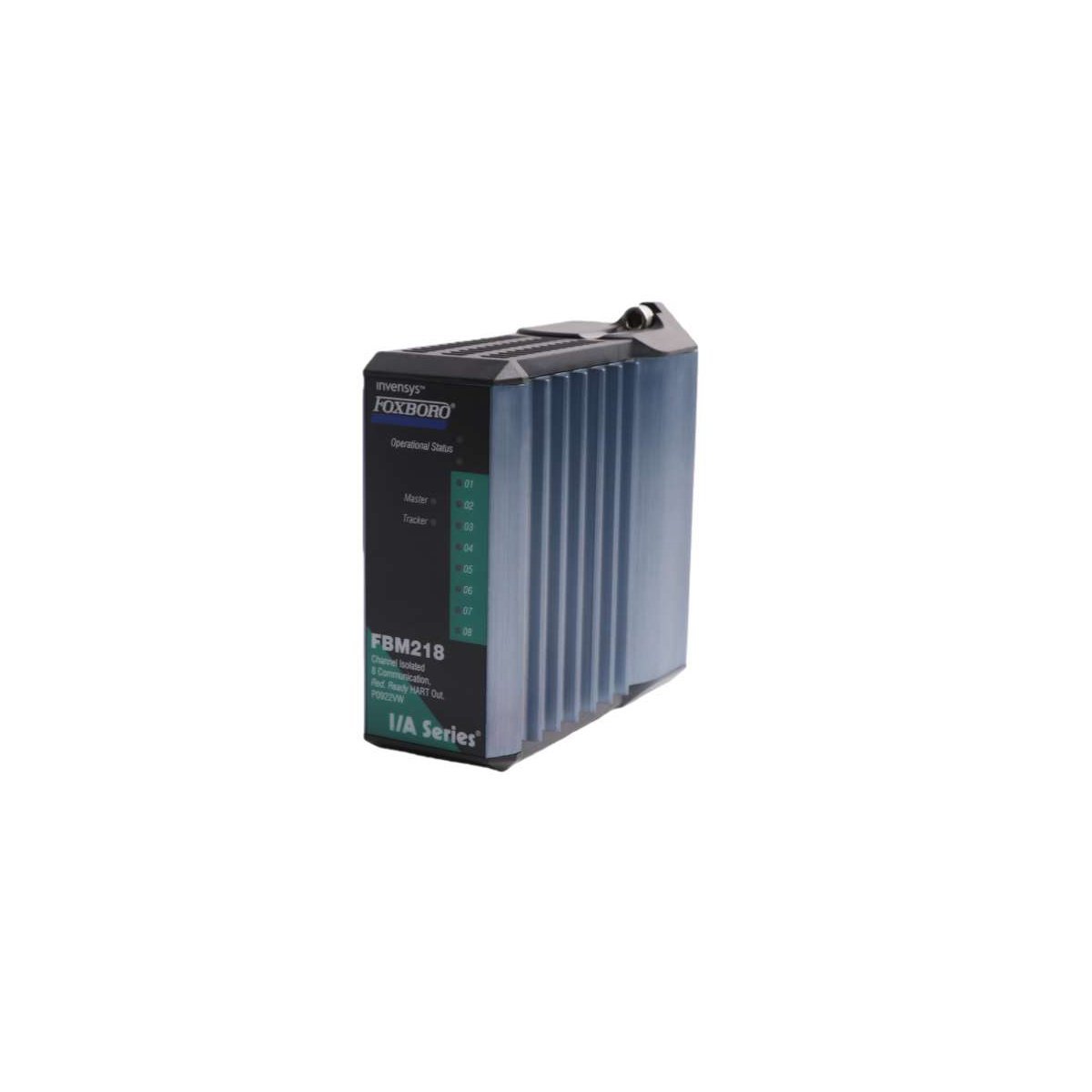

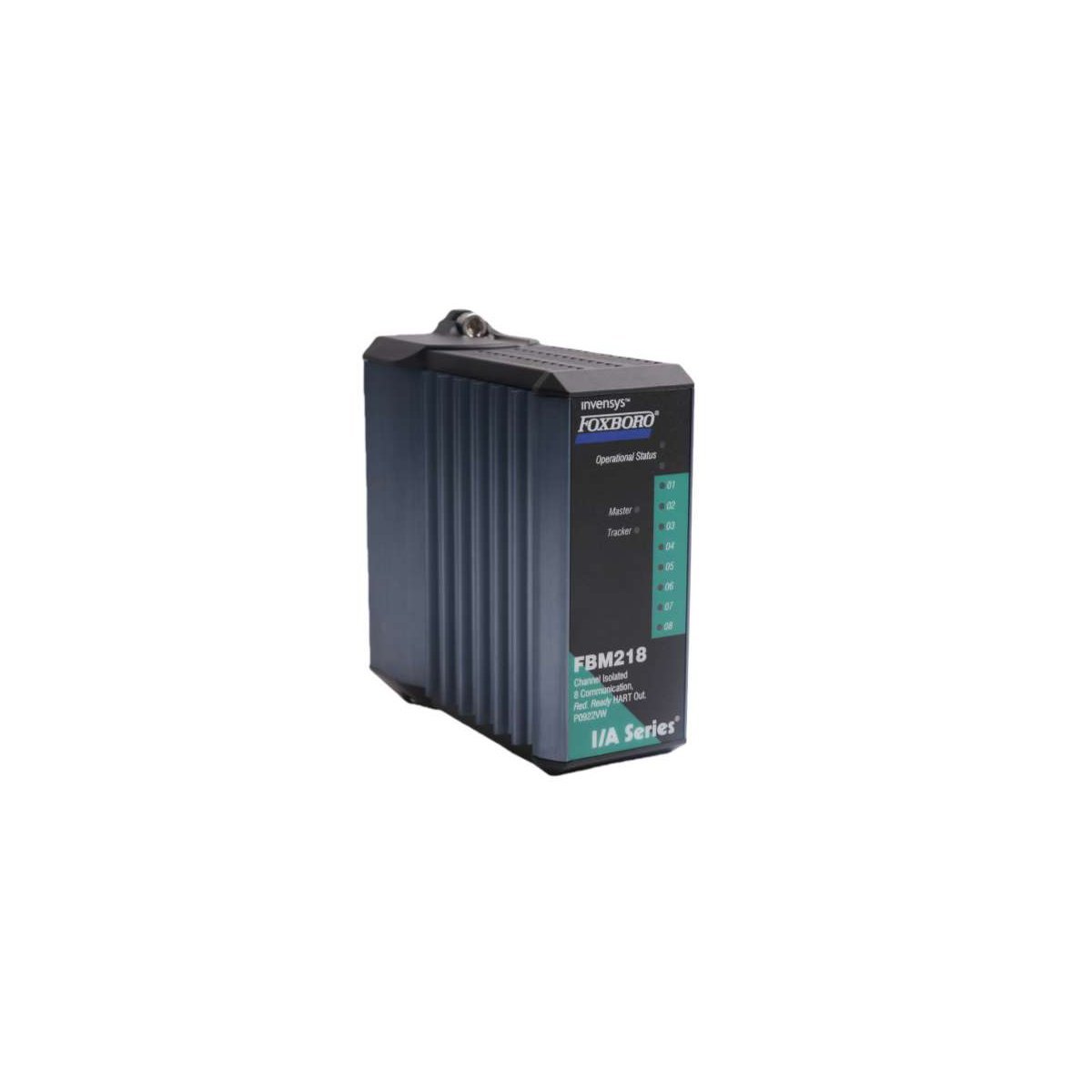

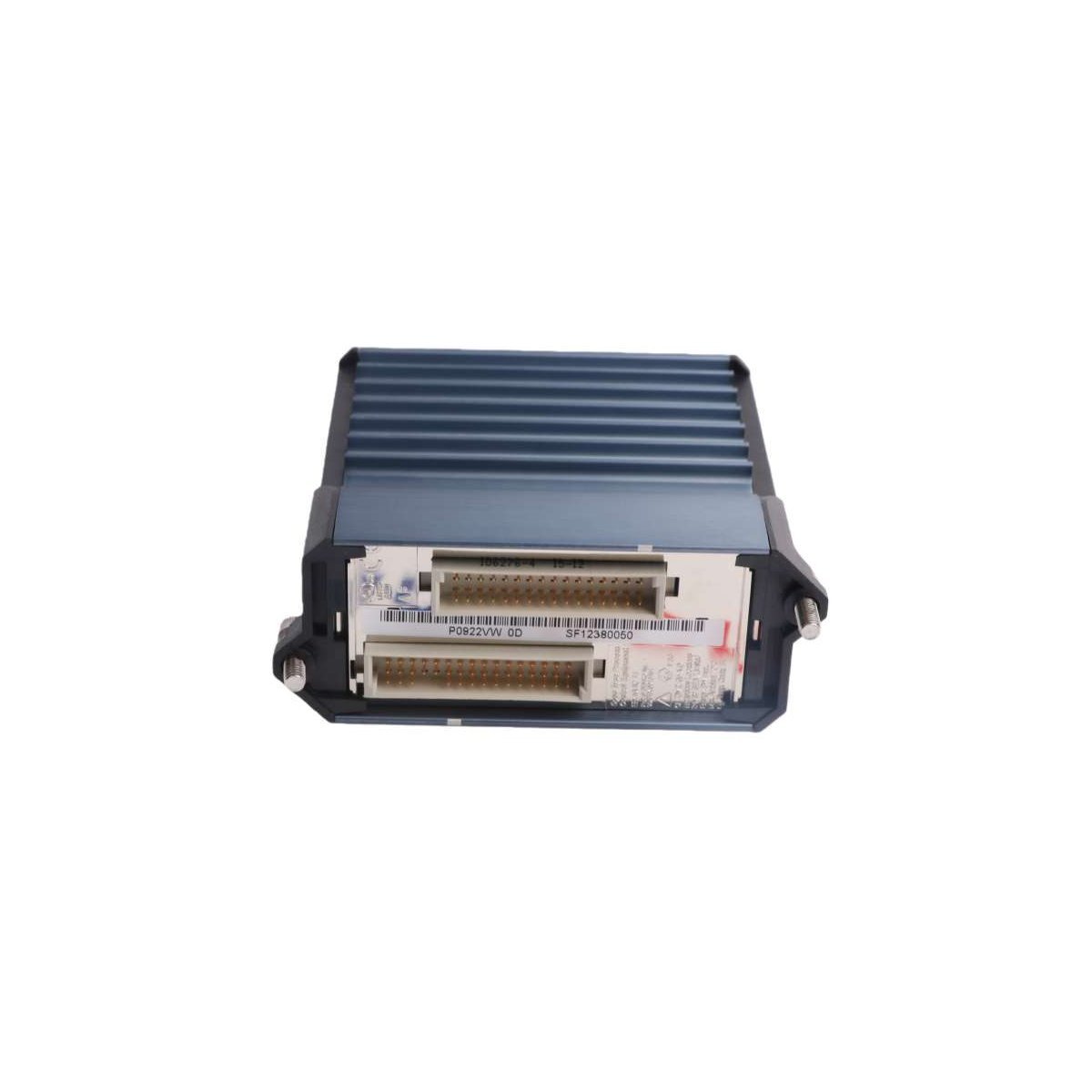

The Foxboro FBM218 P0922VW is an 8-channel redundant output module designed for the I/A Series system, supporting both 4-20 mA analog signals and HART digital communication.² This module ensures high-availability control for critical field devices through full channel isolation and a fault-tolerant Master/Tracker architecture.³

High-Availability Redundant Architecture

The FBM218 P0922VW serves as a mission-critical interface for the Foxboro I/A Series Distributed Control System, offering eight channels of redundant output capability.⁴ By configuring two modules in a Master/Tracker pair, the system guarantees bumpless failover and uninterrupted process control even if a hardware fault occurs. These modules communicate over a redundant 2 Mbps Fieldbus, which allows for continuous data exchange via dual paths (A and B). Consequently, this architecture provides the fault tolerance necessary for high-stakes industrial environments where process downtime results in significant operational loss.

Advanced HART Digital Communication

Beyond standard analog signal transmission, the FBM218 P0922VW functions as a sophisticated digital communication host for HART-enabled field instruments. Each of the eight channels independently processes HART messages at a rate of two per second, allowing the DCS to access advanced secondary variables, device diagnostics, and calibration data.⁵ Because the module supports a mix of standard 4-20 mA and HART devices, it provides a versatile bridge for facilities transitioning toward intelligent instrumentation.⁶ This integration enables predictive maintenance strategies by surfacing real-time device health information directly to the control room.

Industrial-Grade Signal Integrity and Design

Foxboro engineered the P0922VW with a focus on signal purity and environmental resilience. Every channel features its own isolated power supply and complete galvanic isolation, which effectively eliminates ground loops and prevents electrical noise from affecting adjacent channels. The module resides in a rugged, extruded aluminum housing that meets ISA S71.04 standards for G3 harsh environments.⁷ Furthermore, the modular design supports rapid installation on standardized baseplates, where redundant pairs occupy adjacent slots for optimized thermal management and wiring efficiency.

Key Technical Characteristics

• 8-Channel Capacity: Supports up to eight independent field devices per module.⁸
• Dual-Protocol Support: Compatible with standard 4-20 mA analog outputs and HART digital communication.⁹
• Master/Tracker Redundancy: Enables seamless hardware failover to maintain constant control loop integrity.¹⁰
• Total Channel Isolation: Prevents cross-talk and protects system logic through dedicated channel power and isolation.¹¹
• High-Speed Fieldbus Interface: Operates on a redundant 2 Mbps Fieldbus for rapid data refresh.
• Harsh Environment Protection: Housed in an aluminum enclosure rated for corrosive Class G3 atmospheres.
