Product Overview

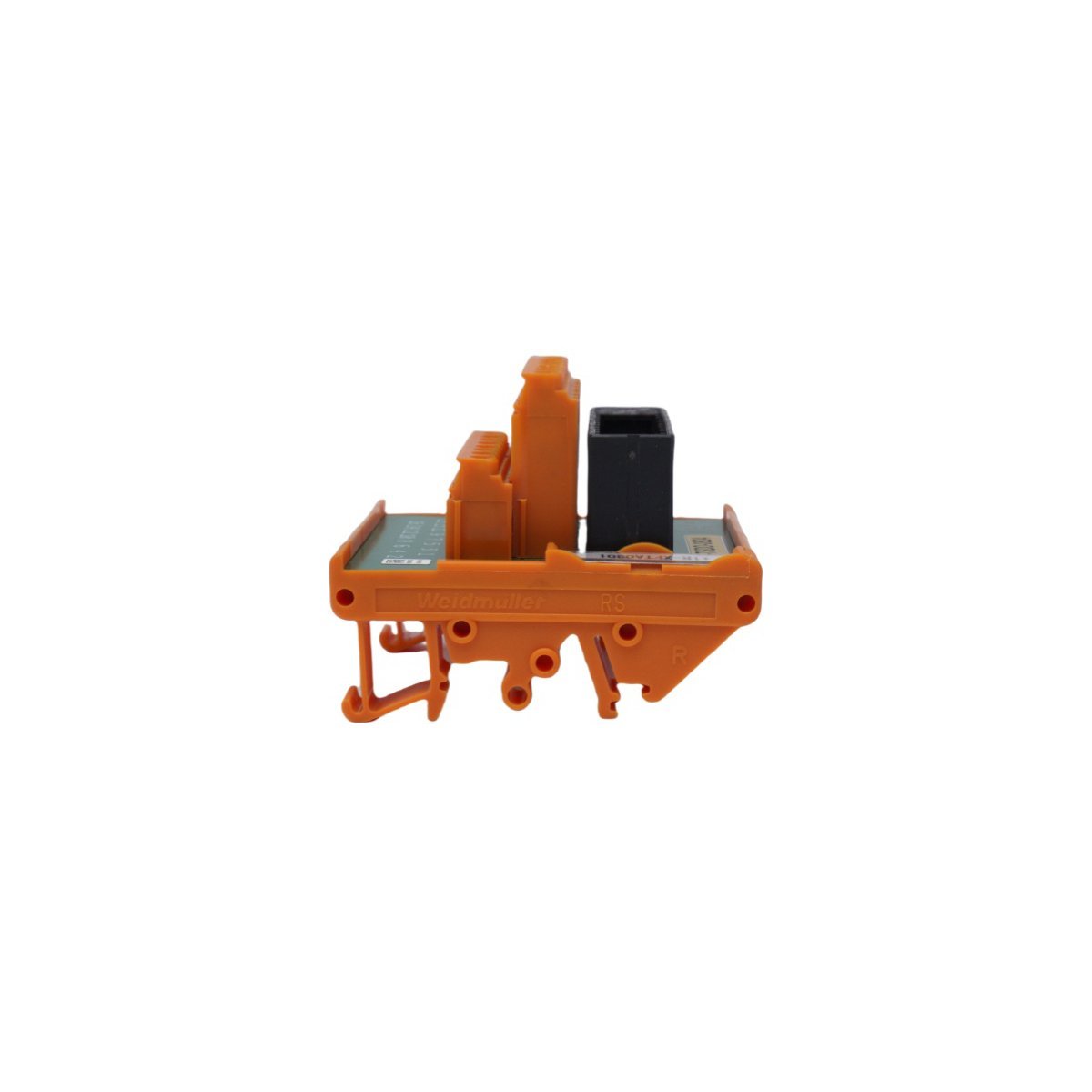

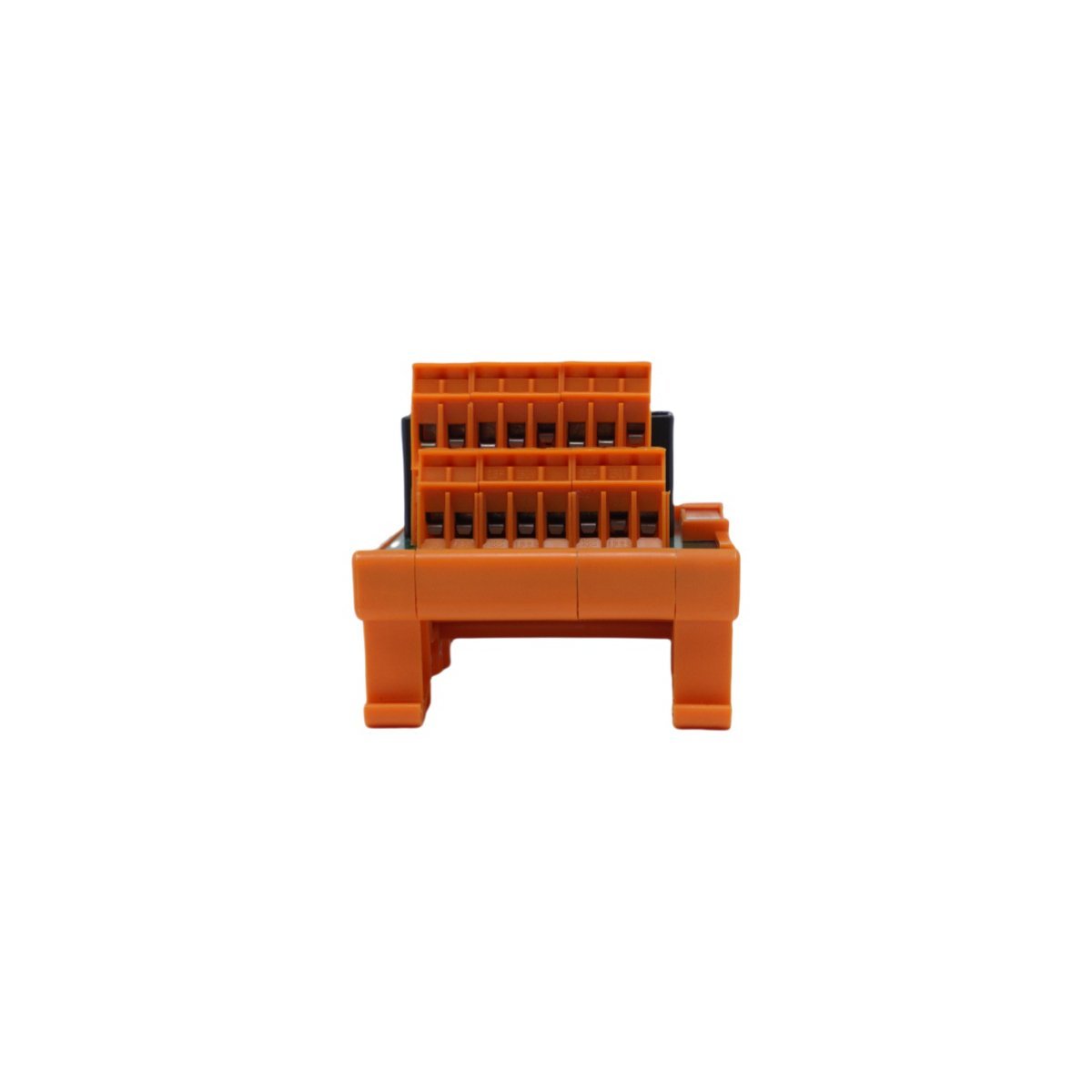

The Honeywell FC-TSDO-0824 is a high-integrity Safe Digital Output Field Termination Assembly (FTA) designed for the Safety Manager and Safety Manager SC systems. It provides eight channels of 24 VDC digital outputs to safely drive field-side loads such as solenoid valves, relays, and industrial indicators.

Safety-Critical Output Regulation

The FC-TSDO-0824 functions as a robust interface between the safety controller and final control elements. By providing eight independent 24 VDC channels, this module ensures that safety-related commands execute with millisecond precision. Because this hardware belongs to the Honeywell Safety Manager line, it adheres to stringent SIL (Safety Integrity Level) standards, making it indispensable for Emergency Shutdown (ESD) and Fire and Gas (F&G) applications. The module utilizes high-quality internal relays to isolate the control logic from field-side electrical disturbances, thereby preventing hardware damage and ensuring process safety.

Extreme Environment Resilience

Engineered to withstand the rigors of heavy industrial sites, the FC-TSDO-0824 operates reliably within a vast temperature envelope ranging from -40°C to +85°C. This thermal flexibility allows for deployment in diverse geographic locations, from sub-zero processing plants to high-heat petrochemical facilities. Furthermore, the compact mechanical design facilitates easy mounting in high-density cabinets where space is limited. The module’s construction resists common industrial hazards like vibration and moisture, which significantly extends the service life of the termination assembly in unconditioned field enclosures.

System Integration and Communication

Integration into the broader Distributed Control System (DCS) occurs via high-speed communication interfaces, ensuring seamless data flow between the output module and the central processor. The FC-TSDO-0824 supports rapid signal switching, which is critical for high-throughput applications that require immediate actuator response. Additionally, the module features onboard status indicators for each channel, allowing maintenance personnel to verify output states at a glance. This transparent diagnostic approach minimizes troubleshooting time and helps maintain continuous facility uptime.
