Description

Brief Product Description

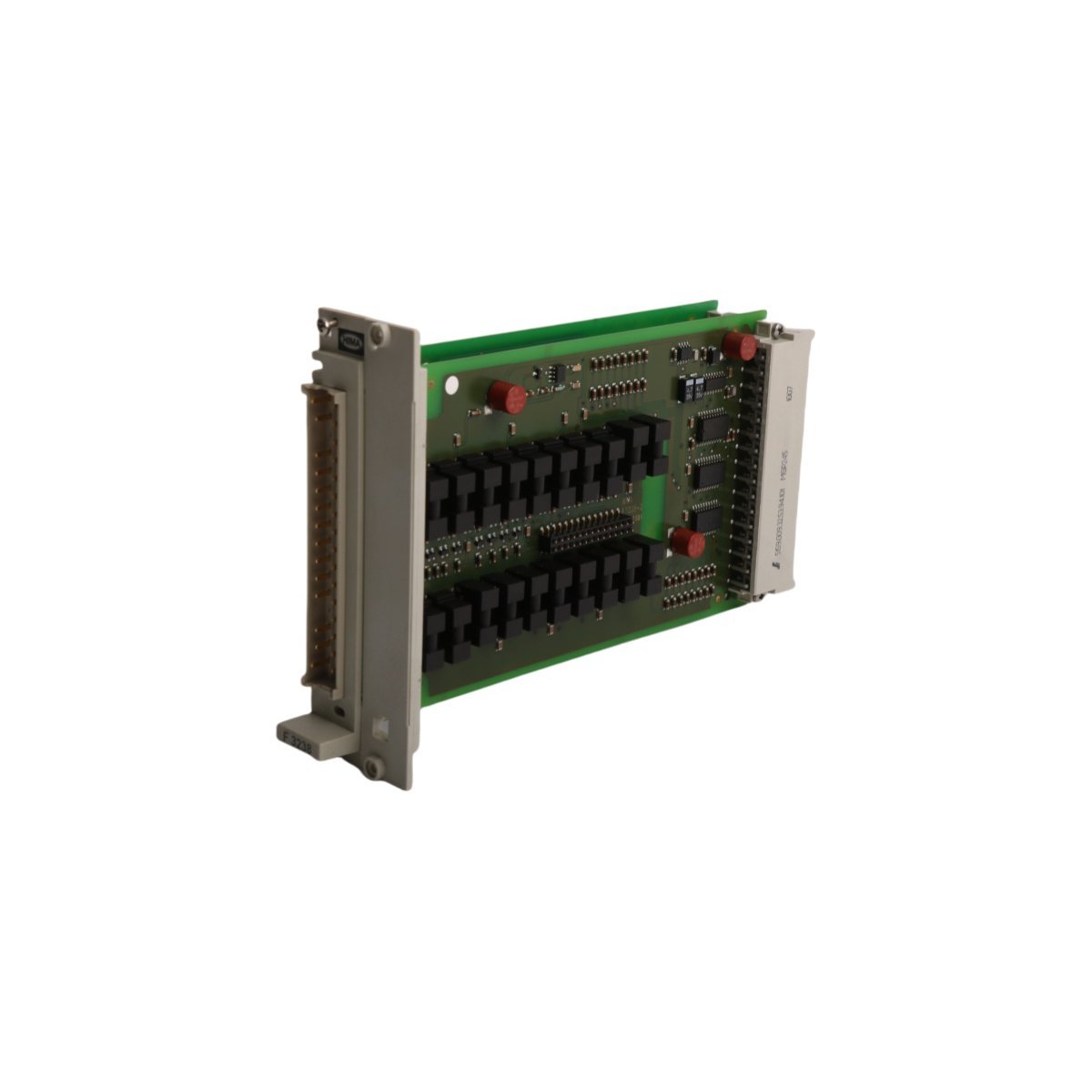

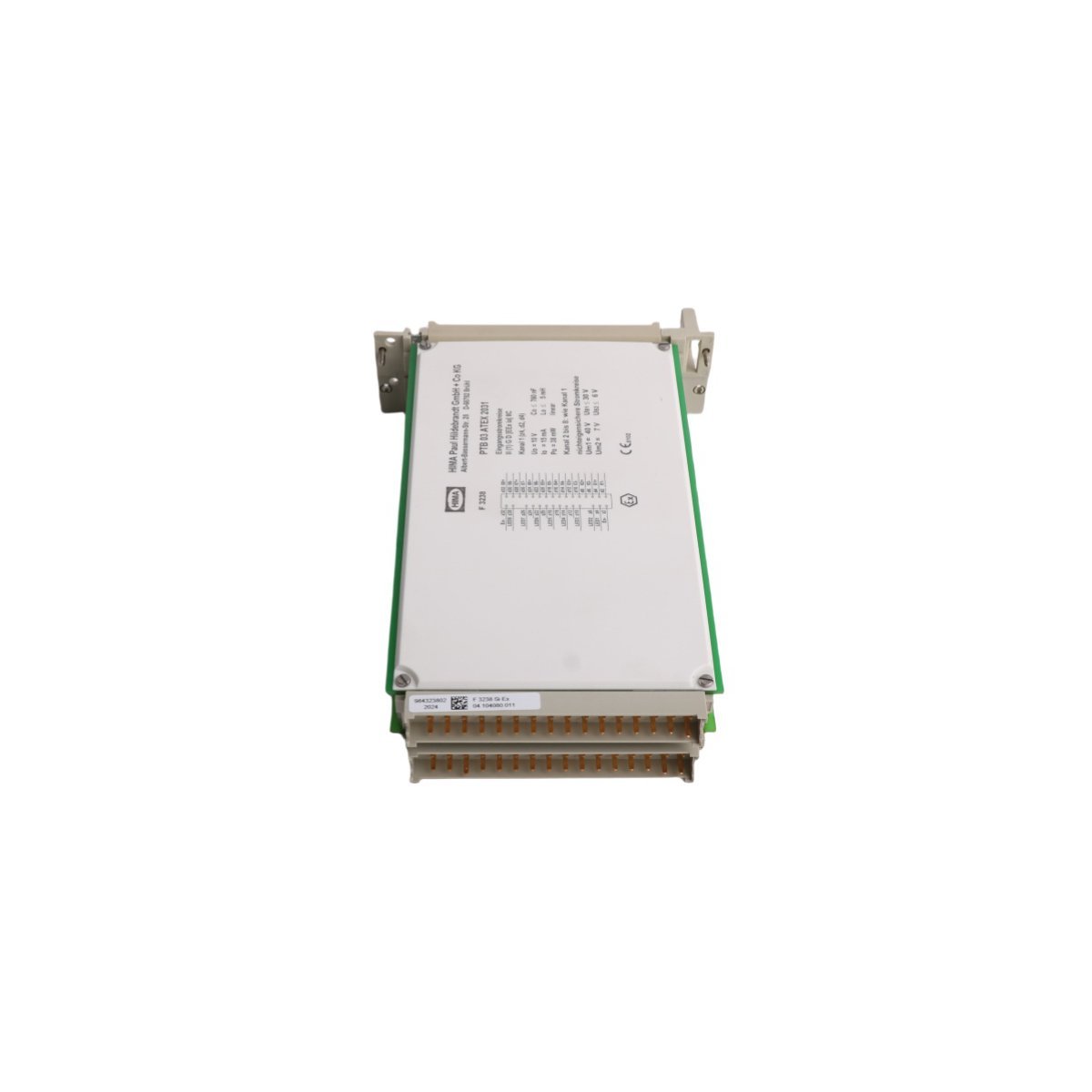

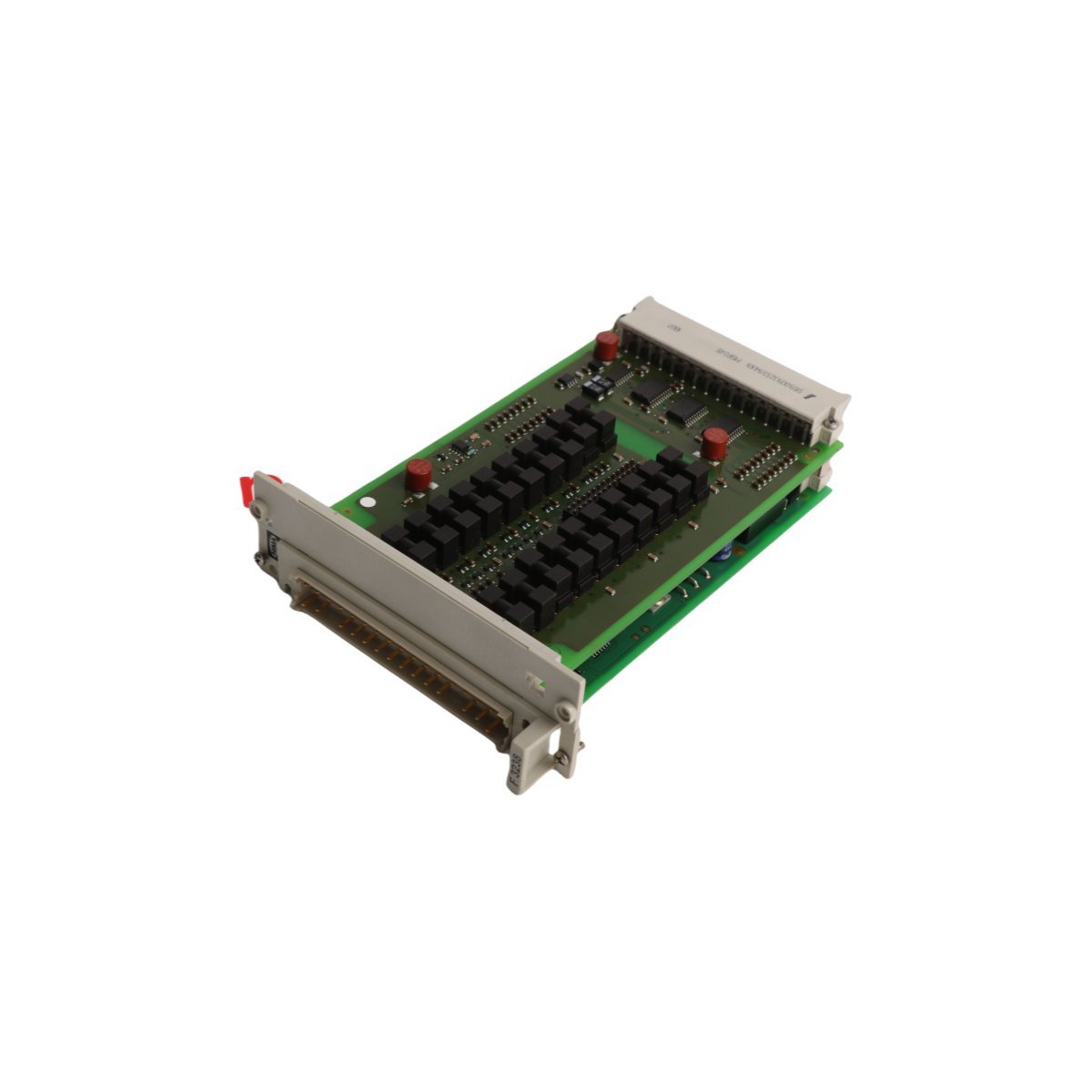

The HIMA F3238 is a SIL 3 certified, 8-channel safety-related input module designed to interface with NAMUR sensors and proximity switches in high-integrity industrial environments. This module provides galvanic isolation and specialized protection for (Ex)i applications, ensuring fail-safe signal acquisition for critical safety loops.

Advanced Signal Acquisition for Critical Safety Loops

The HIMA F3238 stands as a high-integrity solution for safety-instrumented systems, offering eight independent channels for digital signal processing. Because this module adheres to SIL 3 safety standards, it provides the rigorous reliability required for emergency shutdown and process protection tasks. The internal circuitry specifically supports diverse sensor interfaces, including NAMUR initiators, P+F proximity switches, and standard limit switches. By implementing 8-fold galvanic isolation, the F3238 protects the central safety controller from field-side electrical disturbances, thereby maintaining the purity of the data processed by the logic solver.

Engineering for Hazardous Areas and Technical Stability

Specifically engineered for (Ex)i applications, the HIMA F3238 delivers robust performance within intrinsically safe circuits. The module operates on a standard 24V DC power supply with a generous tolerance range of -15% to +20%, while an internal 5V DC supply ensures precise sensor stabilization. Furthermore, the hardware maintains peak performance across an ambient temperature range of 0°C to +60°C. This thermal resilience, combined with advanced diagnostic features, allows the module to identify field-line faults or sensor failures immediately, which prevents unsafe states and simplifies complex troubleshooting procedures.

System Integration and High-Availability Performance

Transitioning to a high-availability architecture is straightforward with the F3238, as it fully supports redundant configurations within the HIMatrix safety platform. Its compact mechanical footprint (4 x 19 x 12.8 cm) enables high-density wiring in control cabinets where space is limited. Moreover, the module’s compatibility with Ethernet-based communication services ensures that safety data is transmitted rapidly and securely across the network. By choosing the F3238, engineers secure a fail-safe component that optimizes both machinery protection and process automation efficiency.

Key Technical Characteristics

• SIL 3 Safety Integrity: Certified for use in the highest level of safety-related industrial applications.
• Eight-Channel Interface: Features 8 digital inputs with comprehensive galvanic isolation for enhanced signal protection.
• Intrinsically Safe Compatibility: Optimized for (Ex)i applications and hazardous area field devices.
• Multi-Sensor Support: Bridges seamlessly with NAMUR, proximity switches, and limit switches.
• Intelligent Diagnostics: Automatically detects and reports circuit discrepancies to maintain system uptime.
• Redundancy Ready: Facilitates redundant wiring schemes to increase overall safety system availability.

Technical Specifications
