Product Overview

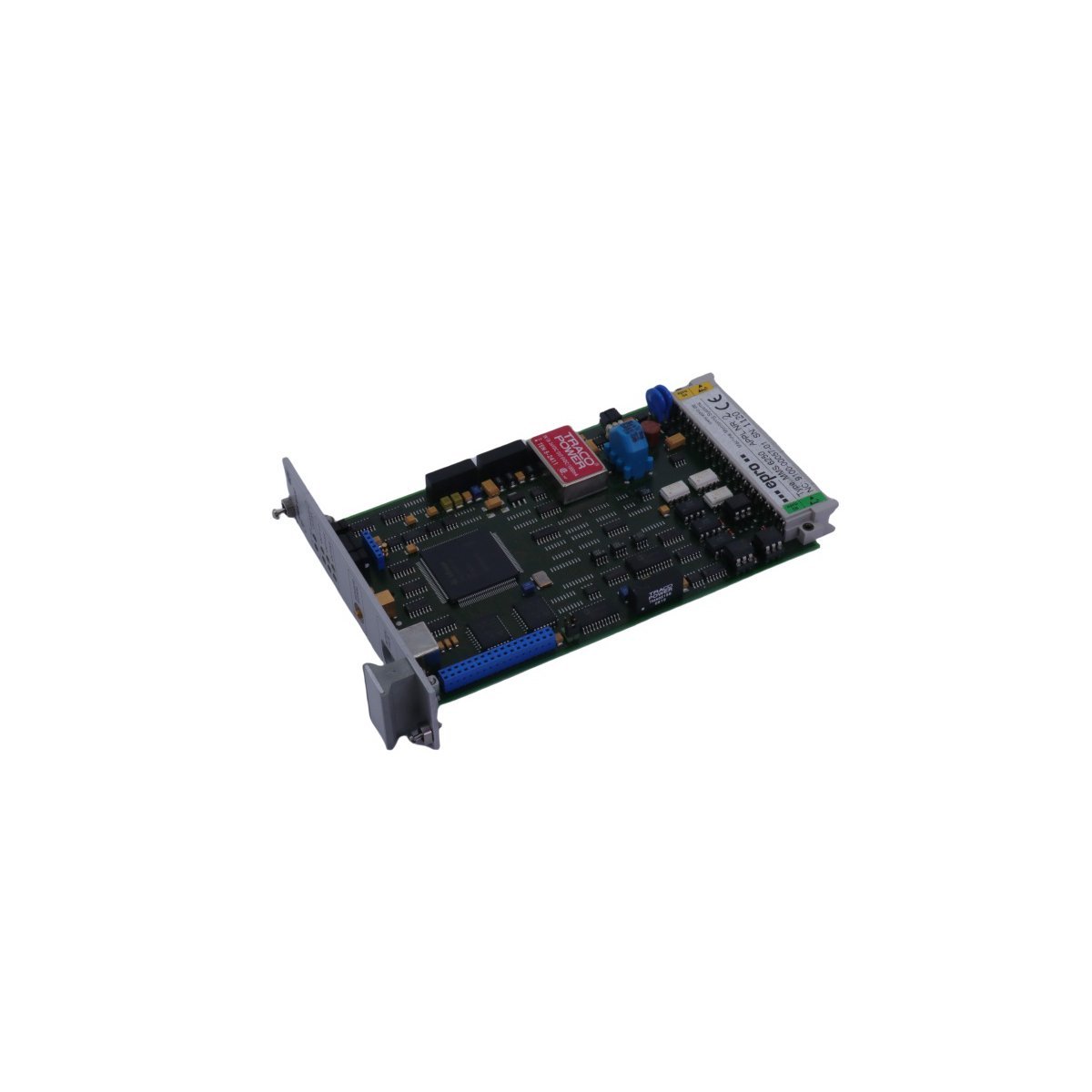

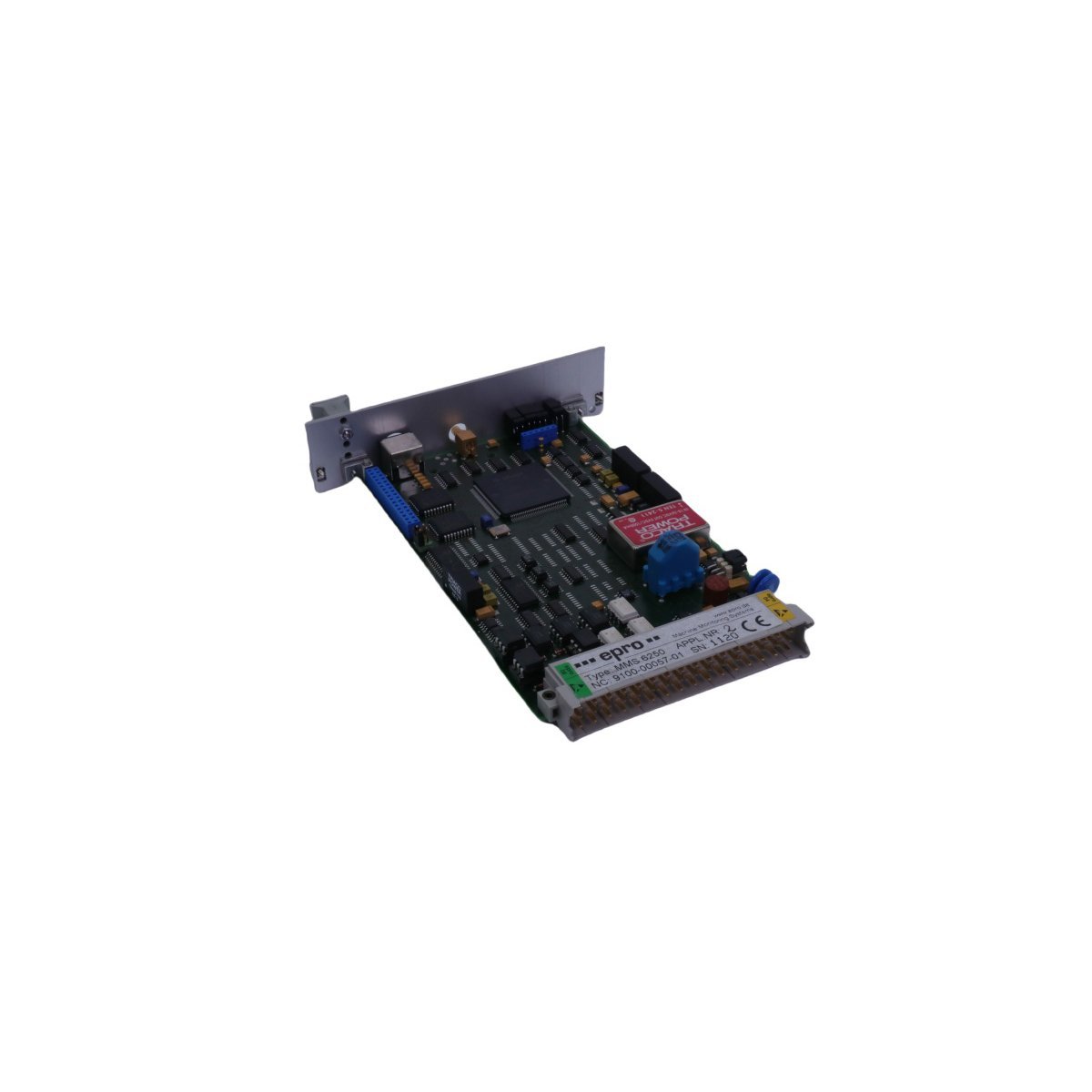

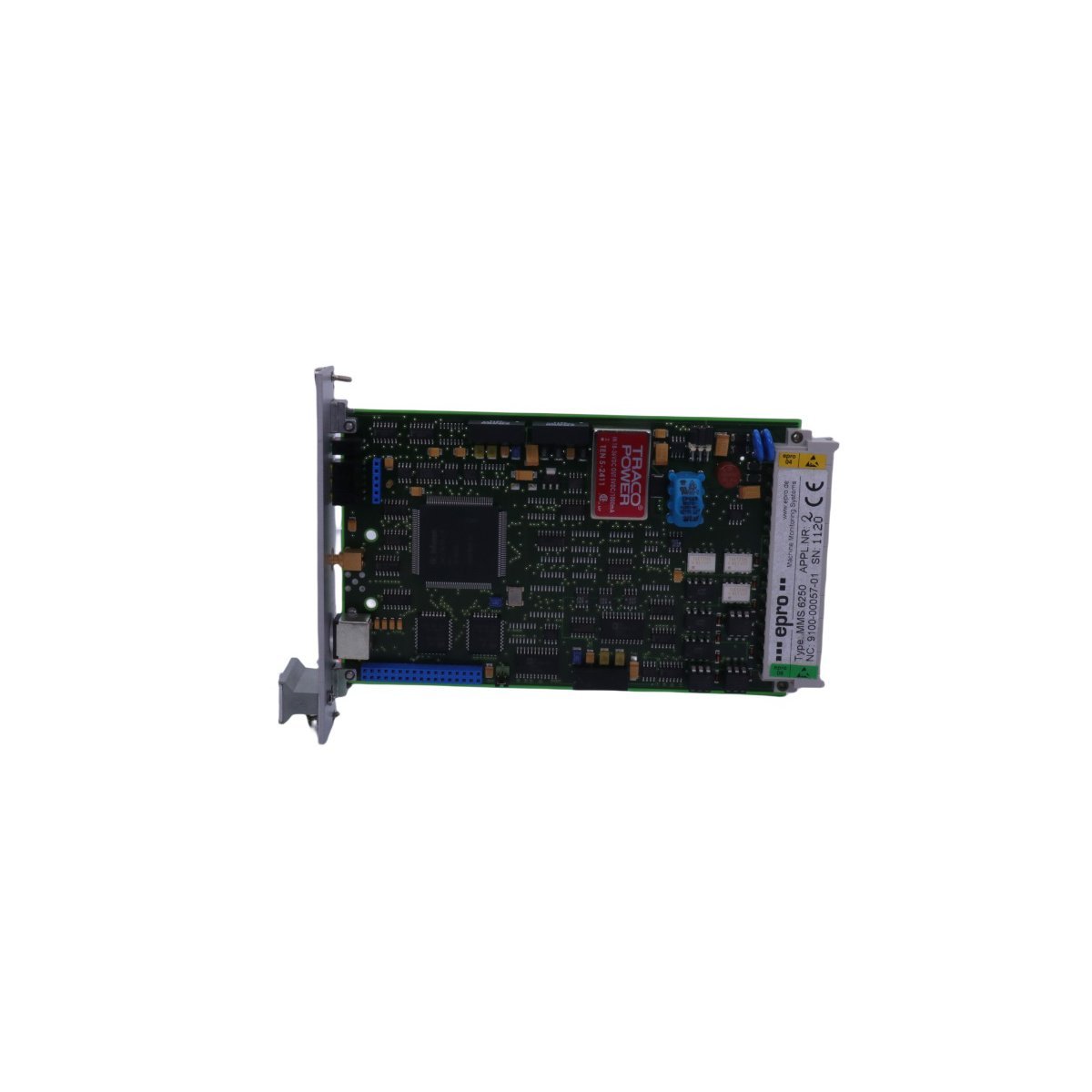

The Emerson EPRO MMS6250 is a high-precision dual-channel monitor card designed to track the axial shaft position and thrust displacement of critical rotating machinery. It provides real-time protection and diagnostic data to prevent catastrophic equipment failure caused by excessive axial movement or bearing degradation.

Precision Axial Displacement Monitoring

The MMS6250 serves as a fundamental component of the MMS 6000 Machine Monitoring System. It specifically processes signals from eddy current displacement sensors to determine the exact spatial location of a shaft relative to its thrust bearing. By monitoring these microscopic shifts, the card detects early signs of mechanical wear or load imbalances. This proactive approach allows operators to identify misalignment issues before they escalate into costly repairs. Furthermore, the module converts sensor inputs into standardized proportional analog signals, which integrate directly with higher-level Distributed Control Systems (DCS) or Programmable Logic Controllers (PLC).

Advanced System Protection and Reliability

Engineered for mission-critical applications, the MMS6250 incorporates sophisticated diagnostic features to ensure system integrity. The card executes continuous self-test routines that monitor the health of both the internal circuitry and the connected field sensors. If the module detects a fault or a signal cable break, it immediately triggers a “Channel Clear” status alert to prevent false trips. Additionally, the dual-channel architecture permits redundant configurations or the simultaneous monitoring of two independent measurement points. This flexibility proves essential in high-stakes environments such as steam turbine management, large-scale pumping stations, and petrochemical compressors.

Seamless Industrial Integration

Emerson designed the MMS6250 to operate reliably within the rigorous electrical environments of modern power plants and refineries. The module features a user-friendly configuration interface that allows engineers to set alarm limits, delay times, and measurement ranges with high specificity. Because it supports hot-swapping, maintenance personnel can replace cards without shutting down the entire monitoring rack, significantly reducing potential downtime. Its robust physical construction resists the effects of electromagnetic interference and thermal stress, ensuring that machine protection remains active even under the most demanding industrial conditions.
