Description

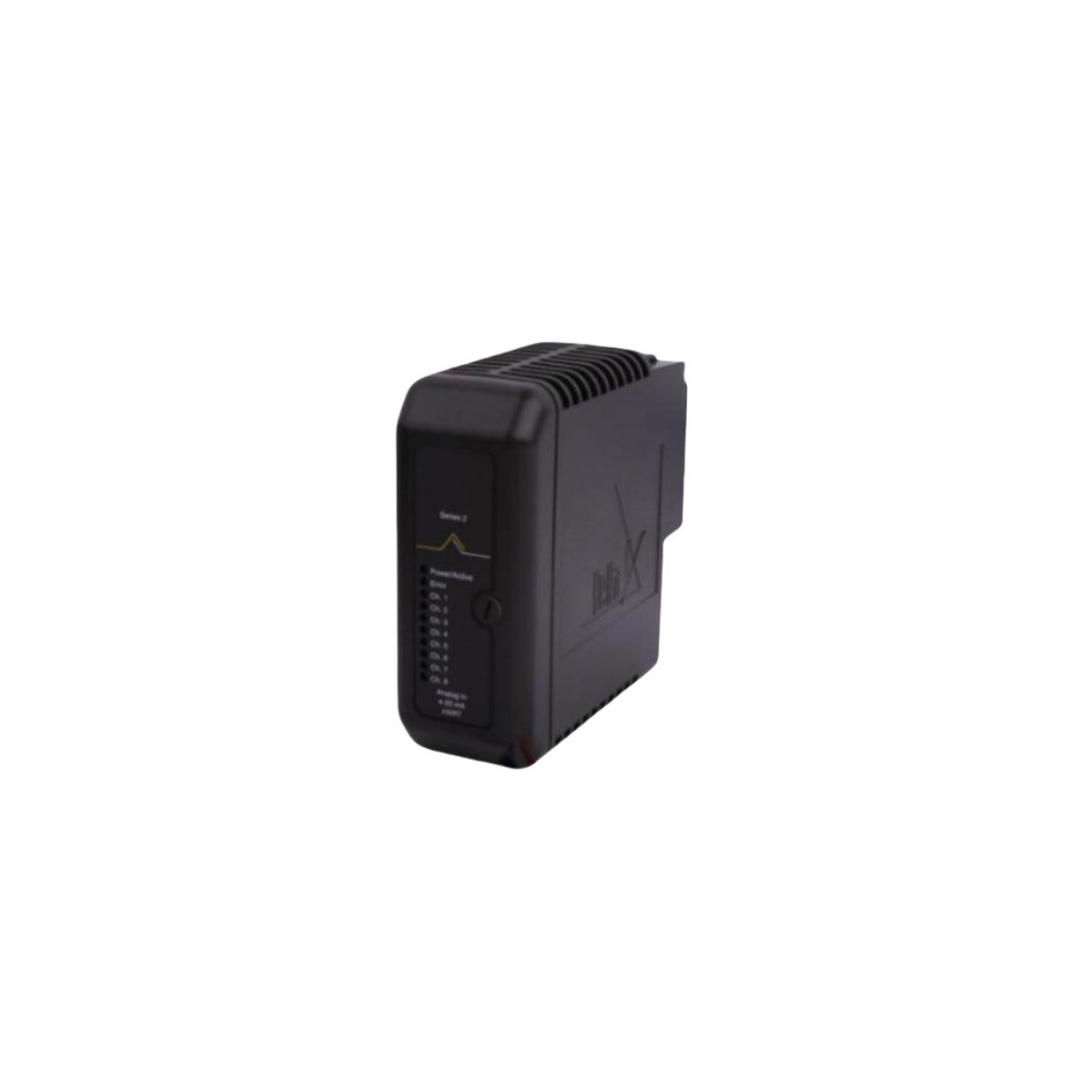

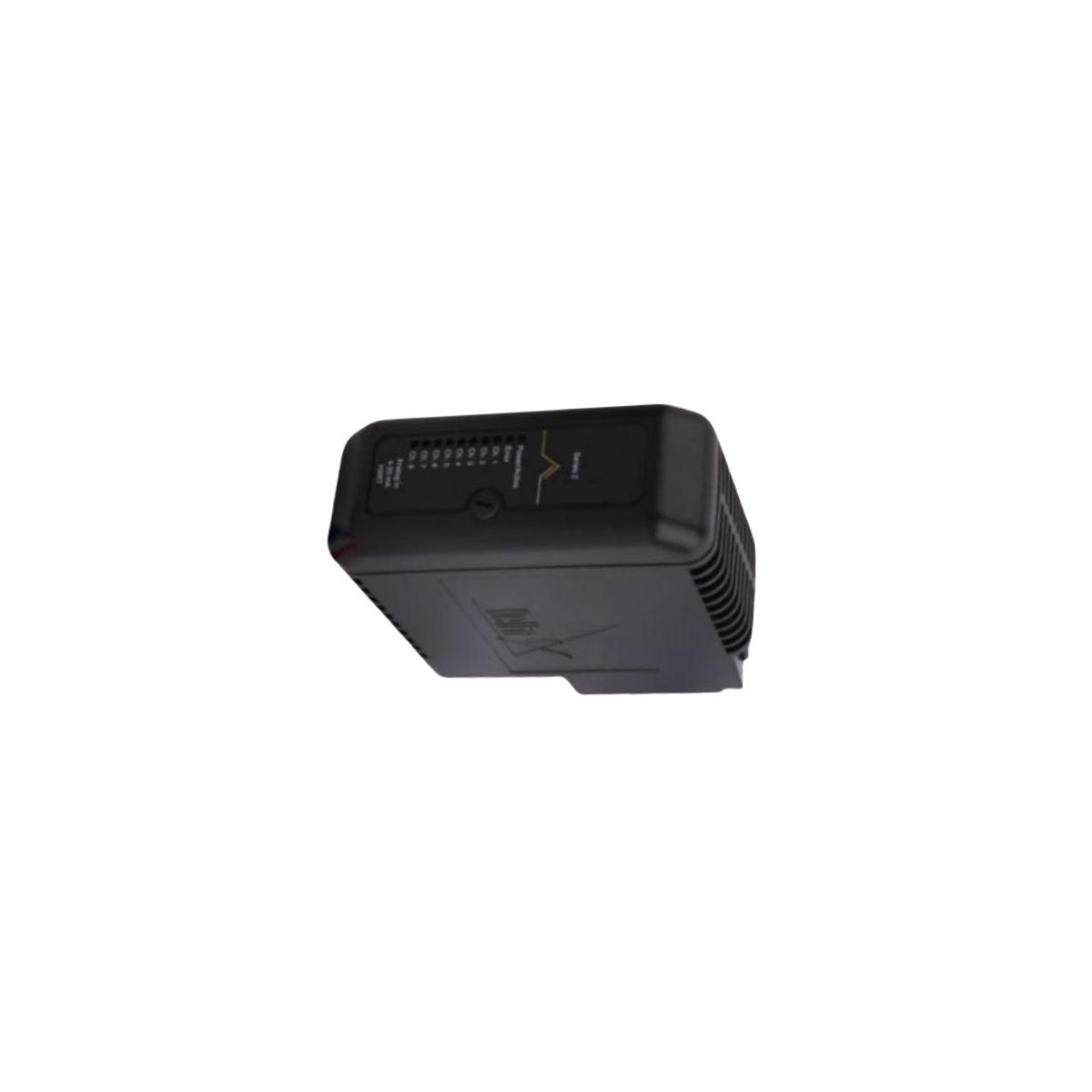

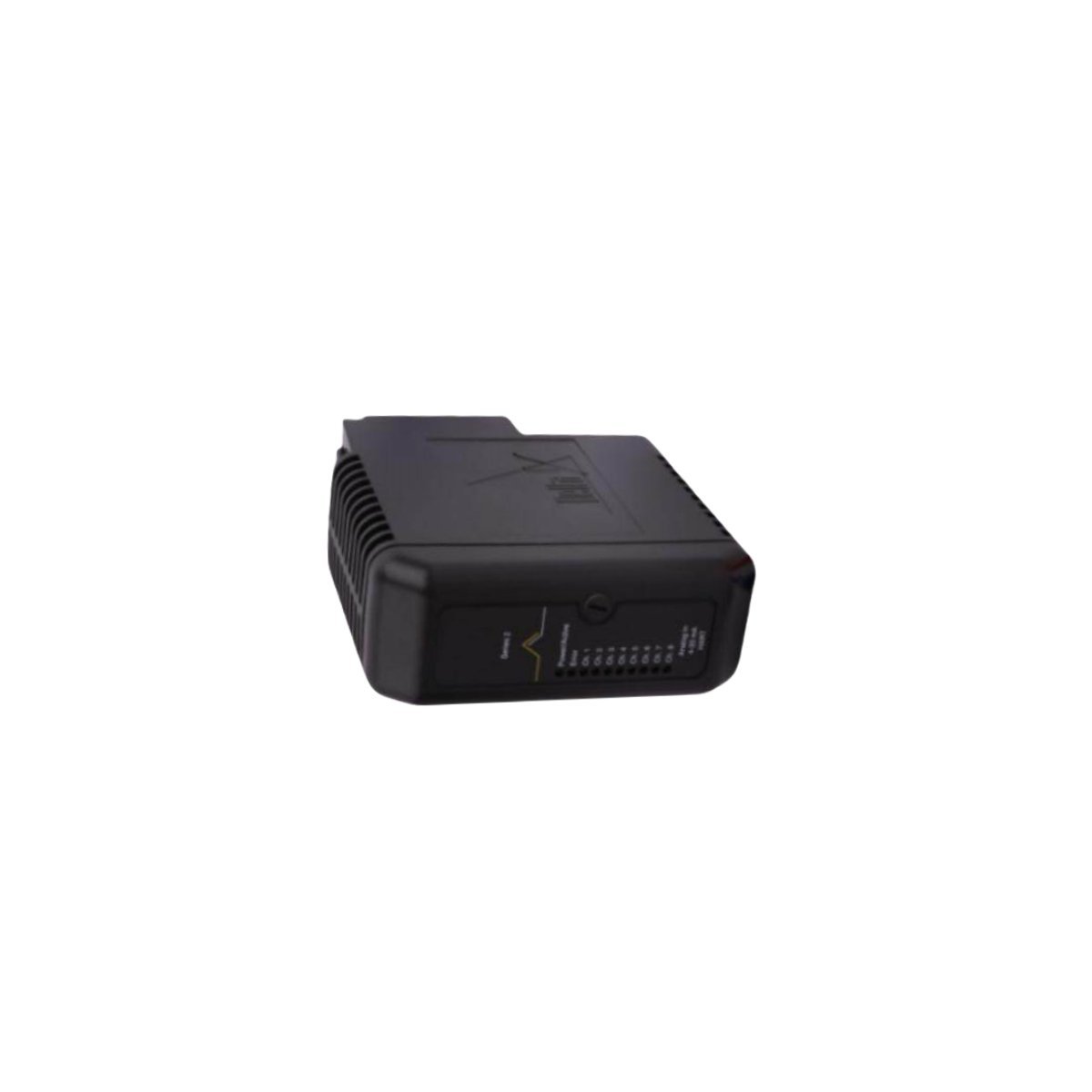

The KJ3222X1-BK1 serves as a high-density analog input interface for the Emerson DeltaV M-series system. This module accurately converts 4-20 mA field signals into digital data for process controllers. It features an 8-channel design to optimize cabinet space and system performance. Consequently, this component allows for real-time monitoring of critical industrial variables. The hardware architecture prioritizes signal precision and high-speed communication. It functions as a vital link between field instruments and the distributed control system.

Redundancy and Reliability Features

This specific BK1 model supports redundant configurations within the DeltaV environment. Redundancy ensures continuous operation during a single module failure. The system automatically switches to the backup unit without losing process data. Furthermore, the module includes onboard diagnostics to track channel health. It detects open circuits and short-load conditions immediately. These protective measures prevent localized electrical faults from damaging the main controller. The durable housing also withstands high levels of industrial vibration.

System Integration and Installation

The SE4003S2B1 assembly integrates directly onto the M-series I/O carrier. It uses a plug-and-play design to simplify site commissioning. Technicians can perform hot-swapping procedures without shutting down the entire rack. This capability significantly reduces maintenance downtime in 24/7 production facilities. Additionally, the 12P4705X062 configuration supports HART pass-through for intelligent instrument management. This allows engineers to calibrate field devices remotely through the control network.

Primary Industrial Applications

Facilities in the energy and chemical sectors rely on this module for stability. It excels at managing pressure, temperature, and level transmitters in volatile environments. The high resolution of the inputs supports complex proportional-integral-derivative (PID) loops. Moreover, the module provides the precision necessary for custody transfer and safety monitoring. It remains a preferred choice for plants seeking to modernize their automation infrastructure. This component delivers consistent results in the most demanding process control scenarios.

Specifications and Technical Data

• Manufacturer: Emerson Process Management
• Model Number: KJ3222X1-BK1
• Order Number: 12P4705X062
• Series Number: SE4003S2B1
• Input Channels: 8-Channel Analog
• Input Range: 4 to 20 mA
• Conversion Resolution: 16-bit
• Power Requirement: 24V DC Field Power
• Operating Temperature: -40°C to 70°C
