Description

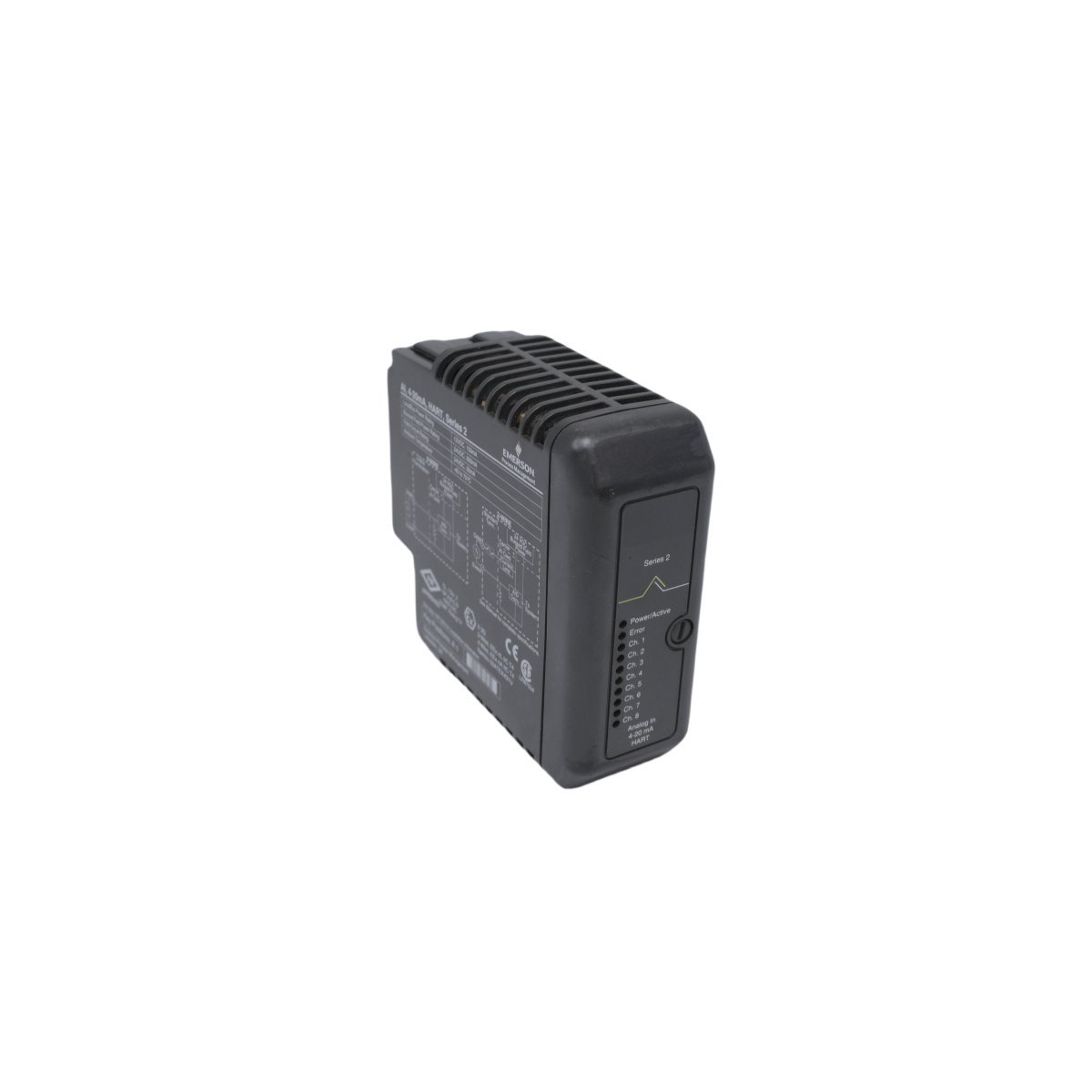

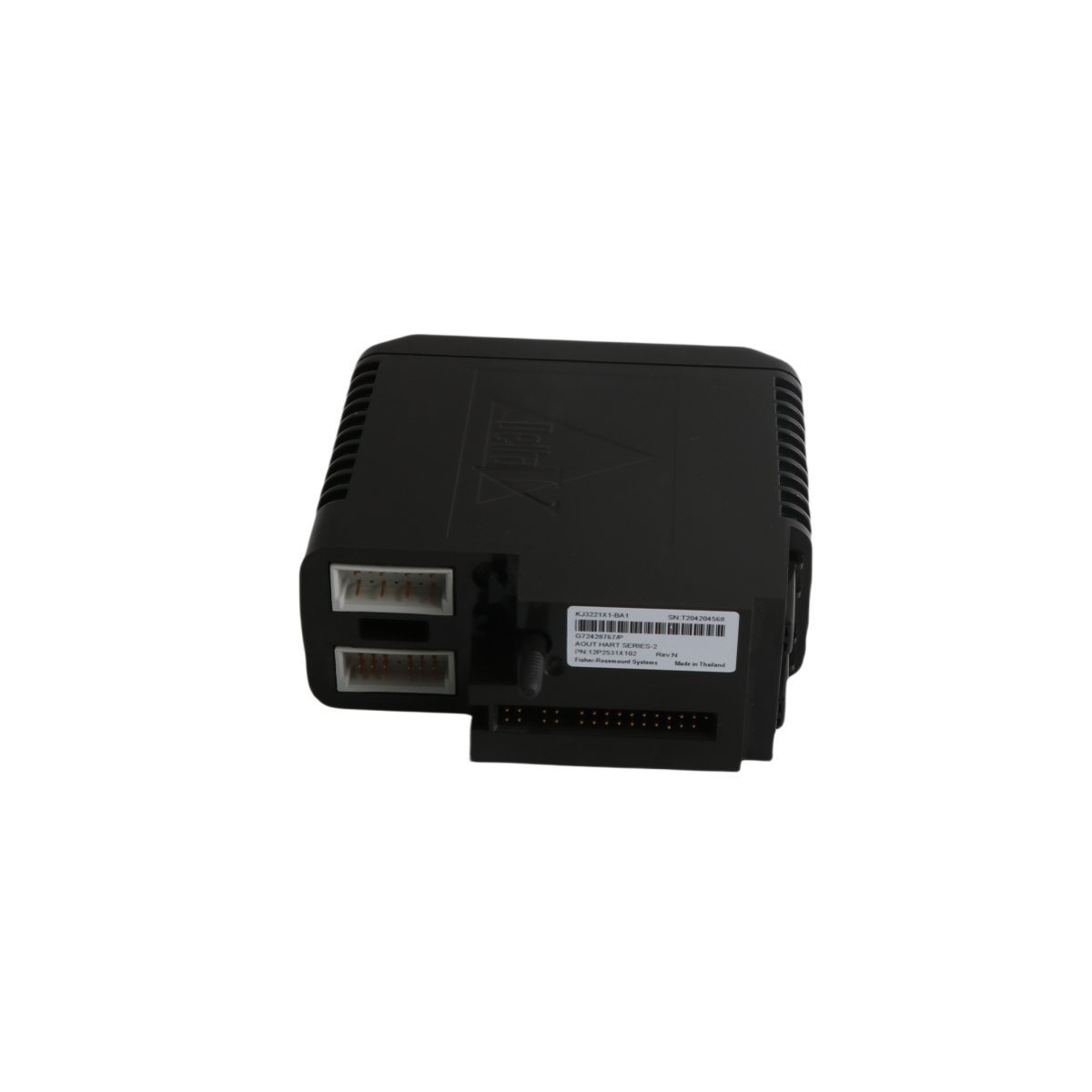

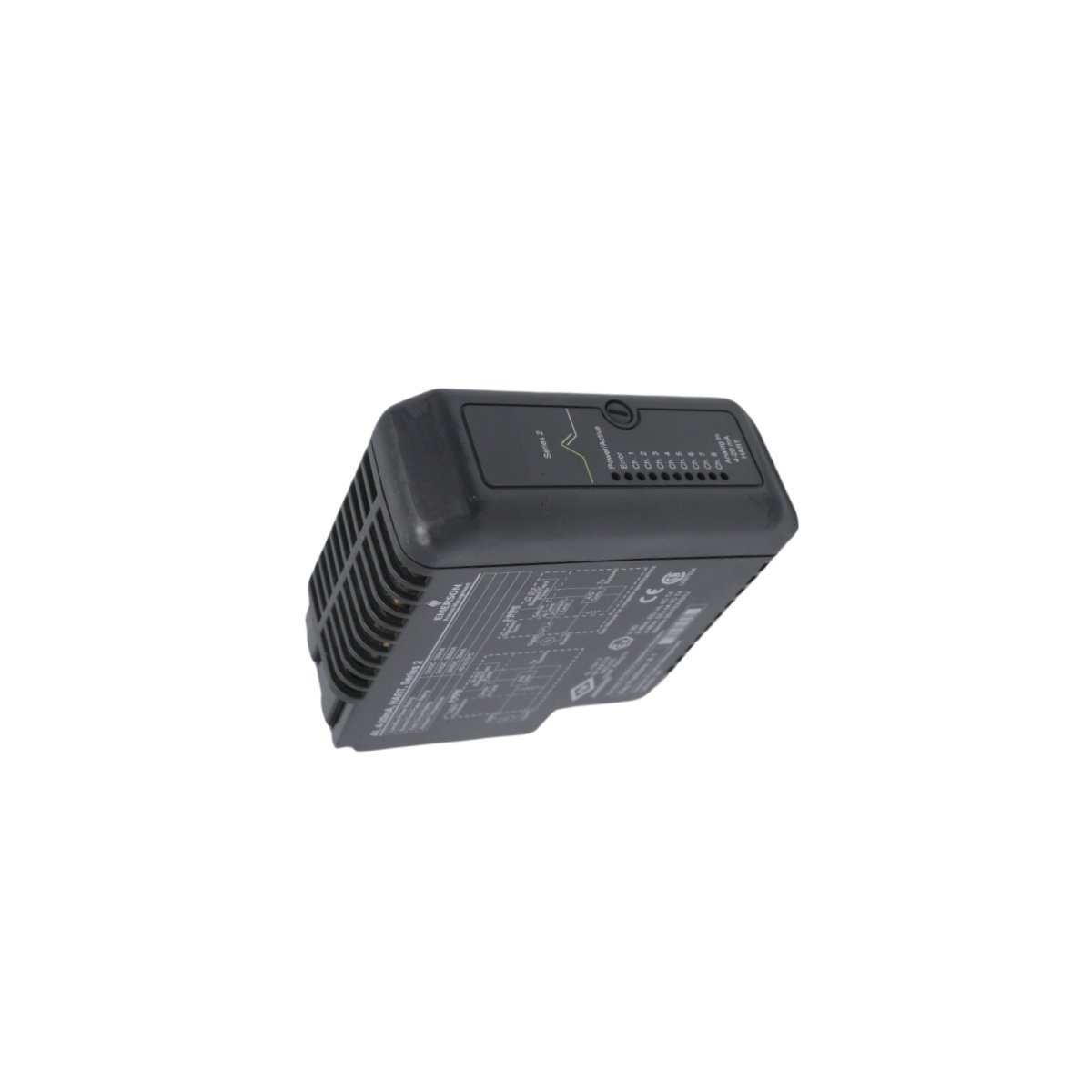

The KJ3222X1-BA1 serves as a high-density analog interface for the Emerson DeltaV M-series system. This module accurately translates analog field signals into digital data for the process controller. It supports standard 4-20 mA current loops across eight independent channels. Consequently, it provides the foundation for precise monitoring and closed-loop control. The integrated design ensures signal integrity even in electrically noisy environments. This unit remains a critical link between field instrumentation and the DCS.

Protection and Redundancy

The module utilizes the VE4003S2B2 fused termination block for enhanced hardware protection. These individual fuses prevent field-side faults from damaging the internal electronics. Furthermore, the KJ3222X1-BA1 supports redundant configurations for mission-critical tasks. The system maintains continuous data flow during a primary module failure. This capability significantly increases the overall availability of the control system. It also features onboard diagnostics to detect open circuits or shorted loops.

Operational Efficiency and Maintenance

Process engineers benefit from the plug-and-play architecture of the DeltaV M-series. The module supports hot-swapping while the system remains under power. Thus, technicians can replace hardware without stopping the production process. This feature drastically reduces maintenance windows and associated costs. Additionally, the card enables HART pass-through for intelligent device management. You can configure and calibrate smart instruments directly from the control room. This remote access streamlines field operations and improves accuracy.

Primary Industrial Applications

Facilities in the petrochemical and power sectors rely on this module for stability. It excels at measuring pressure, flow, and temperature variables. The 12P2532X112 variant offers the high resolution needed for precise liquid level control. Moreover, its rugged construction handles the vibration and thermal shifts of industrial sites. It provides consistent performance in water treatment and pharmaceutical manufacturing. This module helps operators maintain safe and efficient plant conditions.

Specifications and Technical Features

• Manufacturer: Emerson Process Management
• Model Code: KJ3222X1-BA1
• Part Number: 12P2532X112
• Component Type: Analog Input (AI) Card
• Termination Assembly: VE4003S2B2 (Fused)
• Input Resolution: 16-Bit
• Channel Capacity: 8 Channels
• Input Signal Range: 4 to 20 mA DC
• Isolation: Galvanic isolation per channel
• Operating Temperature: -40 to 70 degrees Celsius
