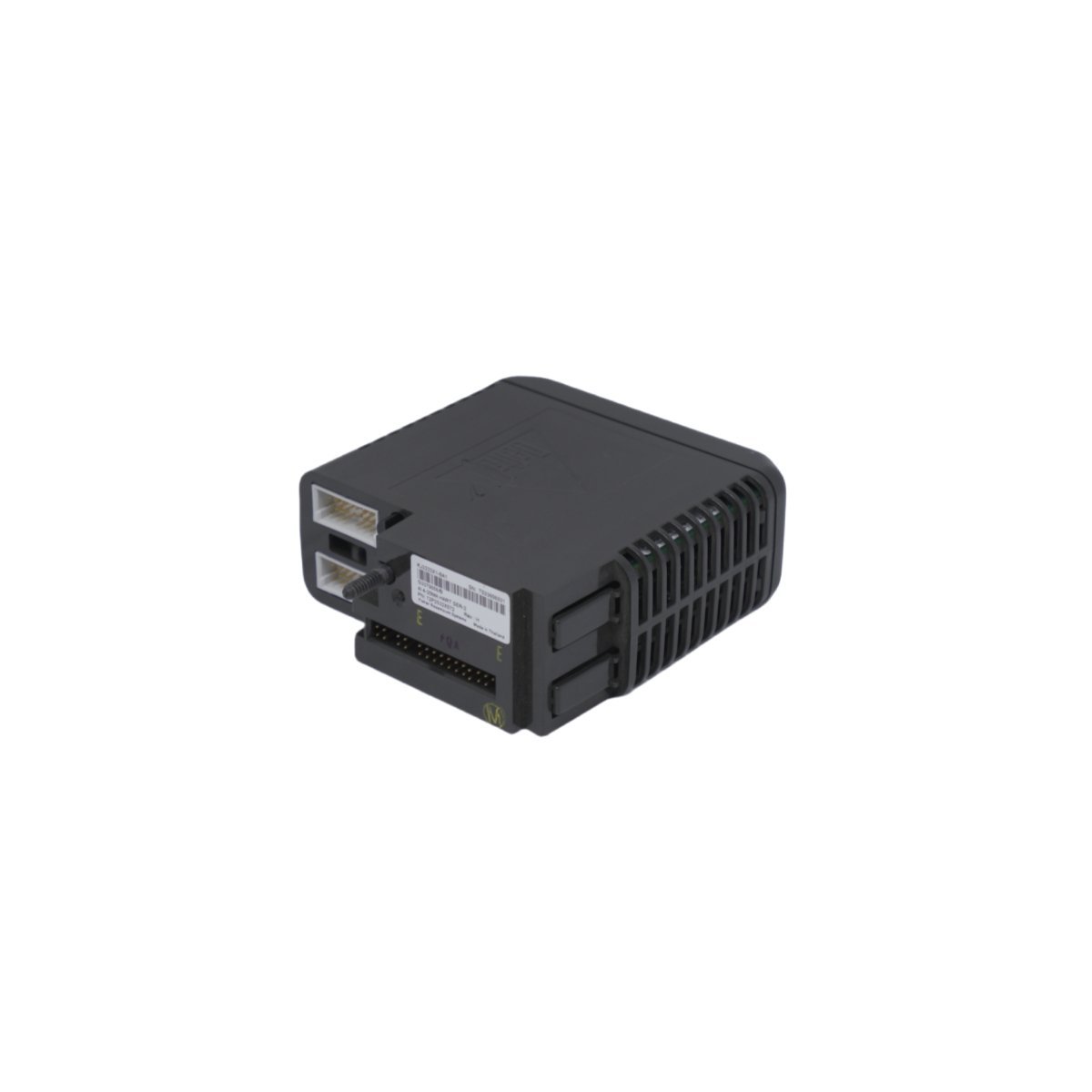

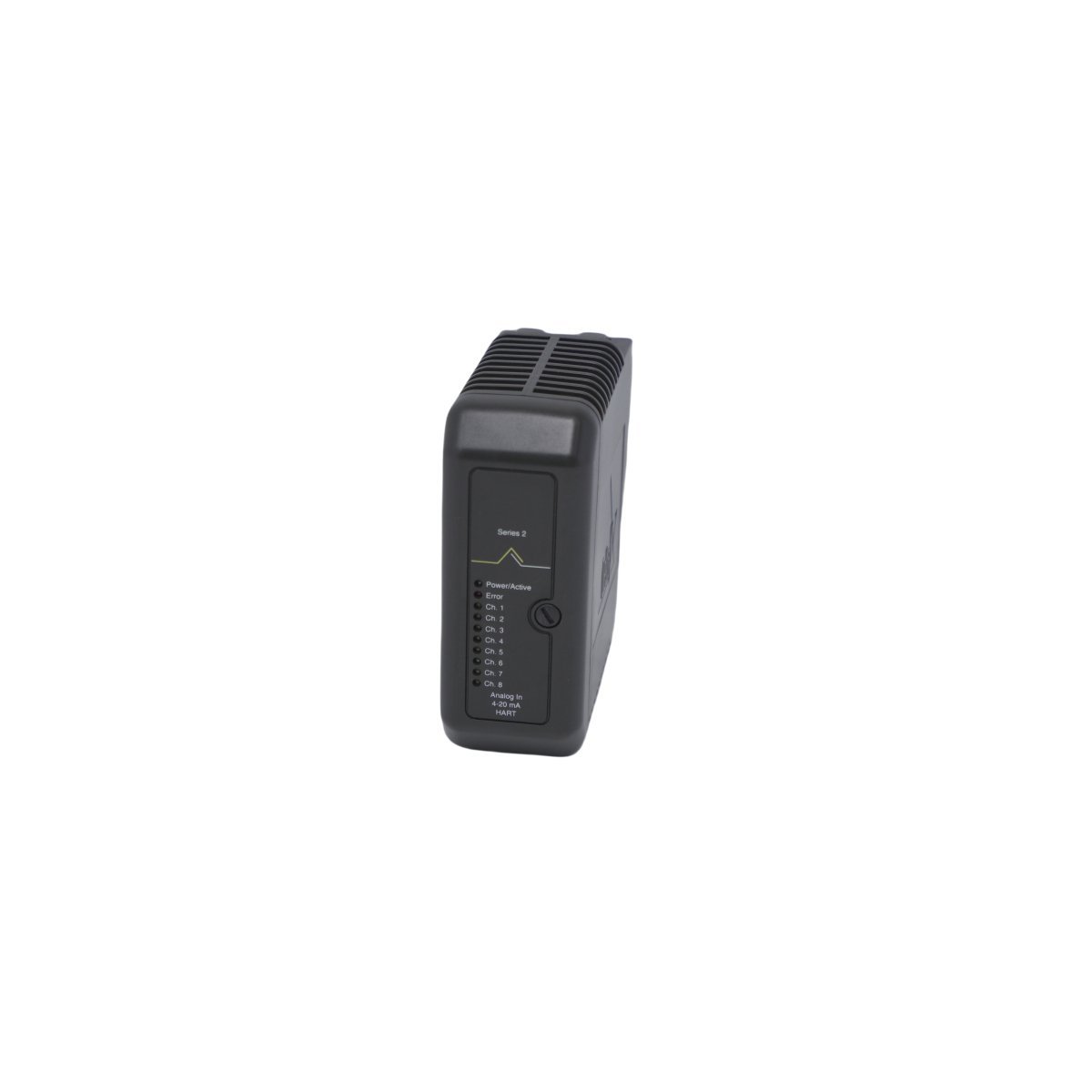

Emerson KJ3222X1-BA1 12P2532X072 DeltaV Input Module
The Emerson KJ3222X1-BA1 (12P2532X072) is an 8-channel M-series analog input module for DeltaV DCS. This high-performance card provides precise signal conversion, HART compatibility, and integrated diagnostics for demanding industrial automation environments.
Description
The Emerson KJ3222X1-BA1 (part number 12P2532X072) functions as a high-precision interface within the DeltaV™ M-series I/O subsystem. This module facilitates reliable data acquisition by converting field signals into digital information for the Distributed Control System. It supports mission-critical automation by maintaining stable communication between field instrumentation and the controller.
Engineered for durability, the KJ3222X1-BA1 operates effectively in demanding industrial settings. The unit includes onboard diagnostics to identify loop faults and hardware failures. This proactive monitoring reduces unplanned downtime and simplifies troubleshooting for maintenance teams. Users can easily integrate this module into existing M-series carriers to expand system capacity.
Technical Specifications and Details
- Manufacturer: Emerson Fisher-Rosemount
- Series: DeltaV M-series I/O
- Model Number: KJ3222X1-BA1
- Part Number: 12P2532X072
- Module Type: 8-Channel Analog Input Card
- Signal Type: 4-20 mA DC / HART
- Origin: United States
- Mass: 0.20 kg
- Dimensions: 10.2 cm x 5.1 cm x 19.1 cm
- HS Code: 85371011
Core Operational Features
This input module utilizes advanced filtering technology to eliminate signal noise in high-interference environments. It provides isolated channels to prevent ground loops from affecting control accuracy. The hot-swappable design allows technicians to replace modules without powering down the entire station.
The 12P2532X072 is compatible with HART-pass-through communication. This feature enables the control system to access secondary variable data from smart field devices. Consequently, operators gain deeper insights into process health and instrument calibration status.
Industrial Applications
The KJ3222X1-BA1 module serves various heavy industries requiring precise process regulation. Common deployment areas include:
- Oil and gas extraction facilities
- Chemical and petrochemical refineries
- Power generation and distribution plants
- Water and wastewater treatment sites
- Pharmaceutical manufacturing lines
Additional information
| Weight | 0.2 kg |
|---|---|
| Country of Origin | USA |
| Dimension | 10.2 x 5.1 x 19.1 cm |
