Description

Brief Product Description

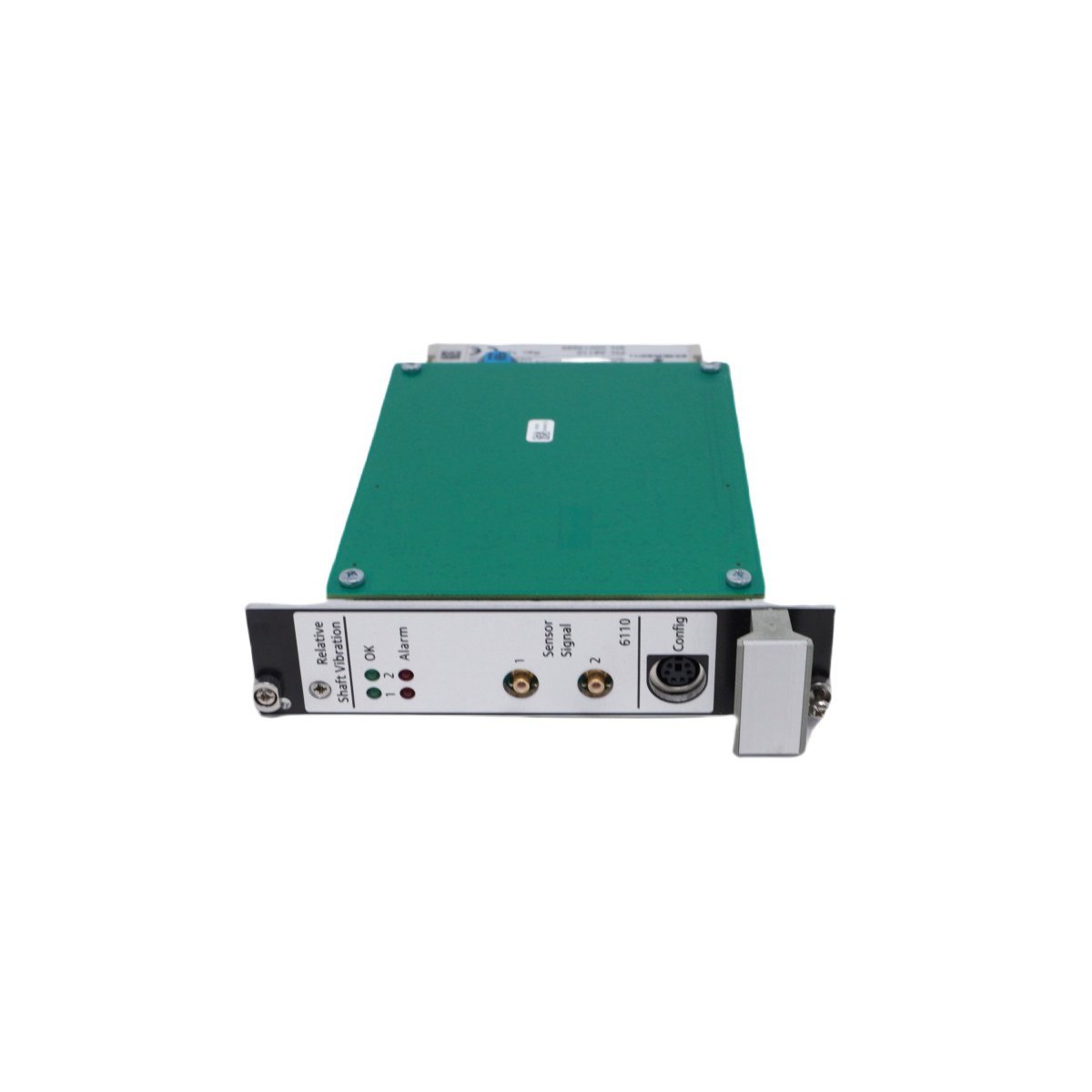

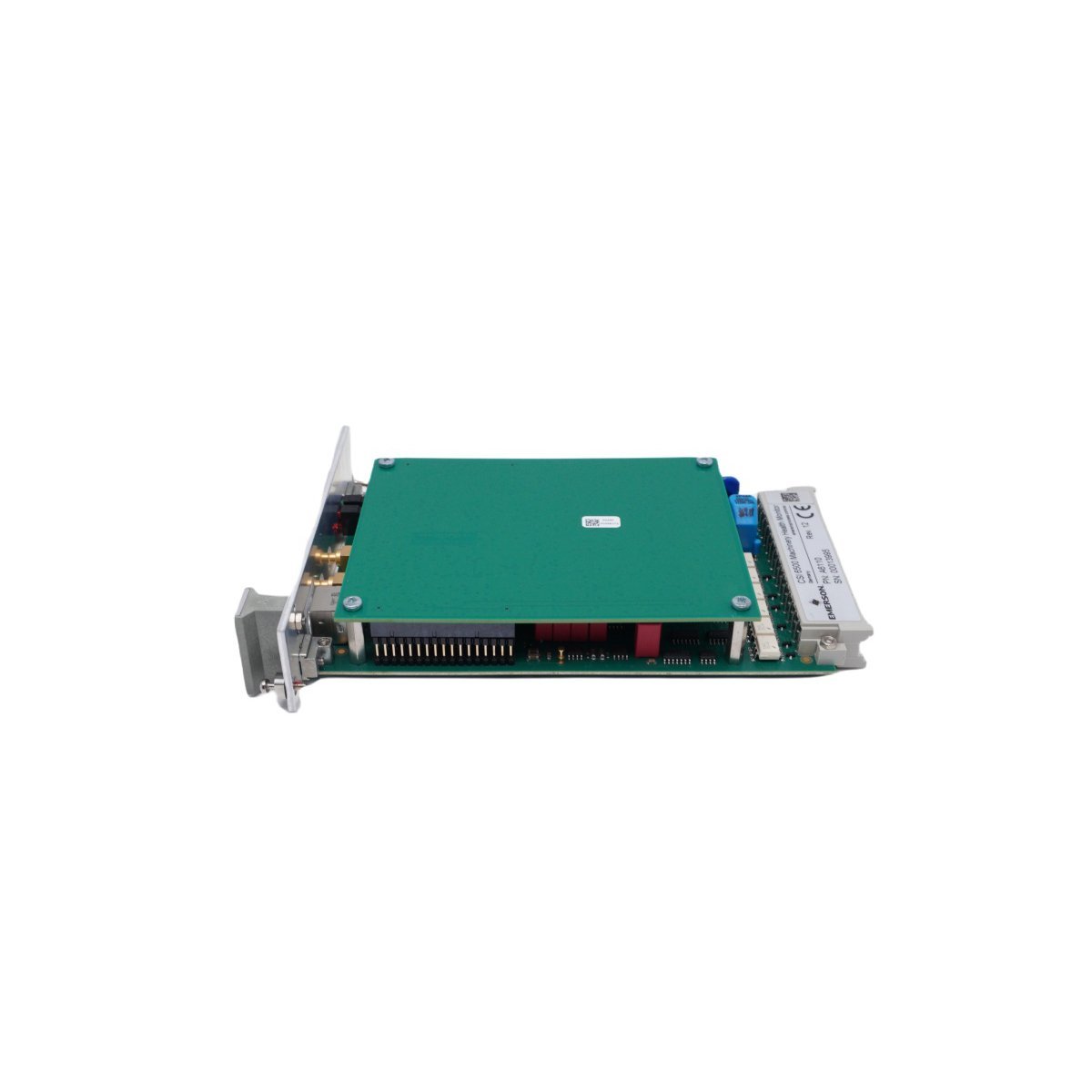

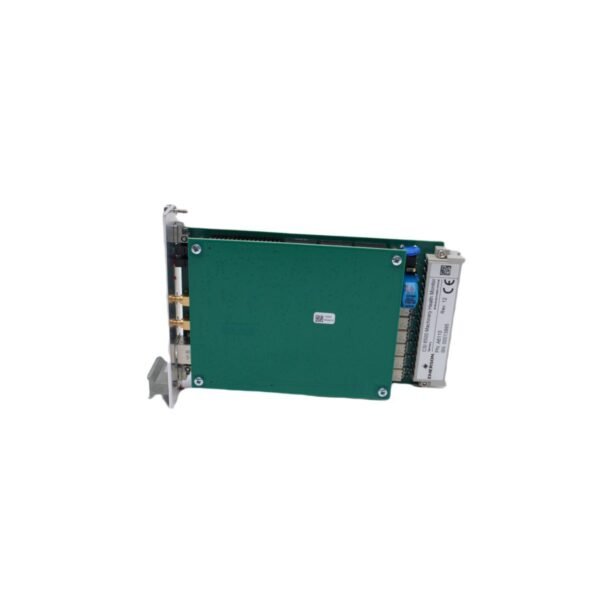

The Emerson A6110 is a high-precision shaft relative vibration monitoring module designed for the AMS 6500 Machinery Health Monitor.¹ It provides continuous surveillance of shaft movement relative to the bearing housing, enabling early detection of mechanical faults in critical rotating equipment.²

​Product Description

Critical Machinery Protection

The Emerson A6110 serves as a specialized monitoring card within the AMS 6500 (formerly CSI 6500) Machinery Health Monitor framework.³ This module primarily tracks shaft relative vibration, measuring the dynamic displacement of a rotating shaft in relation to its sleeve bearings.⁴ By utilizing non-contacting eddy current probes, the A6110 detects subtle shifts in machine behavior that indicate internal wear, hydraulic imbalances, or rotor misalignment.⁵ Consequently, industrial operators can implement automated machine trips or alarm triggers to prevent catastrophic mechanical failure in high-value assets like turbines, compressors, and large pumps.

Seamless Software and System Integration

Engineering teams utilize the A6110 to transform raw sensor data into actionable intelligence. The module integrates natively with AMS machinery health software, which allows users to configure alert thresholds and analyze historical vibration trends.⁶ Because the card supports dual-channel monitoring, it can simultaneously oversee two independent points or a single shaft in the X-Y radial plane.⁷ Furthermore, the module includes buffered outputs for external signal analysis.⁸ This connectivity ensures that maintenance professionals can perform deep-dive diagnostics using portable vibration analyzers without interrupting the primary protection loop.

Rugged Reliability for Extreme Environments

The Emerson A6110 features a robust design capable of withstanding the electromagnetic noise and mechanical stress common in power plants and refineries.⁹ Its circuit architecture prioritizes signal integrity, ensuring that data remain accurate despite the high-vibration grind of industrial operations. While the module reached its official discontinuation phase in late 2018, it remains an essential legacy component for sustaining the lifecycle of existing AMS 6500 racks. By maintaining precise oversight of shaft dynamics, the A6110 continues to reduce unplanned downtime and optimize the overall equipment effectiveness (OEE) of critical rotating machinery worldwide.

Technical Specification Table
