Description

Brief Product Description

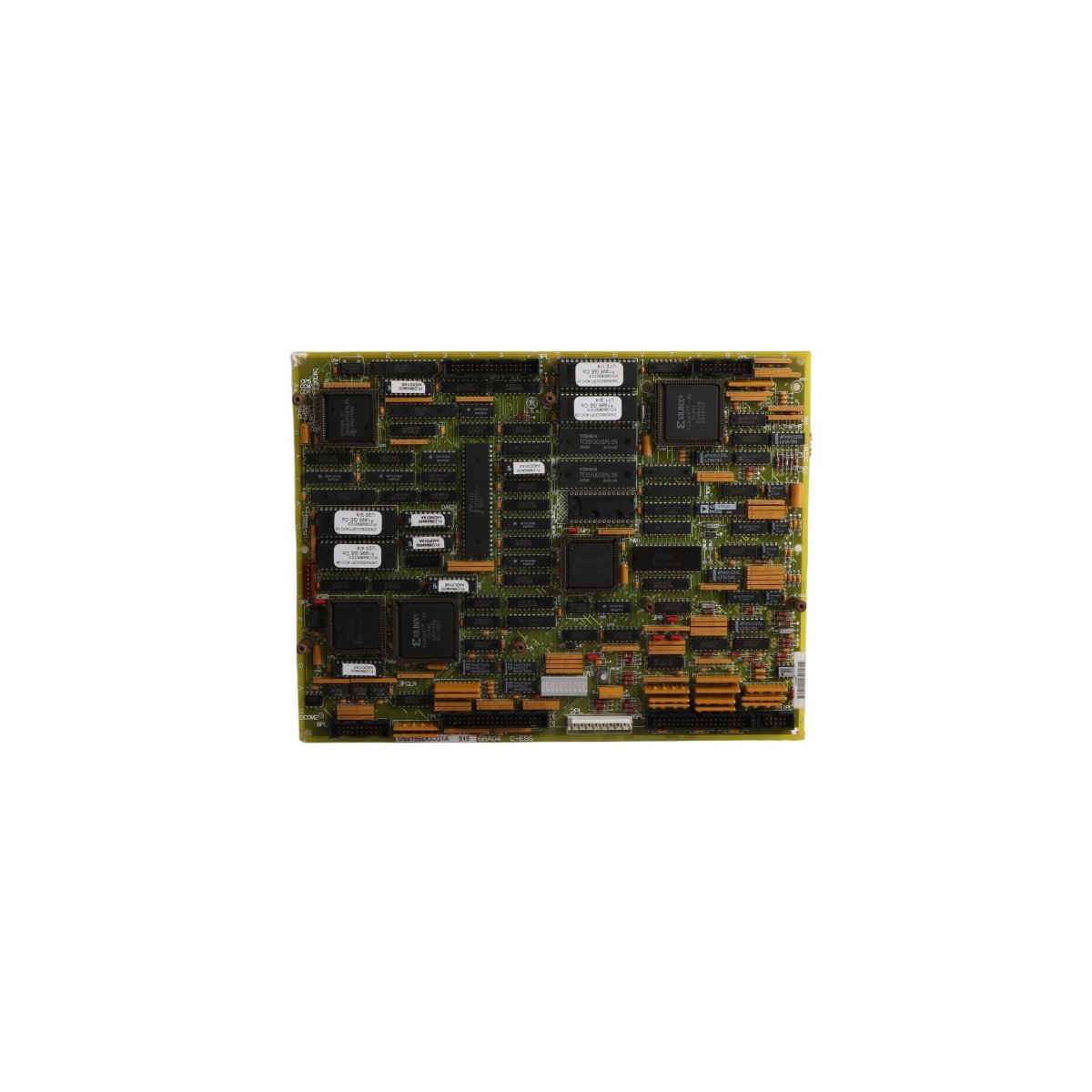

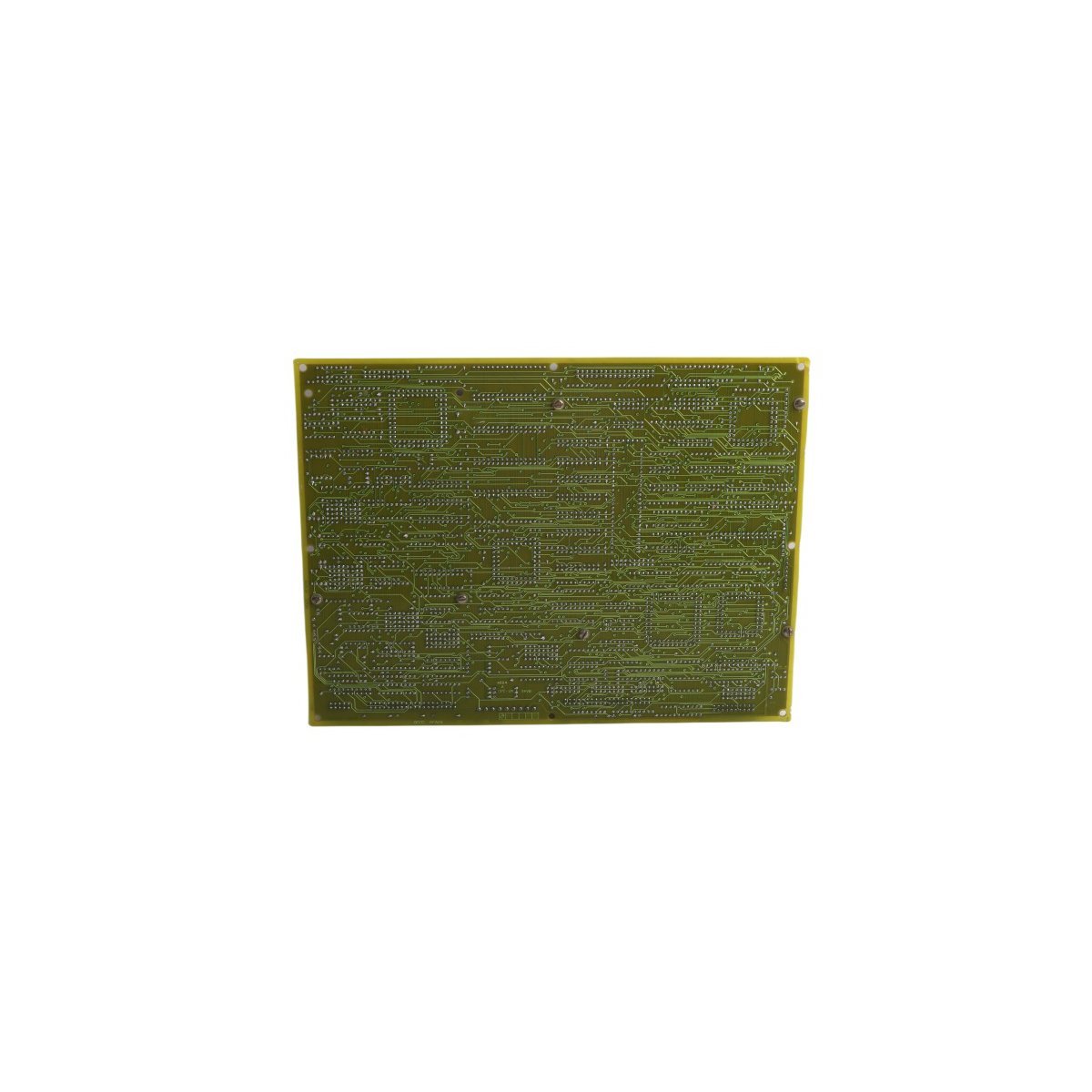

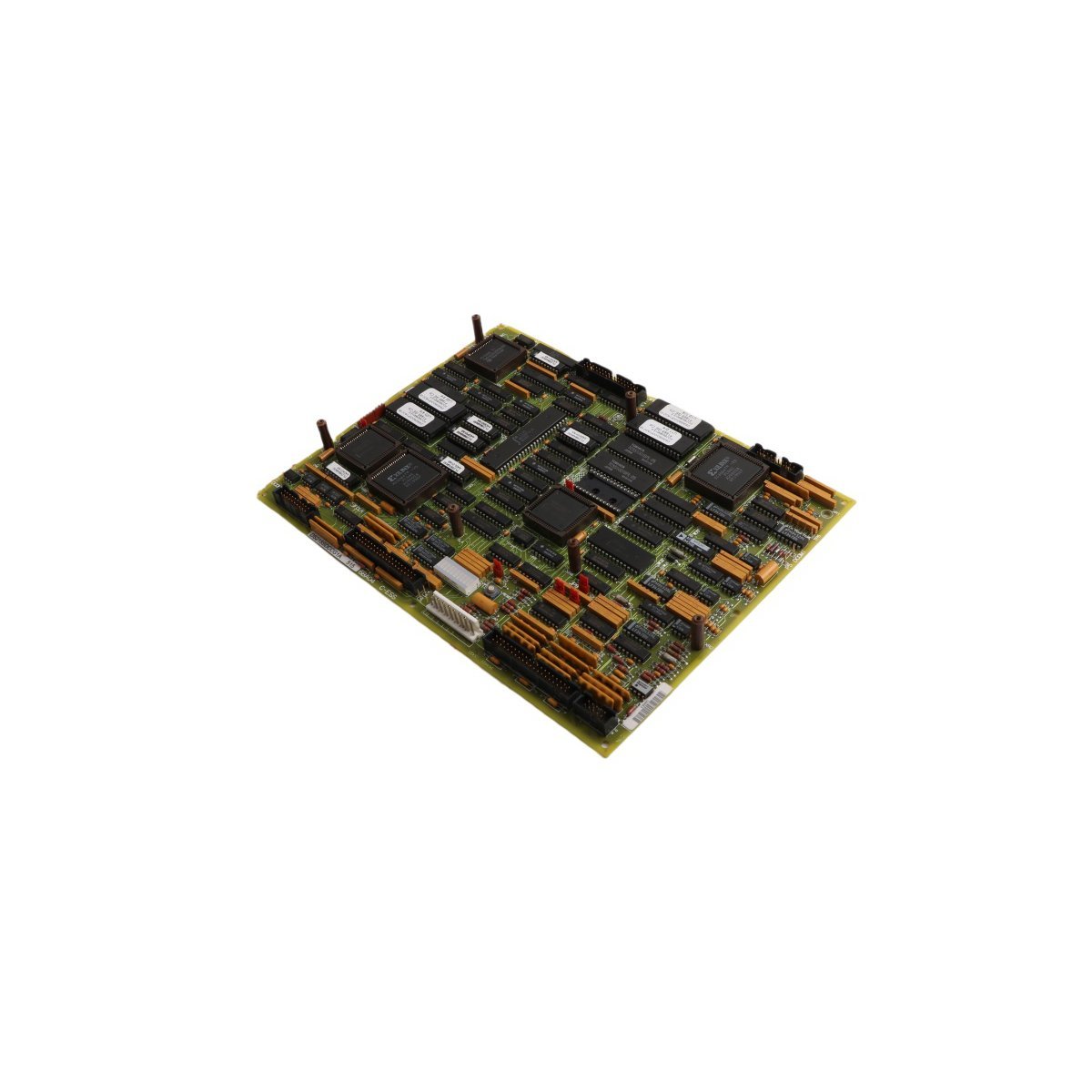

The GE DS215SDCCG1A is an advanced drive control card designed for the Mark V system, featuring a triple-processor architecture for high-speed motor regulation. This module integrates Drive, Motor, and Co-motor processors to manage complex I/O and computational tasks for AC2000, DC2000, and EX2000 drive series.

Advanced Triple-Processor Architecture

The GE DS215SDCCG1A serves as the primary intelligence hub within the Mark V control system, specifically engineered for high-performance motor drive applications. This control card utilizes a sophisticated three-processor design to distribute workloads efficiently.¹ The Drive Control Processor (DCP) manages peripheral communication and high-level I/O tasks, while the Motor Control Processor (MCP) executes the actual motor regulation algorithms. For systems requiring intensive mathematical modeling or higher computational throughput, the Co-motor Processor (CMP) provides supplemental processing power.² This distributed architecture ensures that the drive responds with ultra-low latency to changing load conditions.

Comprehensive Memory and Diagnostic Systems

Data integrity and field adjustability remain central to the DS215SDCCG1A design. The board features five distinct memory chips: four factory-programmed EPROM units (located at U11, U12, U22, and U23) and one field-programmable EEPROM (U9) for site-specific configuration data. To streamline maintenance, the card incorporates a built-in LED display panel.³ This display translates system health into binary or Binary Coded Decimal (BCD) fault codes, allowing technicians to diagnose internal errors without specialized external tools. Furthermore, the inclusion of dedicated test points on the PCB allows for real-time signal tracing during system commissioning.

Integration and Field Connectivity

The DS215SDCCG1A maintains robust communication across the drive system through several high-density plug-in connectors. It utilizes the 1PL interface for primary power, the 3PL interface for LAN-based communication, and the 6PL connector to bridge the control logic with the drive terminal board. These interfaces allow the card to function as a seamless controller for GE’s AC2000, DC2000, and EX2000 series. When performing a field replacement, technicians must transfer existing software settings to the new card to ensure perfect synchronization with the legacy drive parameters.

Key Technical Characteristics

• Triple-Processor Logic: Segregates I/O, motor control, and complex math across three dedicated microprocessors.
• Hybrid Memory Storage: Combines stable factory EPROMs with a user-adjustable EEPROM for configuration flexibility.
• Real-Time Diagnostics: Features an onboard LED display for immediate viewing of BCD-formatted fault codes.
• Multi-Drive Compatibility: Supports a wide range of GE industrial drives, including AC2000 and EX2000 models.
• Secure Communication: Employs specialized PL-series connectors for power, LAN, and terminal board interfacing.
• Simplified Troubleshooting: Includes accessible hardware test points for measuring critical circuit voltages and signals.
