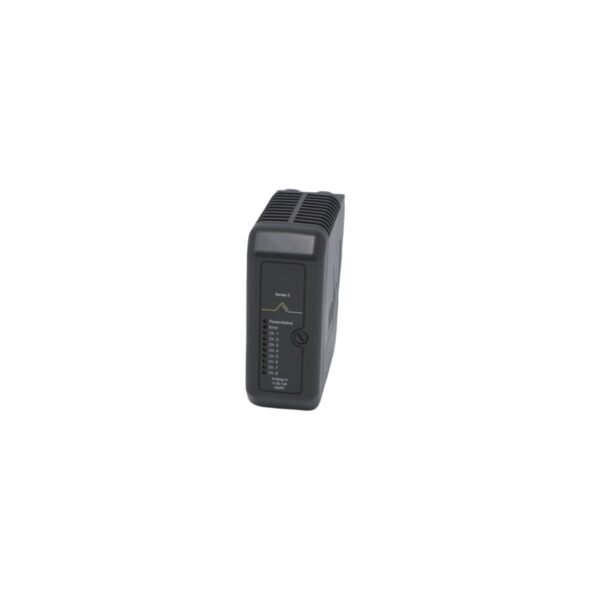

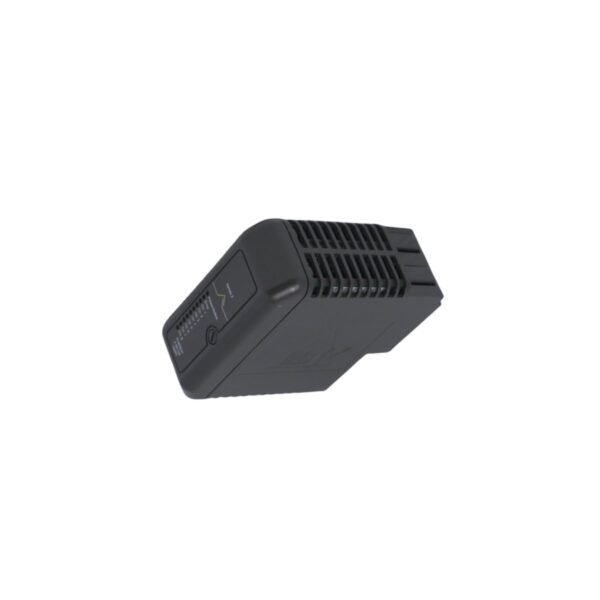

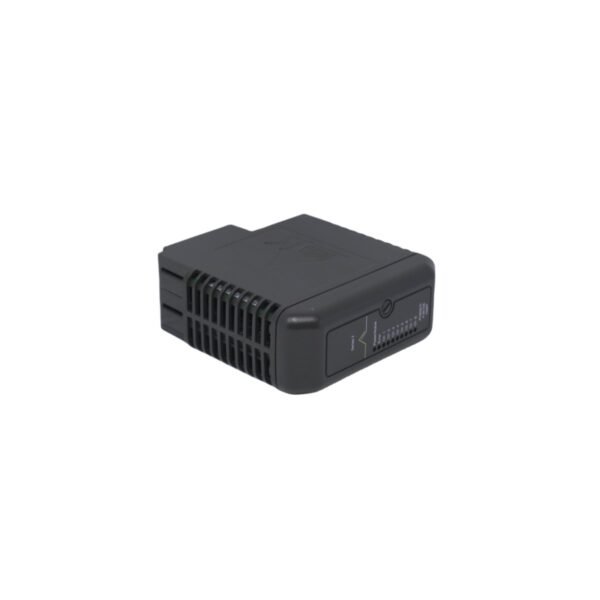

The Emerson KJ3222X1-BA1 is a high-density Analog Input Card for the DeltaV™ M-series platform, supporting 4-20 mA signals with integrated HART communication. This Series 2 redundant module ensures continuous data acquisition and advanced field device diagnostics for critical industrial processes.

Product Description

High-Precision Analog Data Acquisition

The Emerson KJ3222X1-BA1 (Part Number 12P2532X072) functions as a sophisticated interface for analog field instruments within the DeltaV™ Distributed Control System. This module processes 4-20 mA signals with high resolution, ensuring that the control layer receives accurate real-time data from sensors and transmitters. By utilizing integrated HART technology, the card allows operators to access secondary variable data and calibrated device information directly through the DCS. This capability effectively bridges the gap between simple process values and complex asset management, facilitating a more transparent view of field operations.

Redundancy and System Availability

Engineers developed the VE4003S2B2 Series 2 card specifically for mission-critical applications where downtime is unacceptable. The module supports fully redundant configurations, allowing a secondary card to take control instantaneously should the primary unit encounter a fault. This transition occurs without interrupting the process signal, thereby maintaining system stability in volatile environments like chemical processing or oil and gas refining. Furthermore, the module includes advanced internal diagnostics that monitor the health of the I/O circuitry, alerting maintenance teams to potential issues before they escalate into system failures.

Modular Integration and Industrial Resilience

The KJ3222X1-BA1 module features a compact, modular design that snaps into the DeltaV M-series I/O subsystem backplane. This architecture supports “hot-swapping,” enabling technicians to replace modules under power without disturbing the remaining I/O on the same carrier. To ensure longevity in harsh conditions, the card employs robust electronic shielding and thermal management. Additionally, when paired with the proper fused I/O termination blocks, the module provides localized circuit protection, which prevents external wiring faults from damaging the central control hardware.
