Description

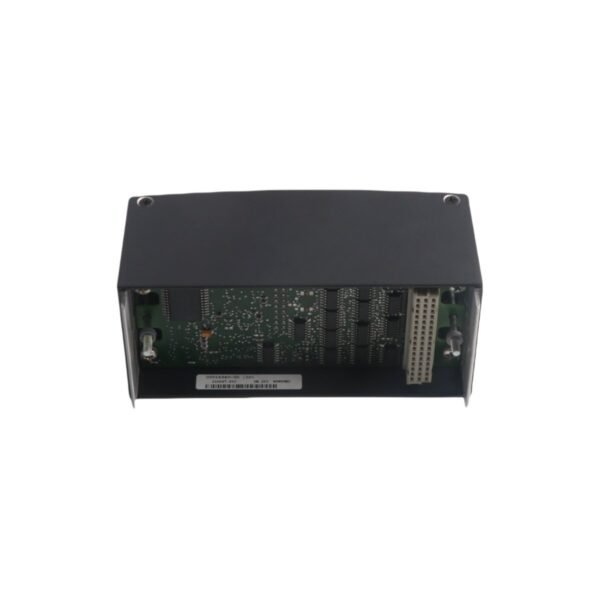

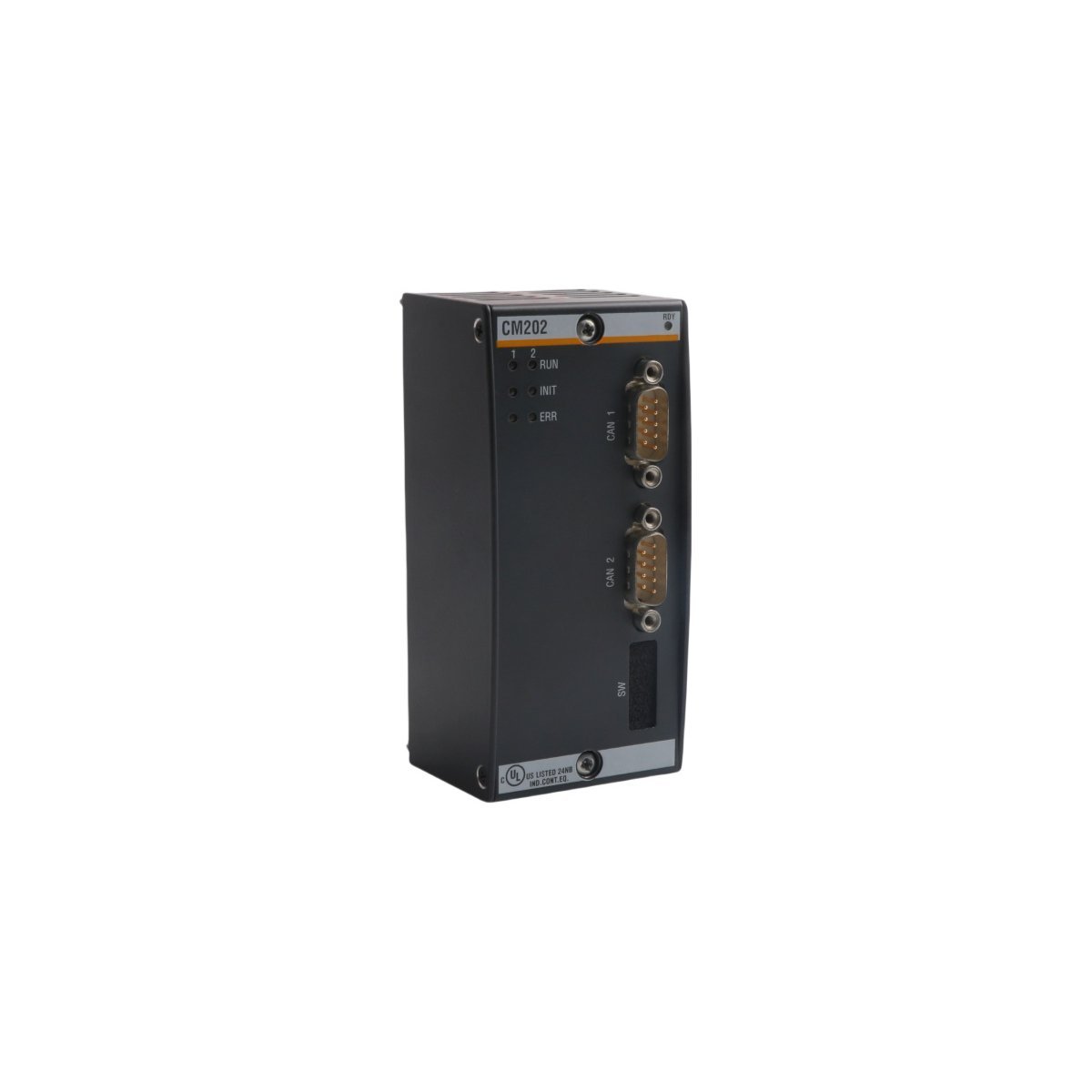

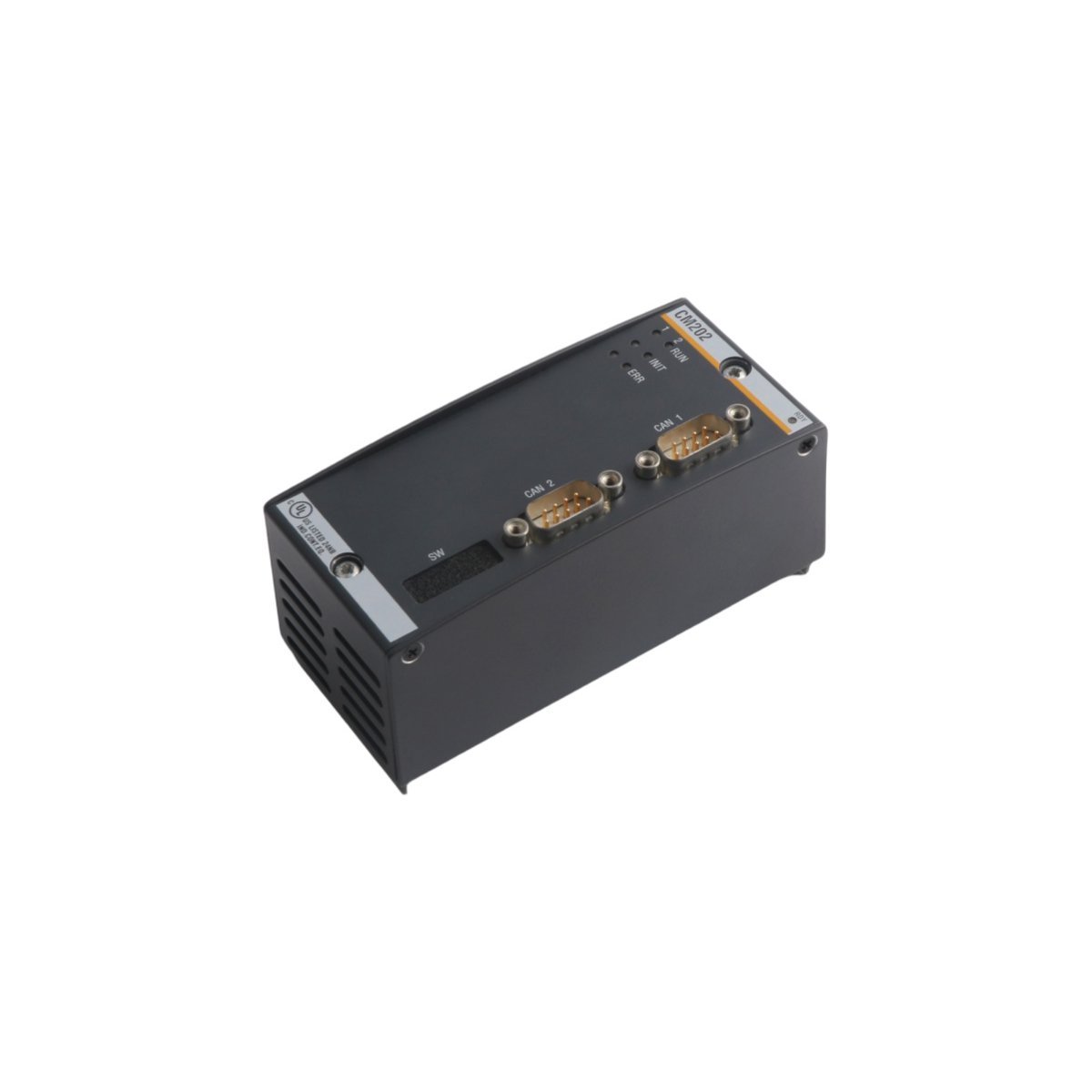

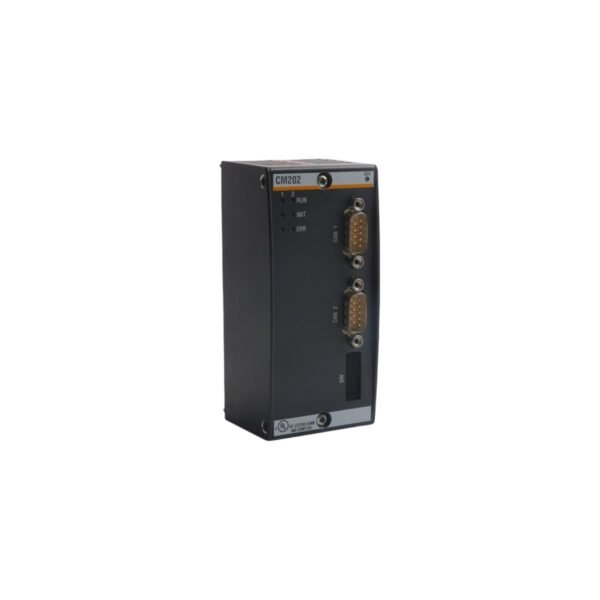

Bachmann CM202 Dual-Interface CANopen Master Gateway

The CM202 is a high-performance communication module for the Bachmann M1/M200 system, providing two independent CAN interfaces that support flexible NMT master or slave configurations.

Technical Operational Overview

The CM202 functions as a high-speed communication gateway, enabling the Bachmann M200 controller to act as a central hub for distributed CANopen networks. This module features two galvanically isolated CAN interfaces, each capable of independent configuration as an NMT master or slave. By supporting a wide transmission range from 10 Kbaud to 1 Mbaud, the CM202 allows engineers to optimize network speed based on cable distance, reaching up to 5000 meters with appropriate signal amplification.

System scalability remains a primary advantage, as an M200 controller can host up to four CM202 modules simultaneously. This configuration empowers a single PLC to manage eight discrete CAN networks, ensuring high data throughput and deterministic control across complex automation architectures. The module implements a full suite of CANopen services, including SDO, PDO, and LMT protocols, while offering advanced network monitoring through Heartbeat and Node Guarding mechanisms. Integration with the Bachmann SolutionCenter further streamlines the commissioning process by providing real-time diagnostics and signal analysis.

Key Technical Characteristics

• Dual-Channel Independence: Operates two separate CAN buses on a single module, effectively doubling the network capacity per slot.
• Flexible Node Roles: Supports both master and slave functionality, allowing the module to integrate into existing networks or lead new ones.
• Extensive Protocol Support: Executes full CANopen standards including SDO, LMT, LSS, and emergency messaging for comprehensive device management.
• Robust Signal Isolation: Employs galvanic isolation and short-circuit protection to maintain communication integrity in high-interference environments.
• Adjustable Bitrates: Provides user-selectable transfer rates up to 1 Mbit/s, facilitating both high-speed local control and long-distance remote monitoring.
• Enhanced Diagnostics: Utilizes the Bachmann SolutionCenter API for simplified troubleshooting, network supervision, and performance tuning.

Product Specifications

Industrial Applications

The CM202 is ideally suited for infrastructure-heavy sectors, including:

• Marine Engineering: Interfacing with engine room sensors and bridge navigation systems via CANopen.
• Energy Management: Supervising distributed power converters and battery storage systems.
• Heavy Machinery: Coordinating multi-axis hydraulic systems and mobile controller units in mining or construction equipment.
