Description

Brief Product Description

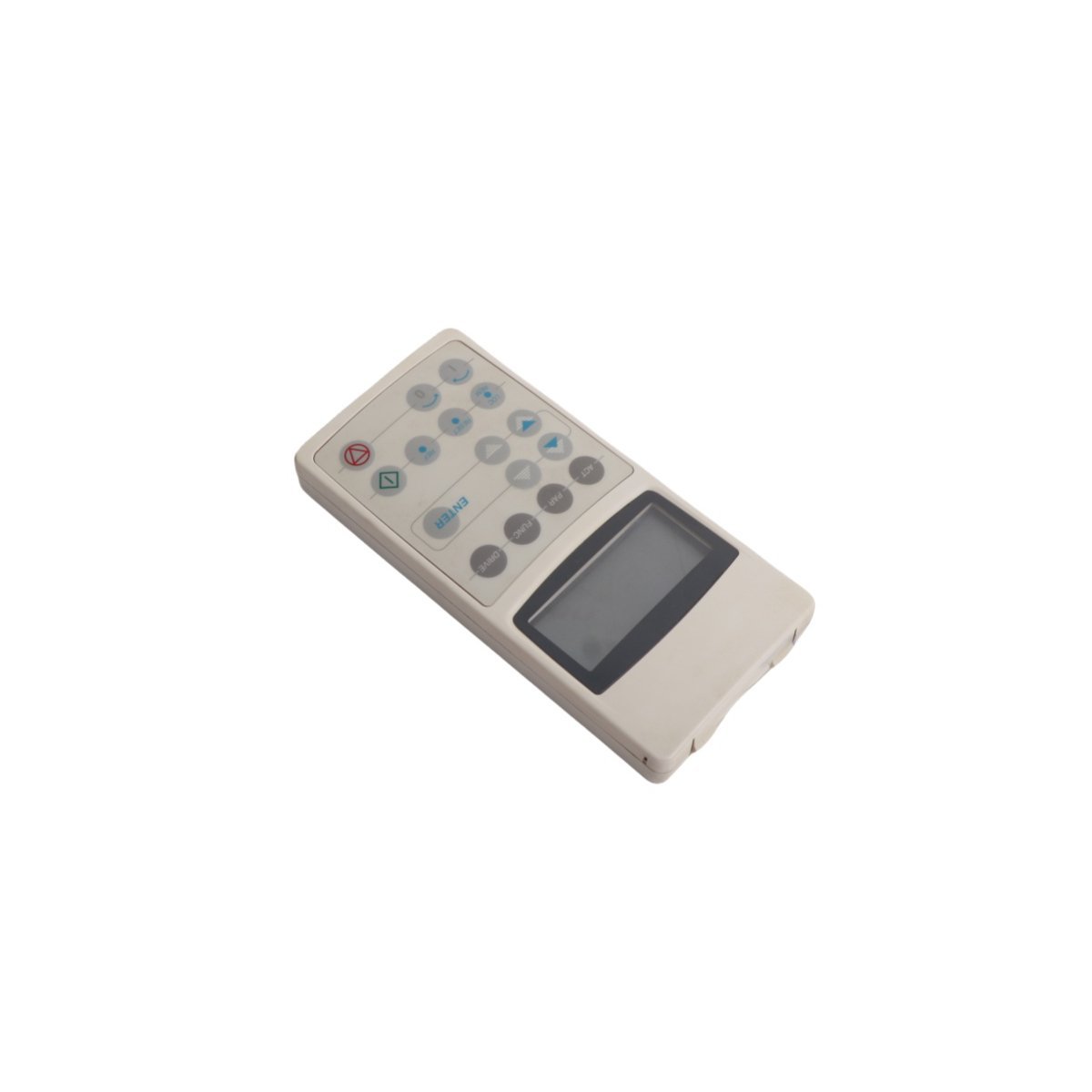

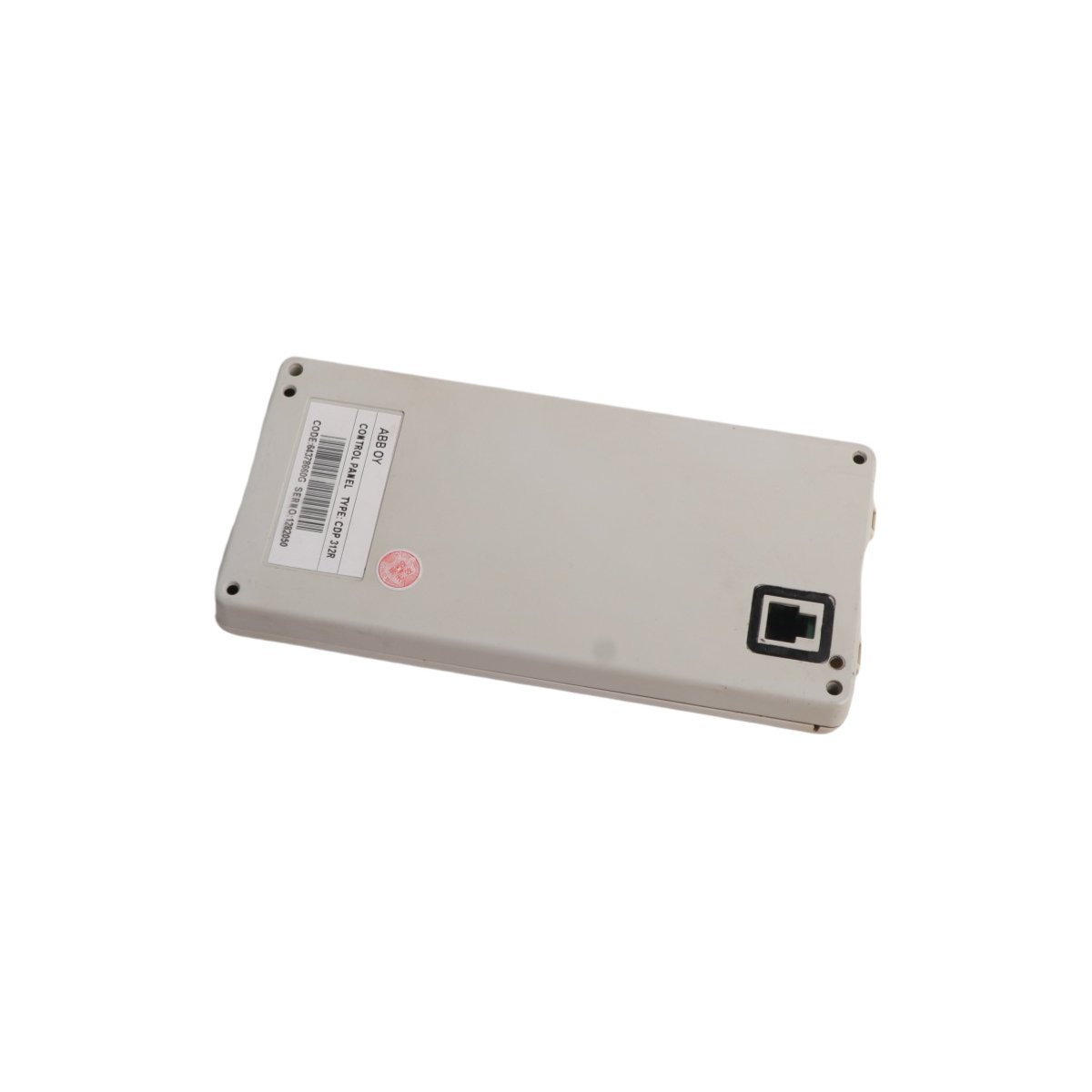

The ABB CDP312R is a high-resolution LCD control panel designed for the configuration and monitoring of ACS800 series industrial drives. It provides operators with real-time signal visualization and a multi-mode navigation interface to manage complex motor parameters efficiently.

Product Description

Versatile Operator Interface and Monitoring

The ABB CDP312R serves as the primary human-machine interface for ACS800 frequency converters, enabling seamless interaction between the operator and the drive hardware. Featuring a clear, backlit LCD screen capable of displaying four lines of 20 characters each, this unit ensures that critical process data remains legible in various lighting conditions. At initial power-up, the system prompts the user to select a localized language via parameter 99.01, significantly reducing the learning curve for global maintenance teams. This accessibility, combined with a rugged industrial housing, makes the CDP312R an essential tool for local drive control and system diagnostics.

Dynamic Navigation and Mode Control

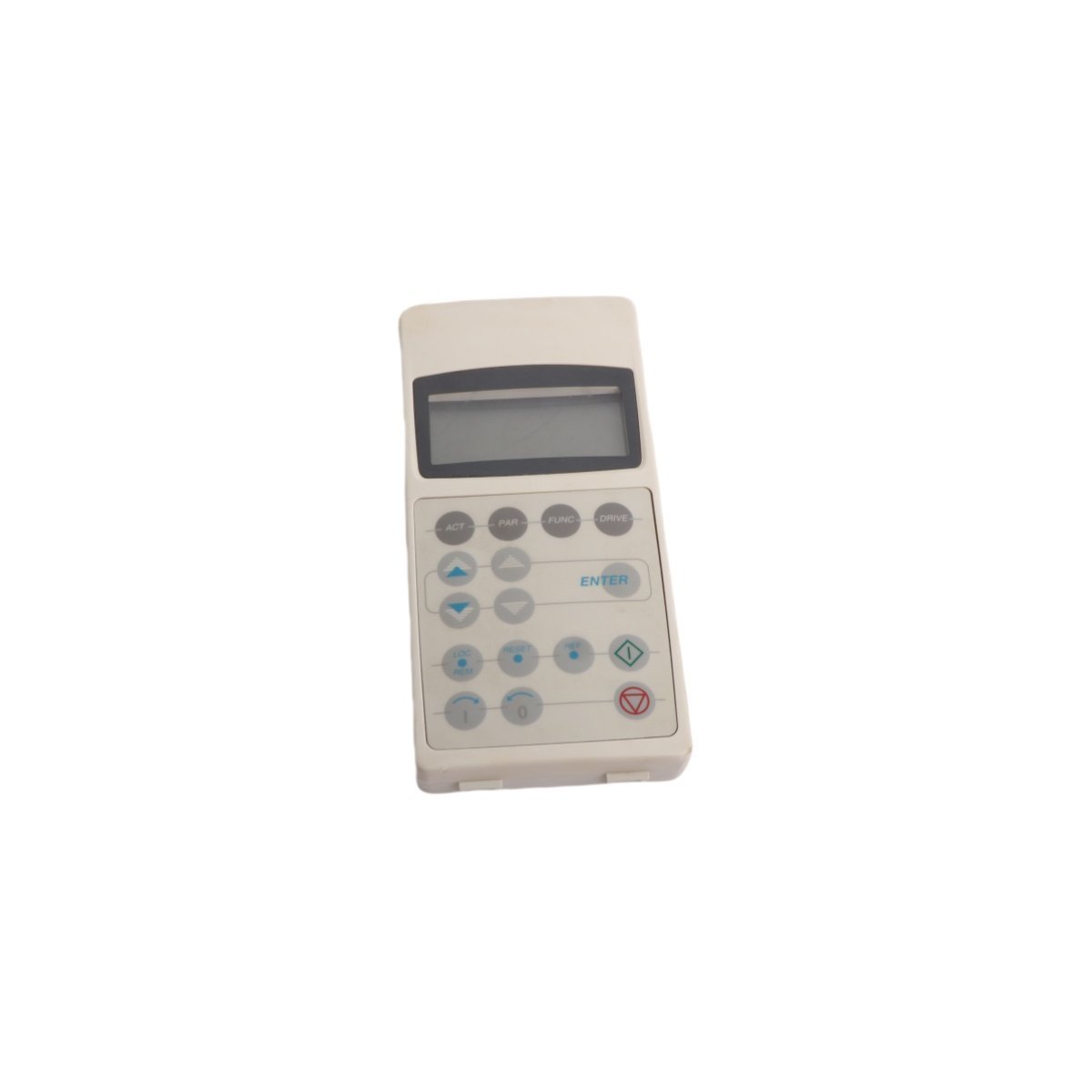

Operators navigate the drive’s software architecture using a set of dedicated functional keys that streamline system management. The CDP312R control unit utilizes the ACT key to trigger Actual Signal Display Mode for live monitoring, while the PAR key opens Parameter Mode for deep-level configuration. For more complex logic adjustments, the FUNC key provides access to specialized function modes. Furthermore, the DRIVE key allows users to toggle control between multiple connected drives within a network, centralizing command and reducing the need for multiple interface points in large-scale DCS applications.

Intuitive Command Execution

To facilitate rapid data entry and menu scrolling, the ABB CDP312R incorporates a tiered arrow-key system. Single arrow keys allow for precise, line-by-line scrolling, whereas double arrow keys enable high-speed transitions through extensive parameter lists. The ENTER key confirms selections, with its specific functionality adapting dynamically based on the active operational mode. This intelligent design minimizes the risk of accidental input during critical industrial processes. By integrating this panel with ABB AC 500 PLC systems or ACS800 drive lineups, facilities gain a reliable and durable platform for maintaining high-performance automation standards.
