Brief Product Description

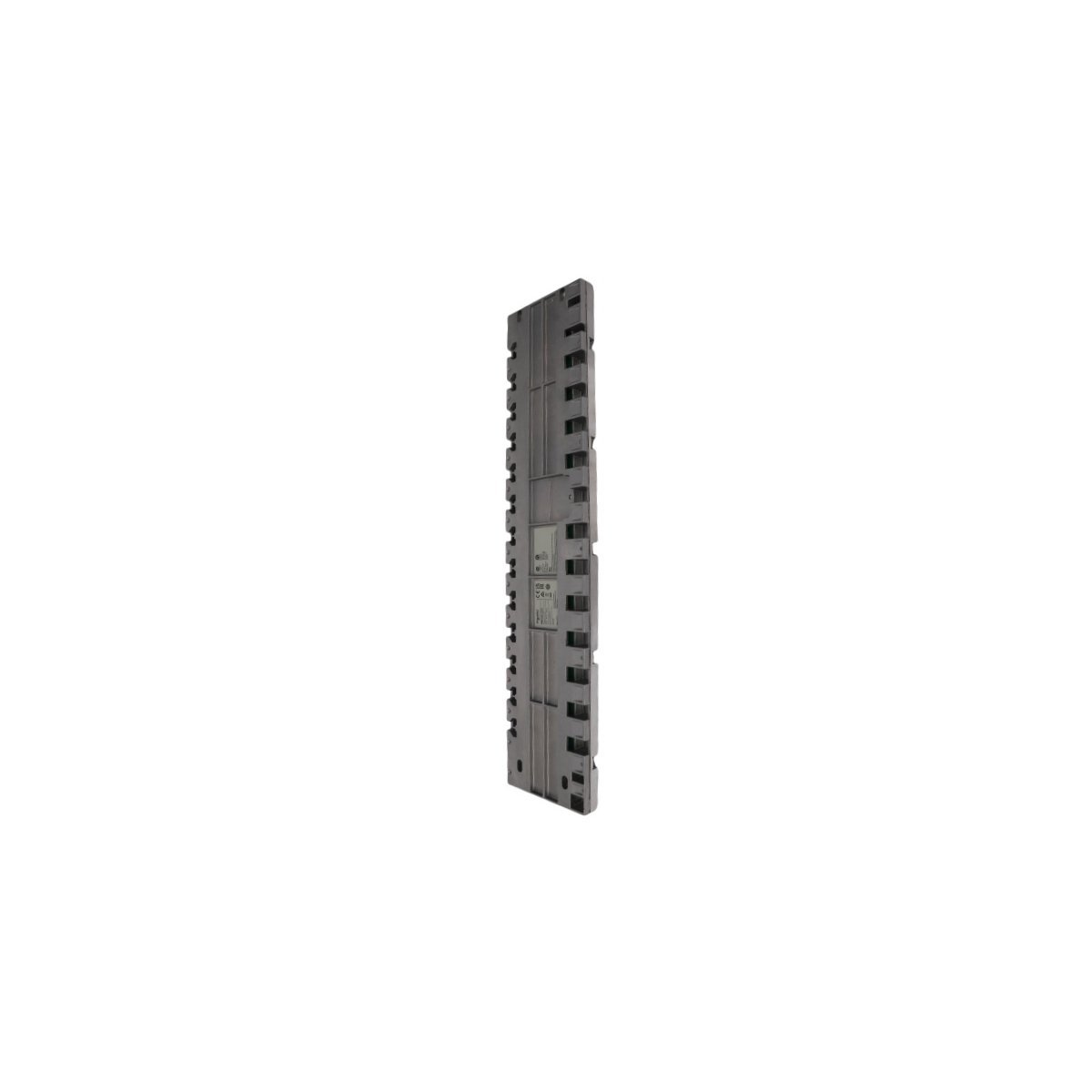

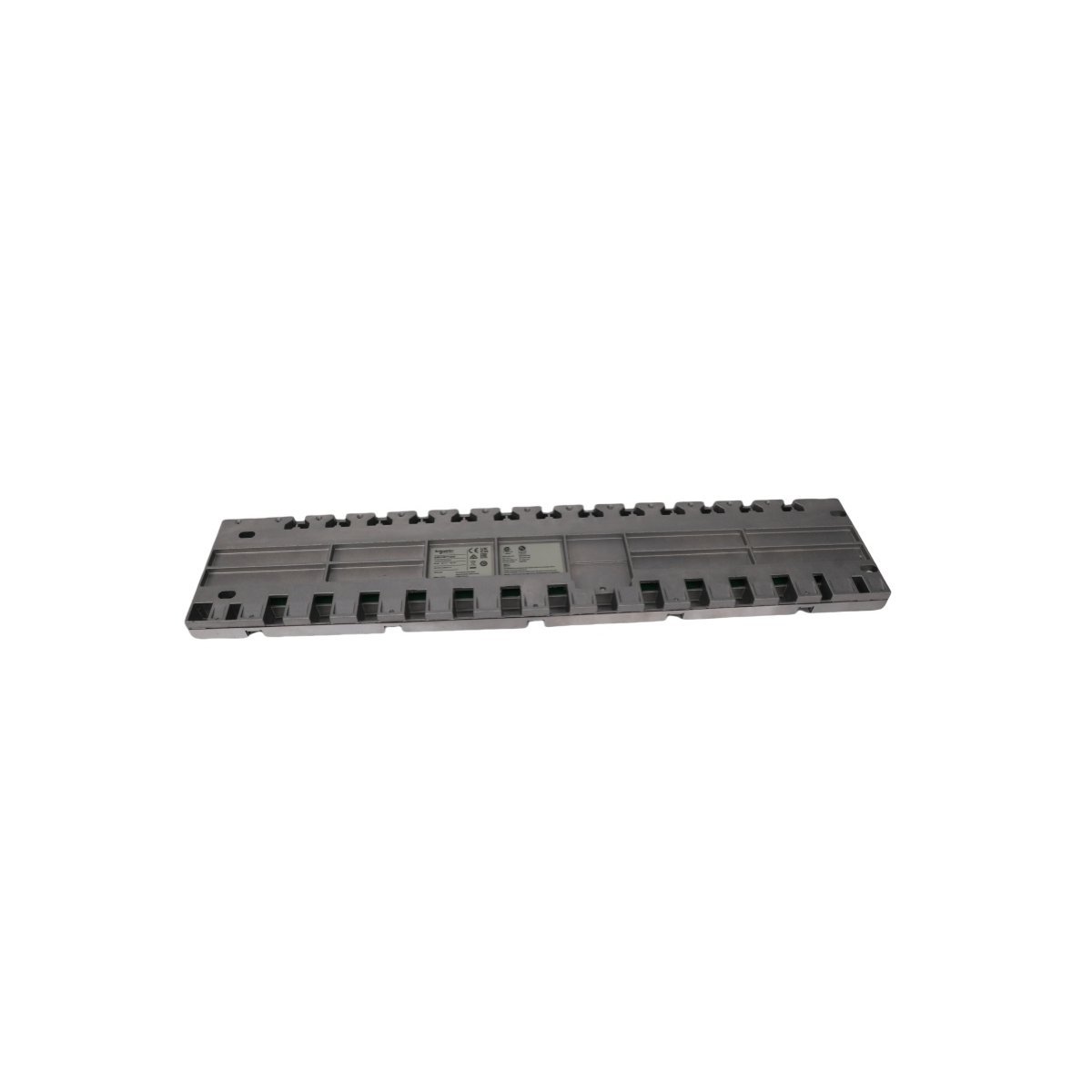

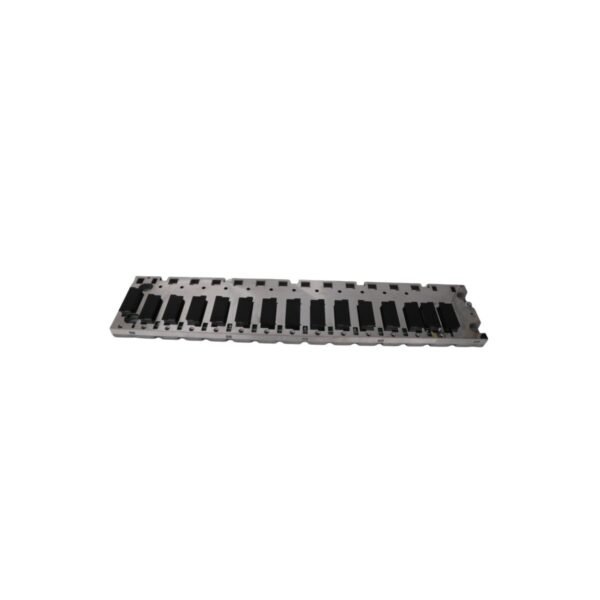

The Schneider Electric BMEXBP1200 is a high-performance 12-slot Ethernet backplane designed for the Modicon X80 platform.³ It provides the essential physical and electrical backbone for M580 and M340 PLC systems, supporting simultaneous dual Ethernet and X-bus communication.⁴

​Product Description

The BMEXBP1200 serves as a foundational component of the Schneider Electric Modicon X80 series, acting as the primary housing for advanced Programmable Automation Controllers (PAC). This 12-slot rack utilizes a hybrid architecture that facilitates both high-speed Ethernet communication and traditional X-bus data exchange.⁵ By integrating these two protocols, the backplane allows for the seamless operation of mixed module configurations, where eight slots support Ethernet-based modules and four slots remain dedicated to X-bus connectivity.⁶ This versatility enables industrial facilities to scale their control systems efficiently, accommodating everything from standard I/O to sophisticated communication processors.

Industrial-Grade Reliability and Architecture

Engineered to endure the stressors of continuous process environments, the BMEXBP1200 boasts an impressive Mean Time Between Failures (MTBF) of 1.5 million hours.⁷ This longevity stems from its robust mechanical design and efficient electrical distribution, consuming only 164mA at 24V DC.⁸ Furthermore, the rack supports hot-swapping for compatible modules, which significantly reduces system downtime during maintenance or expansion.⁹ The hardware operates reliably across a temperature gradient of 0°C to 60°C and maintains an IP20 protection rating. Because it functions as a universal platform for both Modicon M580 and M340 systems, it simplifies spare parts management and reduces long-term operational costs.¹⁰

Optimized Integration and System Expansion

Schneider Electric optimized the BMEXBP1200 for easy installation and future-proofing. It includes a dedicated connector for XBE expansion modules, allowing users to extend their I/O configurations across multiple racks without signal degradation. The backplane complies with the EN 61131-2 standard for programmable controllers, ensuring high safety and performance benchmarks.¹¹ Additionally, this model serves as the modern successor to legacy systems like the Quantum 140XBP01600, offering a clear upgrade path for facilities looking to modernize their automation infrastructure with high-availability Ethernet I/O capabilities.¹²
